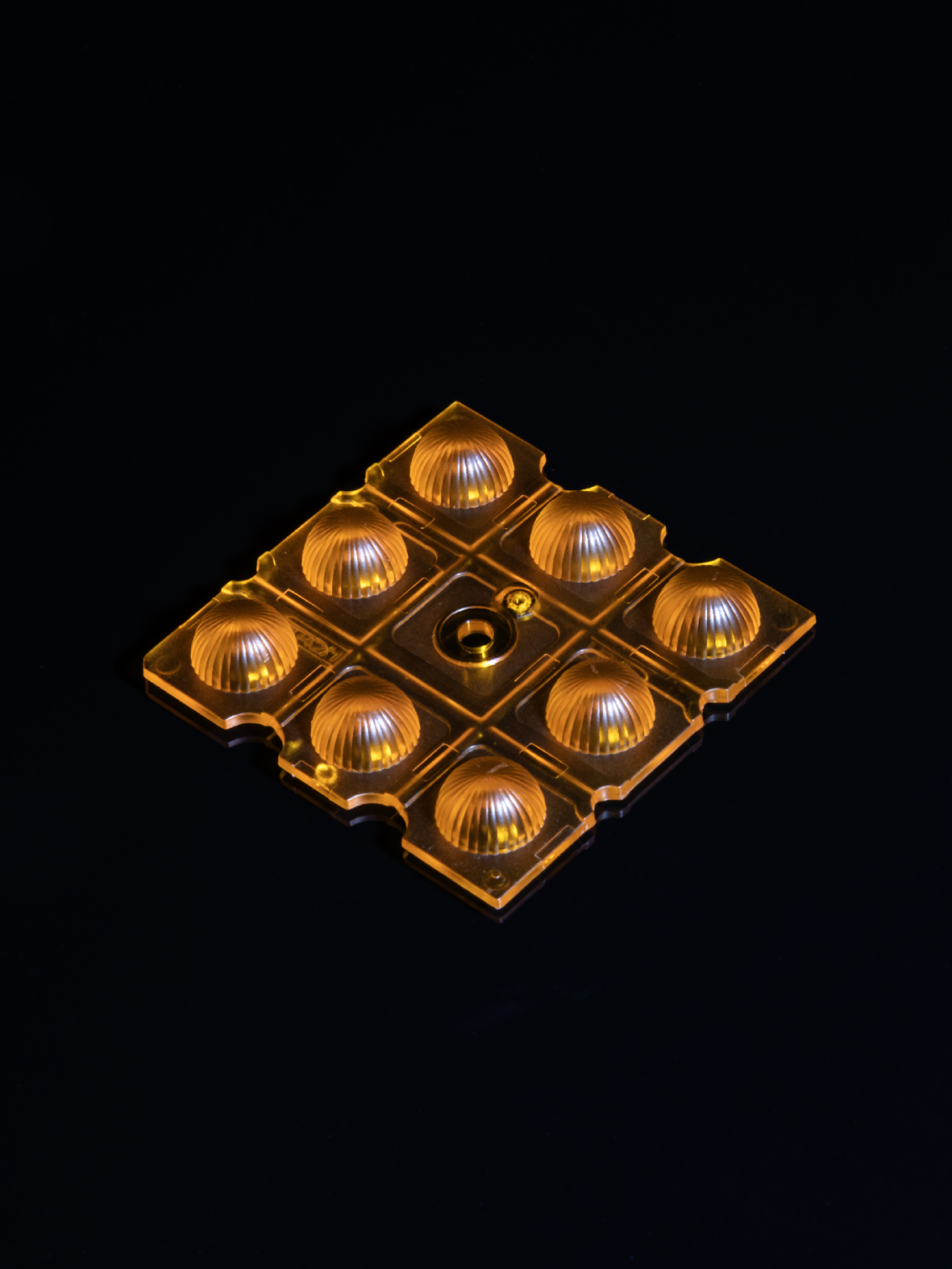

    C19207_AMBER-8-HB-W

    Print

    ~90° wide beam for industrial applications

    Specification
    • Dimensions:
      50 x  50 mm
    • Height:
      7.12 mm
    • Fastening:
      pin, screw
    • Colour:
      amber
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    Ordering information
    • Quantity in box:
      800 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      6.1 kg
    • MPQ:
      160 pcs
    • MOQ:
      160 pcs
    • MOQ size:
      480 x 280 x 80 mm
    • MOQ weight:
      1.5 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C19207_AMBER-8-HB-W

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    New beams and products – October 2023

    Application area

    Urban lighting with LEDiL optics

    Application guide

    LEDiL guide for urban lighting optics

    Article

    See the stars in the centre of the city - How to reduce light pollution in urban environments

    News

    Create biologically sustainable lighting with LEDiL AMBER lenses

    Application area

    Outdoor Special Applications

    Application area

    Area and Car Park Lighting

    Application area

    Street Lighting

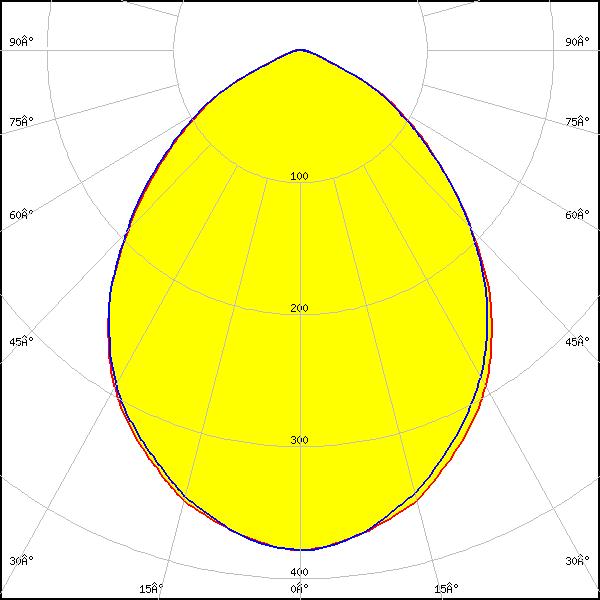

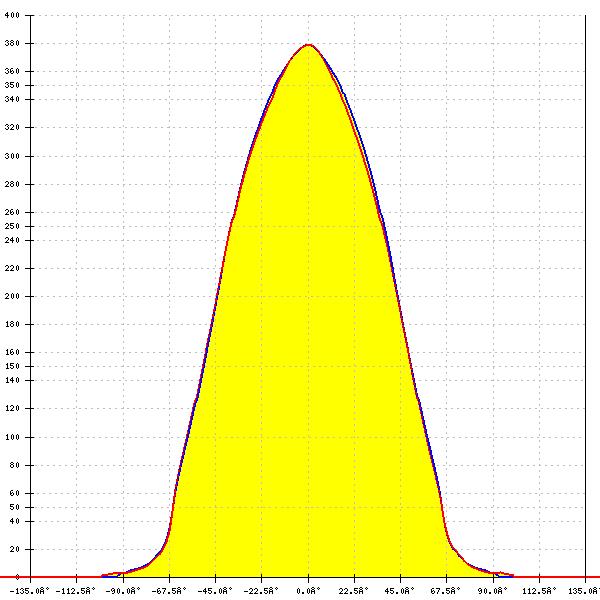

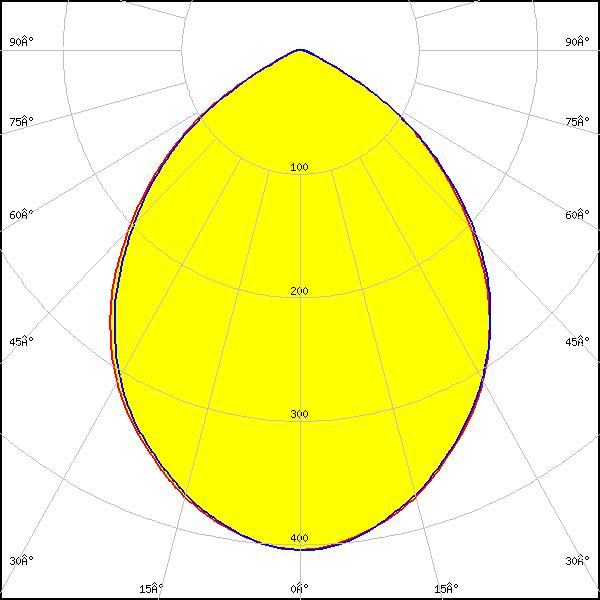

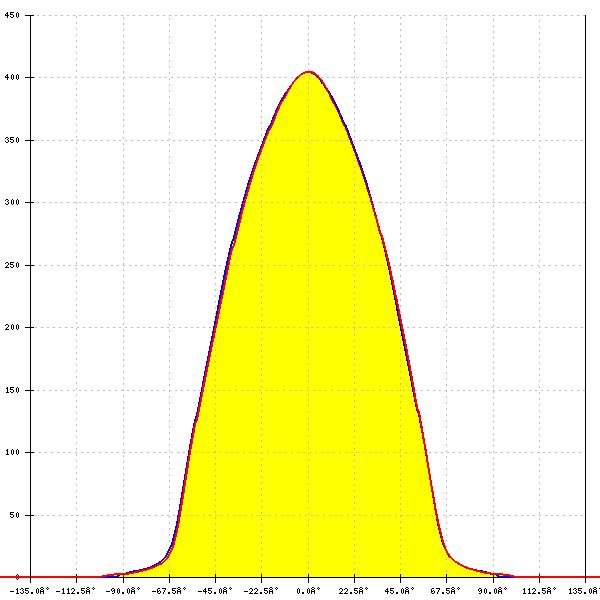

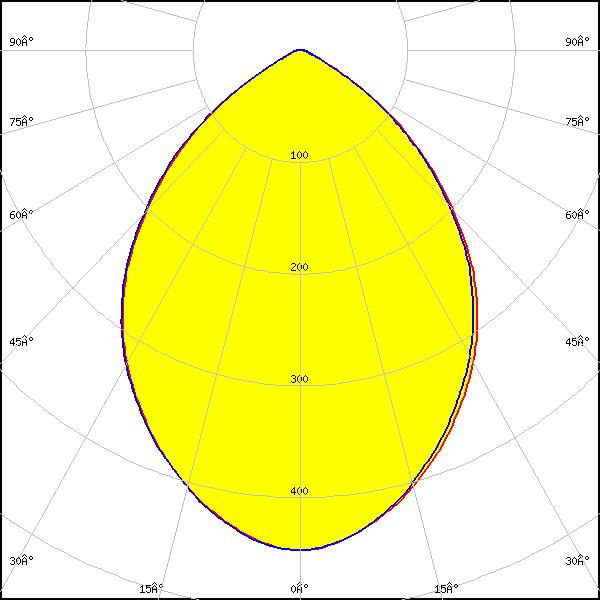

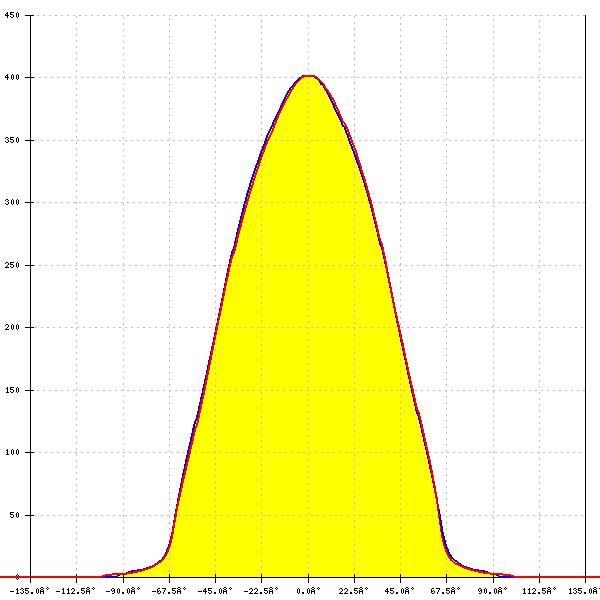

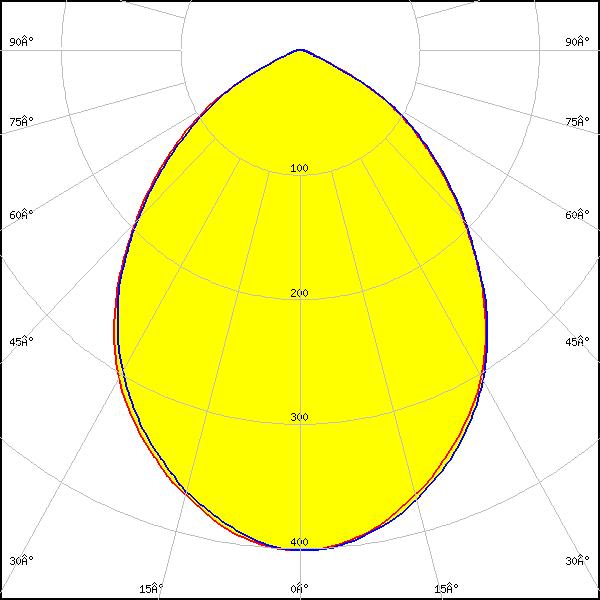

    Optical results

    LED: XP-G3
    FWHM: 94°
    FWTM: 137°
    Peak intensity: 0.351 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour/type: White

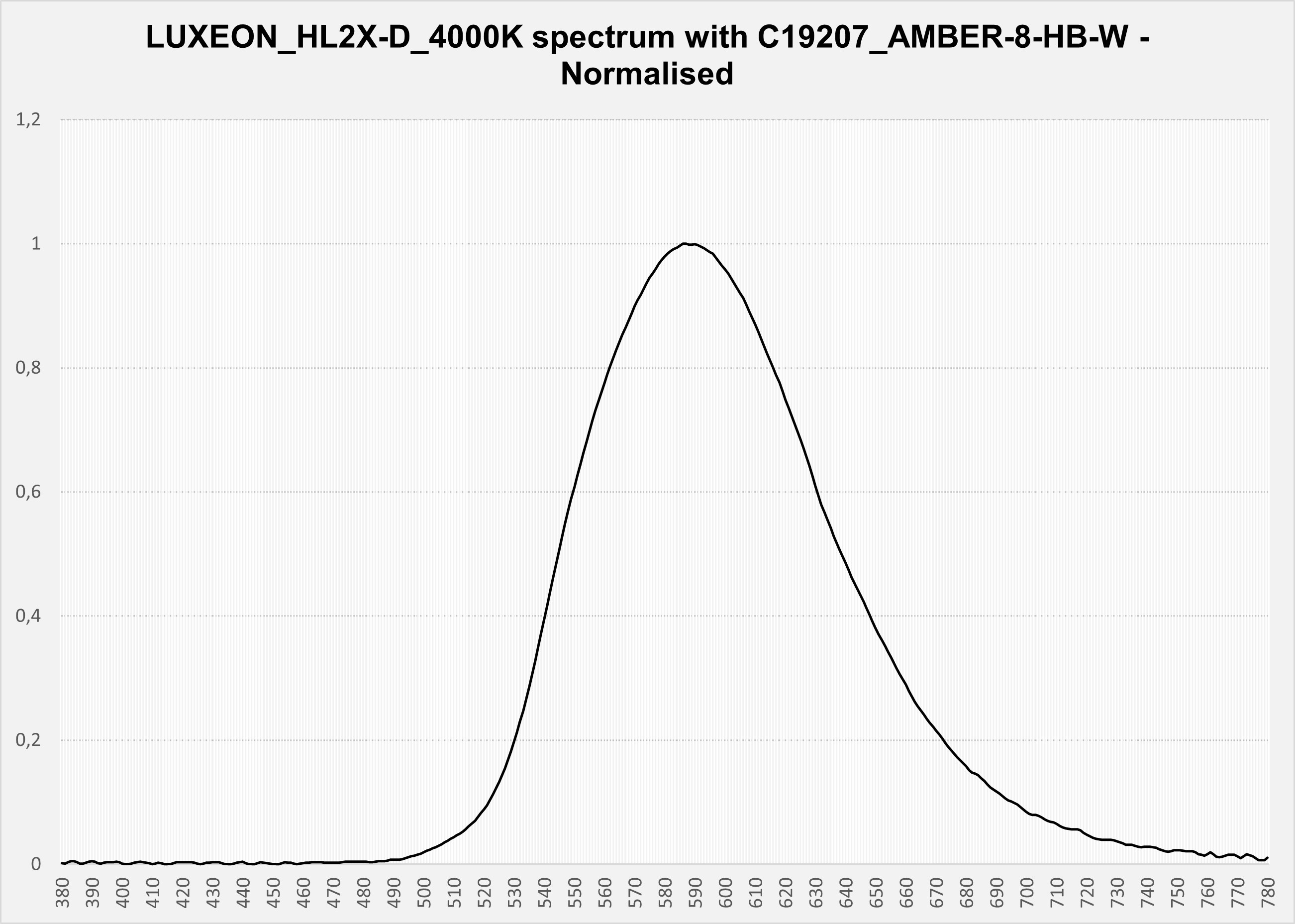

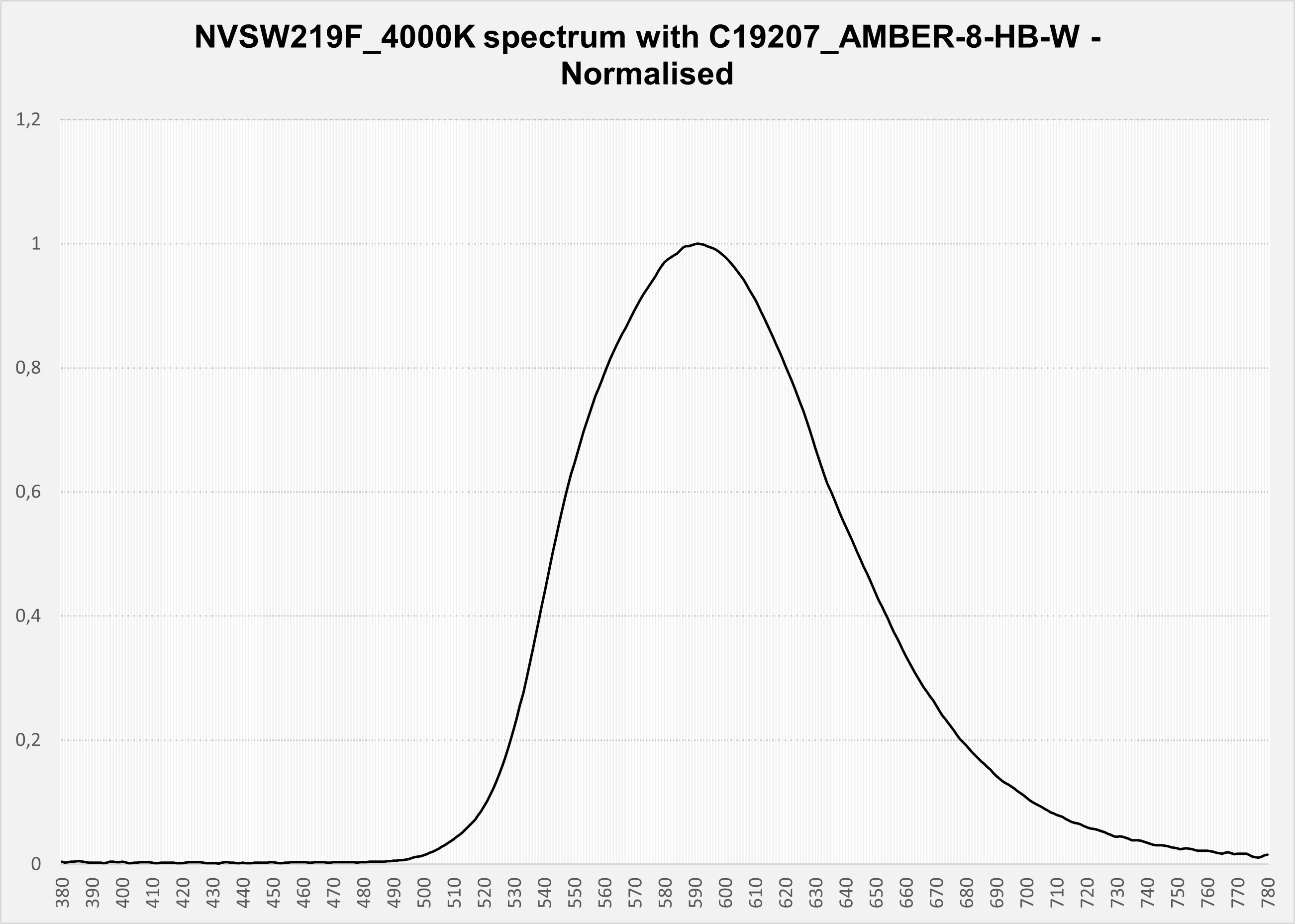

    Amount of blue light (380-500 nm): 0.4%
    CCT (LED/with lens)*: 3800 K/ 2400 K

    *the measured CCT with lens doesn’t follow the Black Body Locus line
