    C18327_BRIANNA-7X1-W

    Print

    ~60° wide beam. Variant with 7X1 lens.

    Specification
    • Dimensions:
      280 x  36 mm
    • Height:
      13.40 mm
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    Ordering information
    • Quantity in box:
      80 pcs
    • Box size:
      595 x 260 x 205 mm
    • Box weight:
      5.4 kg
    • MPQ:
      80 pcs
    • MOQ:
      80 pcs
    • MOQ size:
      595 x 260 x 205 mm
    • MOQ weight:
      5.4 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    • PCB drawing
      • PRODUCT NAME(S):
      C18327_BRIANNA-7X1-W
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    PCN

    Product-change-notification-NR203-–-BRIANNA-W-mechanical-update

    Instructions

    LEDiL instruction handling of BRIANNA lenses

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    News

    New products – June, 2023

    Catalogue

    LEDiL Latest products catalogue

    Application guide

    Guide for Office Lighting Optics

    News

    Enjoy the lighter side of office life with BRIANNA

    Application area

    Office Lighting

    AVAILABLE LEDiL ACCESSORIES

    BRIANNA-CLIP-A

    Installation clip for fastening BRIANNA lenses with screws.

    BRIANNA-CLIP-B

    Installation clip for fastening BRIANNA lenses.

    BRIANNA-7X1-SHD-MATT

    Black matt shade for BRIANNA-7X1 lens

    BRIANNA-7X1-SHD-WHT-MATT

    White matt shade for BRIANNA-7X1 lens

    BRIANNA-7X1-SHD-MET

    Metal gloss shade for BRIANNA-7X1 lens

    BRIANNA-7X1-SHD-WHT

    White gloss shade for BRIANNA-7X1 lens

    BRIANNA-7X1-SHD2-MET

    Metal gloss shade with end lips for BRIANNA-7X1 lens

    BRIANNA-7X1-SHD2

    Black gloss shade with end lips for BRIANNA-7X1 lens

    BRIANNA-7X1-SHD2-WHT

    White gloss shade with end lips for BRIANNA-7X1 lens

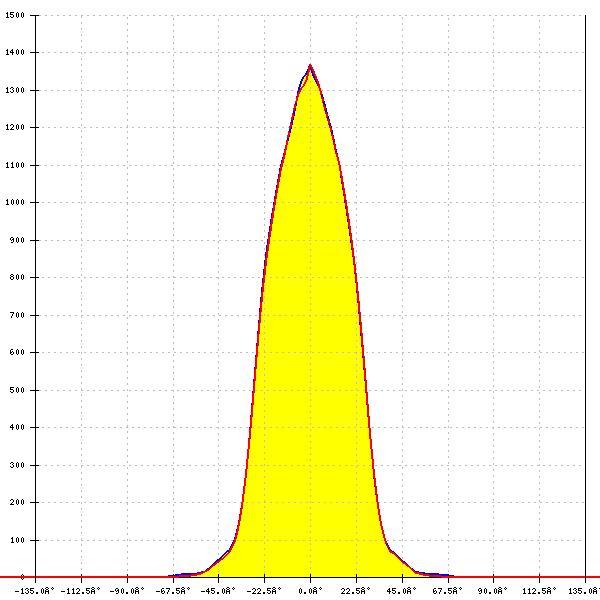

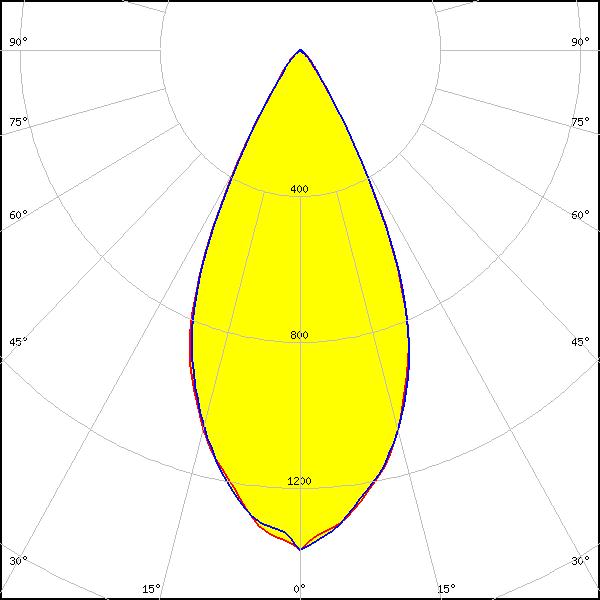

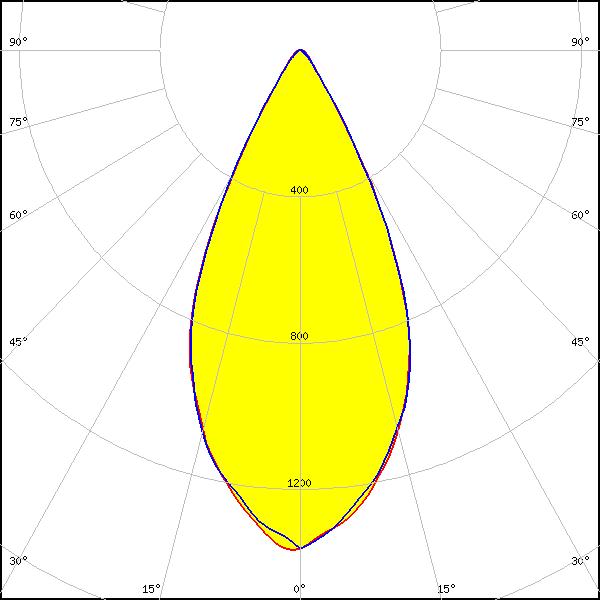

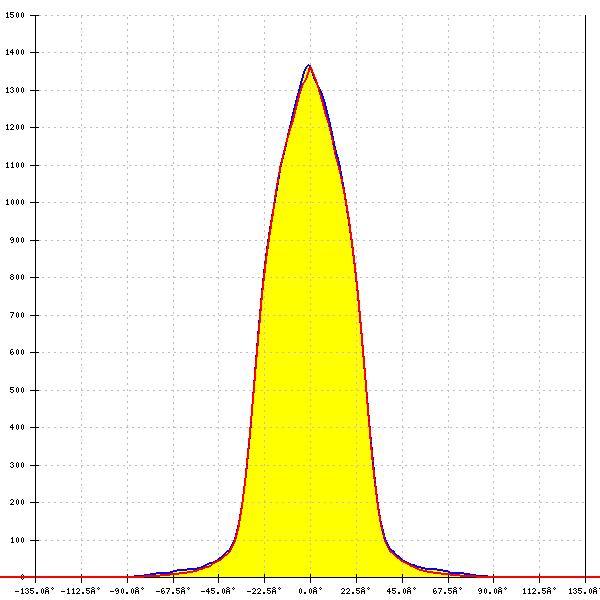

    Optical results

    LED: LUXEON 2835 HE
    FWHM: 50°
    FWTM: 70°
    Peak intensity: 1.367 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LUXEON 2835 HE
    Required components:
    C18497_BRIANNA-7X1-SHD-MATT
    FWHM: 50°
    FWTM: 70°
    Peak intensity: 1.370 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LinLED 280x28mm 1100lm 8x0 2C 42V DAISY-7X1 G1
    Required components:
    C19448_BRIANNA-7X1-SHD-WHT-MATT
    FWHM: 54°
    FWTM: 74°
    Peak intensity: 1.188 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LinLED 280x28mm 1100lm 8x0 2C 42V DAISY-7X1 G1
    FWHM: 60°
    FWTM: 92°
    Peak intensity: 0.854 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LinLED 280x28mm 1600lm 840 4C 21V DAISY 7x1(ZT25)
    FWHM: 39°
    FWTM: 79°
    Peak intensity: 1.506 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LinLED 280x28mm 2x550lm 827-865 2x2C 42V DAISY-7X1 G1
    FWHM: 58°
    FWTM: 92°
    Peak intensity: 0.872 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 4
    Light colour/type: Tunable White
    LED: LM28xB Series
    Required components:
    C19448_BRIANNA-7X1-SHD-WHT-MATT
    FWHM: 50°
    FWTM: 70°
    Peak intensity: 1.340 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LM28xB Series
    FWHM: 45°
    FWTM: 69°
    Peak intensity: 1.582 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LM28xB Series
    Required components:
    C18497_BRIANNA-7X1-SHD-MATT
    FWHM: 44°
    FWTM: 69°
    Peak intensity: 1.608 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LLE 24x280mm 750lm 8x0 LVD ADV1
    FWHM: 59°
    FWTM: 94°
    Peak intensity: 0.842 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LLE 24x280mm 750lm 8x0 LVD ADV1
    Required components:
    C18497_BRIANNA-7X1-SHD-MATT
    FWHM: 62°
    FWTM: 92°
    Peak intensity: 0.803 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 4
    Light colour/type: White
