C18062_OLGA-WW
Print

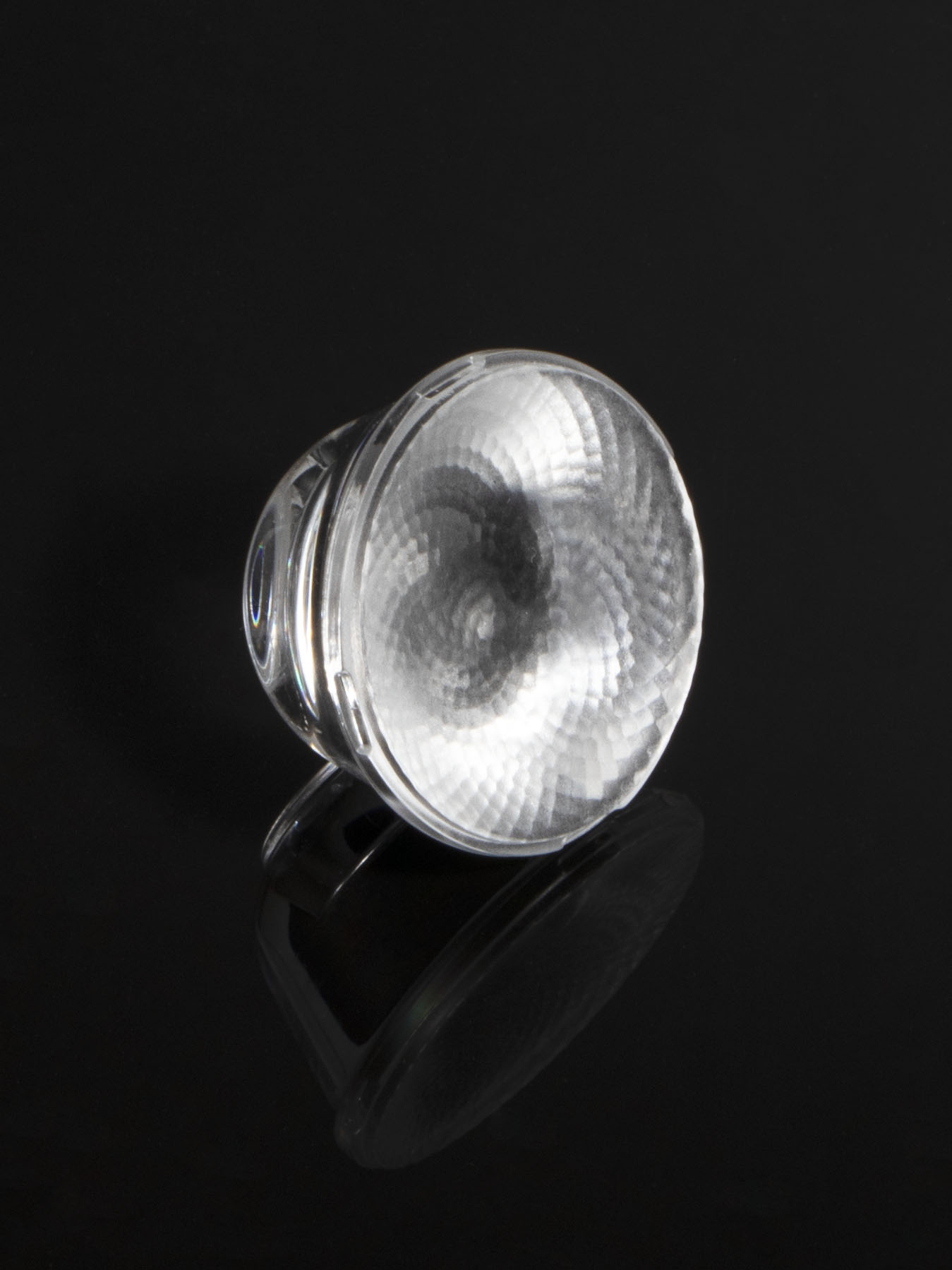

~60° wide beam with flange.
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results
LED:
V4 HD Gen 7
LES size: 5.2 mm
FWHM:
64°
FWTM:
89°
Peak intensity:
0.877 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU7L3
LES size: 2.4 mm
FWHM:
52°
FWTM:
78°
Peak intensity:
1.105 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU7R3
LES size: 4.2 mm
FWHM:
52°
FWTM:
79°
Peak intensity:
1.038 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU7S3
LES size: 3.5 mm
FWHM:
53°
FWTM:
78°
Peak intensity:
1.143 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G3
LES size: 0.0 mm
FWHM:
60°
FWTM:
86°
Peak intensity:
0.926 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G3
LES size: 0.0 mm
FWHM:
54°
FWTM:
74°
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 5050 Round LES
LES size: 0.0 mm
FWHM:
52°
FWTM:
72°
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXM-3
LES size: 3.5 mm
FWHM:
60°
FWTM:
82°
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVCWJ024Z-V1MT: COB J-Type Tunable White
LES size: 10.6 mm
FWHM:
72°
FWTM:
101°
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
