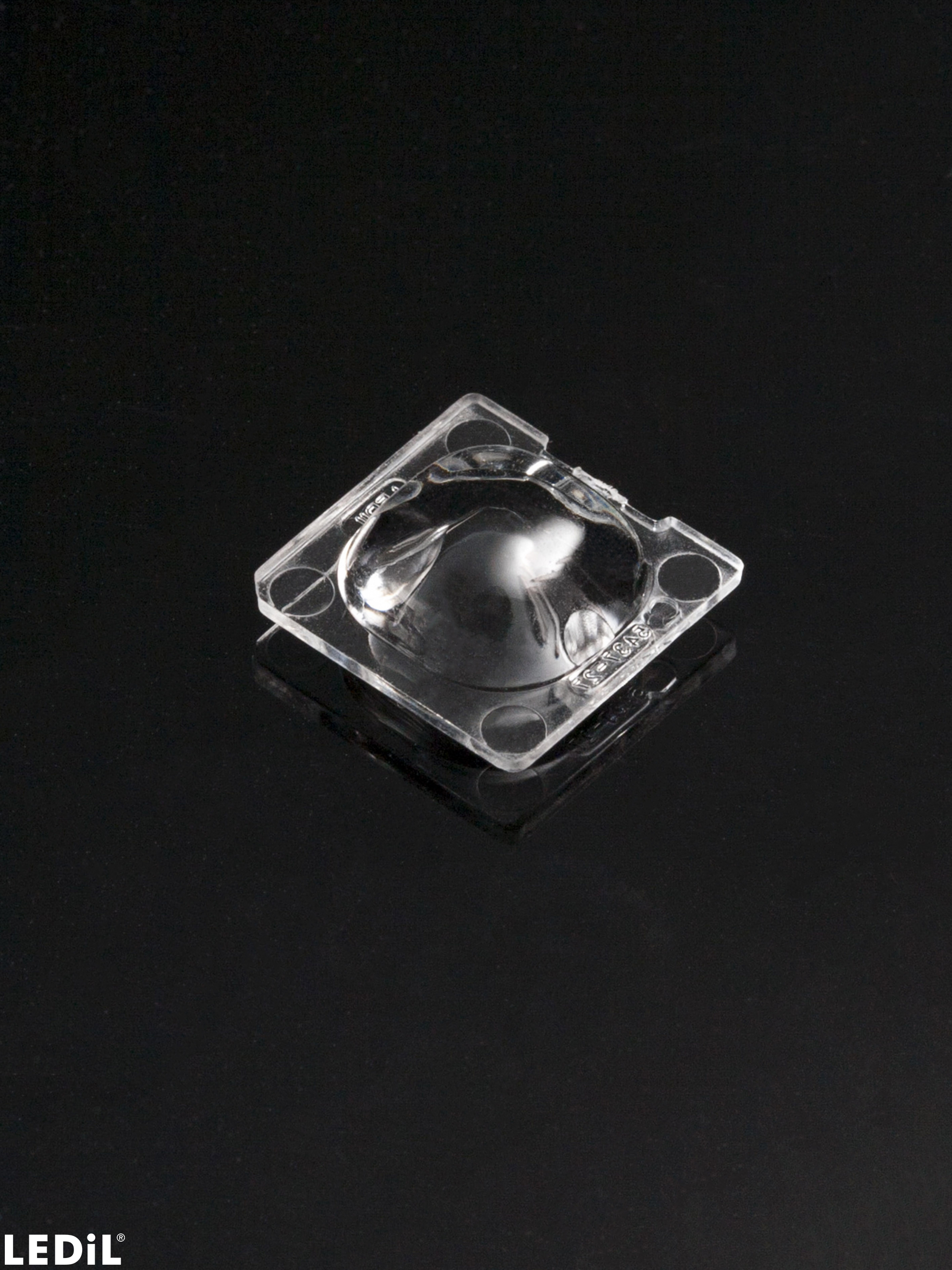

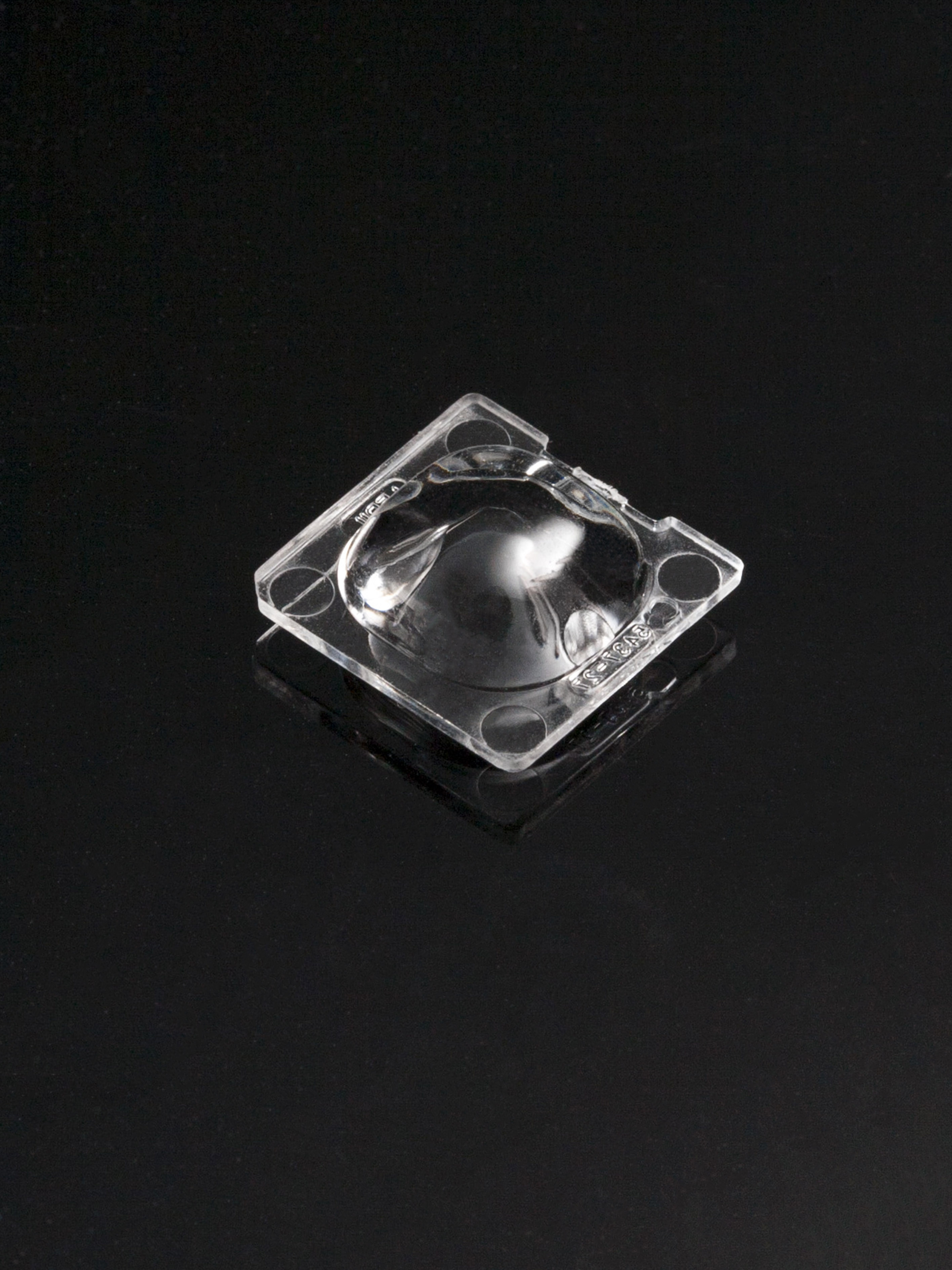

Beam for canopy lighting with batwing light distribution. Suitable for symmetrical tunnel lighting.
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content

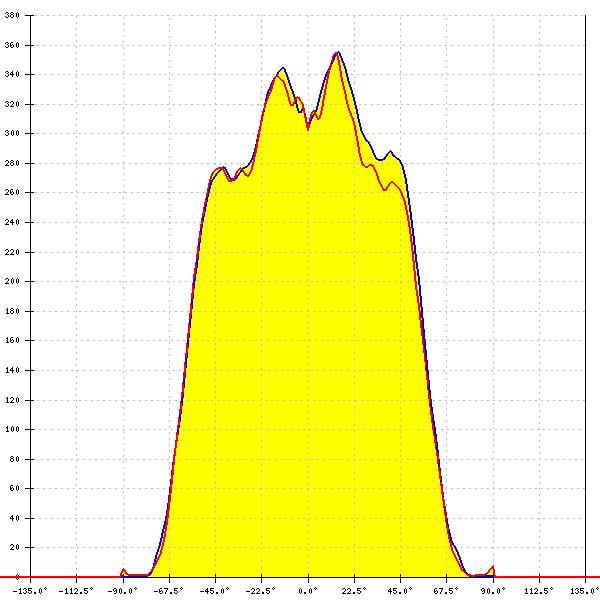

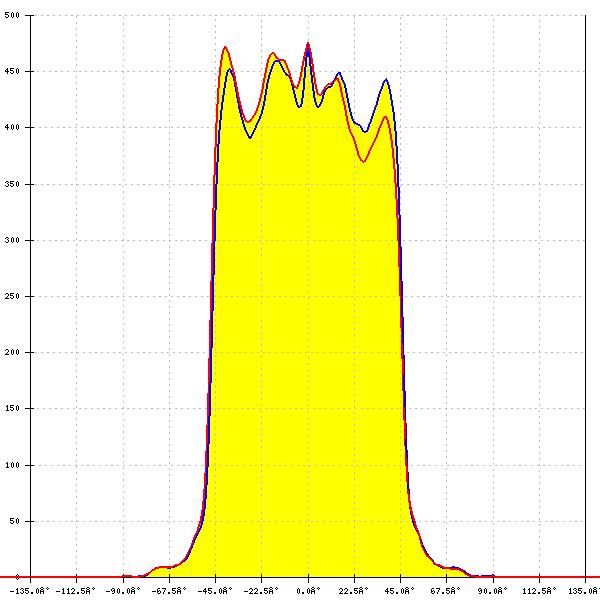

Optical results
LED:

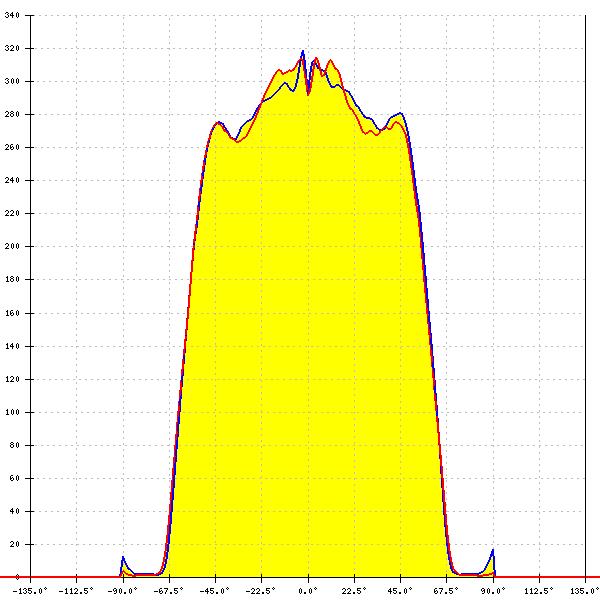

J Series 2835
FWHM:
117°
FWTM:
135°
Peak intensity:
0.379 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

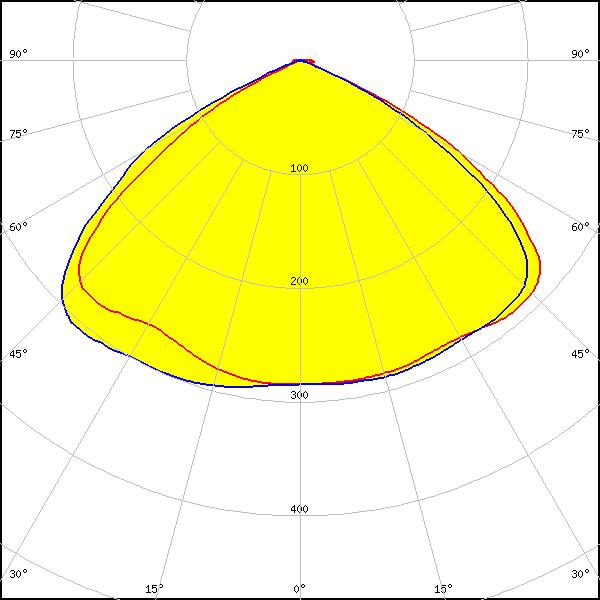

LED:

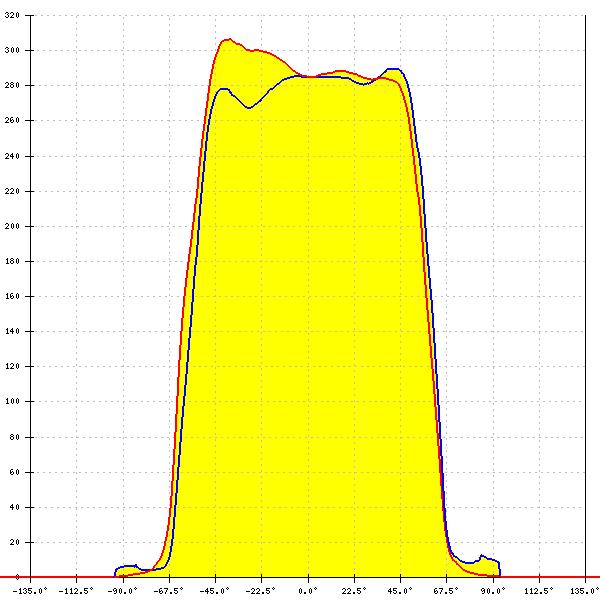

JB3030 HE B Class
FWHM:
118°
FWTM:
133°
Peak intensity:
0.395 cd/lm
Efficiency:
98 %
LEDs/each optic:
1
Light colour/type:
White

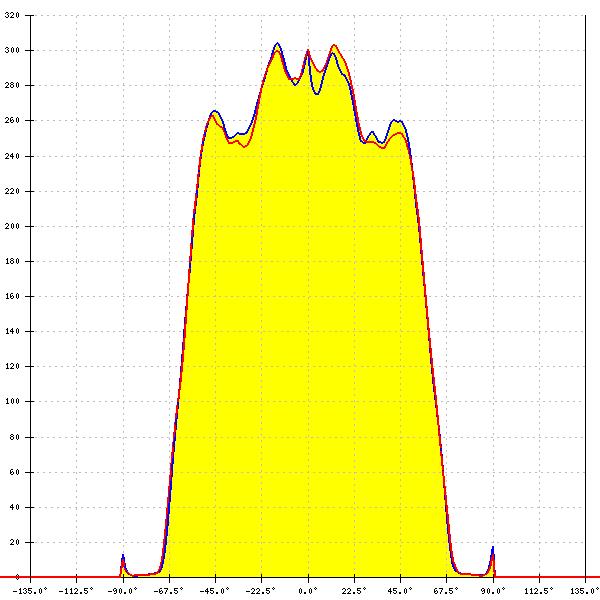

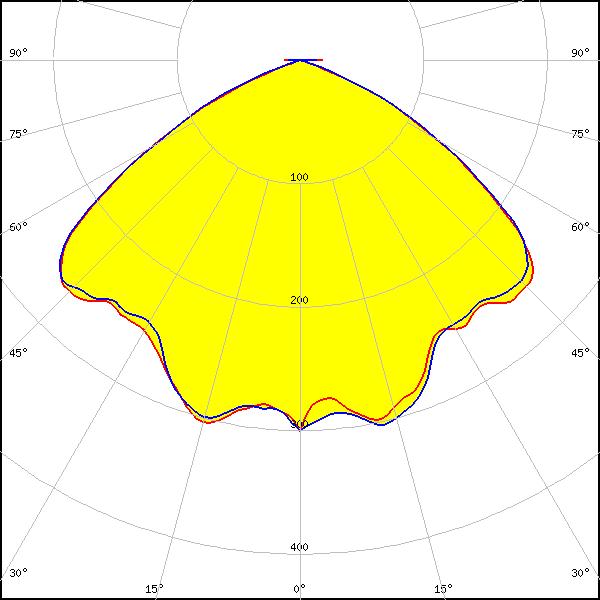

LED:
XP-E2
FWHM:
117°
FWTM:
137°
Peak intensity:
0.363 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

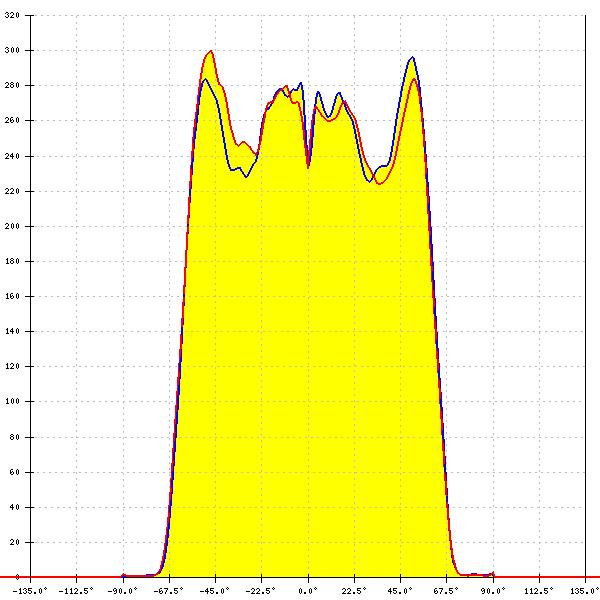

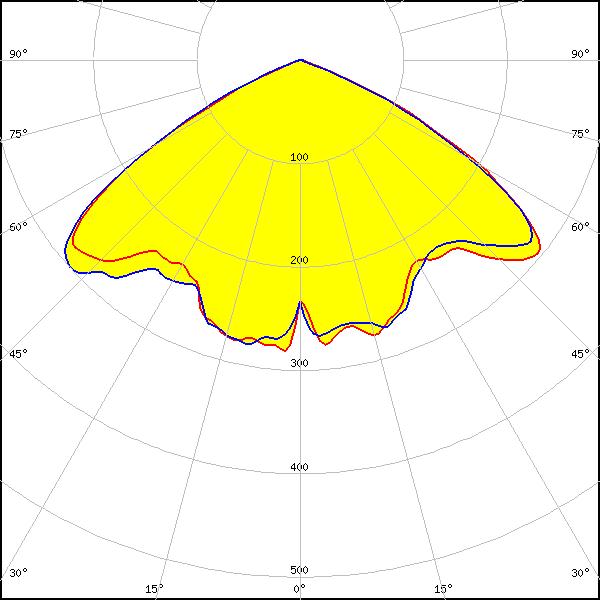

LED:
XP-E2
FWHM:
123°
FWTM:
137°
Peak intensity:
0.422 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
Green

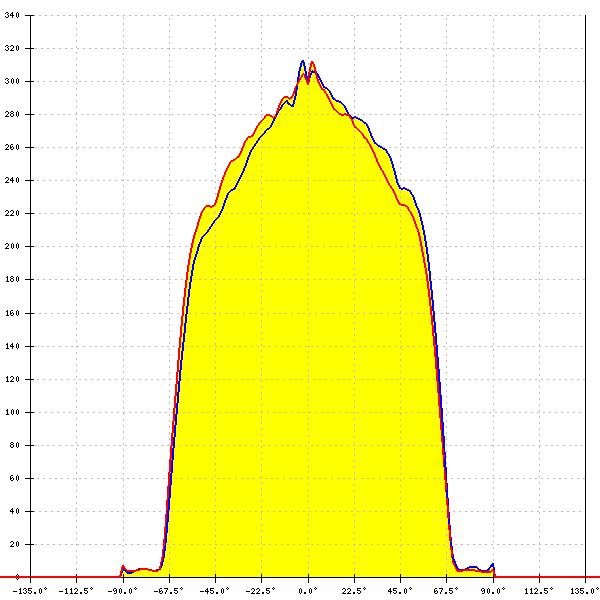

LED:

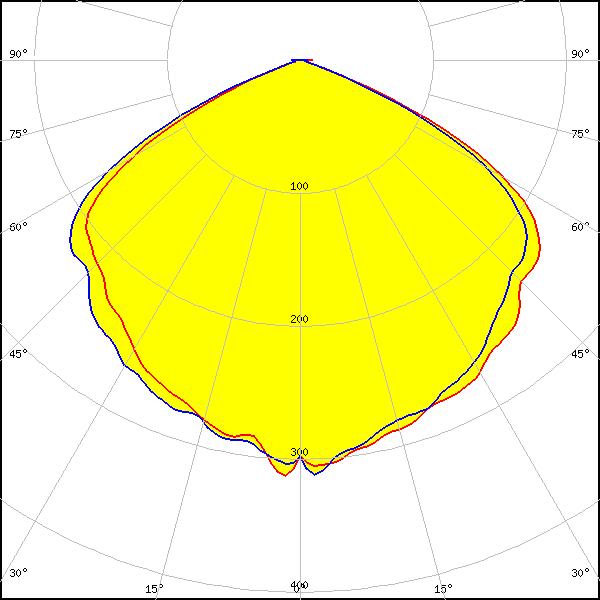

XP-G2 HE
FWHM:
121°
FWTM:
138°
Peak intensity:
0.322 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

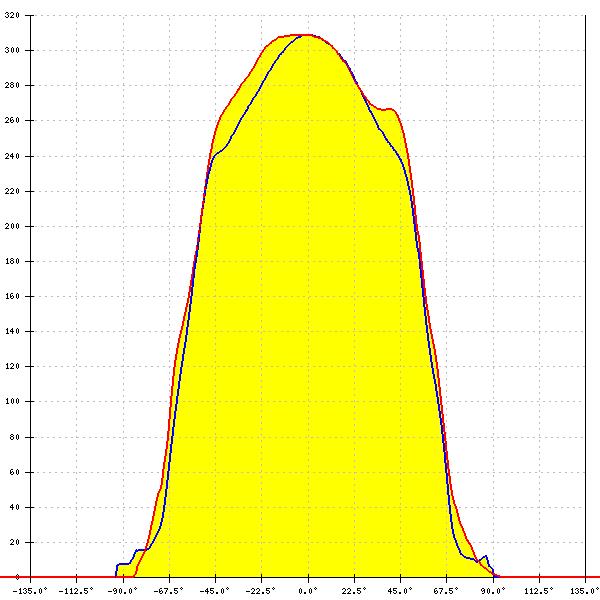

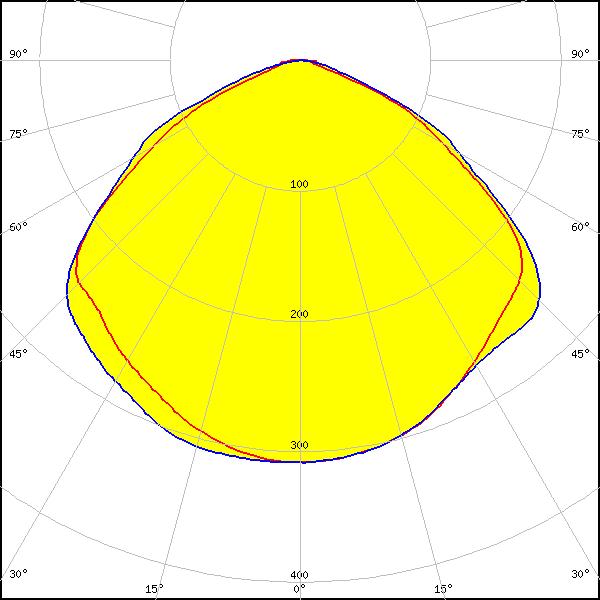

LED:
XT-E
FWHM:
115°
FWTM:
146°
Peak intensity:
0.320 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

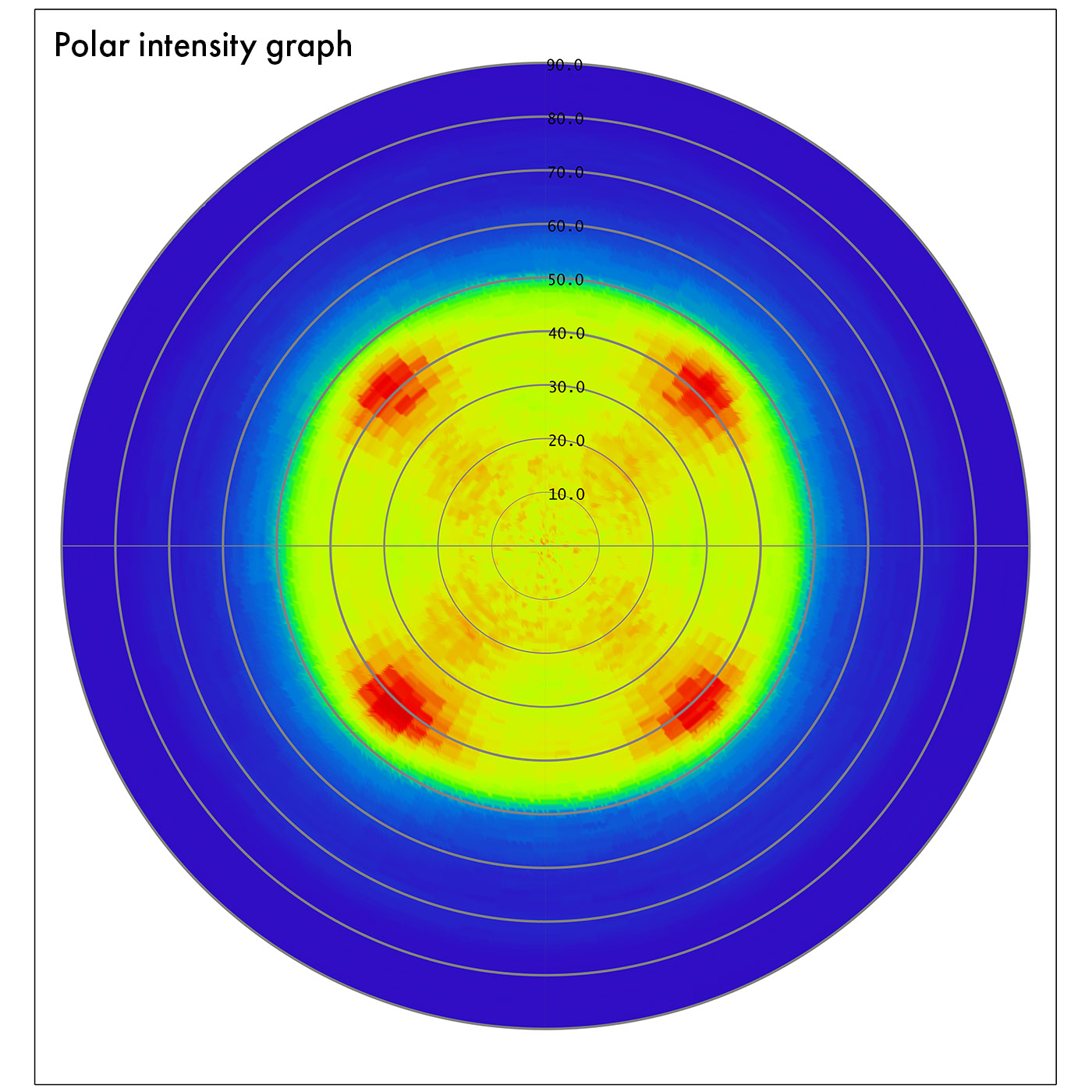

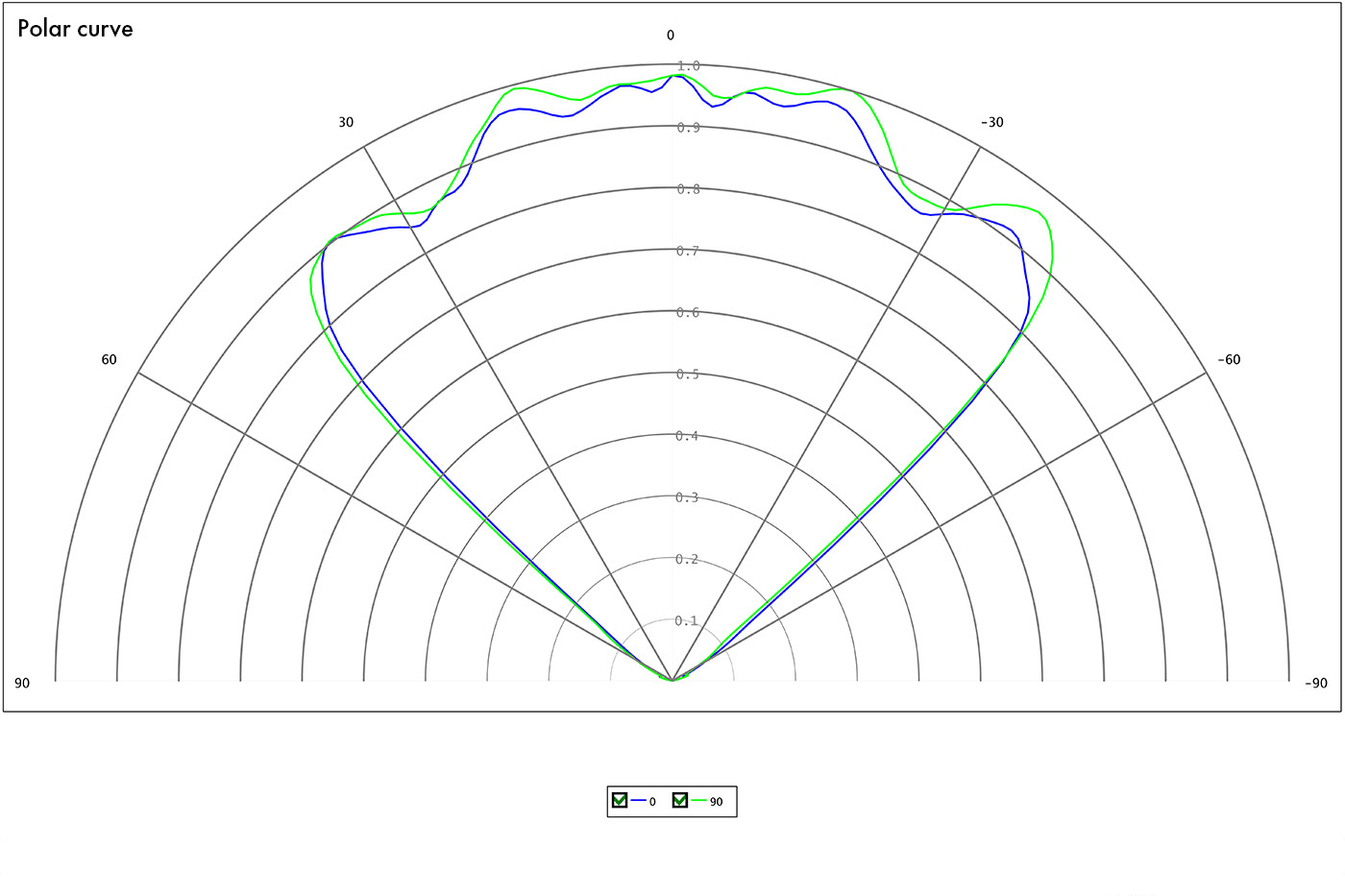

LED:

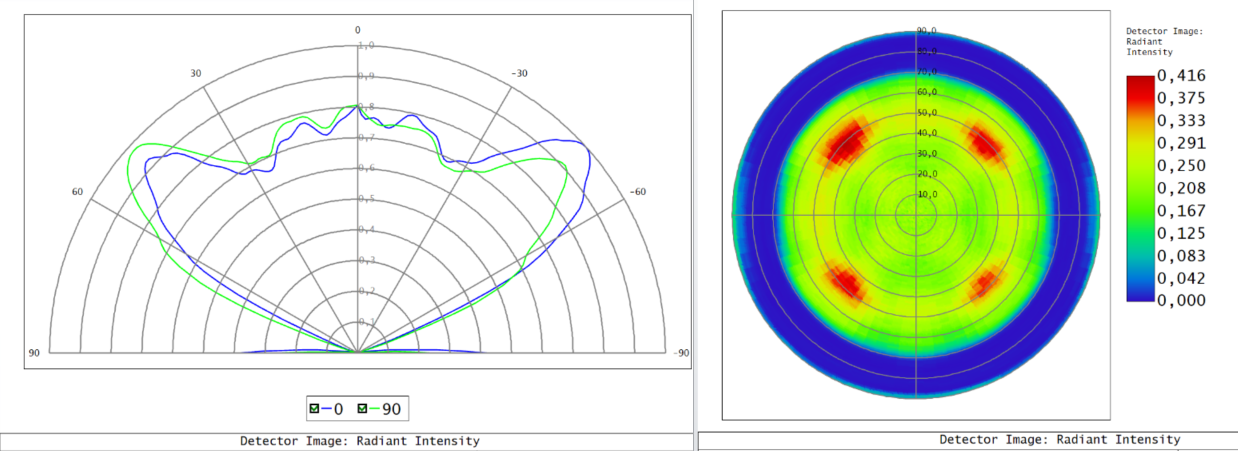

LUXEON IR Domed 150 (L1I0-0xxx150000000)
FWHM:
131°
FWTM:
142°
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
IR

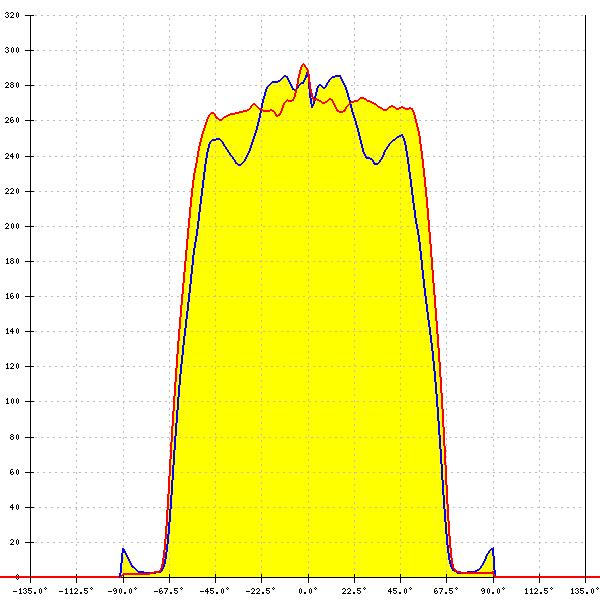

LED:

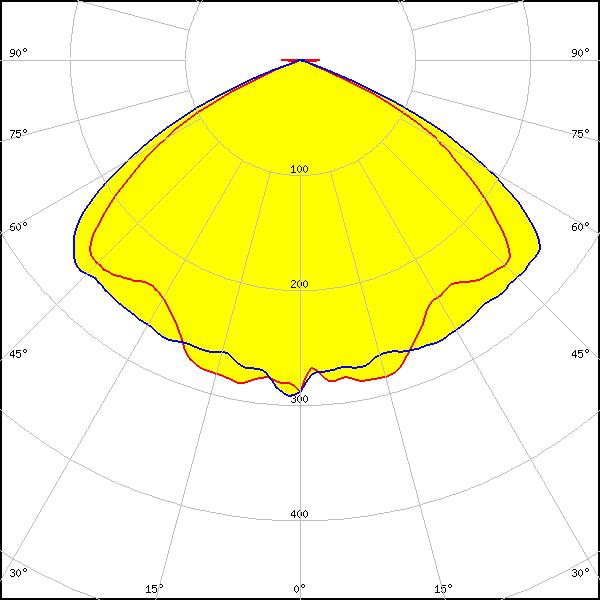

NF2W585AR-P8
FWHM:
118° + 125°
FWTM:
134° + 138°
Peak intensity:
0.351 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:

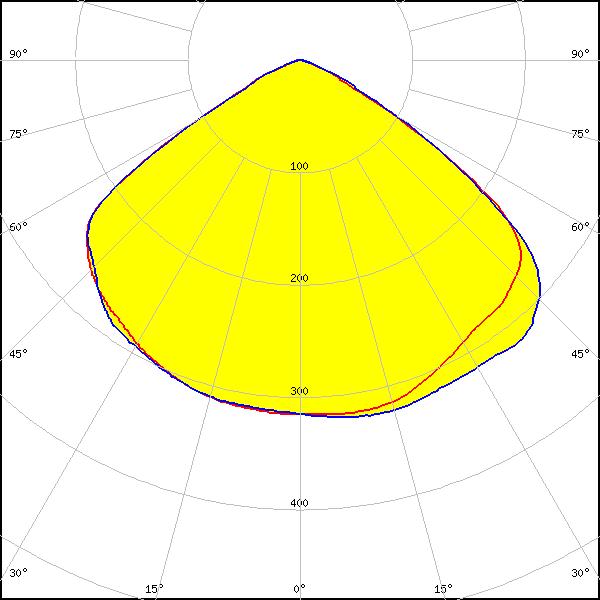

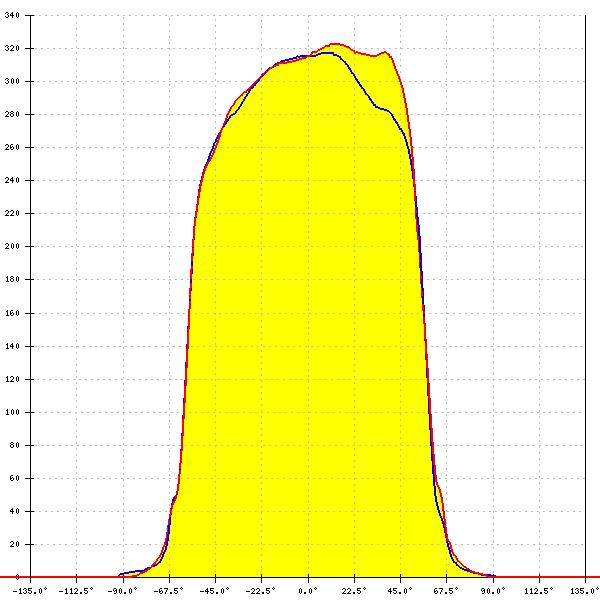

NVSW219D
FWHM:
114°
FWTM:
134°
Peak intensity:
0.370 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

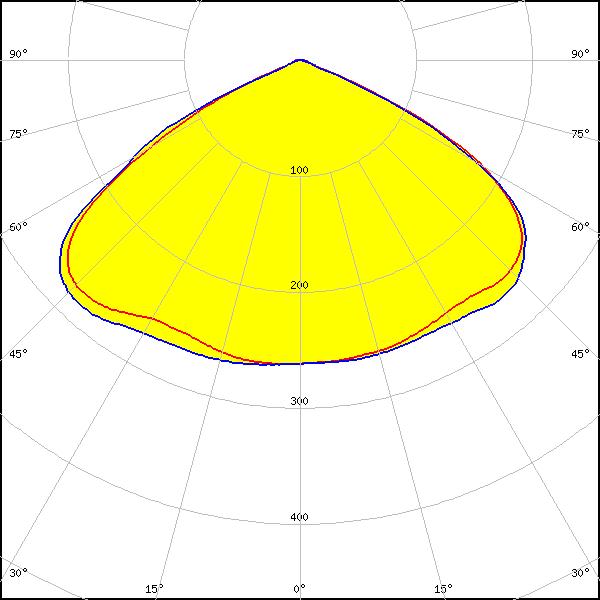

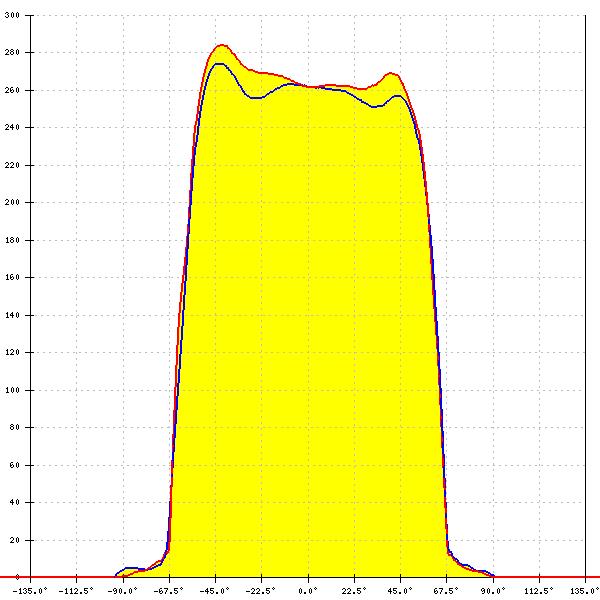

NVSW319B
FWHM: asymmetric
Peak intensity:
0.350 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

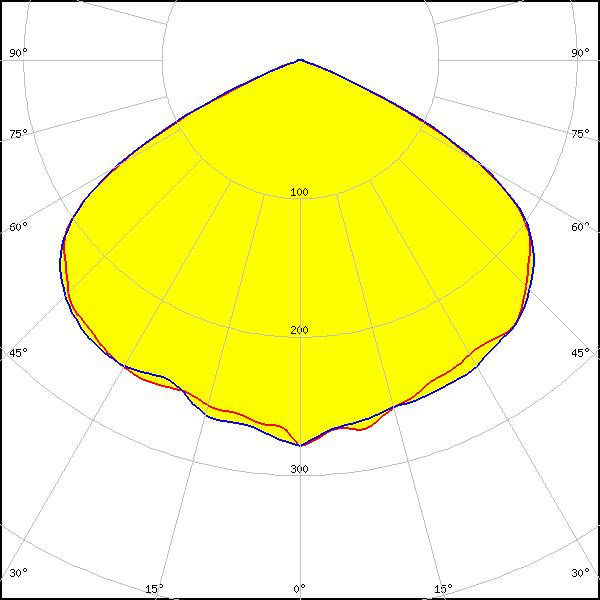

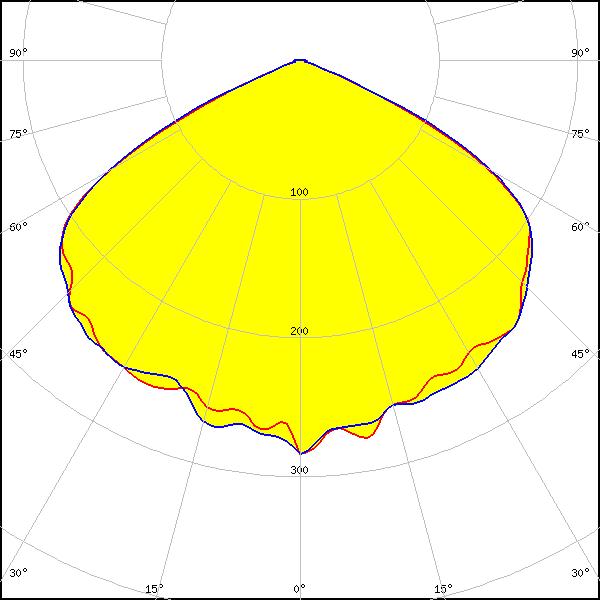

LED:

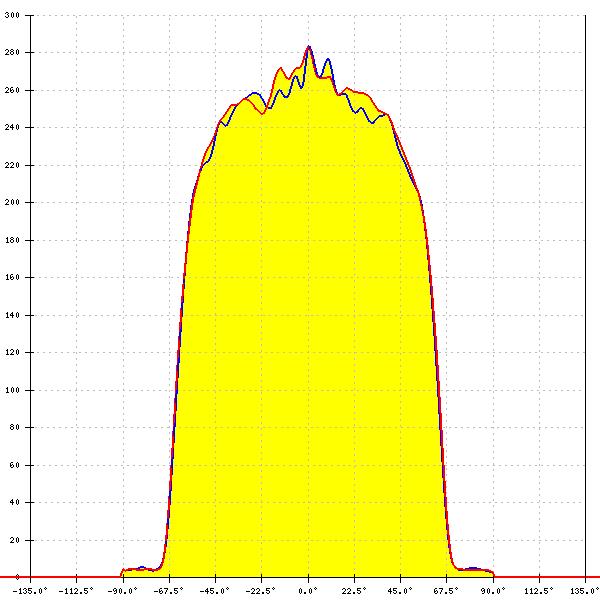

NVSW519A
FWHM:
122°
FWTM:
136°
Peak intensity:
0.315 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSW519A
FWHM:
122°
FWTM:
136°
Peak intensity:
0.293 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

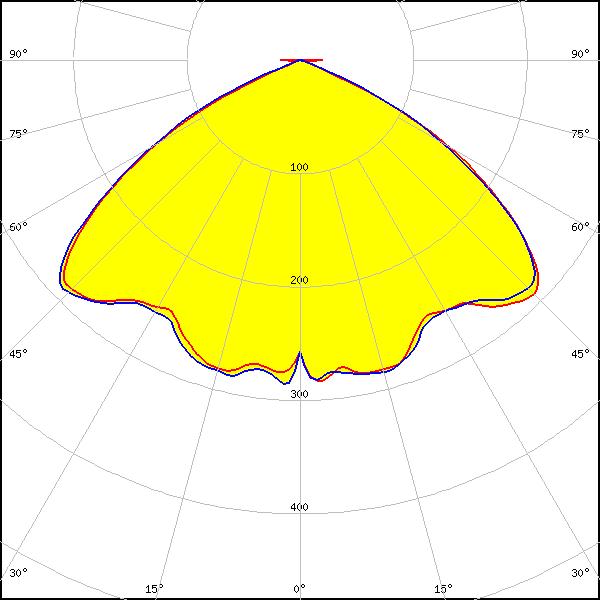

LED:

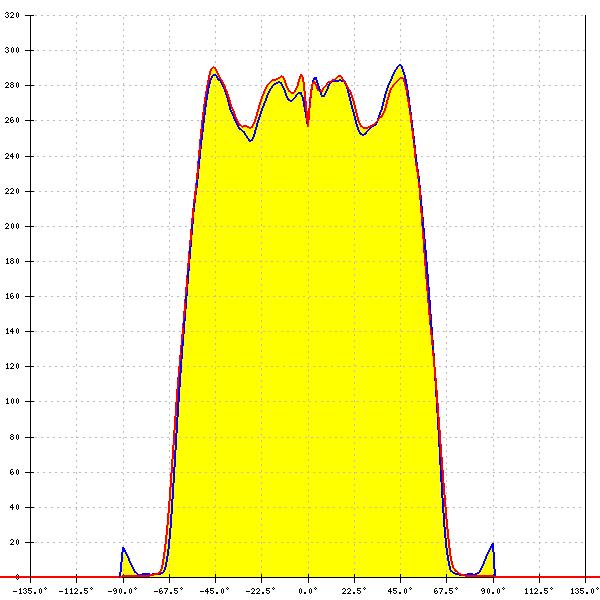

OSCONIQ C 2424 Gen1
FWHM:
120°
FWTM:
135°
Peak intensity:
0.397 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:

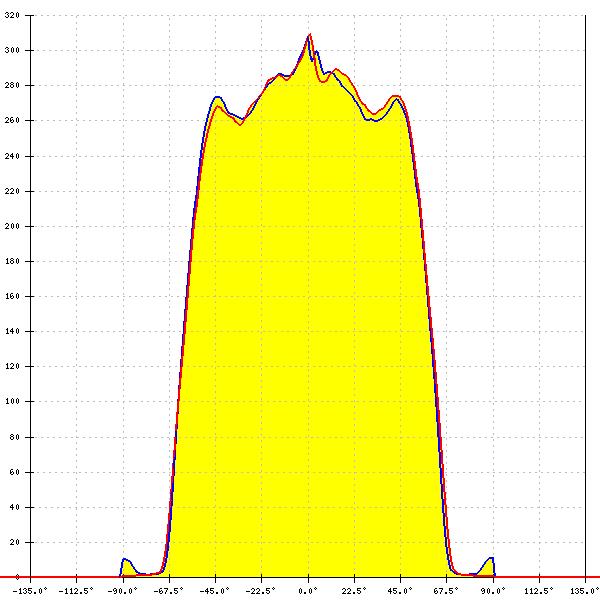

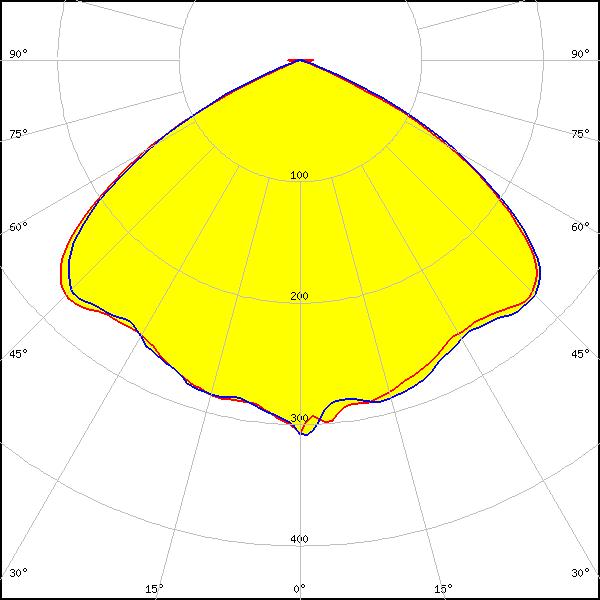

OSCONIQ C 3030
FWHM:
118°
FWTM:
134°
Peak intensity:
0.377 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ C 3030
FWHM:
117°
FWTM:
134°
Peak intensity:
0.331 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 3030
FWHM:
112°
FWTM:
137°
Peak intensity:
0.394 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

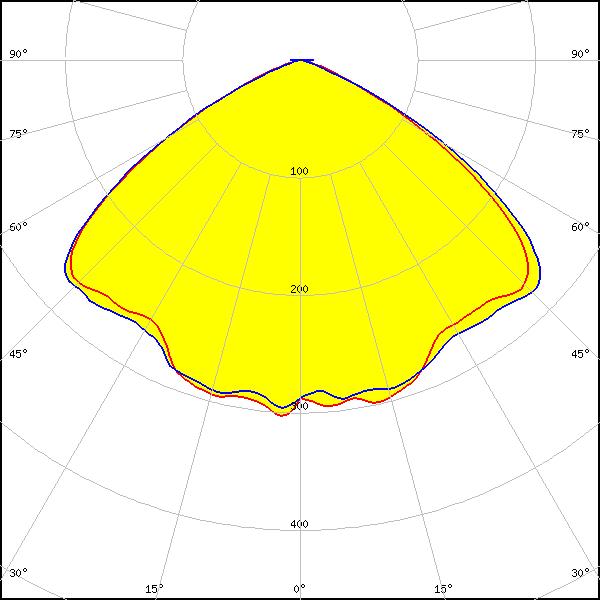

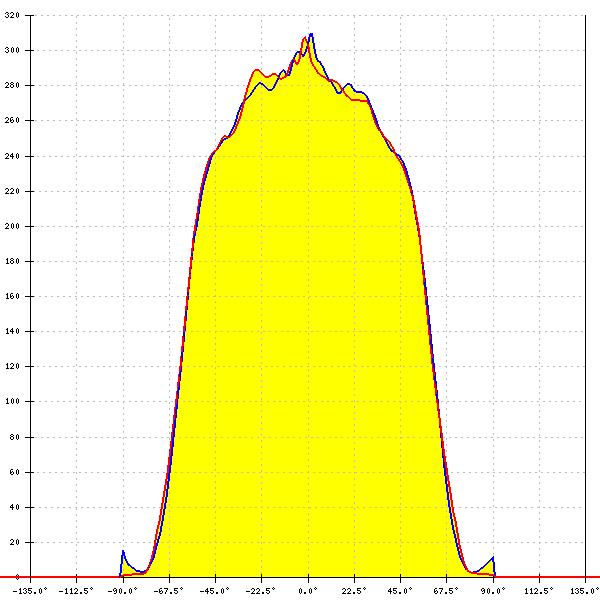

LED:

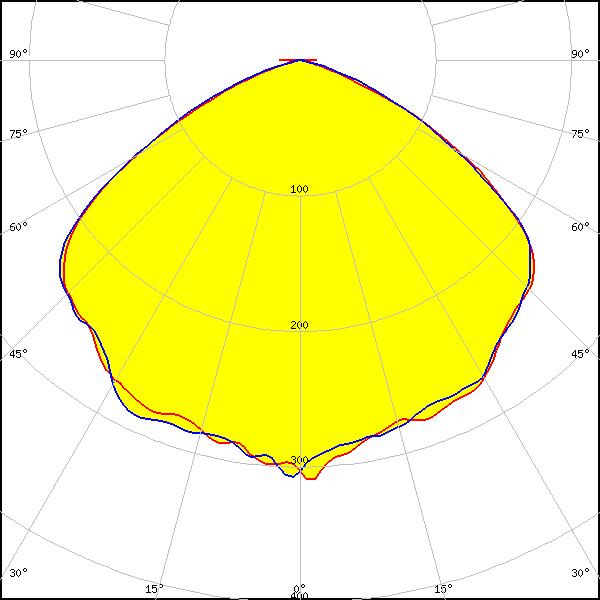

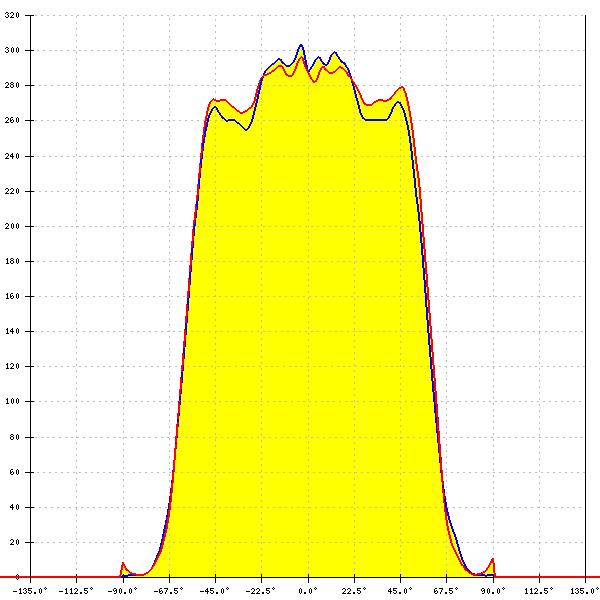

OSCONIQ P 3737 (2W version)
FWHM:
115°
FWTM:
137°
Peak intensity:
0.370 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 3737 (3W version)
FWHM:
117°
FWTM:
143°
Peak intensity:
0.329 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:

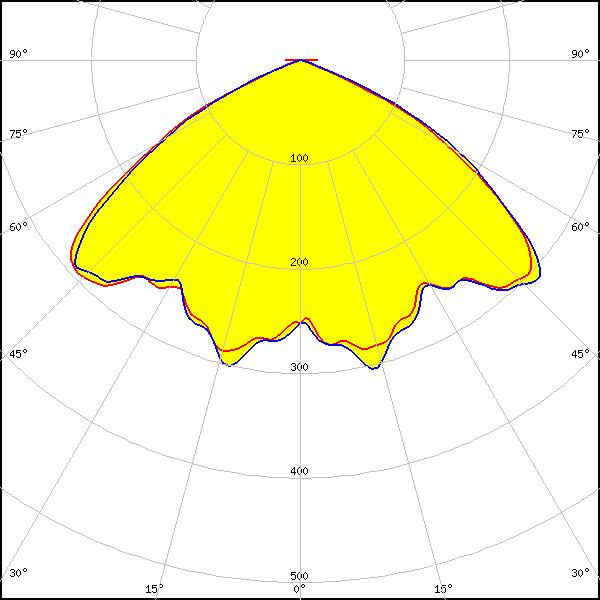

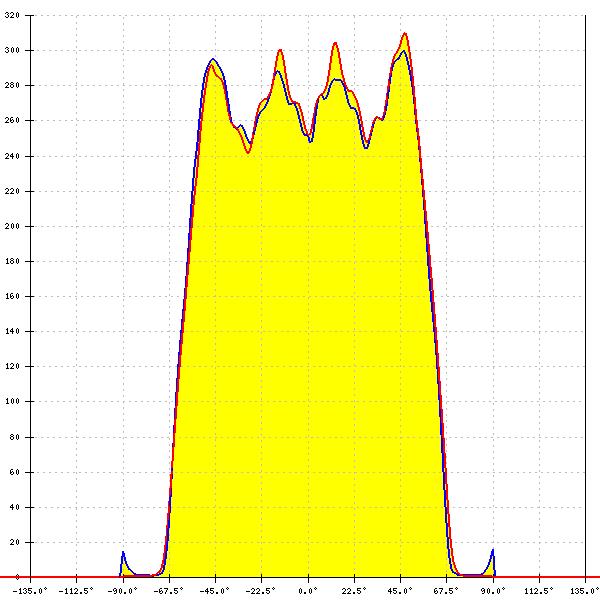

OSLON Pure 1414
FWHM:
122° + 121°
FWTM:
136° + 137°
Peak intensity:
0.428 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

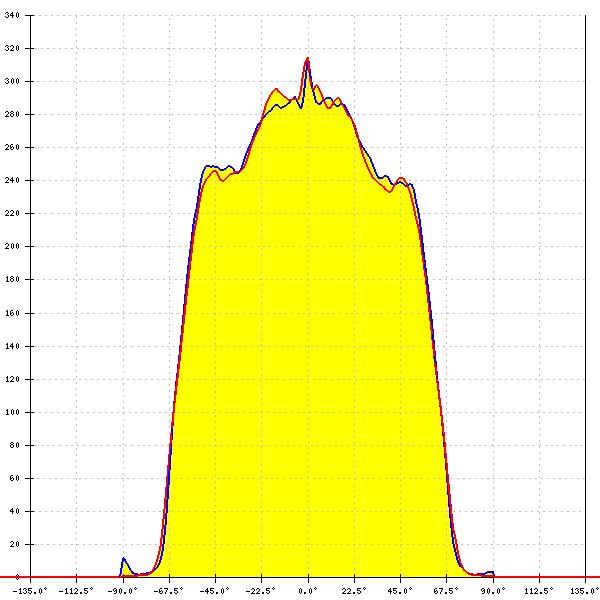

LED:

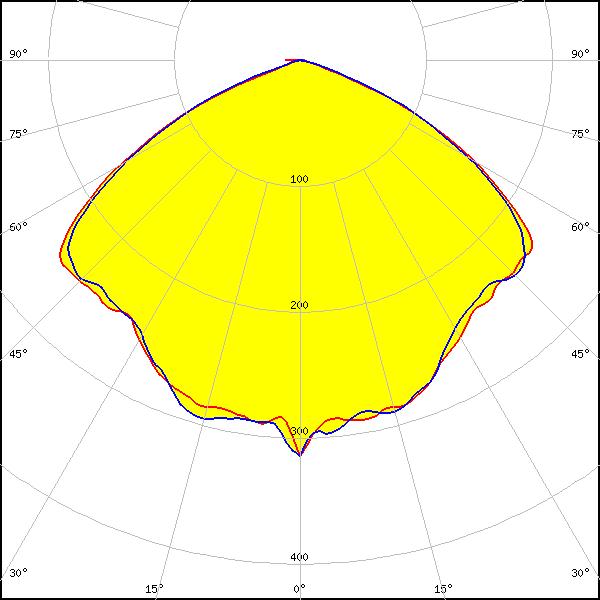

OSLON Square CSSRM2/CSSRM3
FWHM:
120°
FWTM:
140°
Peak intensity:
0.349 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

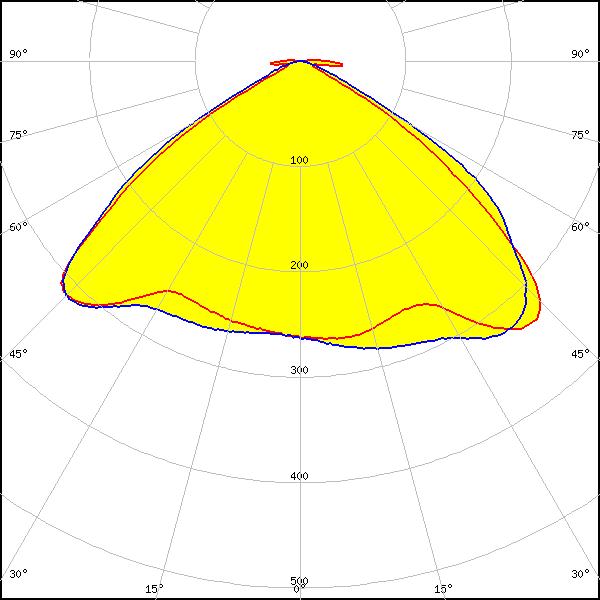

LED:

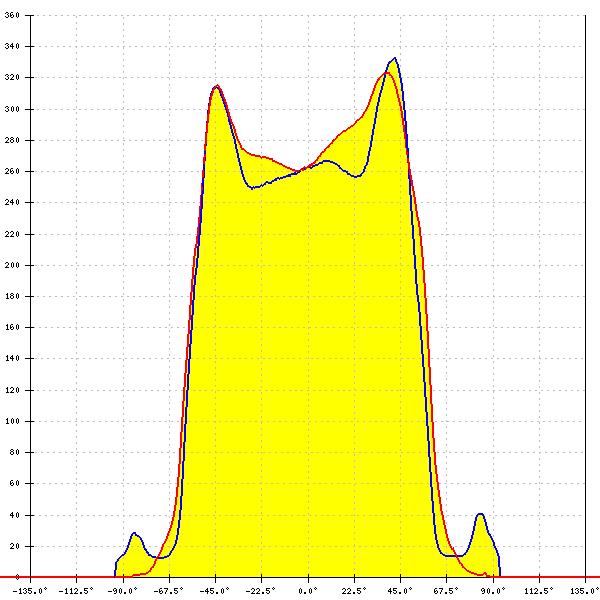

LH181B
FWHM:
116°
FWTM:
145°
Peak intensity:
0.430 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

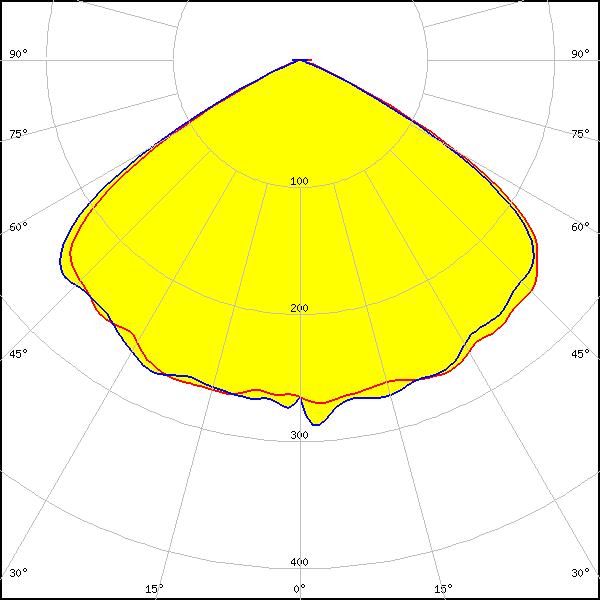

LH351B
FWHM:
110°
FWTM:
118°
Peak intensity:
0.340 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

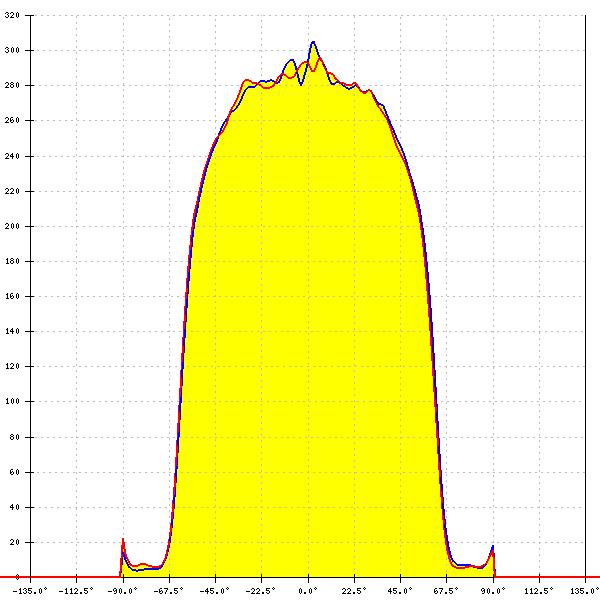

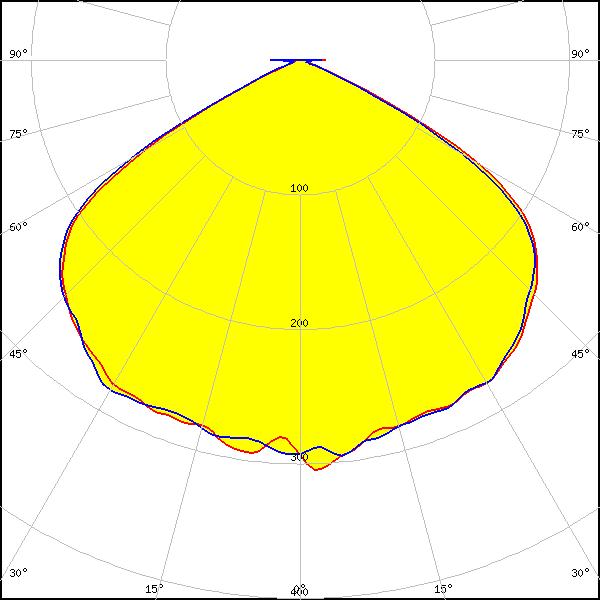

LH351D
FWHM:
123°
FWTM:
135°
Peak intensity:
0.310 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

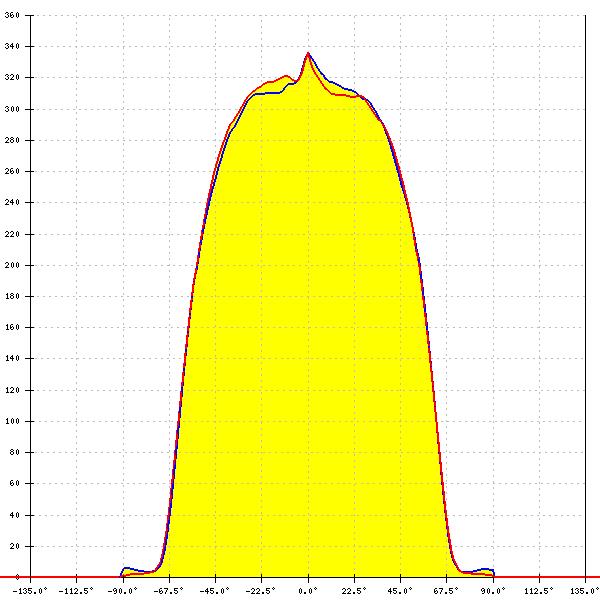

LED:

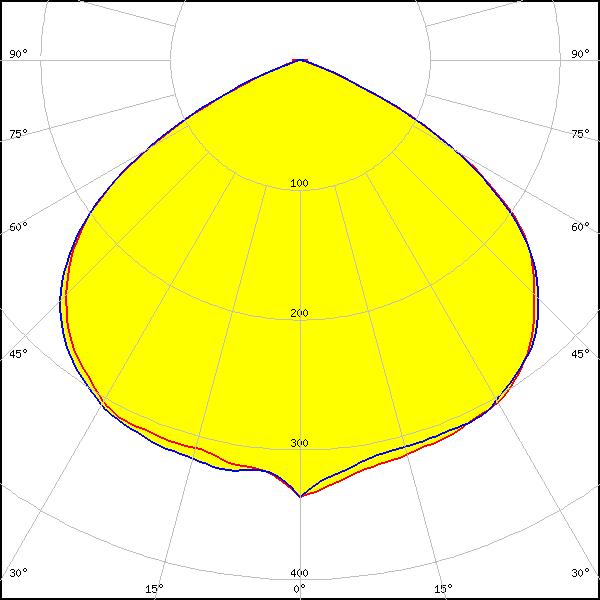

SEOUL DC 5050 6V
FWHM:
114°
FWTM:
136°
Peak intensity:
0.340 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

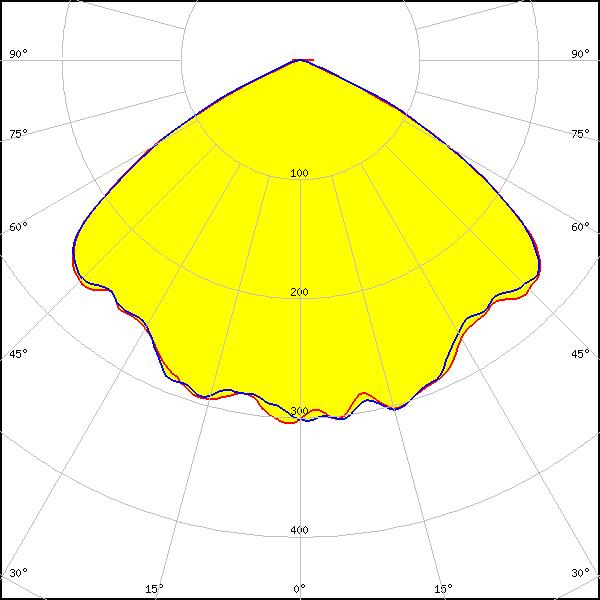

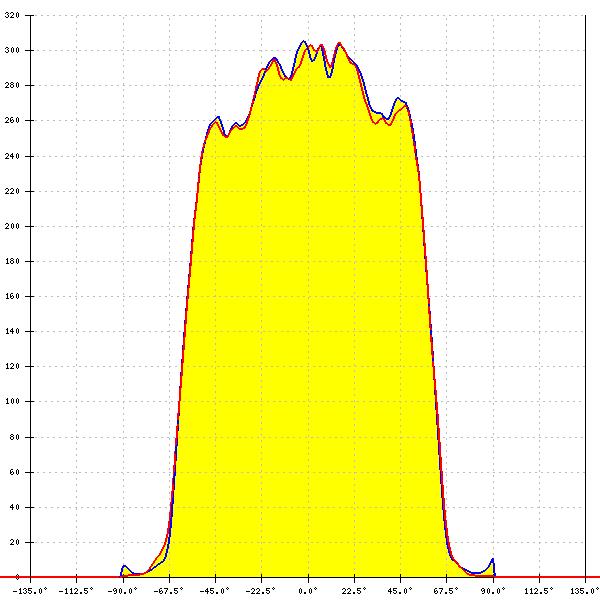

LED:
Z5M1/Z5M2
FWHM:
118°
FWTM:
134°
Peak intensity:
0.369 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
