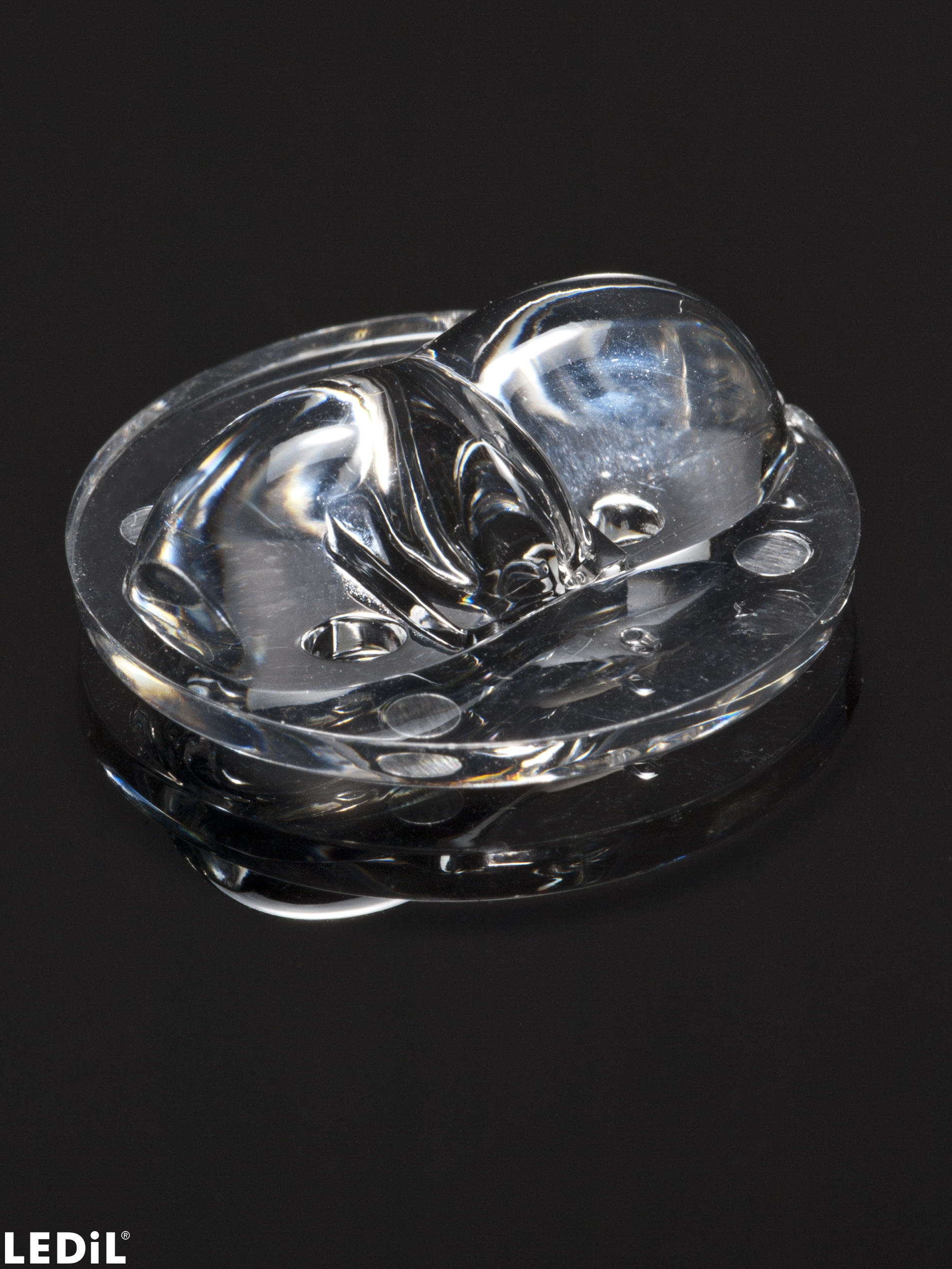

C13155_EMERALD-A
Print
Asymmetric beam
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results
LED:
XB-D
FWHM:
157° + 62°
FWTM:
0° + 0°
Peak intensity:
2.000 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XHP35 HD
FWHM:
164° + 68°
FWTM:
0° + 0°
Peak intensity:
0.770 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XHP35 HI
FWHM:
162° + 51°
FWTM:
176° + 146°
Peak intensity:
0.896 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XM-L
FWHM:
157° + 83°
FWTM:
0° + 0°
Peak intensity:
1.100 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XM-L2
FWHM:
169° + 73°
FWTM:
0° + 0°
Peak intensity:
1.100 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-E
FWHM:
158° + 73°
FWTM:
0° + 0°
Peak intensity:
2.300 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-E2
FWHM:
156° + 72°
FWTM:
0° + 0°
Peak intensity:
2.500 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G
FWHM:
159° + 79°
FWTM:
0° + 0°
Peak intensity:
1.600 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G2
FWHM:
158° + 79°
FWTM:
0° + 0°
Peak intensity:
1.800 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-L HI
FWHM:
159°
FWTM:
-
Peak intensity:
1.300 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XT-E
FWHM:
157° + 61°
FWTM:
0° + 0°
Peak intensity:
1.800 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON A
FWHM:
156° + 75°
FWTM:
0° + 0°
Peak intensity:
1.600 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON R
FWHM:
153° + 73°
FWTM:
0° + 0°
Peak intensity:
1.650 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON Rebel
FWHM:
152° + 67°
FWTM:
0° + 0°
Peak intensity:
2.500 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON Rebel ES
FWHM:
153° + 74°
FWTM:
0° + 0°
Peak intensity:
1.700 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON T
FWHM:
155° + 76°
FWTM:
0° + 0°
Peak intensity:
2.300 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON TX
FWHM:
156° + 73°
FWTM:
0° + 0°
Peak intensity:
1.690 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NCSxx19A
FWHM:
151° + 65°
FWTM:
0° + 0°
Peak intensity:
2.200 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NF2W757G-MT (Tunable White)
FWHM:
159° + 59°
FWTM:
172° + 158°
Peak intensity:
1.062 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
NVSxx19A
FWHM:
153° + 71°
FWTM:
0° + 0°
Peak intensity:
1.700 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSxx19B/NVSxx19C
FWHM:
155° + 80°
FWTM:
168° + 158°
Peak intensity:
1.400 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Square CSSRM2/CSSRM3
FWHM:
158° + 70°
FWTM:
0° + 0°
Peak intensity:
1.500 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Square EC
FWHM:
156° + 80°
FWTM:
0° + 0°
Peak intensity:
1.700 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Square PC
FWHM:
156° + 83°
FWTM:
0° + 0°
Peak intensity:
1.700 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON SSL 150
FWHM:
157° + 86°
FWTM:
0° + 0°
Peak intensity:
2.900 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON SSL 80
FWHM:
147° + 52°
FWTM:
0° + 0°
Peak intensity:
1.900 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH351D
FWHM:
86° + 164°
FWTM:
166° + 176°
Peak intensity:
0.714 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH351Z
FWHM:
154° + 76°
FWTM:
0° + 0°
Peak intensity:
1.700 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z5
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z5M4
FWHM:
154° + 66°
FWTM:
168° + 144°
Peak intensity:
1.123 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

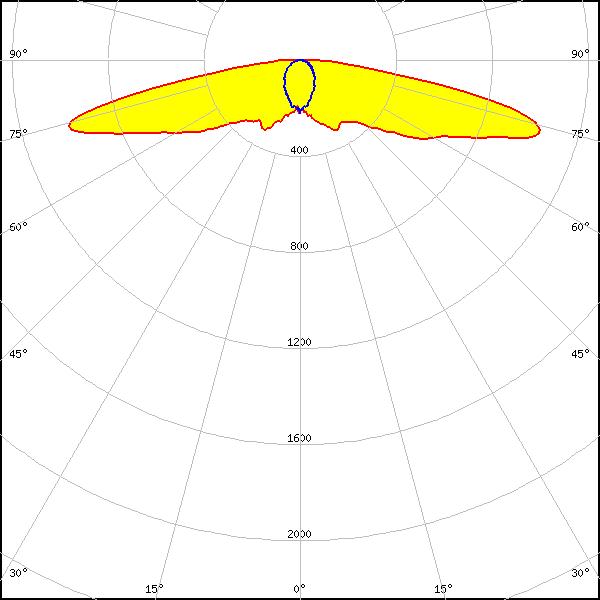

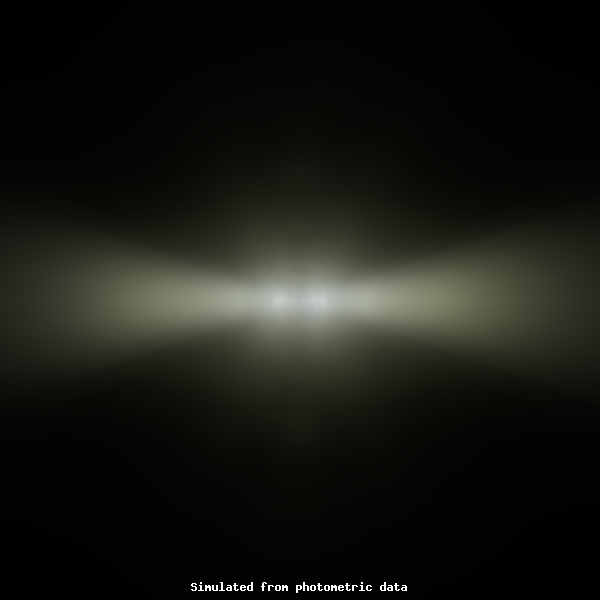

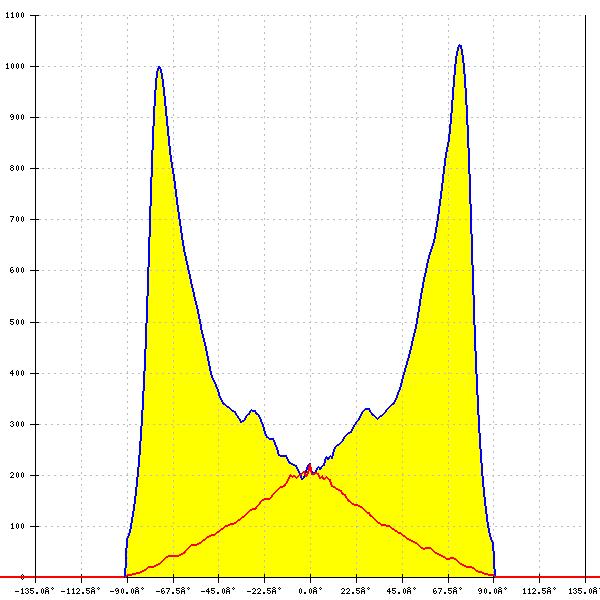

LED:
Z5M4-E1
FWHM:
161° + 68°
FWTM:
175° + 151°
Peak intensity:
1.042 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

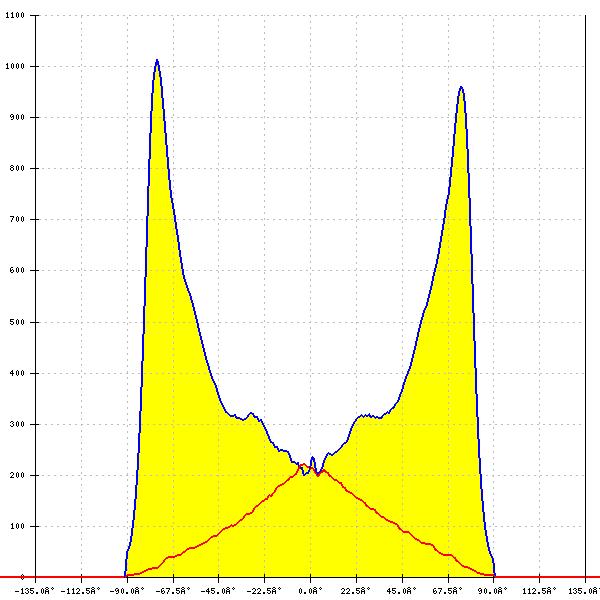

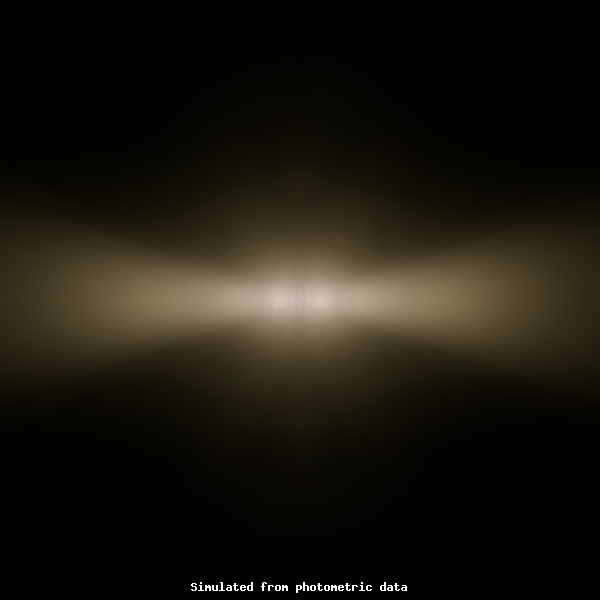

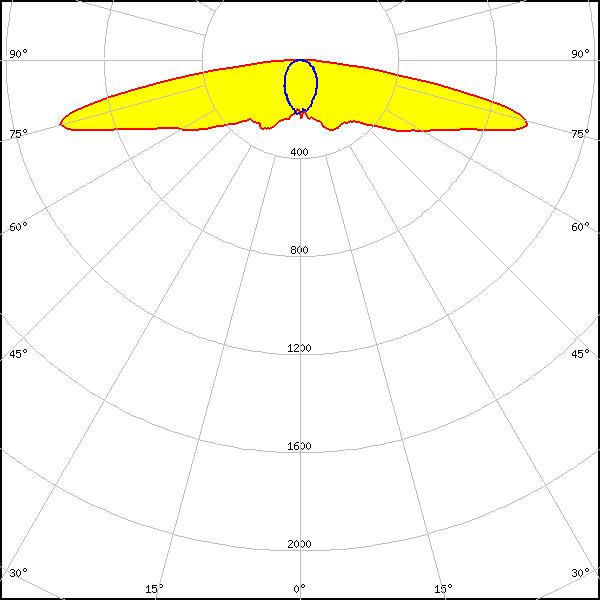

LED:
Z5M4-E2
FWHM:
161° + 72°
FWTM:
173° + 149°
Peak intensity:
1.013 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
