C12924_LENA-STD-BASE-LUXEON-K
Print

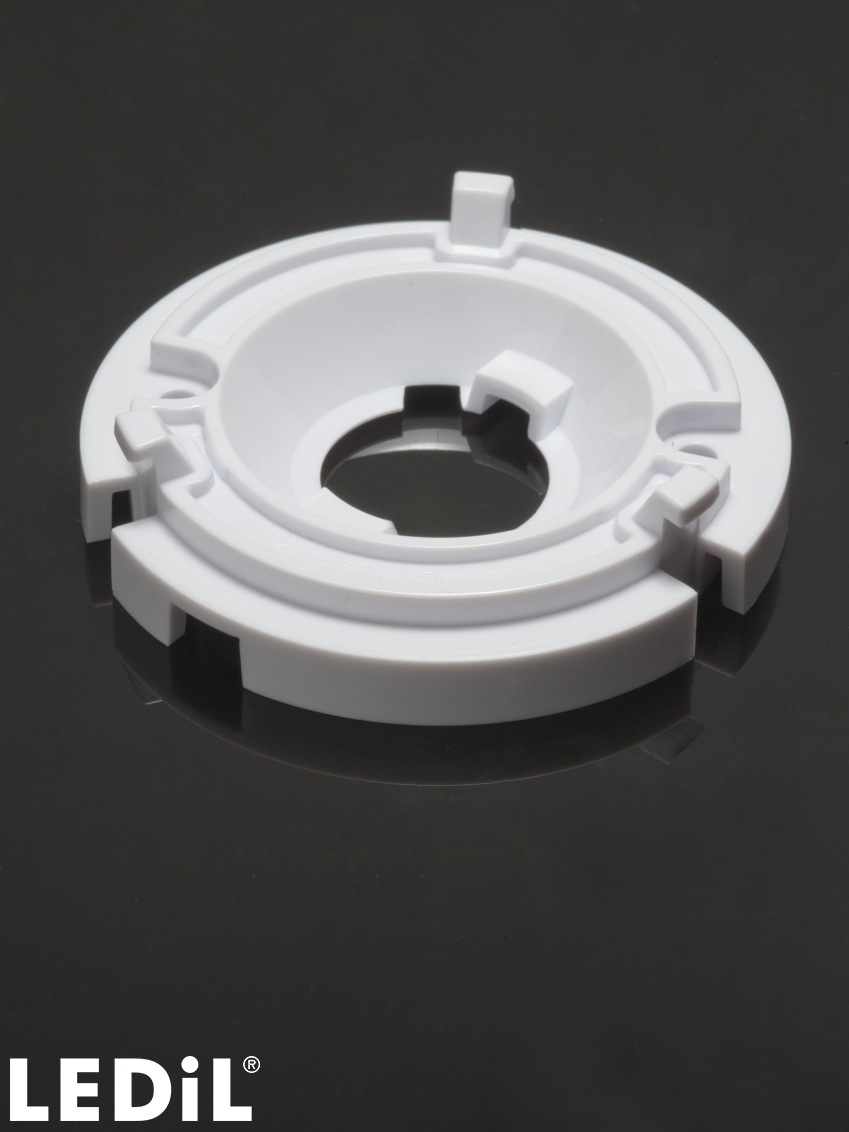

Basepart for LENA and LENINA reflectors. Compatible with LUXEON K12 and K16.
Special version that is manufactured to order. Please see the Minimum Order Quantity (MOQ) and contact us.
Specification
-
Dimensions:59 mm
-
Height:13.72 mm
-
Fastening:screw
-
Colour:white
-
RoHS and REACH compliant:Yes
Component Materials
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Ordering information
-
Quantity in box:60 pcs
-
Box size:380 x 240 x 120 mm
-
Box weight:1.0 kg
-
MPQ:60 pcs
-
MOQ:5040 pcs
-
MOQ size:380 x 240 x 110 mm
-
MOQ weight:1.0 kg
Documents
- Family datasheet
- Product datasheet
- 2D mechanical drawing
- Request a 3D mechanical model
Related Content
AVAILABLE LEDiL PRODUCTS
Compatible LEDs

LED:
LUXEON K12
LES size: 13.5 mm

LED:
LUXEON K16
LES size: 17.0 mm
