C12608_VIRPI-M
Print
~30° medium beam
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content

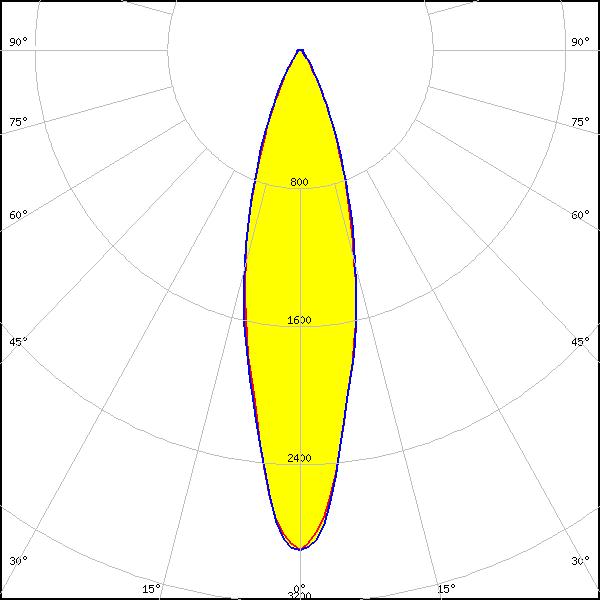

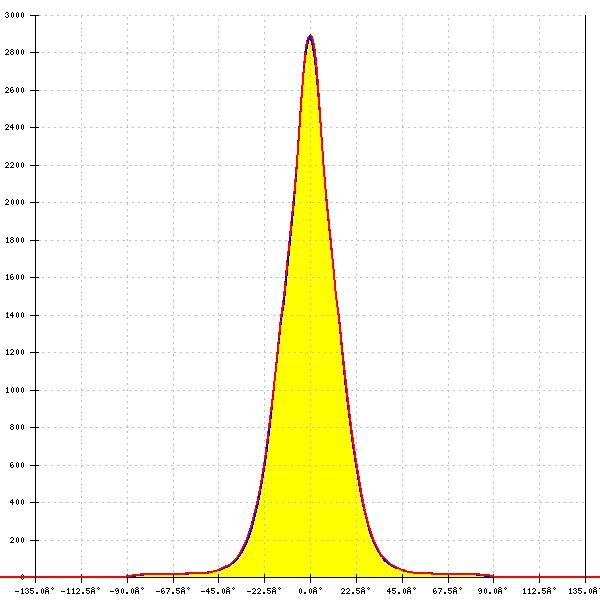

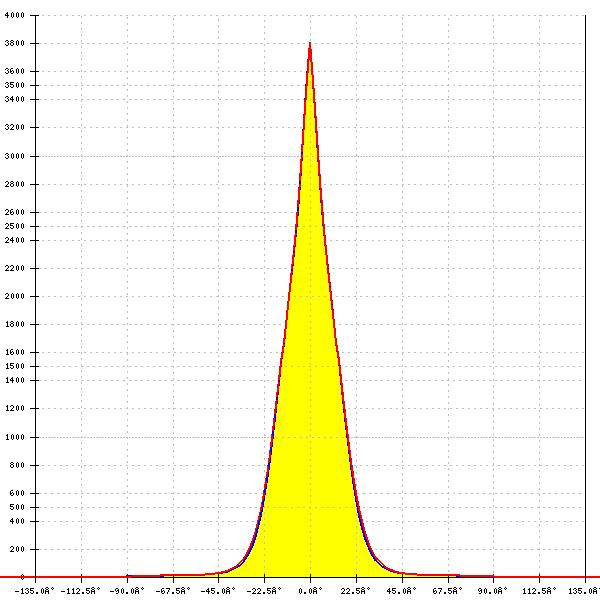

Optical results
LED:
J Series 3030
FWHM:
26°
FWTM:
52°
Peak intensity:
3.391 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
ML-E
FWHM:
29°
FWTM:
58°
Peak intensity:
2.500 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XB-D
FWHM:
28°
FWTM:
56°
Peak intensity:
2.830 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XH-B/G
FWHM:
30°
FWTM:
58°
Peak intensity:
2.400 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-E2
FWHM:
28°
FWTM:
52°
Peak intensity:
3.000 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G
FWHM:
29°
FWTM:
58°
Peak intensity:
2.530 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G2
FWHM:
29°
FWTM:
56°
Peak intensity:
2.700 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XT-E
FWHM:
29°
FWTM:
57°
Peak intensity:
2.620 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 2835 Architectural
FWHM:
22°
FWTM:
51°
Peak intensity:
3.809 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON C
FWHM:
23°
FWTM:
50°
Peak intensity:
3.700 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CZ
FWHM:
20°
FWTM:
48°
Peak intensity:
4.800 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON Rebel ES
FWHM:
28°
FWTM:
57°
Peak intensity:
2.620 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON SunPlus 20 Line (150 deg)
FWHM:
27°
FWTM:
51°
Peak intensity:
3.400 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON SunPlus 35 Line
FWHM:
26°
FWTM:
50°
Peak intensity:
3.600 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON T
FWHM:
26°
FWTM:
53°
Peak intensity:
3.350 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON TX
FWHM:
27°
FWTM:
53°
Peak intensity:
3.250 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SST-10-B130
FWHM:
24°
FWTM:
51°
Peak intensity:
3.811 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
Red
LED:
SST-20 Gen1
FWHM:
24°
FWTM:
51°
Peak intensity:
3.648 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NF2x757A
FWHM:
28°
FWTM:
53°
Peak intensity:
2.900 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSxx19A
FWHM:
29°
FWTM:
56°
Peak intensity:
2.580 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSxx19B/NVSxx19C
FWHM:
27°
FWTM:
55°
Peak intensity:
3.190 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
DURIS S5 (Single chip)
FWHM:
28°
FWTM:
51°
Peak intensity:
3.100 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 2226
FWHM:
29°
FWTM:
56°
Peak intensity:
2.600 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 3030
FWHM:
22°
FWTM:
50°
Peak intensity:
4.154 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Square CSSRM2/CSSRM3
FWHM:
26°
FWTM:
52°
Peak intensity:
3.400 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Square EC
FWHM:
28°
FWTM:
55°
Peak intensity:
2.820 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SFH 4715AS
FWHM:
20°
FWTM:
48°
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
IR
LED:
LH181B
FWHM:
26°
FWTM:
53°
Peak intensity:
3.278 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH351B
FWHM:
27°
FWTM:
56°
Peak intensity:
2.975 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH351C
FWHM:
28°
FWTM:
57°
Peak intensity:
2.799 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LM231 A/B
FWHM:
28°
FWTM:
52°
Peak intensity:
3.100 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SEOUL DC 3030
FWHM:
24°
FWTM:
52°
Peak intensity:
3.540 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z8Y22
FWHM:
26°
FWTM:
55°
Peak intensity:
2.900 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
