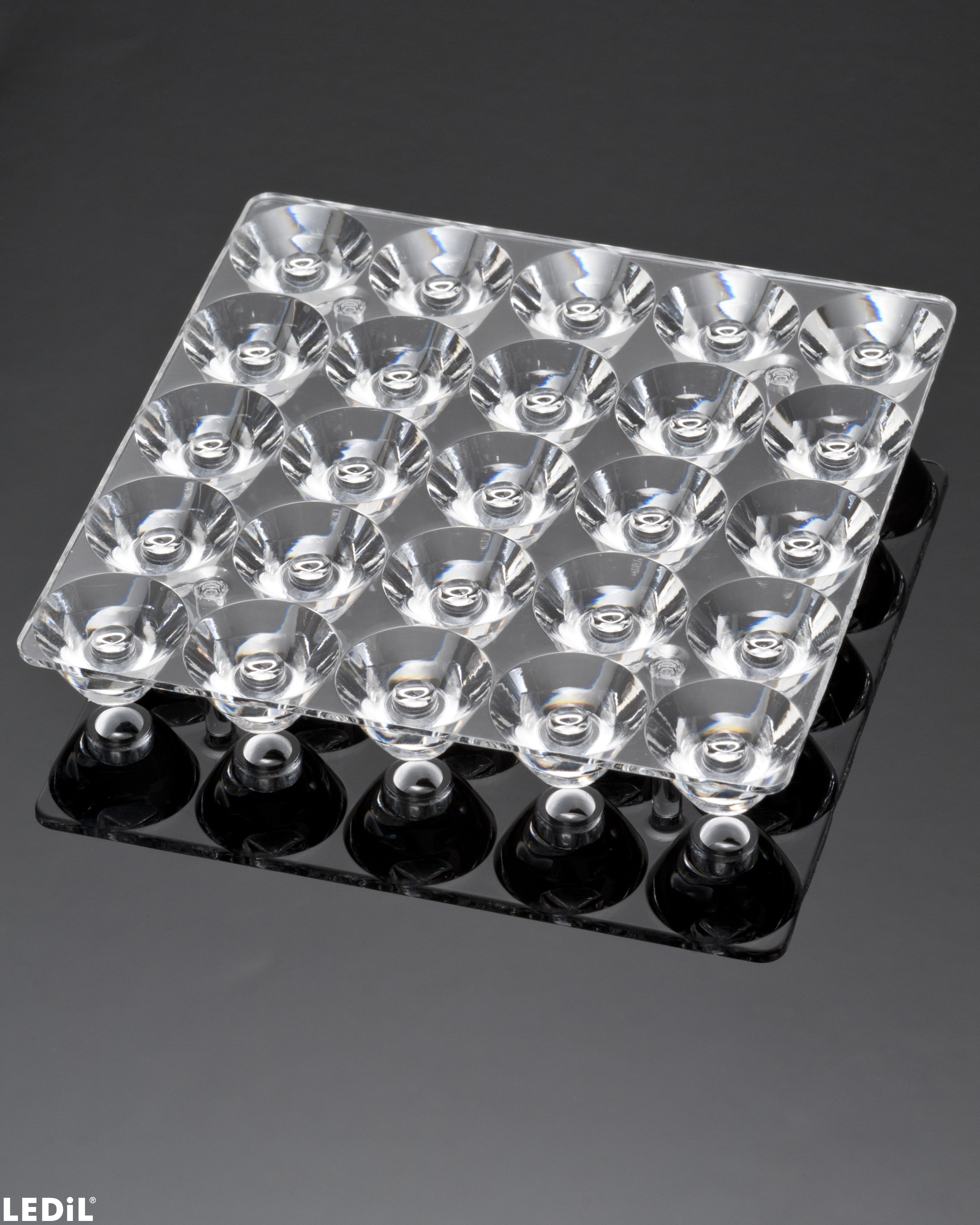

C12607_VIRPI-S
Print
~15° spot beam
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results
LED:
JB3030 HE B Class
FWHM:
14°
FWTM:
28°
Peak intensity:
11.411 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XB-D
FWHM:
13°
FWTM:
30°
Peak intensity:
9.230 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XD16
FWHM:
14°
FWTM:
30°
Peak intensity:
9.118 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-E2
FWHM:
11°
FWTM:
27°
Peak intensity:
12.200 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G
FWHM:
16°
FWTM:
36°
Peak intensity:
6.470 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G2
FWHM:
16°
FWTM:
34°
Peak intensity:
7.300 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XT-E
FWHM:
15°
FWTM:
34°
Peak intensity:
7.160 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

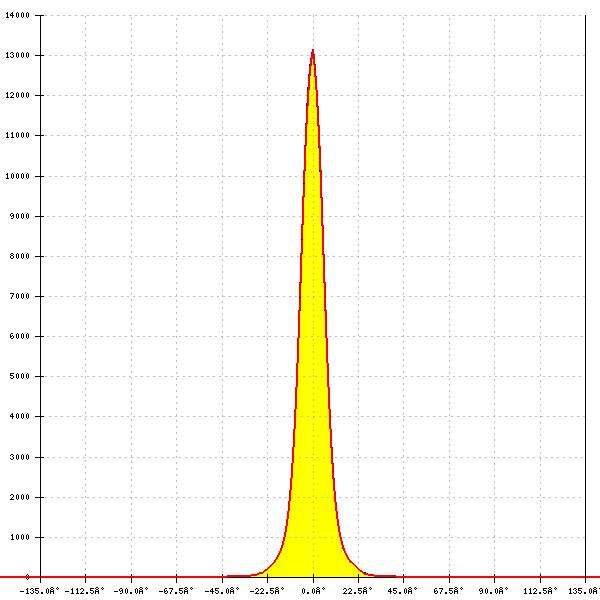

LED:
LUXEON 2835 Architectural
FWHM:
12°
FWTM:
26°
Peak intensity:
13.148 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON C
FWHM:
11°
FWTM:
25°
Peak intensity:
14.500 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CZ
FWHM:
9°
FWTM:
19°
Peak intensity:
26.000 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

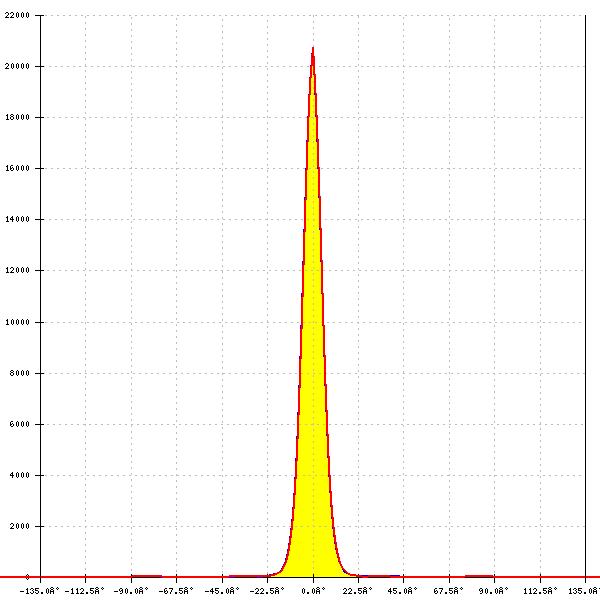

LED:
LUXEON HL1Z (White)
FWHM:
10°
FWTM:
20°
Peak intensity:
20.766 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

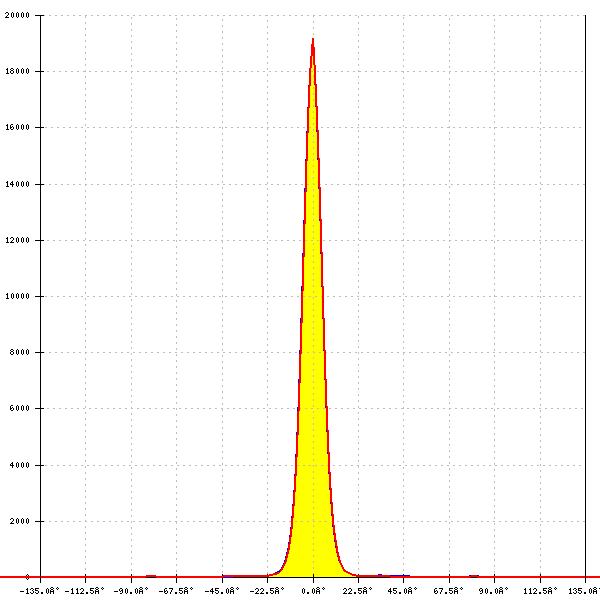

LED:
LUXEON HL1Z (White)
FWHM:
10°
FWTM:
20°
Peak intensity:
19.175 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

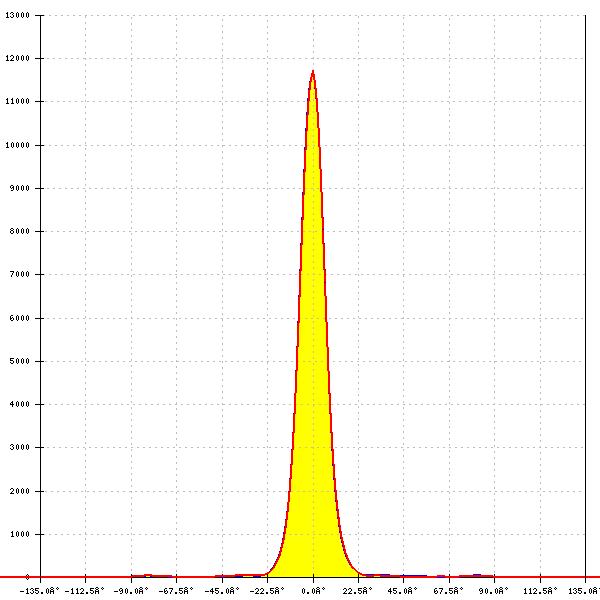

LED:
LUXEON HL2Z
FWHM:
14°
FWTM:
26°
Peak intensity:
11.732 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

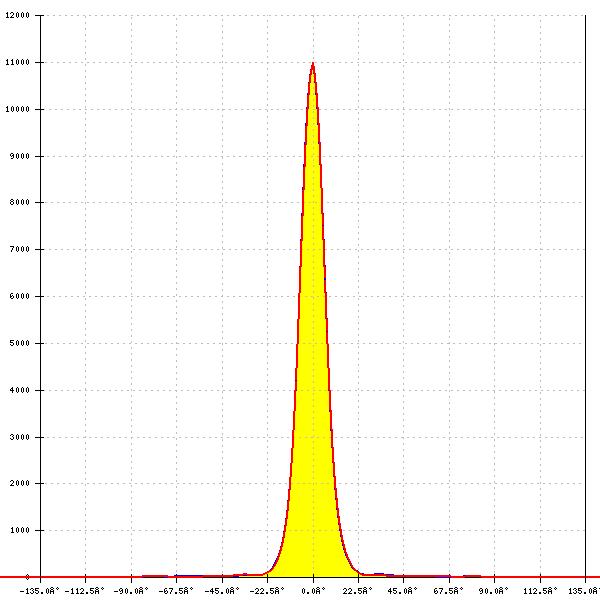

LED:
LUXEON HL2Z
FWHM:
14°
FWTM:
26°
Peak intensity:
11.007 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON Rebel ES
FWHM:
16°
FWTM:
29°
Peak intensity:
6.820 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

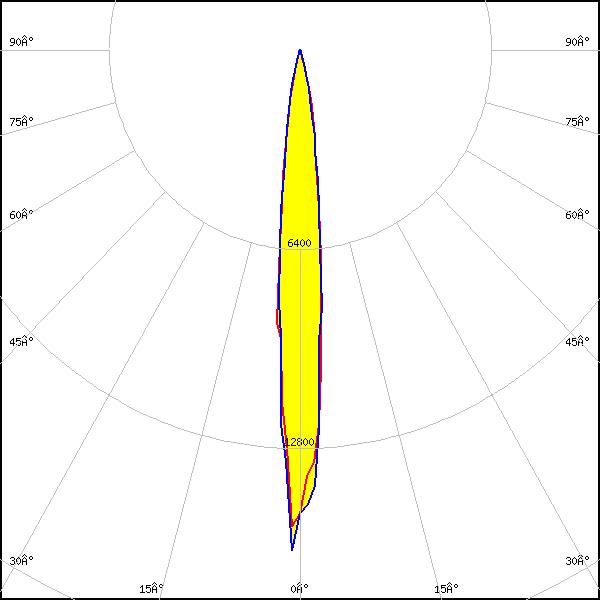

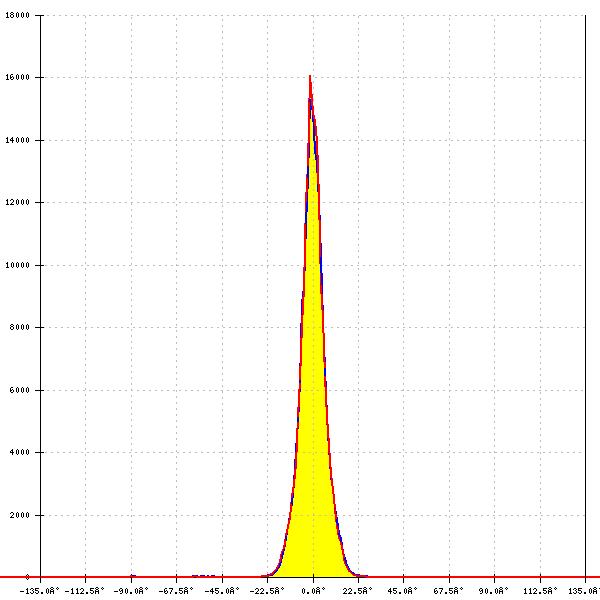

LED:
LUXEON SunPlus 20 Line (150 deg)
FWHM:
13°
FWTM:
25°
Peak intensity:
15.200 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON SunPlus 35 Line
FWHM:
12°
FWTM:
23°
Peak intensity:
16.000 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON T
FWHM:
16°
FWTM:
31°
Peak intensity:
8.530 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON TX
FWHM:
15°
FWTM:
29°
Peak intensity:
10.100 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

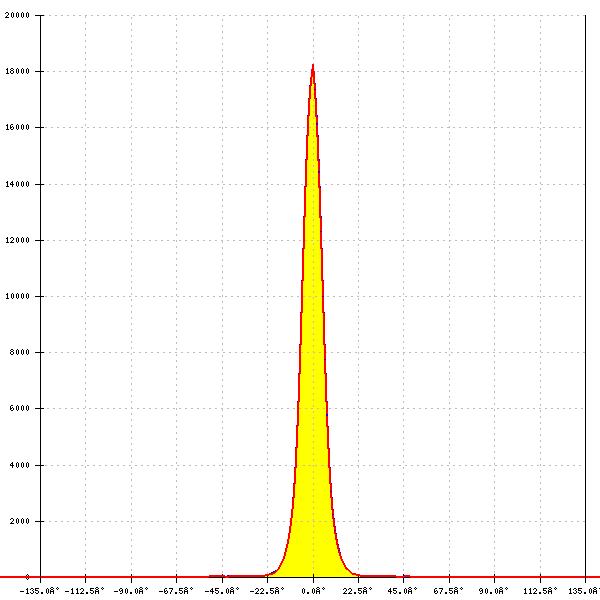

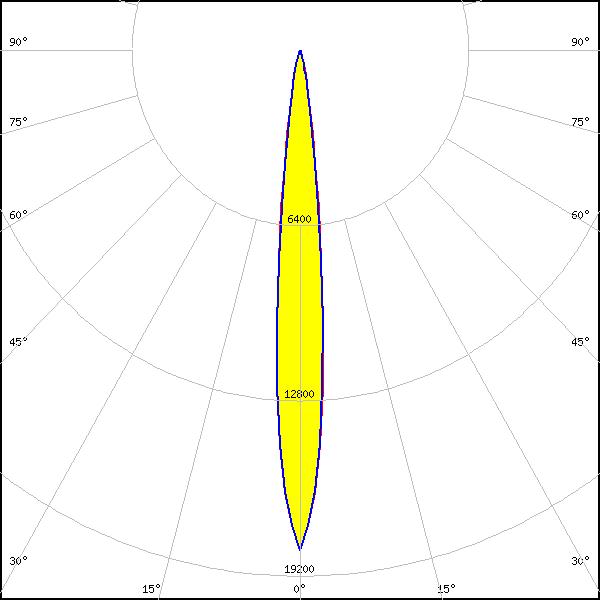

LED:
LUXEON Z ES
FWHM:
10°
FWTM:
22°
Peak intensity:
18.259 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SST-10-B130
FWHM:
12°
FWTM:
27°
Peak intensity:
13.110 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
Red
LED:
SST-20 Gen1
FWHM:
12°
FWTM:
24°
Peak intensity:
13.471 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSxE21A
FWHM:
12°
FWTM:
26°
Peak intensity:
12.506 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSxx19A
FWHM:
16°
FWTM:
34°
Peak intensity:
6.880 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSxx19B/NVSxx19C
FWHM:
18°
FWTM:
33°
Peak intensity:
7.270 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 3030
FWHM:
10°
FWTM:
22°
Peak intensity:
18.243 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Square EC
FWHM:
15°
FWTM:
31°
Peak intensity:
8.620 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON SSL 150
FWHM:
14°
FWTM:
28°
Peak intensity:
11.362 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
Red
LED:
OSLON SSL 80
FWHM:
14°
FWTM:
30°
Peak intensity:
9.726 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
Red
LED:
SFH 4715AS
FWHM:
13°
FWTM:
24°
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
IR
LED:
LH181B
FWHM:
14°
FWTM:
28°
Peak intensity:
10.173 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH351B
FWHM:
17°
FWTM:
33°
Peak intensity:
7.476 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH351C
FWHM:
18°
FWTM:
34°
Peak intensity:
7.100 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH351D
FWHM:
22°
FWTM:
42°
Peak intensity:
4.345 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LM301B
FWHM:
12°
FWTM:
26°
Peak intensity:
12.384 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SEOUL DC 3030
FWHM:
15°
FWTM:
30°
Peak intensity:
9.870 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z5M1/Z5M2
FWHM:
15°
FWTM:
29°
Peak intensity:
9.740 cd/lm
Efficiency:
98 %
LEDs/each optic:
1
Light colour/type:
White

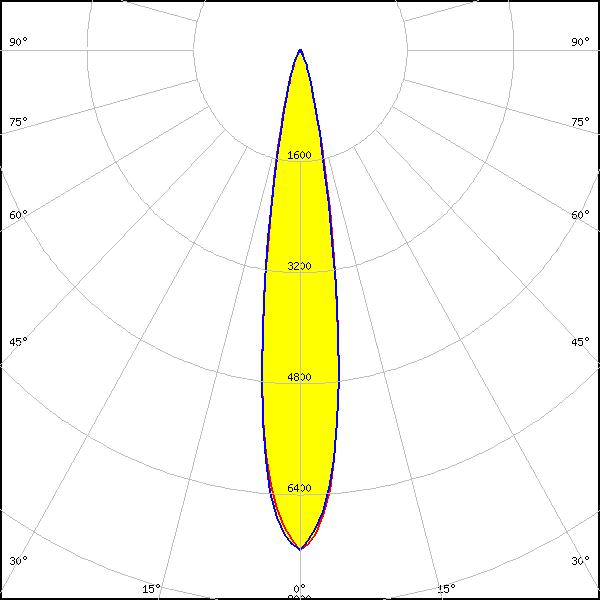

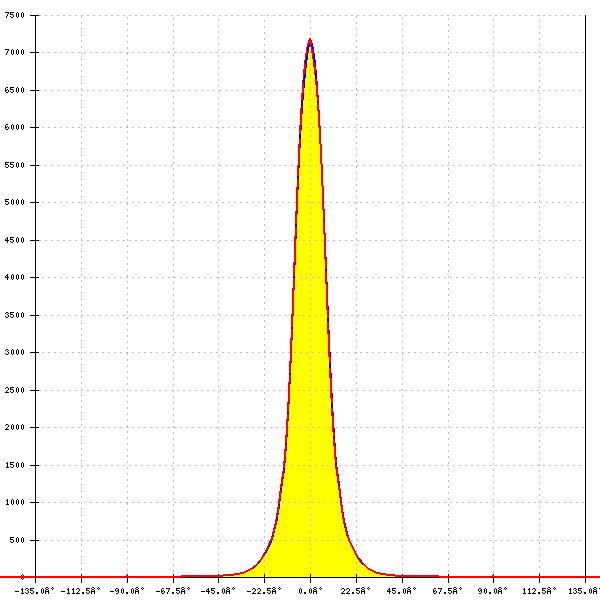

LED:
Z5M4-E1
FWHM:
18°
FWTM:
34°
Peak intensity:
7.199 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z8Y19
FWHM:
14°
FWTM:
26°
Peak intensity:
11.190 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z8Y22
FWHM:
17°
FWTM:
33°
Peak intensity:
7.200 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
