LINNEA - 40 mm wide linear lens family for mid power PCBs

LINNEA is a low profile linear optic family (285 x 40 x 9.7 mm) that allows lenses to be attached seamlessly together to form a continuous luminaire appearance. Fastening the optic with integrated clips and closing the rows with dedicated end part accessories makes the installation process fast and clean. The family consists of many symmetrical and asymmetrical beams with reduced glare and is optimized for the most common Zhaga mid-power 20 and 24 mm wide PCBs.

> LINNEA FAMILY PAGE

---

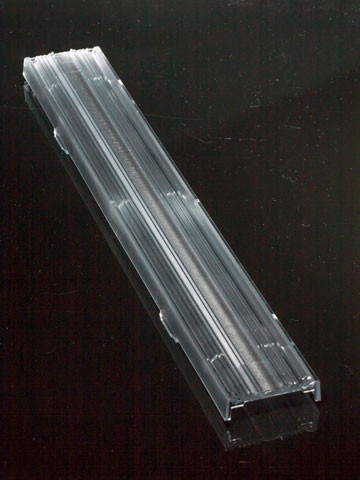

NEW LINNEA-O - Oval shaped light distribution ideal for shelf and aisle lighting



FEATURES

• [caption id="attachment_1113" align="alignright" width="150"] LINNEA-O[/caption] Off-the-shelf linear optics fitting into old and new luminaire designs with wide PCB compatibility
• Advanced optical control with great colour uniformity and reduced longitudinal glare
• Extremely fast to assemble with integrated clips and optional end caps

TYPICAL APPLICATIONS

• Retail and supermarkets
• Industrial
• High bay

COMPATIBILITY

• Optimized for the most common Zhaga mid-power 20 mm and 24 mm wide PCBs
• Optimized for 1.0 mm thick profiles, and B-variants for 0.5 mm profile
