COMPATIBILITY GUIDE

FLORENTINA-1, -2X2, -4X1 ASSEMBLIES AND PCB LAYOUTS

  • Anti-glare optics for ROSE-MRK and CMC-lenses
  • Dimensions
    • FLORENTINA-1-HLD: 32,6 x 32,6 mm
    • FLORENTINA-1-SHD: 39,7 x 39,7 mm
    • FLORENTINA-2X2-HLD: 89,7 x 89,7 mm
    • FLORENTINA-2X2-SHD: 95,6 x 95,6 mm
    • FLORENTINA-2X2-SHD-OPEN: 92,1 x 92,1 mm
    • FLORENTINA-4X1-HLD: 169,7 x 49,7 mm
    • FLORENTINA-4X1-SHD: 175,6 x 55,6 mm
    • FLORENTINA-4X1-SHD-OPEN: 172,1 x 52,1 mm
  • Mounting with steel springs, screws, press fit pins, nuts or glue
  • Possibility to order with LEDiL standard faceplates, or make your own
  • 4X1 and 2X2 with 30-degrees adjustable rotation mechanism


Typical FWHM Typical efficiency Typical cd/lm
ROSE-CMC-SS1 18 ° 81% 4.7 – 8.3
ROSE-CMC-RS1 16 ° 80% 6.2 – 10.9
ROSE-CMC-D1 17 ° 79% 4.7 – 8.7
ROSE-CMC-M1 30 ° 77% 2.3 – 2.7
ROSE-CMC-O1 44 ° + 17 ° 72% 2.2 – 3.0
ROSE-C-C-W-V41 43 ° 73% 1.0 – 1.6
ROSE-CMC-MRK-S2 29 ° 86% 2.1
ROSE-MRK-M2 45 ° 86% 1.3
ROSE-MRK-W2 62 ° 84% 0.7

1) Result from FLORENTINA-2X2 assembly. 2) Result from single ROSE-MRK assembly

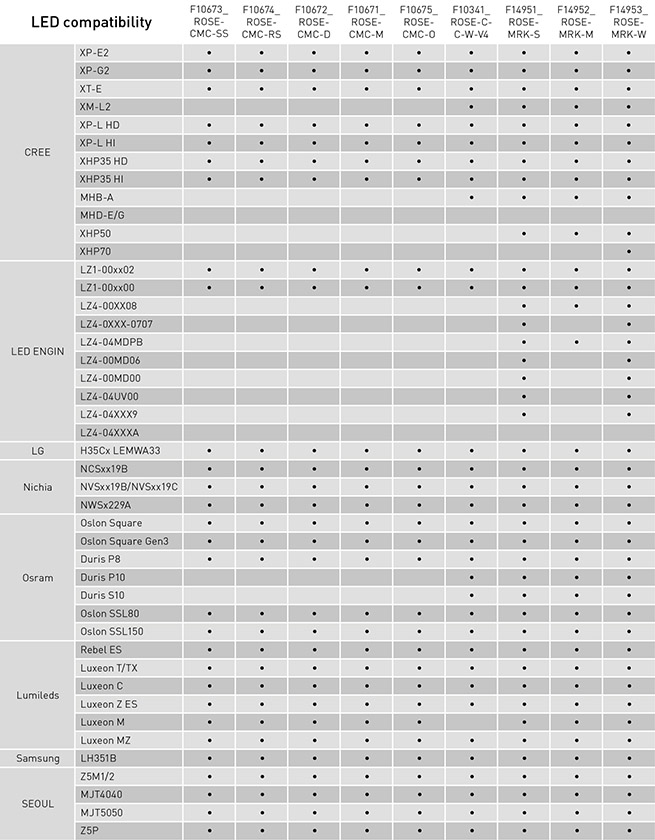

florentina LED compatibility chart



PCB LAYOUTS

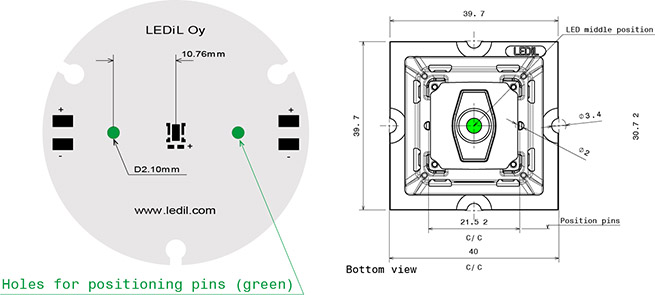

FLORENTINA-1



florentina-1 pcb layout

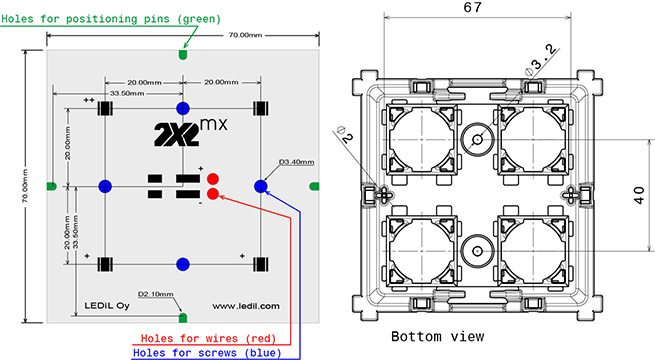

FLORENTINA-2X2



florentina-2x2 pcb layout

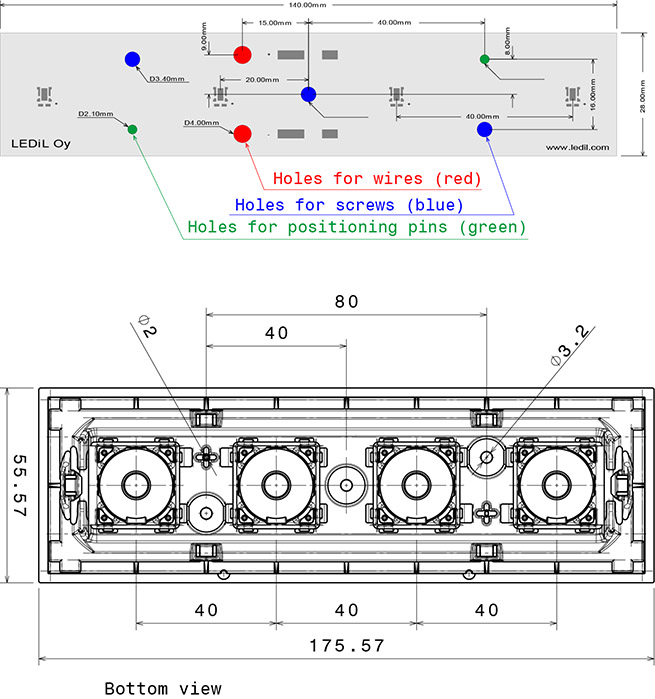

FLORENTINA-4X1



florentina-4x1 pcb layout



Find all related products


The information contained herein is the property of LEDiL Oy, Joensuunkatu 13, FI-24100 SALO, Finland and is subject to change without notice. Please visit lediloptics.cn for additional information, such as the latest photometric files, 3D mechanical models, and application notes relating to handling, gluing and taping.
