APPLICATION EXAMPLE
Store aisle lighting with FLORENCE-ZT25
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

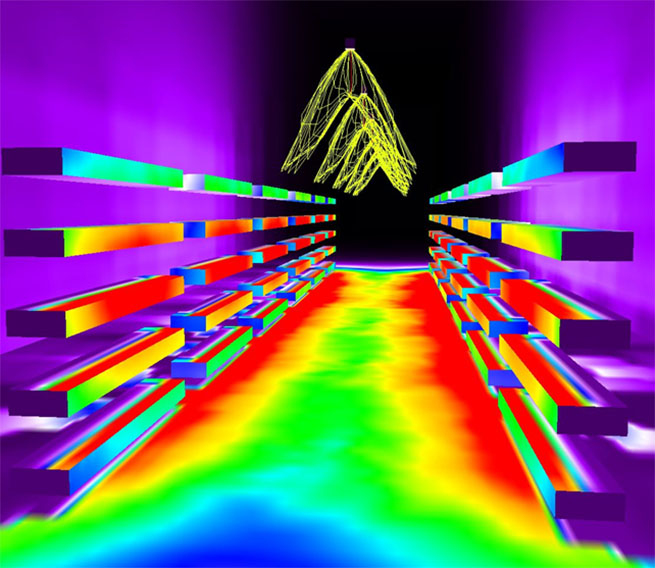

False colours from the simulation
SETUP:
| Application: | Store aisle lighting |
| Optics: | FLORENCE-ZT25 |
| Mounting height: | 3.5 m |
| Aisle width: | 3 m |
| Distance between luminaires: | 3.8 m |
| Luminous flux (Luminaire): | 4413 lm |
RESULTS:
| Average: | 186 lx |
| Max: | 230 lx |
| Uo: | 0.52 |
| F14170_FLORENCE-ZT25 |
