APPLICATION EXAMPLE
Shelf lighting with SHELLY
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

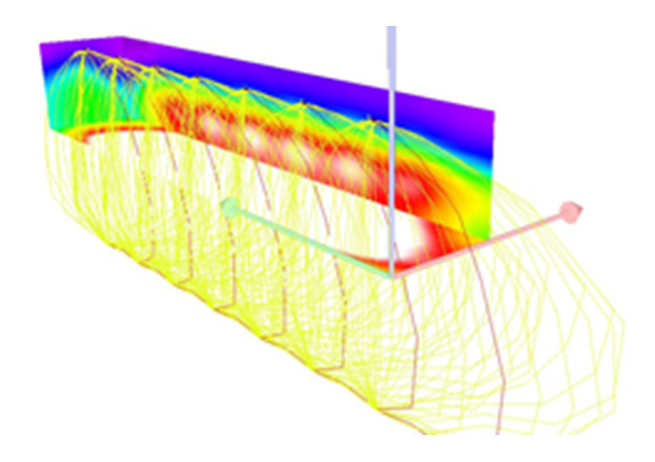

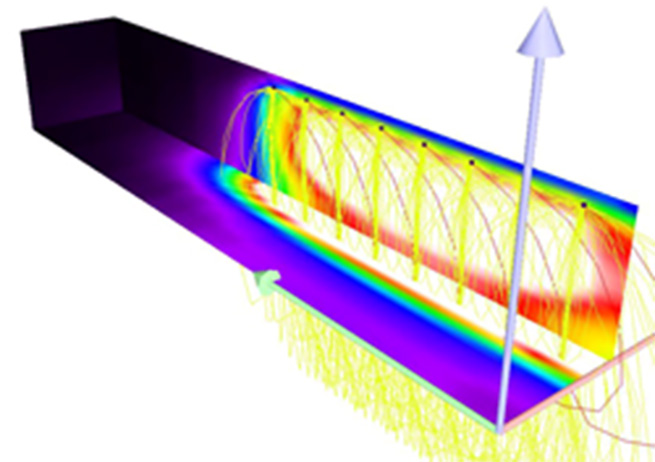

SHELLY-WAS: 10 cm from back of the shelf
SETUP:
| Application: | Shelf lighting |
| Optics: | SHELLY-T-6X1-WAS and -N |
| Arrangement: | WAS: 10 cm from back of the shelf |
| N: 10 cm from front of the shelf | |
| Luminous flux (luminaire): | WAS: 300 lm / N: 500 lm |
| No: of luminaires/optics: | WAS: 8 pcs / N: 7 pcs |
| Distance between luminaires: | WAS: 20 cm / N: 40 cm |
RESULTS:
| SHELLY-T-6X1-WAS: | |
| Average: | 1374 lx |
| Max: | 1764 lx |
| SHELLY-T-6X1-N: | |
| Average: | 1321 lx |
| Max: | 1565 lx |
| Uo: | 0.68 |
| C14274_SHELLY-T-6X1-WAS | ||
| C14275_SHELLY-T-6X1-N |
