APPLICATION EXAMPLE
RP-8-00 with STRADA-2X2-DWC
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
Type III medium distribution with semi-cutoff glare rating is designed for streets with long pole distances. Good longitudinal uniformity of luminance ensures high performance to European ME standards.
SETUP:
| Lighting class: | RP-8-00 (US) |
| Optics: | STRADA-2X2-DWC |
| LED: | CREE XM-L |
| Road width: | 33 ft |
| Number of lanes: | 3 |
| Arrangement: | Single row, bottom |
| Luminous flux (Luminaire): | 15 000 lm |
| Pole distance: | 192 ft |
| Mounting height: | 32 ft |
| Overhang: | 4 ft |
| Boom angle: | 0° |
| Boom length: | 0 m |

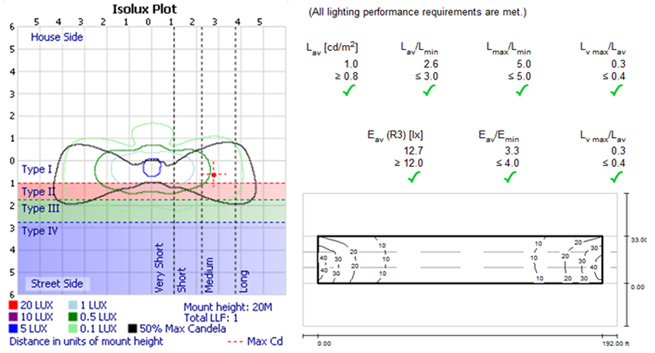

RESULTS:
| Average: | 13 lx |
| Min: | 3.9 lx |
| Max: | 38 lx |
| Uo: | 0.31 |
| C12362_STRADA-2X2-DWC |
The information contained herein is the property of LEDiL Oy, Joensuunkatu 13, FI-24100 SALO, Finland and is subject to change without notice. Please visit lediloptics.cn for additional information, such as the latest photometric files, 3D mechanical models, and application notes relating to handling, gluing and taping.
