C12362_STRADA-2X2-DWC

Print

Universal road lighting beam with excellent mixed illuminance and luminance uniformity. Typically IESNA Type III (medium).

Specification
  • Dimensions:
    50 x  50 mm
  • Height:
    6.00 mm
  • Fastening:
    glue, pin, screw
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    800 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    5.8 kg
  • MPQ:
    160 pcs
  • MOQ:
    160 pcs
  • MOQ size:
    480 x 280 x 80 mm
  • MOQ weight:
    1.4 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C12362_STRADA-2X2-DWC

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

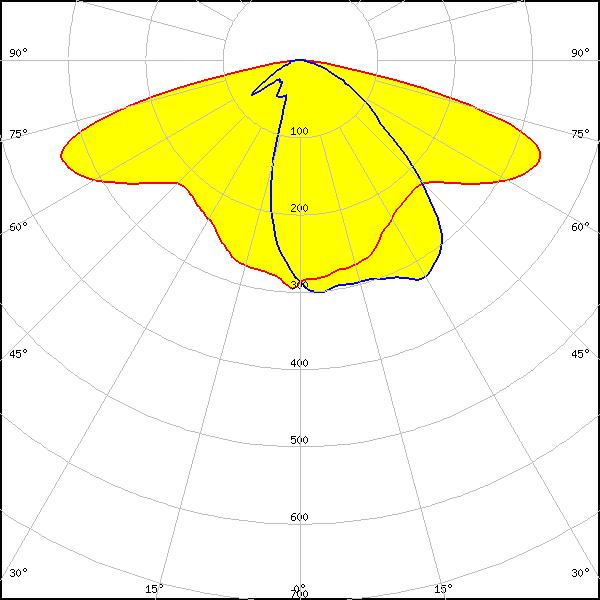

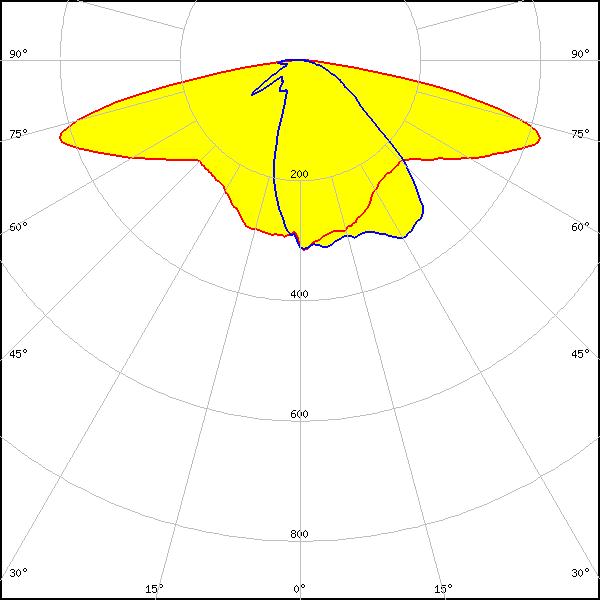

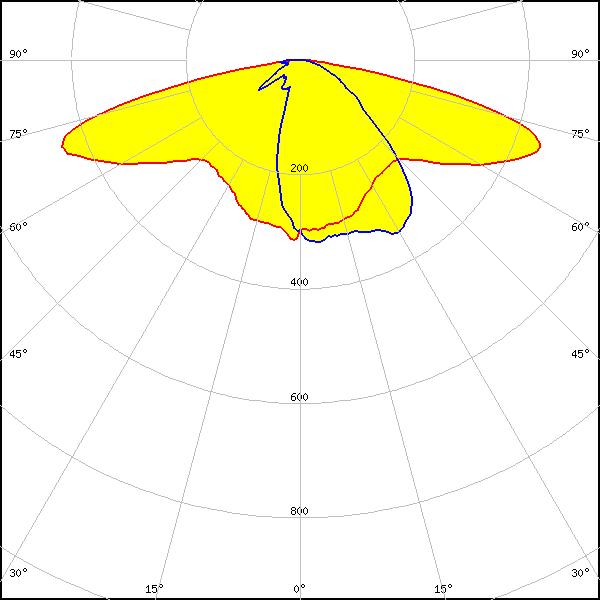

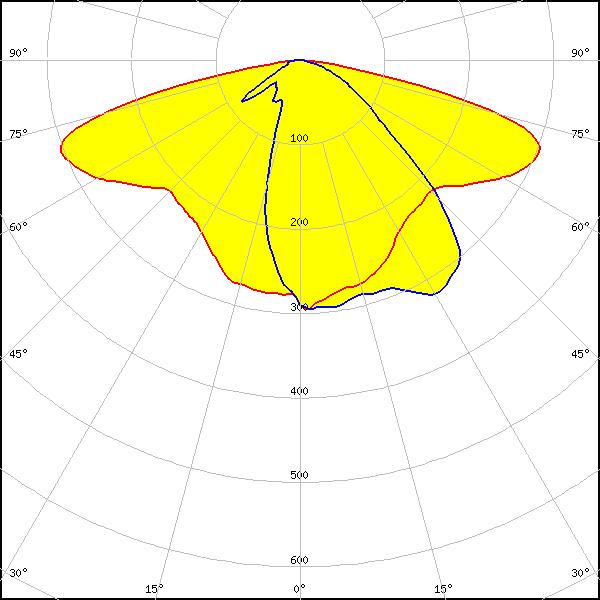

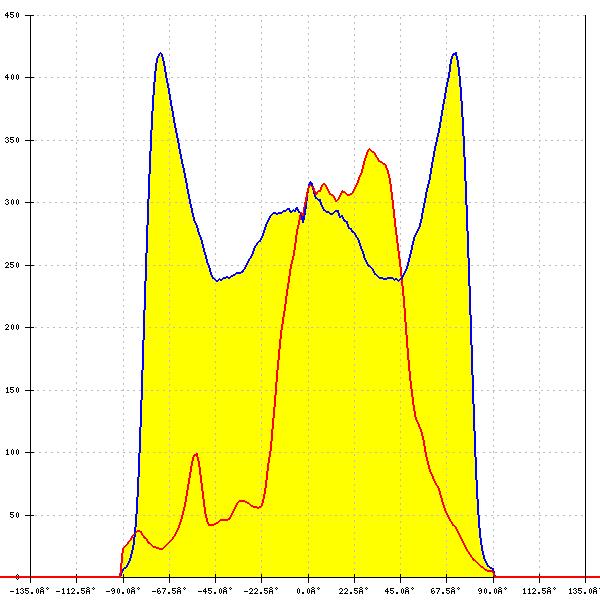

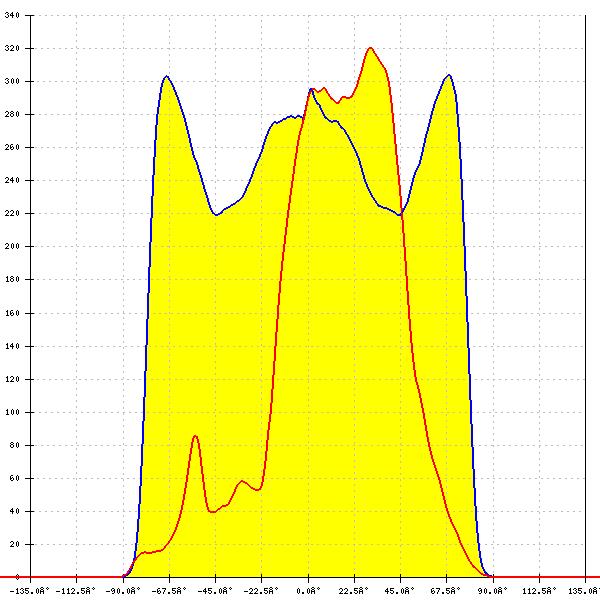

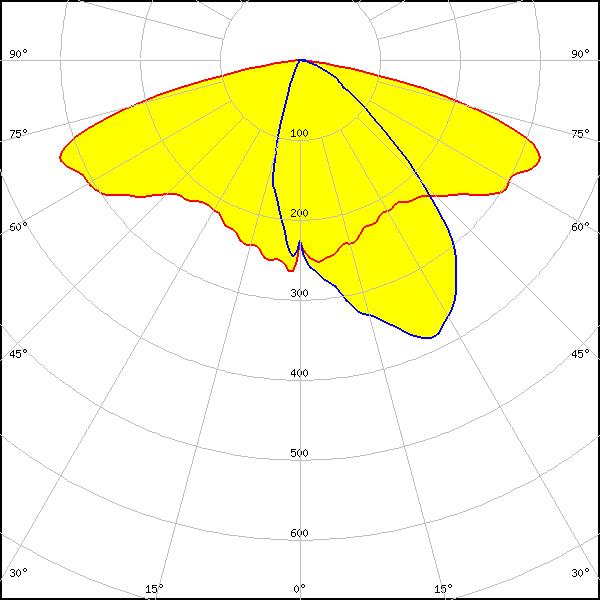

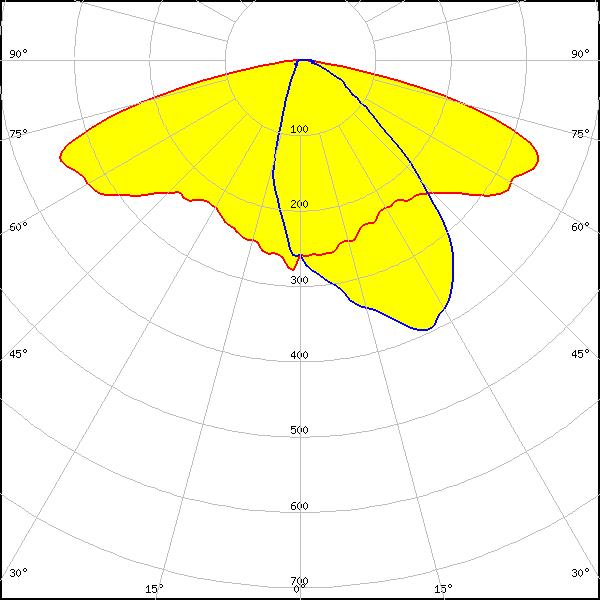

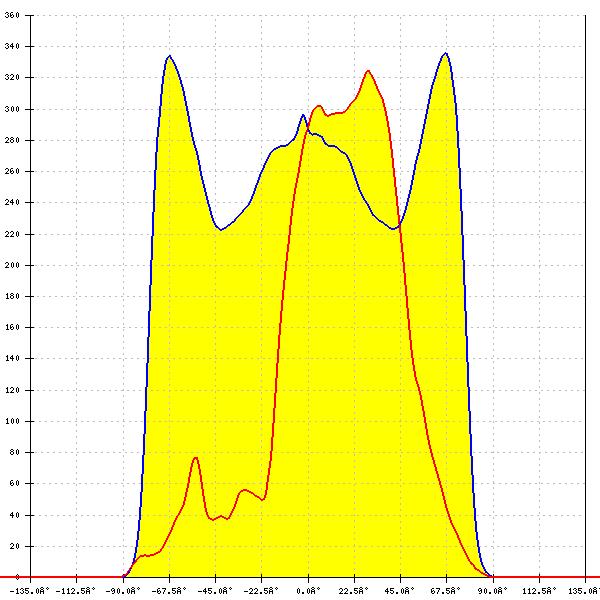

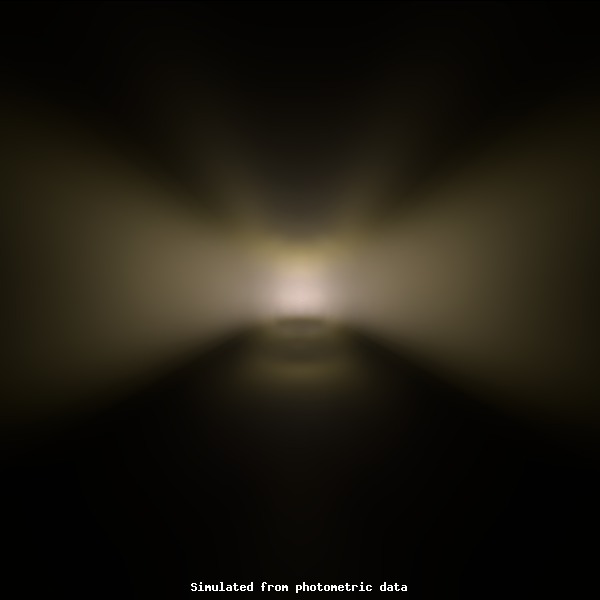

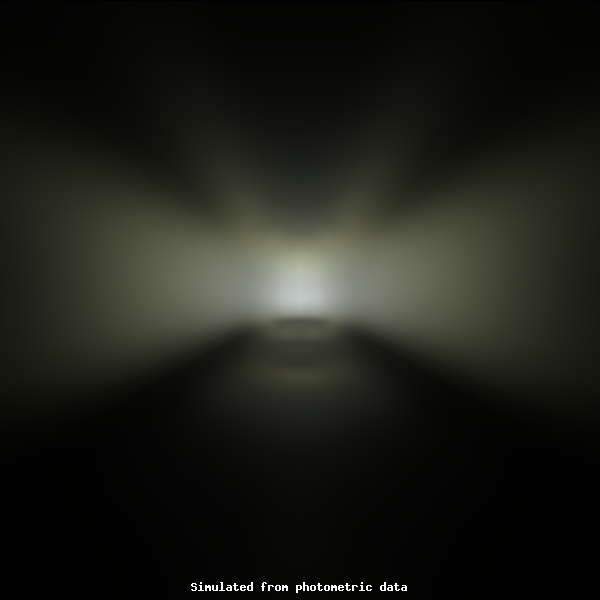

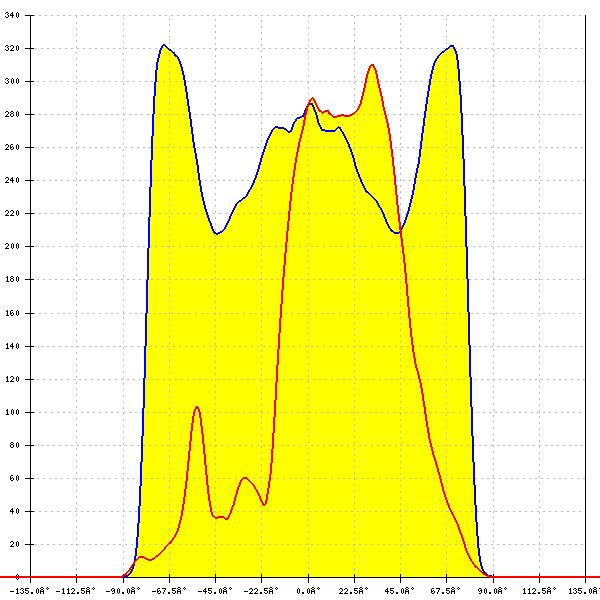

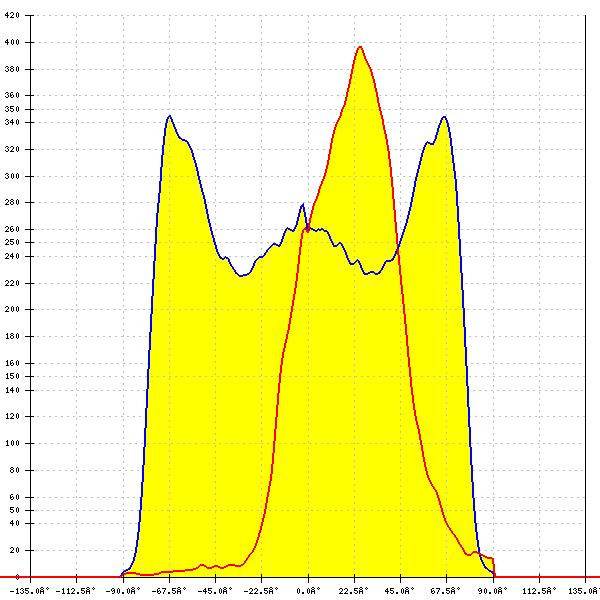

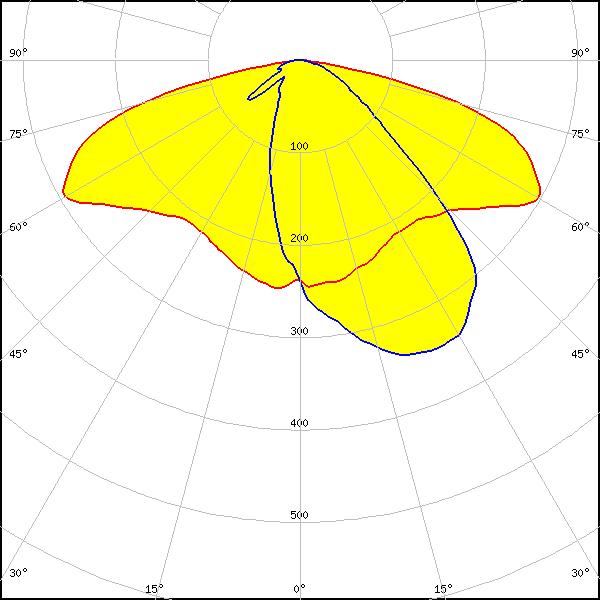

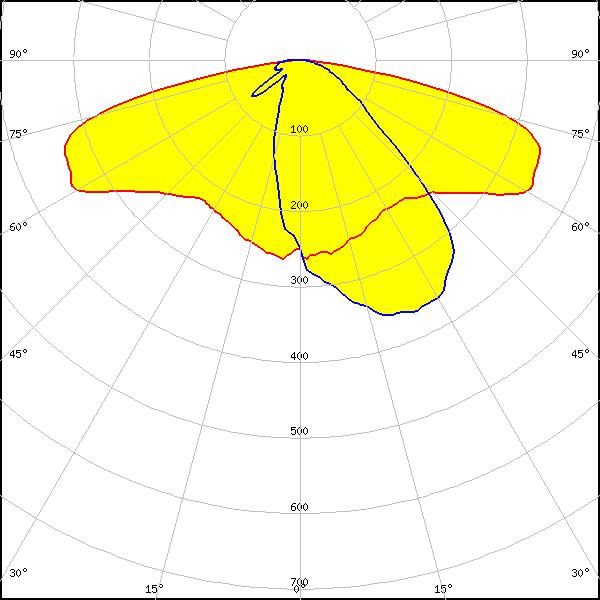

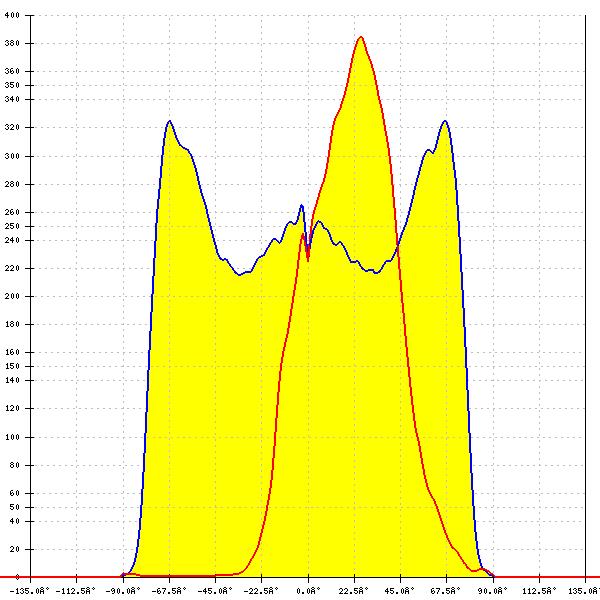

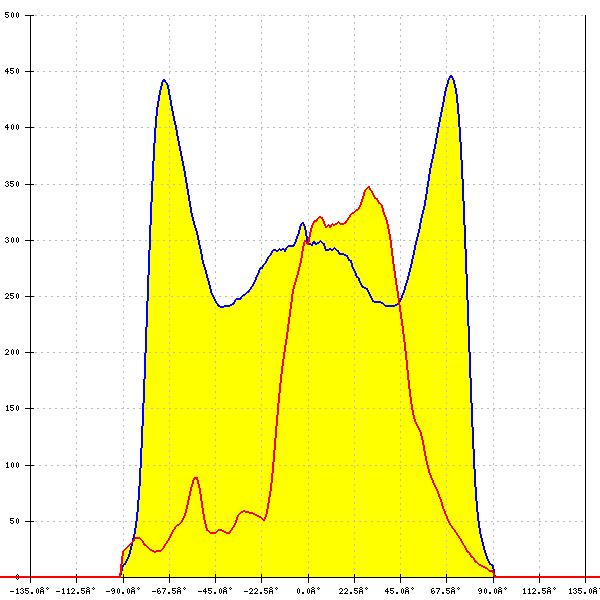

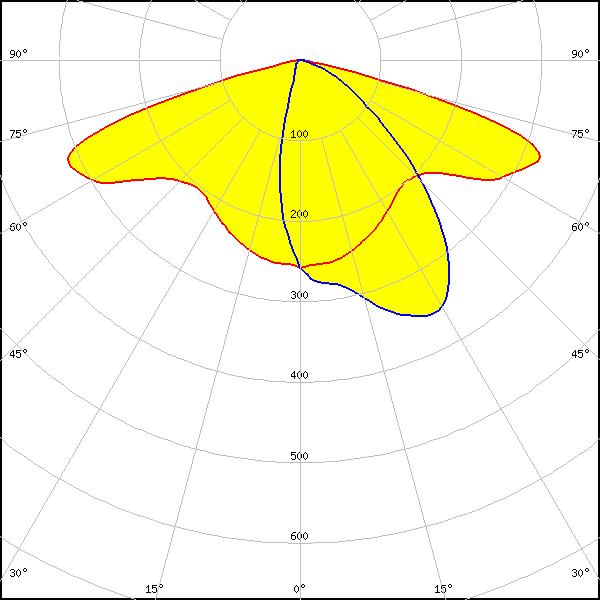

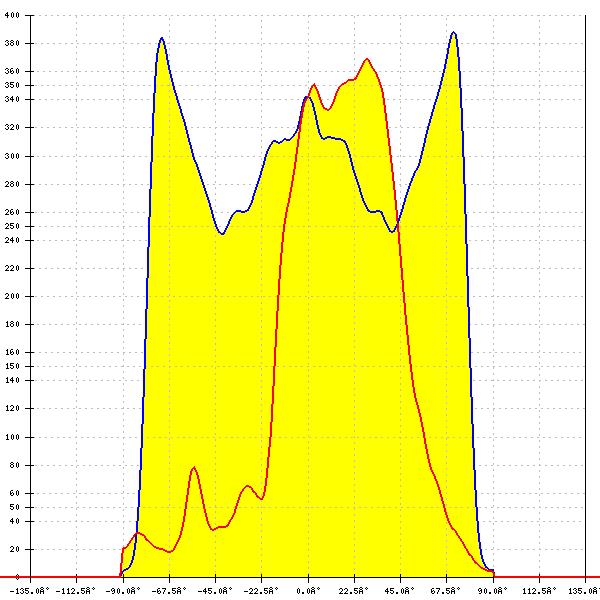

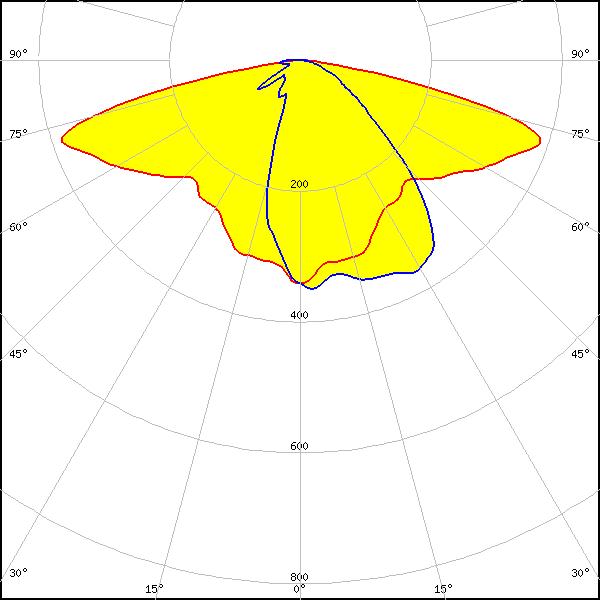

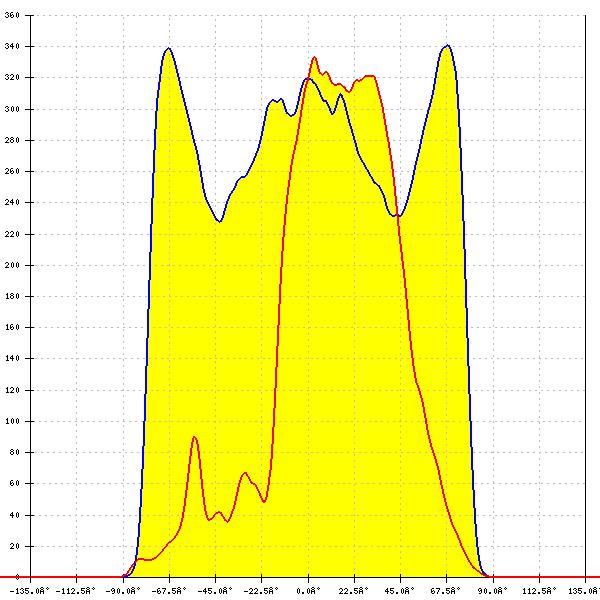

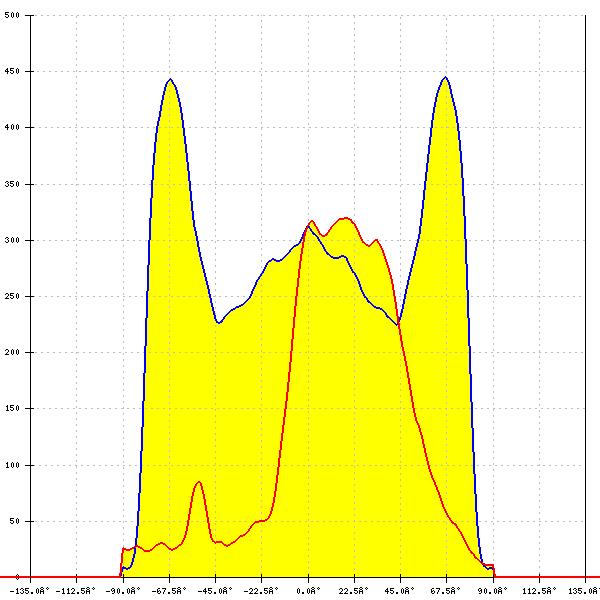

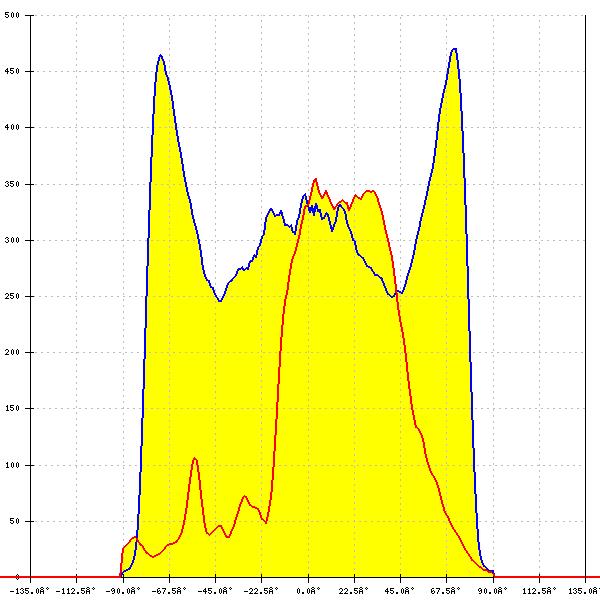

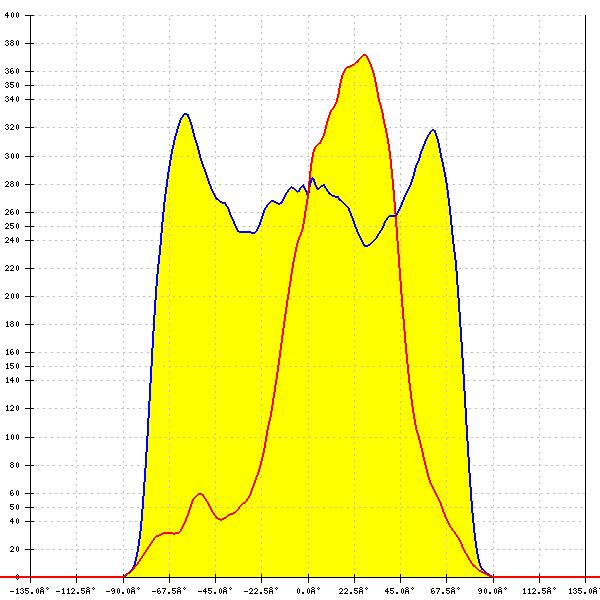

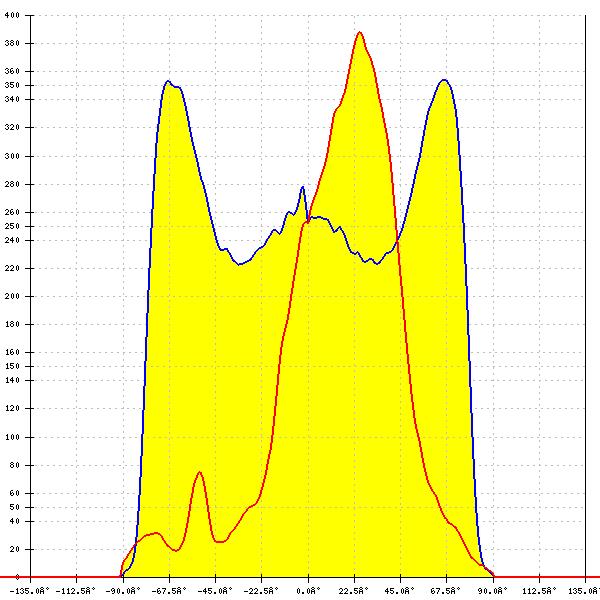

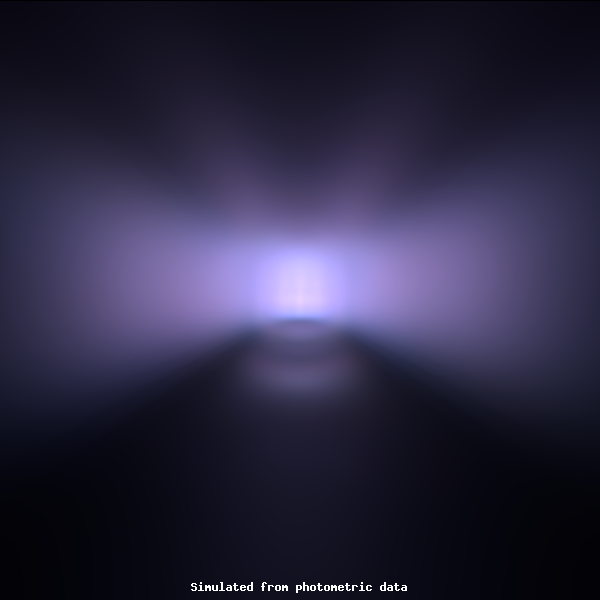

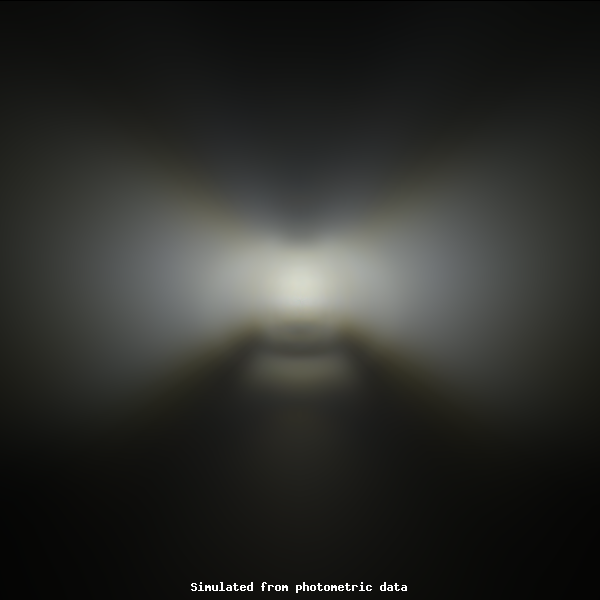

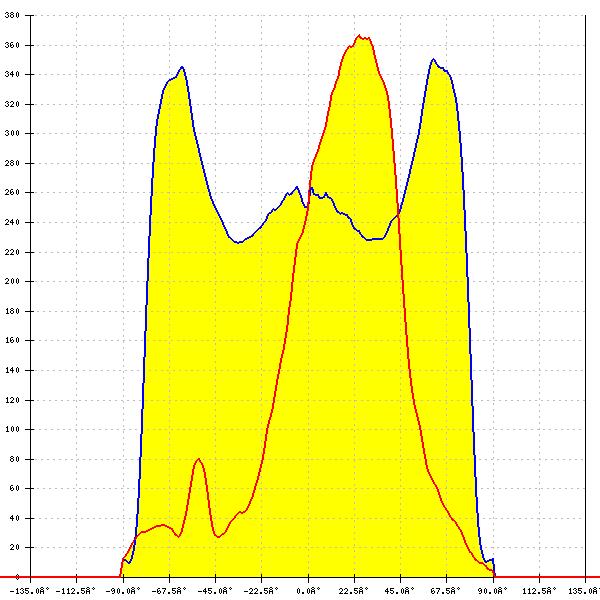

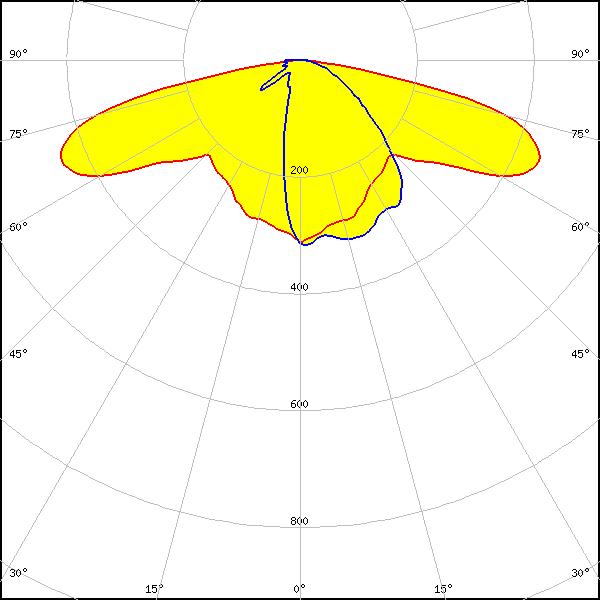

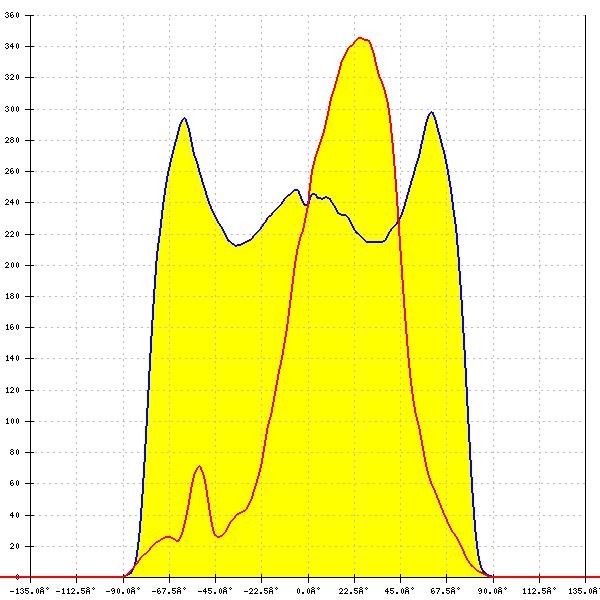

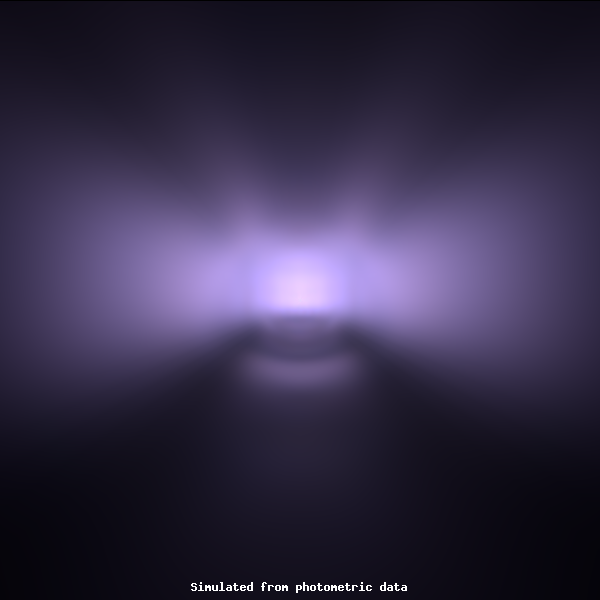

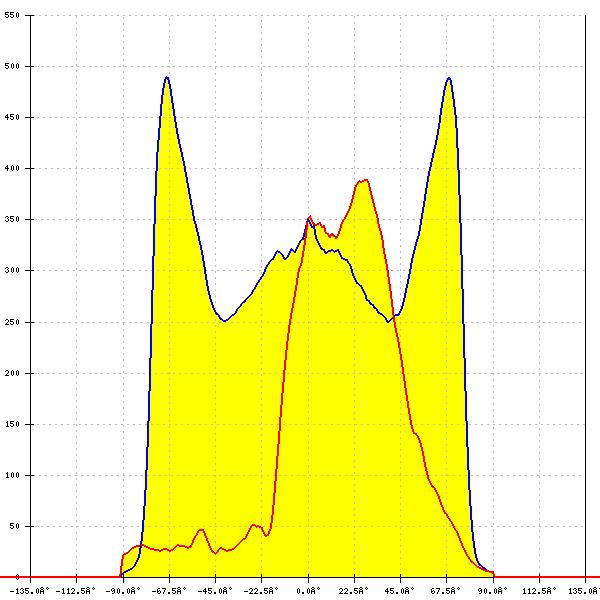

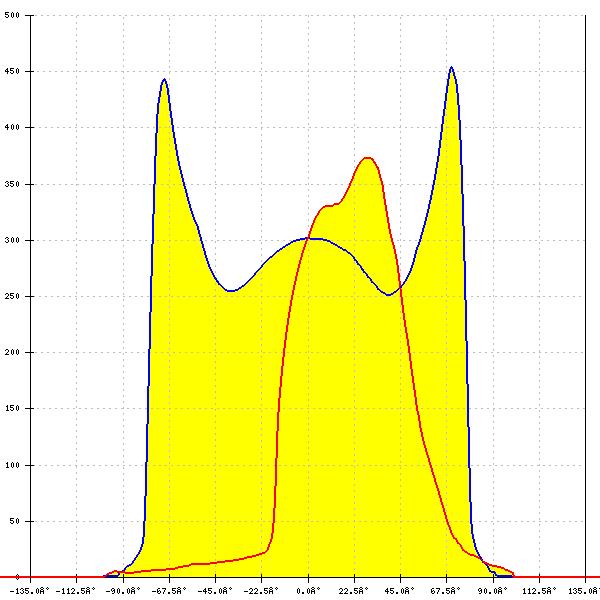

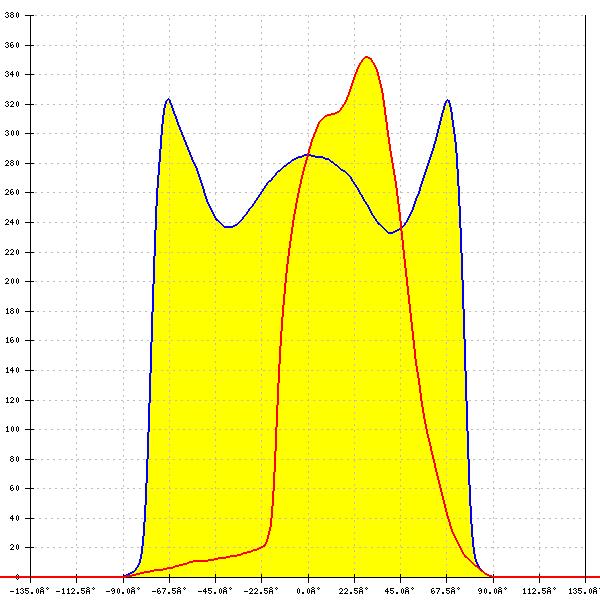

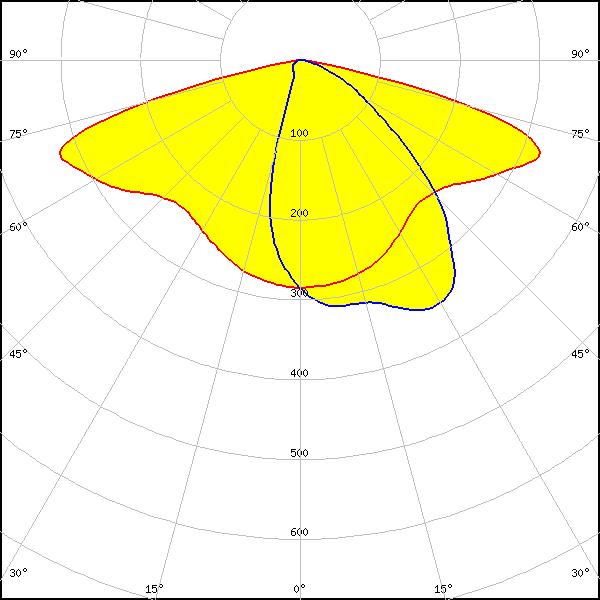

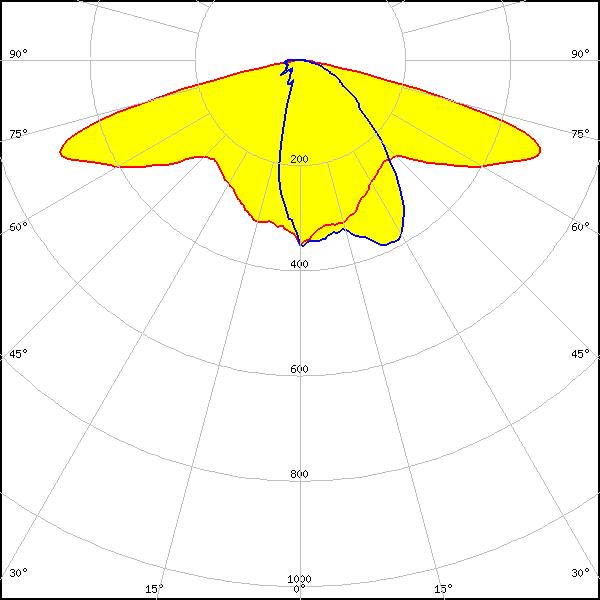

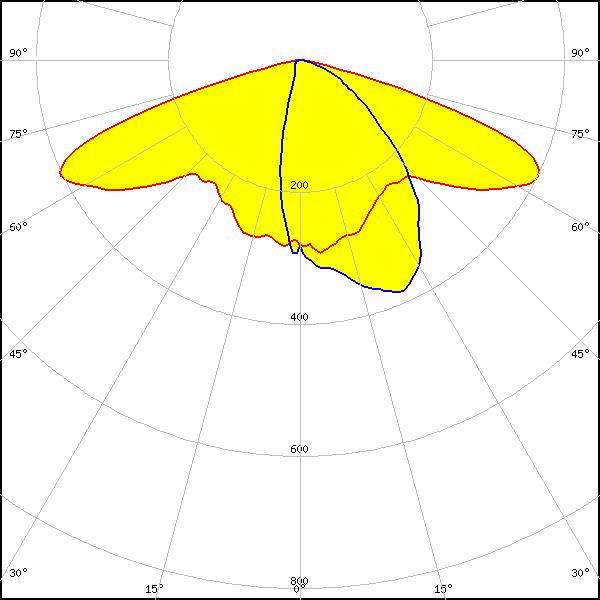

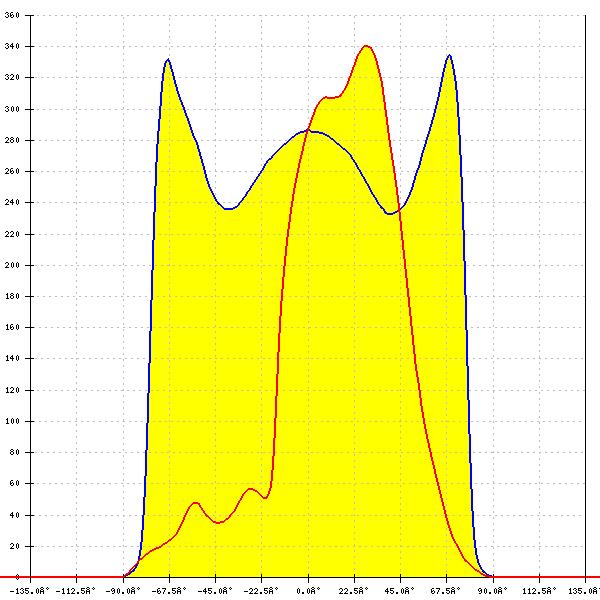

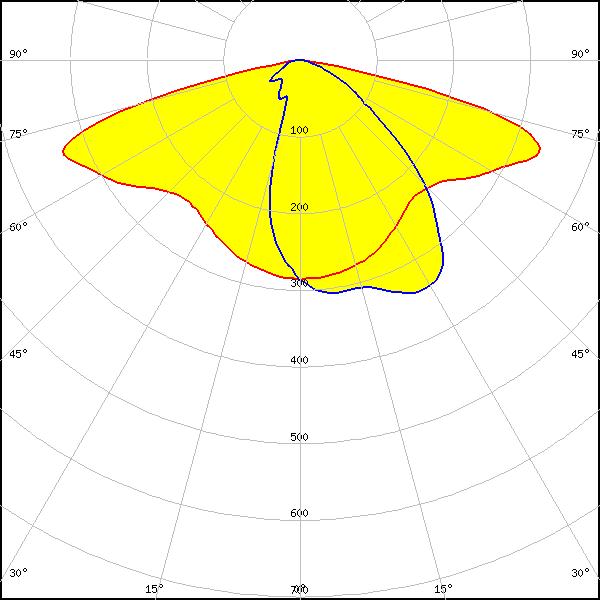

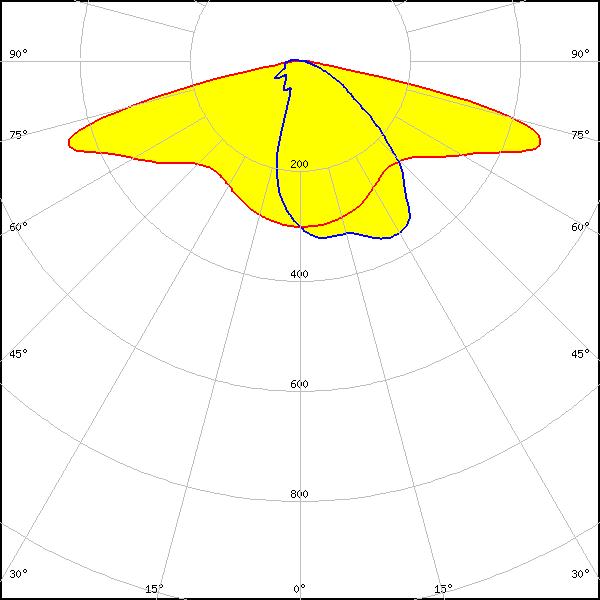

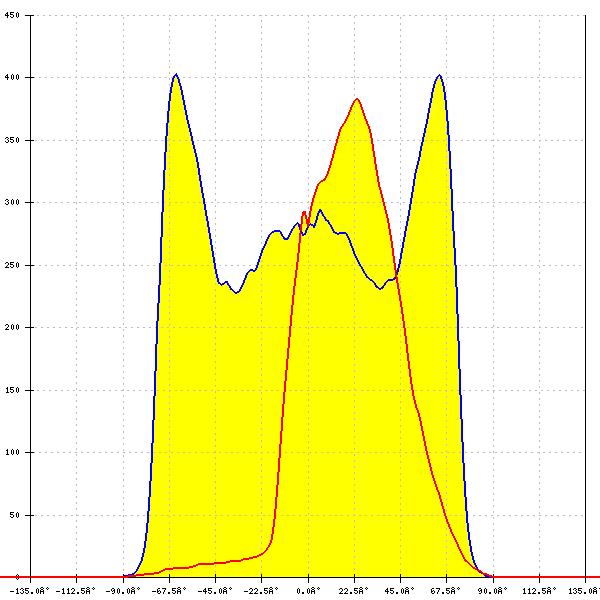

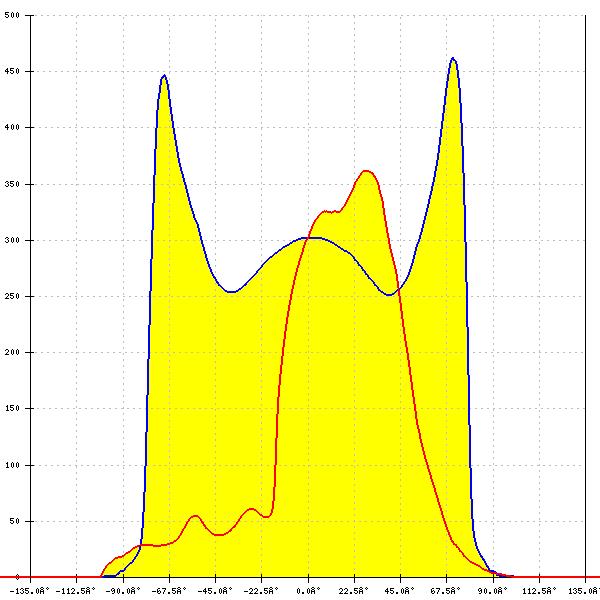

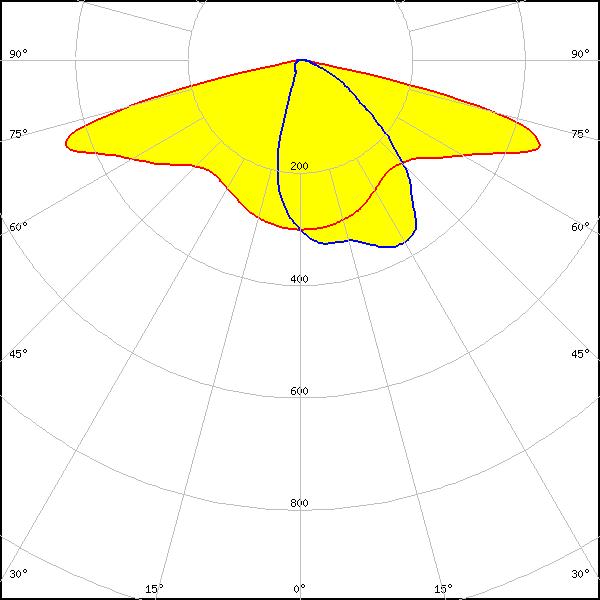

Optical results

LED: Bridgelux SMD 5050
FWHM: asymmetric
Peak intensity: 0.460 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: QUICK FLUX XTP 2x4 xxx LS G5
FWHM: asymmetric
Peak intensity: 0.600 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: QUICK FLUX XTP 2x6 xxx LS G5
FWHM: asymmetric
Peak intensity: 0.580 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: QUICK FLUX XTP 2x8 xxx LS G5
FWHM: asymmetric
Peak intensity: 0.590 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: J Series 5050 Round LES
FWHM: asymmetric
Peak intensity: 0.450 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: J Series 5050 Round LES
FWHM: asymmetric
Peak intensity: 0.377 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White
LED: XD16
FWHM: asymmetric
Peak intensity: 0.470 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour/type: White
LED: XD16
FWHM: asymmetric
Peak intensity: 0.760 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: XHP35 HD
FWHM: asymmetric
Peak intensity: 0.440 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: XHP35 HI
FWHM: asymmetric
Peak intensity: 0.520 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: XM-L
FWHM: asymmetric
Peak intensity: 0.410 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: XM-L2
FWHM: asymmetric
LEDs/each optic: 1
Light colour/type: White
LED: XM-L3
FWHM: asymmetric
Peak intensity: 0.569 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-G
FWHM: asymmetric
Peak intensity: 0.470 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-G2
Required components:
FWHM: asymmetric
Peak intensity: 0.582 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-G2
FWHM: asymmetric
Peak intensity: 0.506 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-G2
FWHM: asymmetric
Peak intensity: 0.700 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-G2 HE
Required components:
FWHM: asymmetric
Peak intensity: 0.447 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-G2 HE
FWHM: asymmetric
Peak intensity: 0.470 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

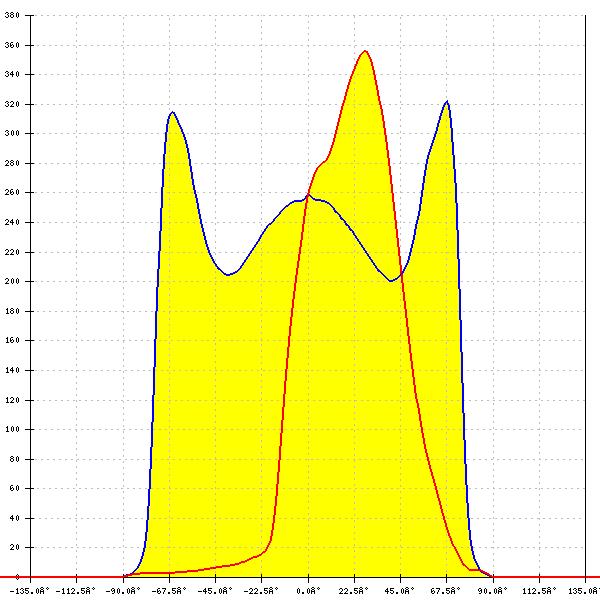

LED: XP-G3
Required components:
FWHM: asymmetric
Peak intensity: 0.439 cd/lm
Efficiency: 71 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-G3
Required components:
FWHM: asymmetric
Peak intensity: 0.451 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-G3
FWHM: asymmetric
Peak intensity: 0.367 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-G3
FWHM: asymmetric
Peak intensity: 0.600 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-G3
Required components:
FWHM: asymmetric
Peak intensity: 0.595 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-G3
Required components:
FWHM: asymmetric
Peak intensity: 0.616 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-G4
FWHM: asymmetric
Peak intensity: 0.595 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-G4
FWHM: asymmetric
Peak intensity: 0.428 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-L HD
FWHM: asymmetric
Peak intensity: 0.510 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-L HI
FWHM: asymmetric
Peak intensity: 0.610 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-L2
FWHM: asymmetric
Peak intensity: 0.330 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-L2
FWHM: asymmetric
Peak intensity: 0.480 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: XQ-E HD
FWHM: asymmetric
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: XT-E
FWHM: asymmetric
Peak intensity: 0.490 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: XT-E HVW
FWHM: asymmetric
LEDs/each optic: 1
Light colour/type: White
LED: EHP-2x8-3535
FWHM: asymmetric
Peak intensity: 0.544 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour/type: White
LED: EHP-2x8-5050
FWHM: asymmetric
Peak intensity: 0.436 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON 3030 2D (Round LES)
FWHM: asymmetric
Peak intensity: 0.503 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON 5050 Round LES
FWHM: asymmetric
Peak intensity: 0.406 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON 5050 Round LES
FWHM: asymmetric
Peak intensity: 0.460 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity: 0.371 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON 5050 Square LES
Required components:
FWHM: asymmetric
Peak intensity: 0.413 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity: 0.422 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON 5050 Square LES
Required components:
FWHM: asymmetric
Peak intensity: 0.357 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON 5050 Square LES
Required components:
FWHM: asymmetric
Peak intensity: 0.411 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON 5050 Square LES
Required components:
FWHM: asymmetric
Peak intensity: 0.351 cd/lm
Efficiency: 72 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON H50-2
FWHM: asymmetric
LEDs/each optic: 1
Light colour/type: White

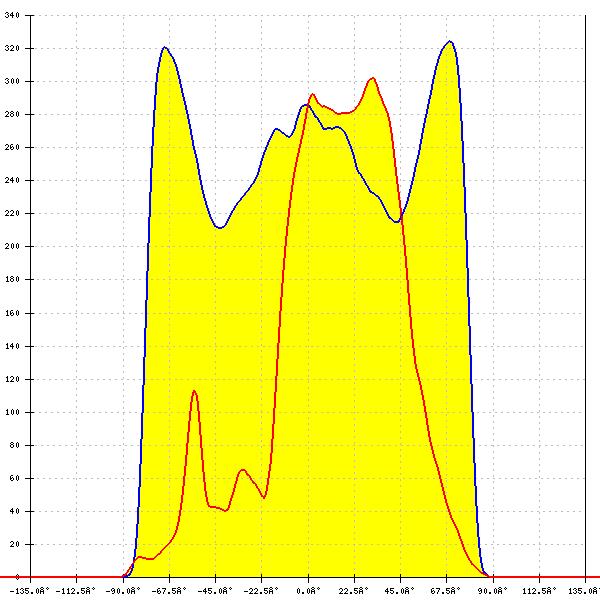

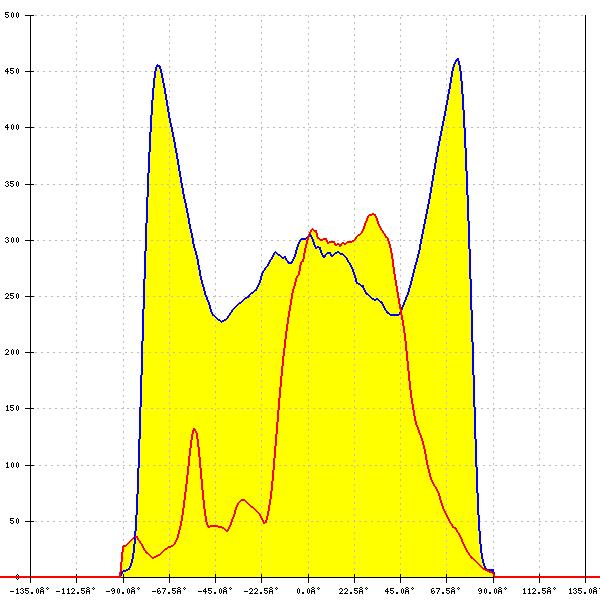

LED: LUXEON HL2X
FWHM: asymmetric
Peak intensity: 0.499 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON HL2Z
FWHM: asymmetric
Peak intensity: 0.664 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON HL2Z
FWHM: asymmetric
Peak intensity: 0.488 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON MZ
FWHM: asymmetric
Peak intensity: 0.600 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON Q
FWHM: asymmetric
Peak intensity: 0.700 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON Rebel ES
FWHM: asymmetric
Peak intensity: 0.410 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON T
FWHM: asymmetric
Peak intensity: 0.700 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON TX
FWHM: asymmetric
Peak intensity: 0.670 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON V
FWHM: asymmetric
Peak intensity: 0.490 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON V2
FWHM: asymmetric
Peak intensity: 0.640 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON XR-HL2X (L2H2-xxxxxxxMLU010)
FWHM: asymmetric
Peak intensity: 0.468 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON XR-HL2X (L2H2-xxxxxxxMLU010)
FWHM: asymmetric
Peak intensity: 0.327 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: White
LED: RecLED 122x50mm 1900lm 730 2x4 Opt G1
FWHM: asymmetric
Peak intensity: 0.487 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White
LED: RecLED 122x50mm 1900lm 730 2x4 Opt G1
FWHM: asymmetric
Peak intensity: 0.661 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour/type: White
LED: NF2x757G
FWHM: asymmetric
Peak intensity: 0.456 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White
LED: NS9x383
FWHM: asymmetric
Peak intensity: 0.490 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: NV4WB35AM
FWHM: asymmetric
Peak intensity: 0.470 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

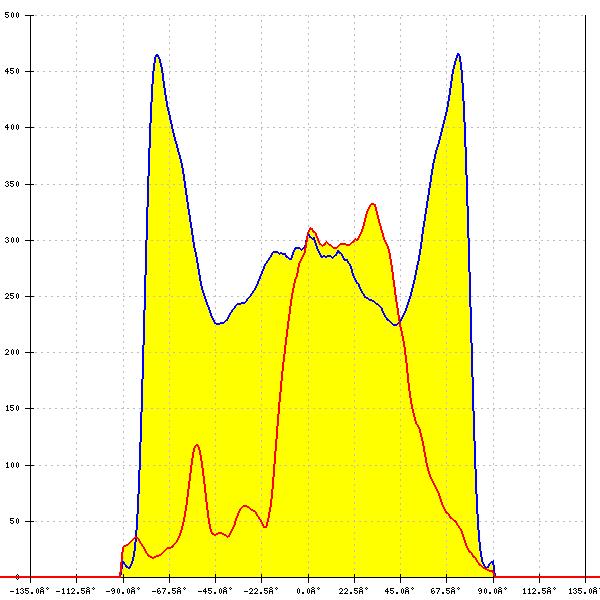

LED: NVSW219D
FWHM: asymmetric
Peak intensity: 0.602 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White
LED: NVSW219D
FWHM: asymmetric
Peak intensity: 0.467 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: NVSW219F
FWHM: asymmetric
Peak intensity: 0.338 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour/type: White
LED: NVSW219F
FWHM: asymmetric
Peak intensity: 0.502 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: NVSW319B
FWHM: asymmetric
Peak intensity: 0.600 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: NVSW3x9A
FWHM: asymmetric
Peak intensity: 0.590 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: NVSW519A
FWHM: asymmetric
Peak intensity: 0.434 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: NVSW519A
FWHM: asymmetric
Peak intensity: 0.315 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White
LED: NVSxE21A
FWHM: asymmetric
Peak intensity: 0.462 cd/lm
Efficiency: 95 %
LEDs/each optic: 4
Light colour/type: White
LED: NVSxE21A
FWHM: asymmetric
Peak intensity: 0.393 cd/lm
Efficiency: 81 %
LEDs/each optic: 4
Light colour/type: White
LED: NVSxE21A
FWHM: asymmetric
Peak intensity: 0.870 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: NVSxx19A
FWHM: asymmetric
Peak intensity: 0.600 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: NVSxx19B/NVSxx19C
FWHM: asymmetric
Peak intensity: 0.412 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: White
LED: NVSxx19B/NVSxx19C
FWHM: asymmetric
Peak intensity: 0.419 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White
LED: NVSxx19B/NVSxx19C
FWHM: asymmetric
Peak intensity: 0.650 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: NWSx229A
FWHM: asymmetric
Peak intensity: 0.480 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: PL-BRICK HP 3800 2x8 SSG
FWHM: asymmetric
Peak intensity: 0.580 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White
LED: PrevaLED Brick HP 2x8
FWHM: asymmetric
Peak intensity: 0.670 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: Duris S8
FWHM: asymmetric
Peak intensity: 0.444 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: Duris S8
FWHM: asymmetric
Peak intensity: 0.471 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour/type: White
LED: OSCONIQ P 3737 (2W version)
FWHM: asymmetric
Peak intensity: 0.610 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: OSCONIQ P 3737 (2W version)
FWHM: asymmetric
Peak intensity: 0.465 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White
LED: OSCONIQ P 3737 (3W version)
FWHM: asymmetric
Peak intensity: 2.070 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: OSCONIQ S 5050
FWHM: asymmetric
Peak intensity: 0.367 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White
LED: OSLON Pure 1414
FWHM: asymmetric
Peak intensity: 0.687 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: OSLON Pure 1414
FWHM: asymmetric
Peak intensity: 0.527 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White
LED: OSLON Square CSSRM2/CSSRM3
Required components:
FWHM: asymmetric
Peak intensity: 0.521 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: OSLON Square CSSRM2/CSSRM3
Required components:
FWHM: asymmetric
Peak intensity: 0.505 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White
LED: OSLON Square CSSRM2/CSSRM3
Required components:
FWHM: asymmetric
Peak intensity: 0.506 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White
LED: OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity: 0.450 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White
LED: OSLON Square CSSRM2/CSSRM3
Required components:
FWHM: asymmetric
Peak intensity: 0.398 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour/type: White
LED: OSLON Square CSSRM2/CSSRM3
Required components:
FWHM: asymmetric
Peak intensity: 0.386 cd/lm
Efficiency: 71 %
LEDs/each optic: 1
Light colour/type: White
LED: OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity: 0.670 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: OSLON Square PC
FWHM: asymmetric
Peak intensity: 0.600 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: OSLON Square PC
FWHM: asymmetric
Peak intensity: 0.530 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo FastFlex LED 2x8 DA G4
FWHM: asymmetric
Peak intensity: 0.640 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo FastFlex LED 2x8 DA G4+
Required components:
FWHM: asymmetric
Peak intensity: 0.315 cd/lm
Efficiency: 69 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo FastFlex LED 2x8 DA G4+
Required components:
FWHM: asymmetric
Peak intensity: 0.306 cd/lm
Efficiency: 65 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo FastFlex LED 2x8 DA G4+
FWHM: asymmetric
Peak intensity: 0.513 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo FastFlex LED 2x8 DA G5
FWHM: asymmetric
Peak intensity: 0.442 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo FastFlex LED 2x8 DA G5
FWHM: asymmetric
Peak intensity: 0.638 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo FastFlex LED 2x8 DA HE
FWHM: asymmetric
Peak intensity: 0.419 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo FastFlex LED 2x8 DA HE
FWHM: asymmetric
Peak intensity: 0.354 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo FastFlex LED 2x8 DAX G4
FWHM: asymmetric
Peak intensity: 0.000 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: HiLOM RC12 Z (LH181B)
FWHM: asymmetric
Peak intensity: 0.658 cd/lm
Efficiency: 99 %
LEDs/each optic: 1
Light colour/type: White
LED: HiLOM RH12 Z (LH351C)
FWHM: asymmetric
Peak intensity: 0.395 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White
LED: HiLOM RH12 Z (LH351C)
FWHM: asymmetric
Peak intensity: 0.557 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White
LED: HiLOM RH16 (LH351C)
FWHM: asymmetric
Peak intensity: 0.580 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: HiLOM RM12 Z (LH502C)
FWHM: asymmetric
Peak intensity: 0.435 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White
LED: HiLOM RM16 Z (LH502C)
FWHM: asymmetric
Peak intensity: 0.443 cd/lm
Efficiency: 98 %
LEDs/each optic: 1
Light colour/type: White
LED: HiLOM RM8 Z (LH502C)
FWHM: asymmetric
Peak intensity: 0.390 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White
LED: HiLOM RM8 Z (LH502C)
FWHM: asymmetric
Peak intensity: 0.444 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour/type: White
LED: LH181B
FWHM: asymmetric
Peak intensity: 0.419 cd/lm
Efficiency: 92 %
LEDs/each optic: 4
Light colour/type: White
LED: LH351B
FWHM: asymmetric
Peak intensity: 0.362 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour/type: White
LED: LH351B
Required components:
FWHM: asymmetric
Peak intensity: 0.400 cd/lm
Efficiency: 69 %
LEDs/each optic: 1
Light colour/type: White
LED: LH351B
FWHM: asymmetric
Peak intensity: 0.620 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: LH351C
FWHM: asymmetric
Peak intensity: 0.371 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour/type: White
LED: LH351C
FWHM: asymmetric
Peak intensity: 0.600 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: LH351D
FWHM: asymmetric
Peak intensity: 0.450 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: LH351Z
FWHM: asymmetric
Peak intensity: 0.650 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: LH508A
FWHM: asymmetric
Peak intensity: 0.480 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: LM301B
FWHM: asymmetric
Peak intensity: 0.419 cd/lm
Efficiency: 91 %
LEDs/each optic: 4
Light colour/type: White
LED: LM301B
FWHM: asymmetric
Peak intensity: 0.371 cd/lm
Efficiency: 80 %
LEDs/each optic: 4
Light colour/type: White
LED: LED-Pa-L15c2W11c2-xxx-C050-01
FWHM: asymmetric
Peak intensity: 0.626 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour/type: White
LED: Acrich MJT 4040
FWHM: asymmetric
Peak intensity: 0.600 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: MJT 5050
FWHM: asymmetric
Peak intensity: 0.408 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: SEOUL DC 5050 6V
FWHM: asymmetric
Peak intensity: 0.421 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: Z5
FWHM: asymmetric
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: Z5M1/Z5M2
FWHM: asymmetric
Peak intensity: 0.700 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: Z5M3
FWHM: asymmetric
Peak intensity: 0.439 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White
LED: Z5M3
FWHM: asymmetric
Peak intensity: 0.600 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: Z5M4
FWHM: asymmetric
Peak intensity: 0.461 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White
LED: Z5M4
FWHM: asymmetric
Peak intensity: 0.654 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White
LED: Z5M5
FWHM: asymmetric
Peak intensity: 0.551 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: Z5M5
FWHM: asymmetric
Peak intensity: 0.426 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White
LED: Z8Y19
FWHM: asymmetric
Peak intensity: 0.461 cd/lm
Efficiency: 93 %
LEDs/each optic: 4
Light colour/type: White
LED: Z8Y22
FWHM: asymmetric
Peak intensity: 0.680 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: Z8Y22P
FWHM: asymmetric
Peak intensity: 0.600 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: TL1L4
FWHM: asymmetric
Peak intensity: 0.720 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: RLE 2x4 2000lm HP EXC2 OTD
FWHM: asymmetric
Peak intensity: 0.700 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: RLE 2x8 4000lm HP EXC2 OTD
FWHM: asymmetric
Peak intensity: 0.462 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White
LED: RLE 2x8 4000lm HP EXC2 OTD
FWHM: asymmetric
Peak intensity: 0.700 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: RLE G1 49x121mm 2000lm xxx EXC OTD
FWHM: asymmetric
Peak intensity: 0.700 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: RLE G1 49x133mm 2000lm xxx EXC OTD
FWHM: asymmetric
Peak intensity: 0.700 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: RLE G1 49x223mm 4000lm xxx EXC OTD
FWHM: asymmetric
Peak intensity: 0.700 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: RLE G1 49x245mm 4000lm xxx EXC OTD
FWHM: asymmetric
Peak intensity: 0.700 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE

GET THE NEWSLETTER

X

Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
Optical results filtering
LED TYPE
LES Size
mm
Min
Max
LED Manufacturers
LED MODEL
Viewing Angle (FWHM)
°
Min
Max
CCT - LED (K)
CCT - WITH LENS (K)
BASEPART Manufacturers
BASEPART MODEL
LEDiL Accessories
