APPLICATION EXAMPLE
Open office lighting with DAISY.
(Task related)
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

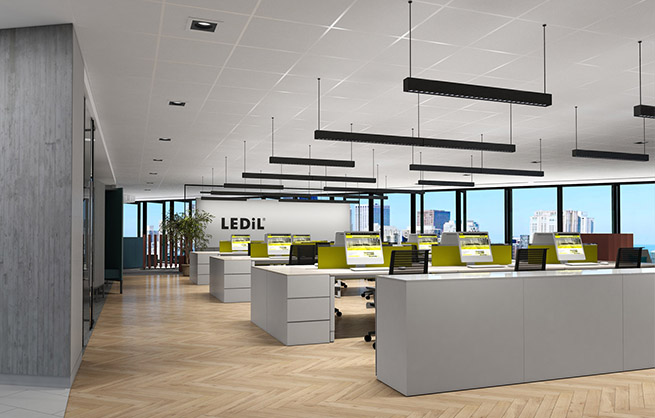

OPEN OFFICE LIGHTING
TASK RELATED LIGHTING CONCEPT WITH SUSPENDED LUMINAIRES
Brighter and natural athmosphere because of suspended luminaires with a mix of indirect uplight and direct down light.Suspended luminaires equipped with tunable white to increase well-being.
Contrasts make the space more intresting.
Recessed downlights in the corridor for guidance.
Dividing wall with the logo highlighted with wall-grazer lighting.
Low glare (UGR <19) because of good ambient ceiling lighting above task area.
High level of illuminance on the desk because of direct light from the suspended luminaires is illuminating the desk efficiently.
SETUP:
| Application: | Open office lighting |
| Room height: | 2.7 m |
| Suspended luminaires | |
| Optics (Downlight): | DAISY-28X1-WW |
| Optics (Uplight): | LINNEA-UP |
| No. of luminaires: | 18 pcs |
| Installation method: | Suspended |
| Luminous flux (luminaire) (Downlight): | 4000 lm |
| Luminous flux (luminaire) (Uplight): | 600 lm |
| Installation height: | 2.1 m |
| Downlights | |
| Optics: | RONDA-W |
| Luminous flux (luminaire): | 1200 lm |
| Installation method: | Recessed |
| Wall-grazing | |
| Optics: | VANESSA-O |
RESULTS:
| Min (desks): | 1100 lx |
| Min (ceiling): | 500 lx |
| UGR: | <19 |
| DAISY-28X1-WW | ||
| FN15552_RONDA-W | ||
| FN15735_RONDA-W-B | ||
| FN15969_RONDA-W-C | ||
| C13460_VANESSA-O | ||
| F16048_LINNEA-UP |
