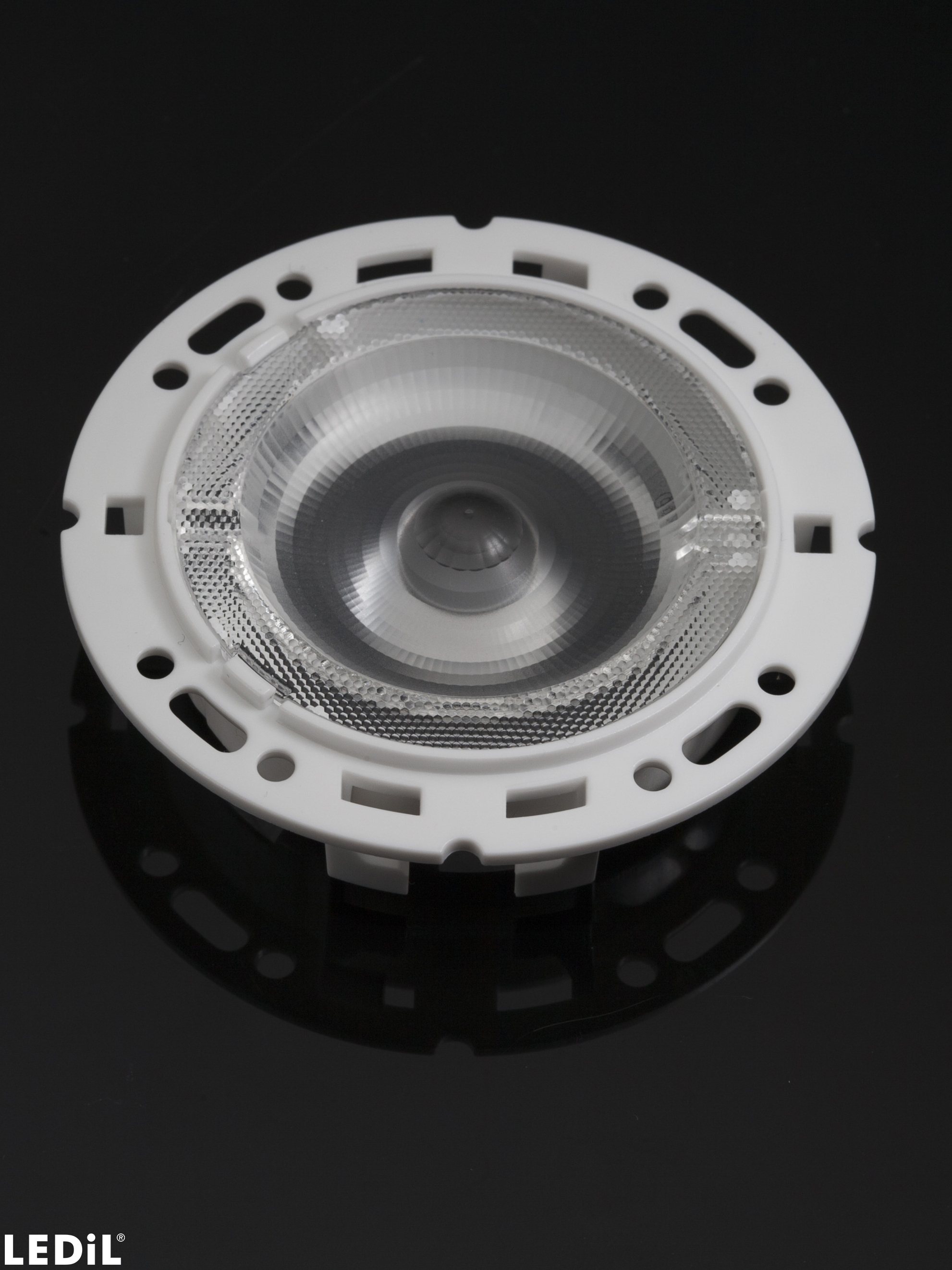

RONDA-W-B

Print

~45° wide beam with holder B compatible with 3rd party connectors from BJB, IDEAL and Stucchi

This product consists of multiple parts that need to be ordered separately. See ordering information.

Specification
  • Dimensions:
    70 mm
  • Height:
    14.60 mm
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantities for one set:
  • Single lens
    1 pcs
  • Holder
    1 pcs
  • Single lens
  • F15443_RONDA-W
    clear
  • Quantity in box:
    420 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    5.50 kg
  • MPQ:
    30 pcs
  • MOQ:
    120 pcs
  • MOQ Size:
    480 x 280 x 100 mm
  • MOQ Weight:
    1.60 kg
  • Holder
  • F15586_RONDA-HLD-B
    white
  • Quantity in box:
    420 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    4.40 kg
  • MPQ:
    30 pcs
  • MOQ:
    120 pcs
  • MOQ Size:
    480 x 280 x 120 mm
  • MOQ Weight:
    1.40 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    F15443_RONDA-W
    F15586_RONDA-HLD-B

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

BJB 47.319.2xxx 50mm / Stucchi 8xxx/G2 50mm / Ideal chip lok jr (50-20, 50-30) compatible

Optical results

LED: H12
LES size: 12.4 mm
Required components:
BJB: 47.319.2131
FWHM: 49°
FWTM: -
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

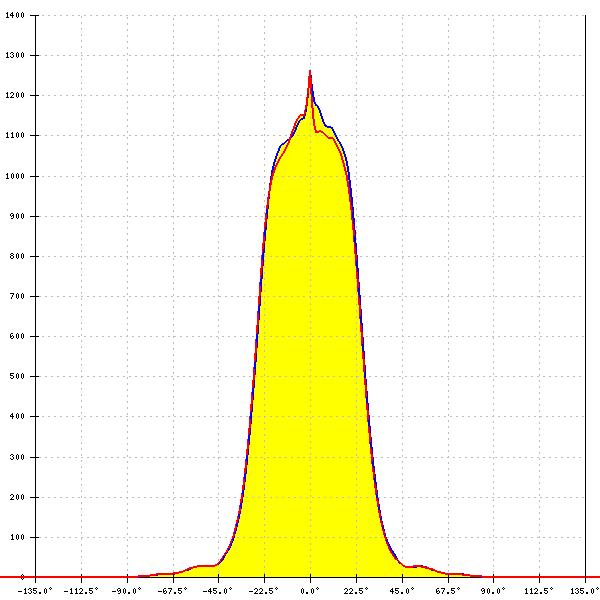

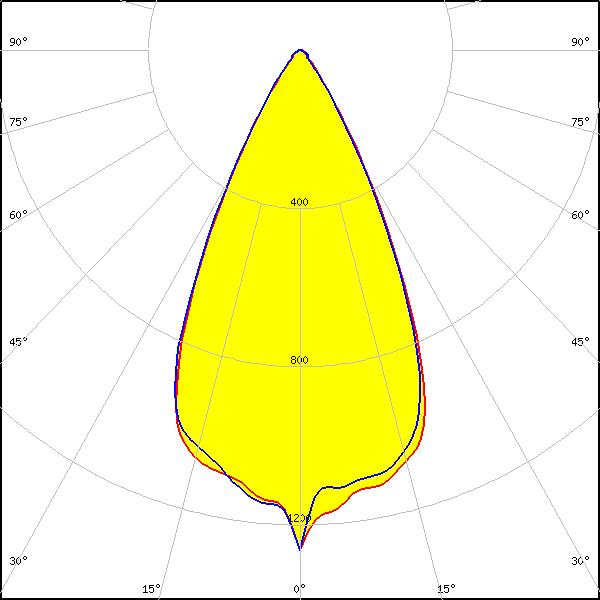

LED: V10 Gen7
LES size: 10.2 mm
Required components:
IDEAL: 50-2002CT
FWHM: 51°
FWTM: 72°
Peak intensity: 1.260 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

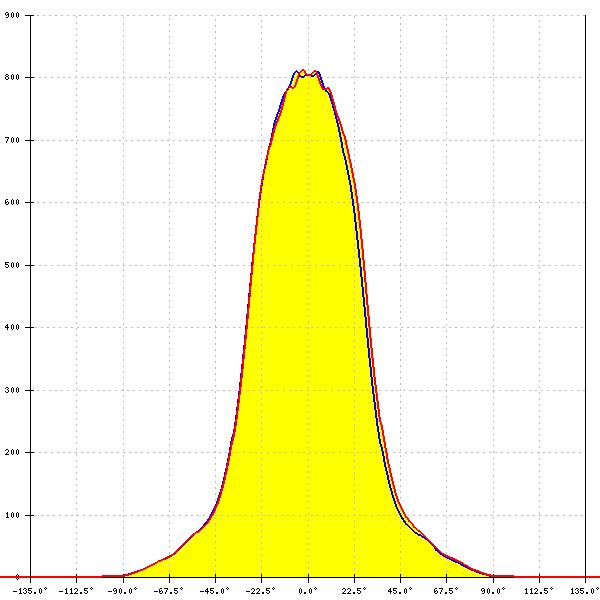

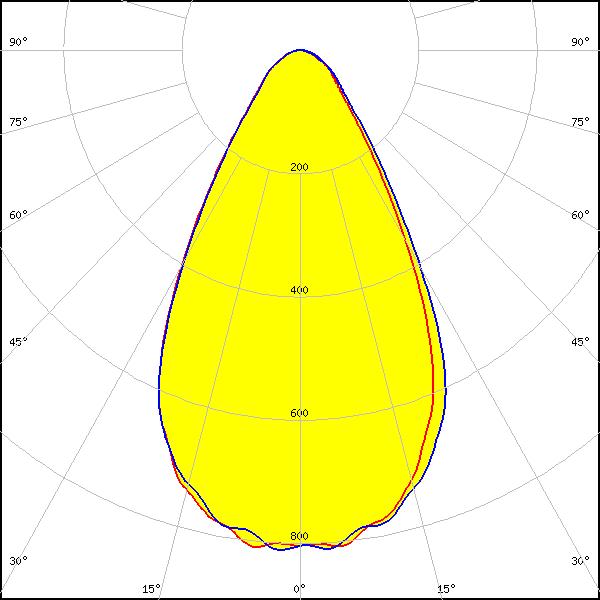

LED: V13 Gen7
LES size: 14.0 mm
Required components:
BJB: 47.319.2021
FWHM: 59°
FWTM: 101°
Peak intensity: 0.810 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

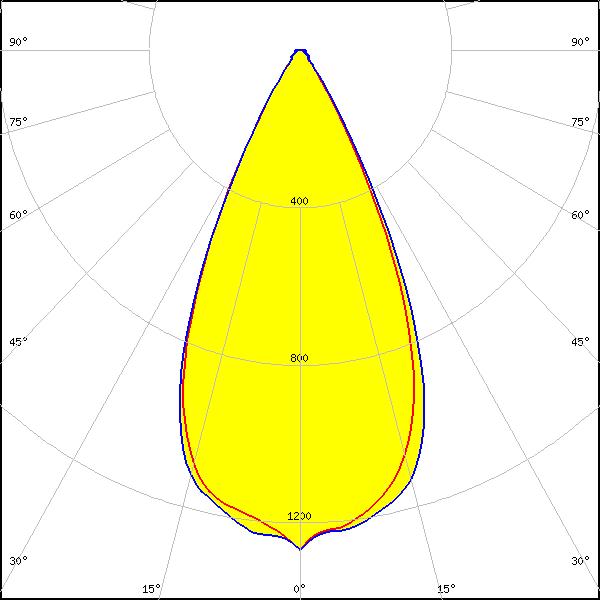

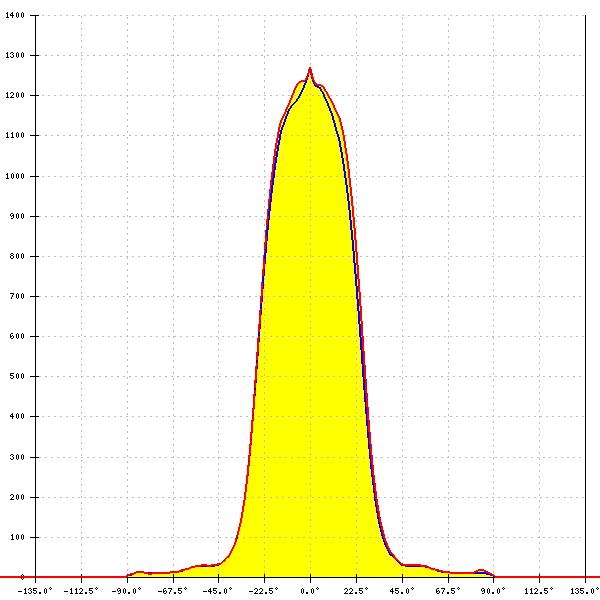

LED: CLL02x/CLU02x (LES10)
LES size: 9.8 mm
Required components:
IDEAL: 50-2002CT
FWHM: 50°
FWTM: 70°
Peak intensity: 1.270 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

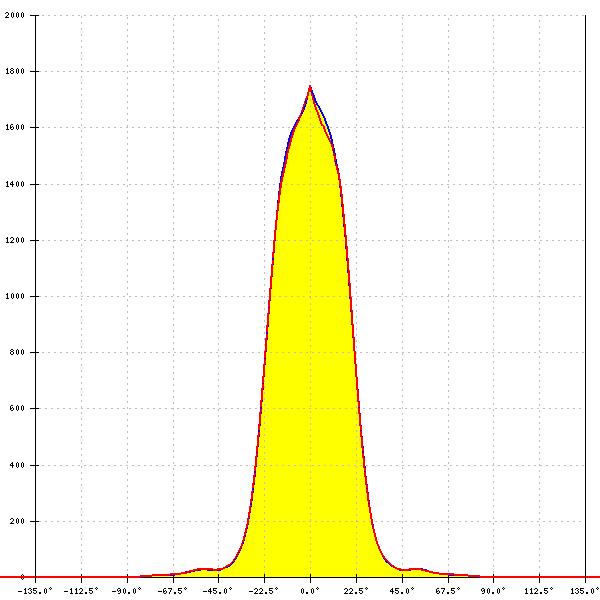

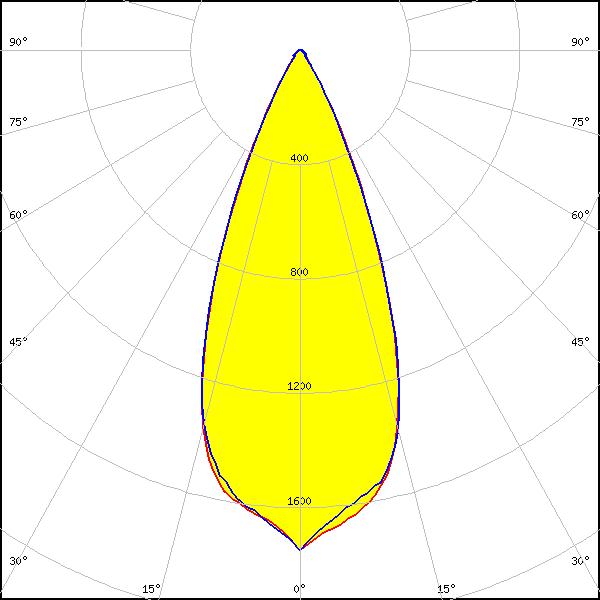

LED: CXA/B 15xx
LES size: 8.9 mm
Required components:
IDEAL: 50-2001CR
FWHM: 42°
FWTM: -
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
Required components:
IDEAL: 50-3001CR
FWHM: 48°
FWTM: -
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

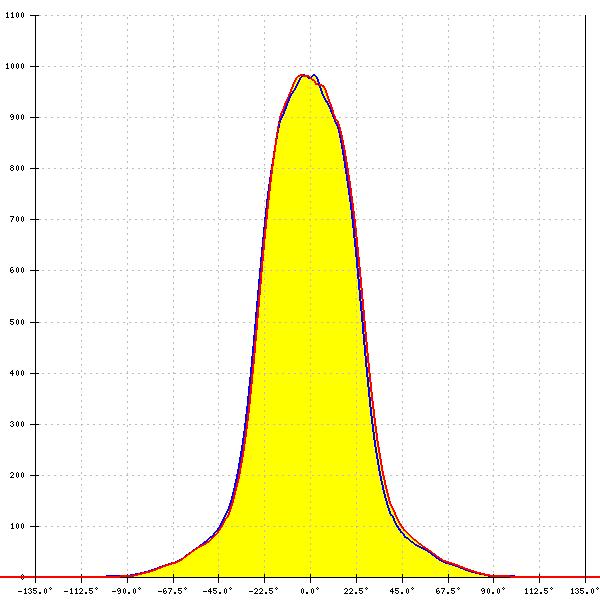

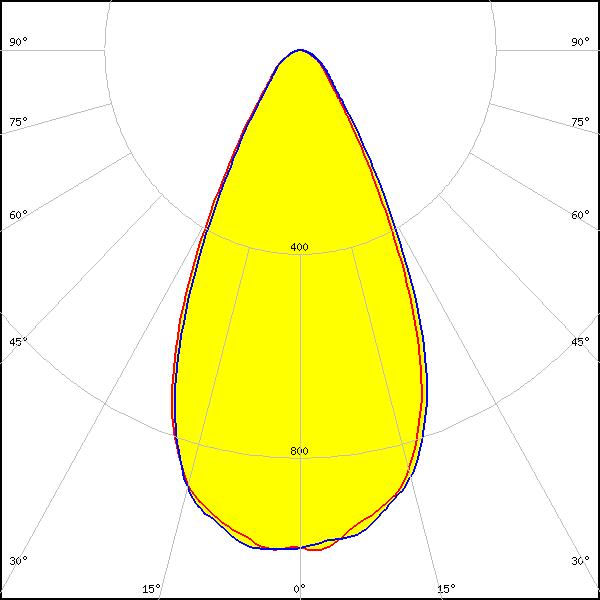

LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
Required components:
BJB: 47.319.2131
FWHM: 53°
FWTM: 88°
Peak intensity: 0.990 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

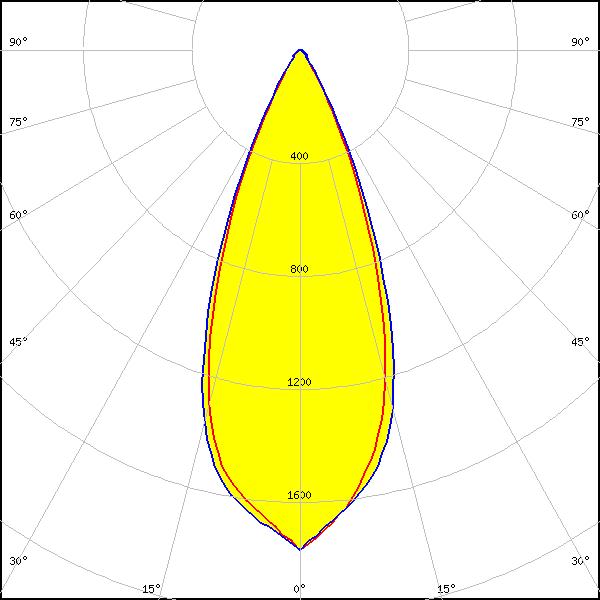

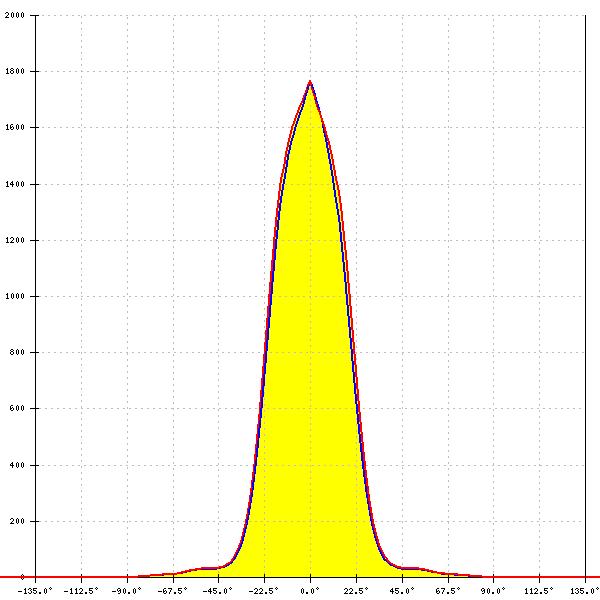

LED: Mini Zenigata (GW6BM)
LES size: 8.6 mm
Required components:
IDEAL: 50-2000P
FWHM: 40°
FWTM: -
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
