APPLICATION EXAMPLE

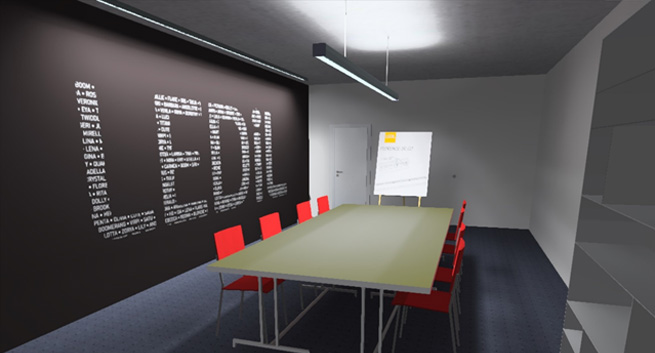

Office lighting with LINNEA-90 and FLORENCE-1R-GC-ZT25
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
SETUP:
| Application: | Office lighting |
| Luminaire type: | Linear |
| Downlight | |
| Optics: | LINNEA-90 |
| Installation height: | 2.20 m |
| No. of optics in luminaire: | 10 pcs |
| Luminous flux (luminaire): | 8070 lm |
| Power (LEDs/luminaire): | 68 W |
| Uplight | |
| Optics: | LINNEA-90 |
| Installation height: | 2.19 m |
| No. of optics in luminaire: | 4 pcs |
| Luminous flux (luminaire): | 4360 lm |
| Power (LEDs/luminaire): | 27 W |
| Wall-washing | |
| Optics: | FLORENCE-1R-GC-ZT25 |
| Installation height: | 2.60 m |
| No. of optics in luminaire: | 15 pcs |
| Luminous flux (luminaire): | 4360 lm |
| Power (LEDs/luminaire): | 27 W |

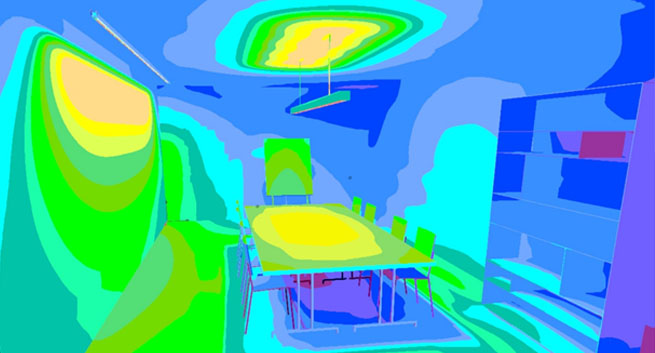

RESULTS:

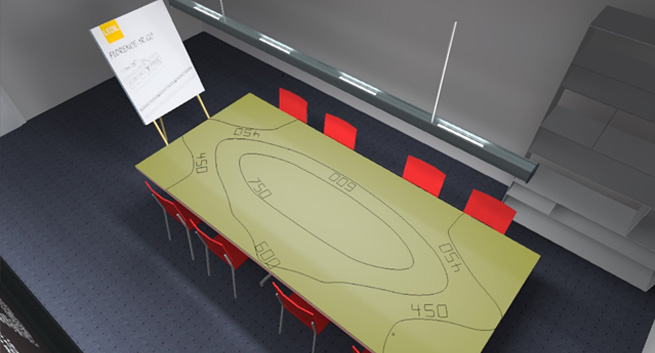

| On table | |
| Average: | 582 lx |
| Min: | 320 lx |
| Max: | 941 lx |
| Uo: | 0.34 |
| UGR: | <10 when sitting on chair at 1.2 m |
| F15523_LINNEA-90 | ||
| F15940_LINNEA-90-B | ||
| F15685_FLORENCE-1R-GC-ZT25 |
