APPLICATION EXAMPLE

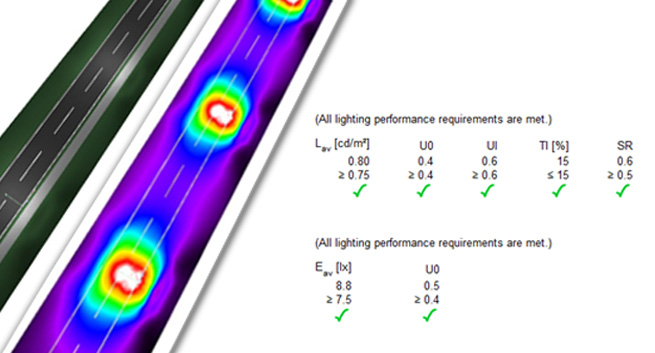

ME4a with STRADA-T-6X1-DWC


For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support



  • Type III medium distribution with semi-cutoff glare rating is designed for streets with long pole distances
  • Good longitudinal uniformity of luminance ensures high performance to European ME standards


SETUP:

Application: Street lighting
Lighting class: ME4a (EU)
Lighting class (sidewalk): CE5
Optics: STRADA-T-6X1-DWC
Arrangement: Single row, bottom
LED: CREE XM-L
Luminous flux (Luminaire): 7 500 lm
Road width: 7 m
Number of lanes: 2
Sidewalk width: 2 m
Pole distance: 40 m
Mounting height: 8 m
Overhang: 0 m
Boom angle:
Boom length: 0 m

GO TO PRODUCT CARDS
C12449_STRADA-T-6X1-DWC
C13140_STRADA-T-6X1-DWC
