APPLICATION EXAMPLE

ME4a with STRADA-2X2-DWC


For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

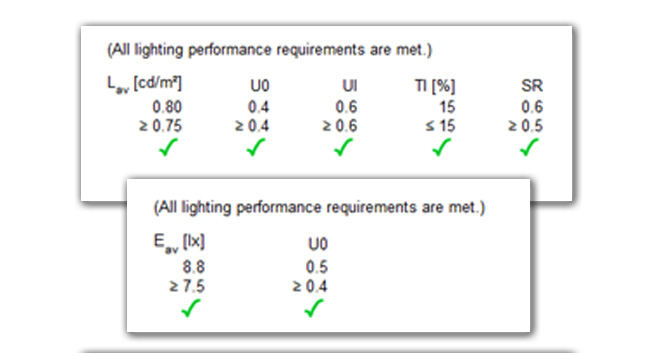

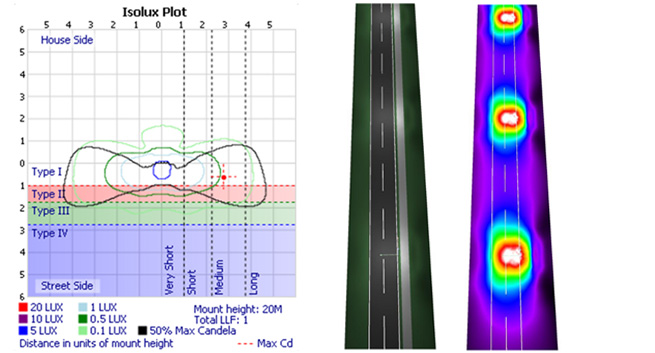

Type III medium distribution with semi-cutoff glare rating is designed for streets with long pole distances. Good longitudinal uniformity of luminance ensures high performance to European ME standards.

SETUP:

Lighting class: ME4a (EU)
Lighting class (sidewalk): CE5
Optics: STRADA-2X2-DWC
LED: CREE XM-L
Road width: 7 m
Number of lanes: 2
Sidewalk width: 2 m
Arrangement: Single row, bottom
Maintenance factor: 1.0
Luminous flux (Luminaire): 7500 lm
Pole distance: 40 m
Mounting height: 8 m
Overhang: 0 m
Boom angle:
Boom length: 0 m

GO TO PRODUCT CARDS
C12362_STRADA-2X2-DWC
