Application Example
Wall-washing with DAISY-MINI-WWW-D
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

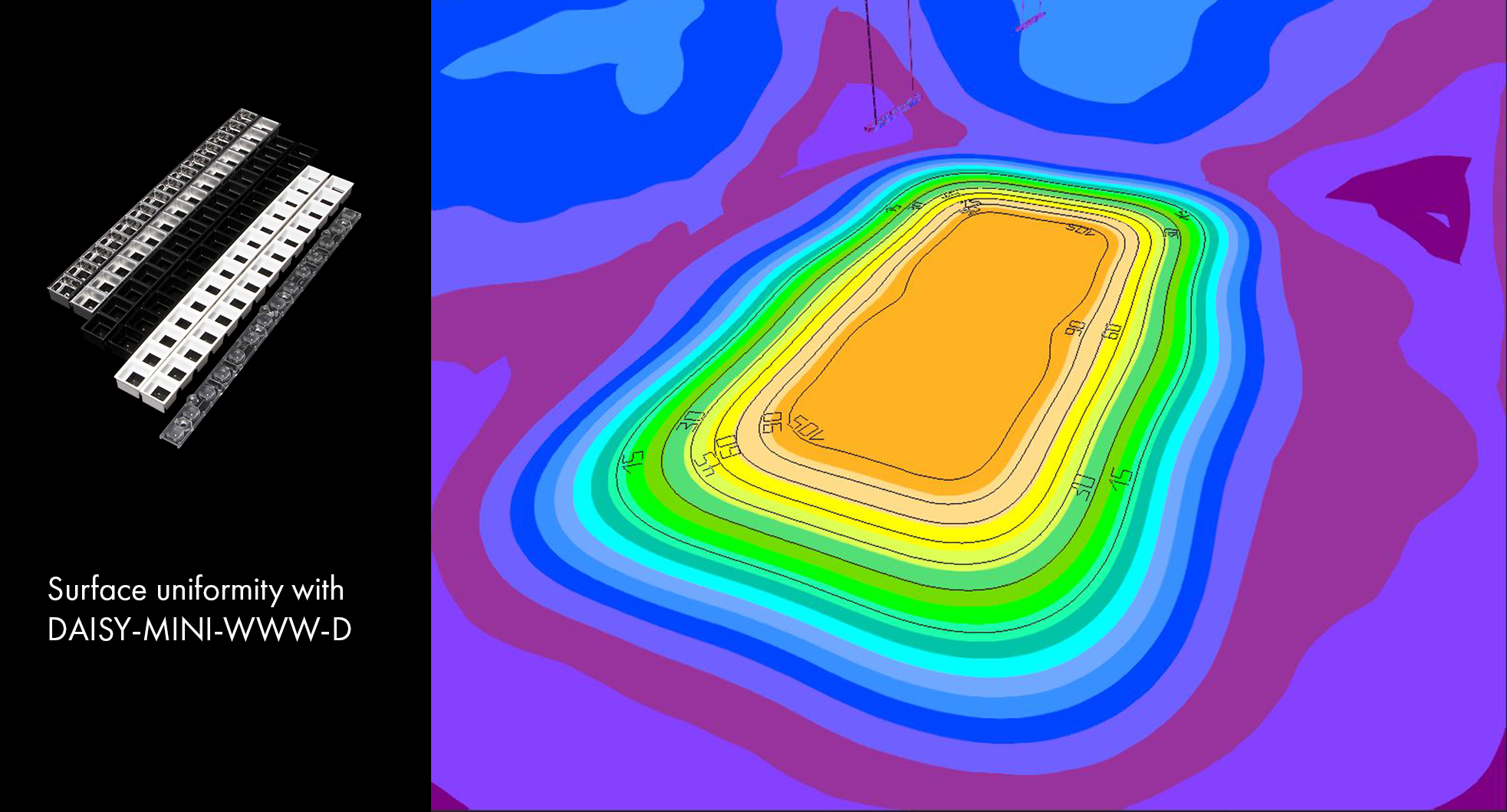

Surface uniformity with new extra wide, batwing beam DAISY-MINI-WWW-D vs DAISY-MINI-WW.
Setup
Optic: | DAISY-MINI-WWW-D |
Lux level average: | 124 lx |
Lux level max | 147 lx |
Overall uniformity (min/average) | 0.7 |
Luminaire height | 4.2 m |
Distance between luminaires | 4 m |
Setup

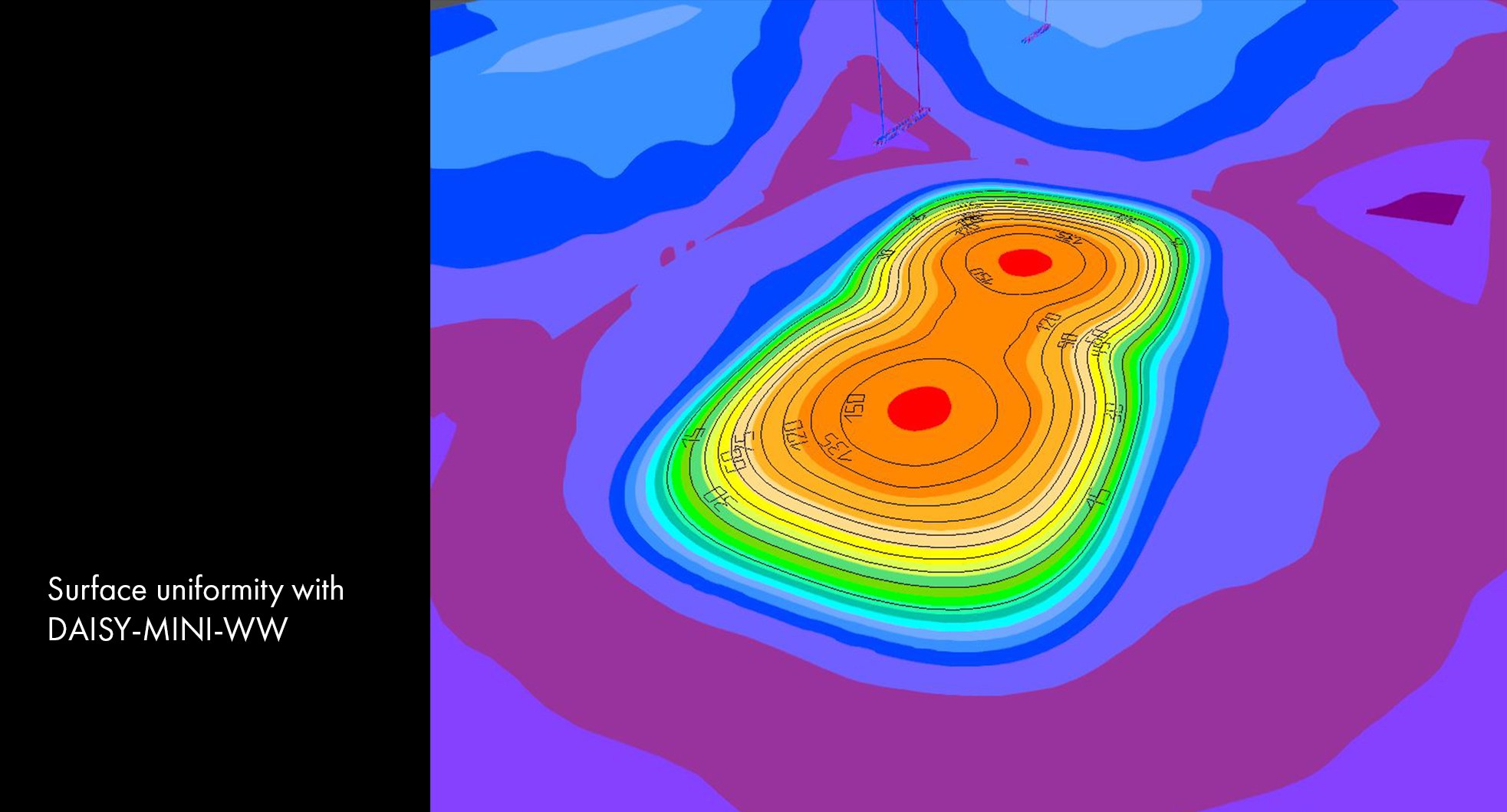

Optic: | DAISY-MINI-WW |
Lux level average: | 144 lx |
Lux level max | 207 lx |
Overall uniformity (min/average) | 0.5 |
Luminaire height | 4.2 m |
Distance between luminaires | 4 m |
Wall-washing with DAISY-MINI-WWW-D
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
