DAISY-MINI-WWW-D

Print

~65° extra wide beam. Variant with diffused lenses.

This product consists of multiple parts that need to be ordered separately. See ordering information.

Specification
  • Dimensions:
    280 x  21 mm
  • Height:
    13.30 mm
  • Fastening:
    pin, screw, snaps
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

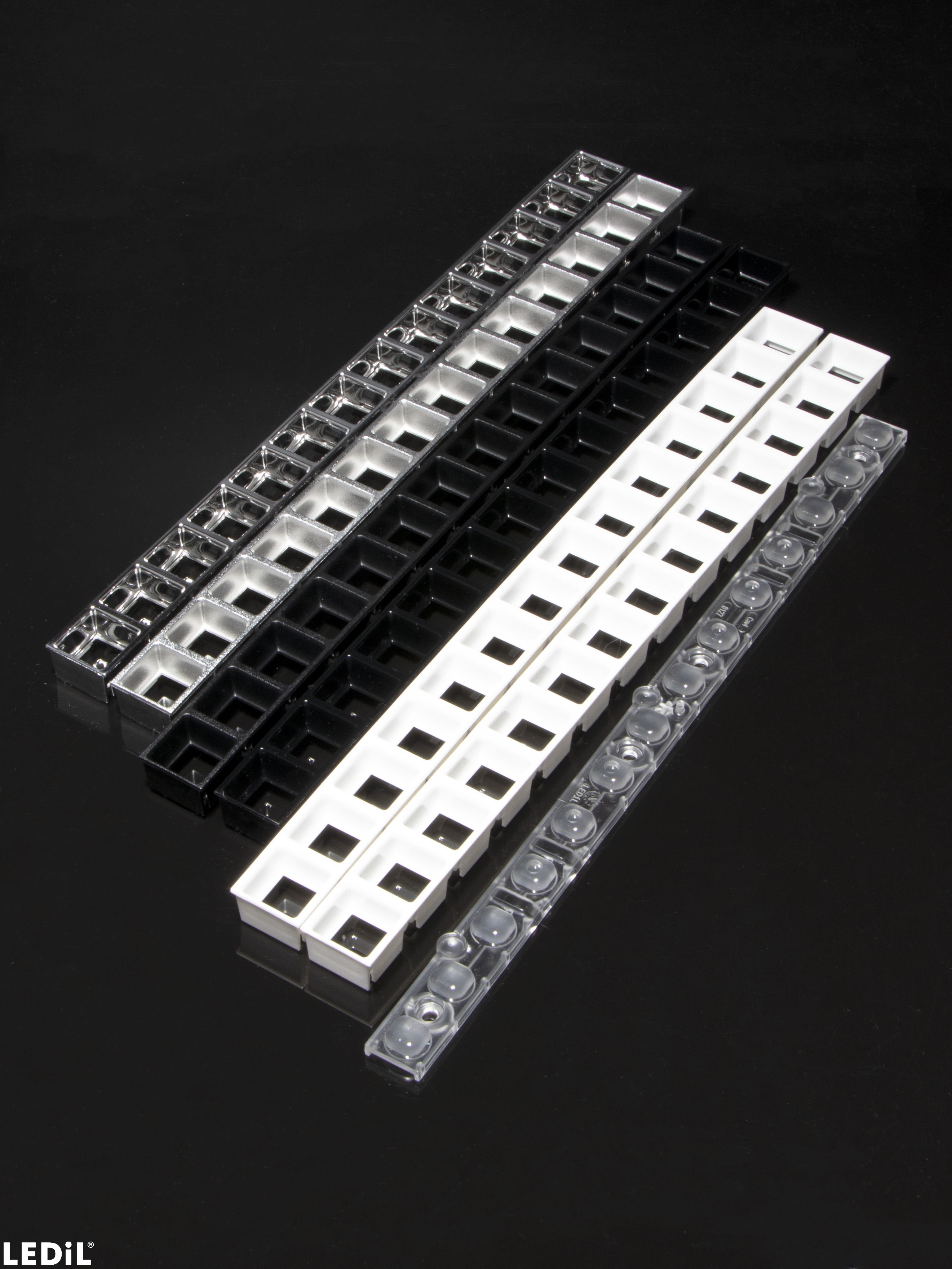

Ordering information
  • Quantities for one set:
  • Linear lens
    1 pcs
  • Shade
    1 pcs
  • Linear lens
  • F18127_DAISY-MINI-WWW-D
    milky
  • Quantity in box:
    252 pcs
  • Box size:
    398 x 298 x 265 mm
  • Box weight:
    6.10 kg
  • MPQ:
    12 pcs
  • MOQ:
    252 pcs
  • MOQ Size:
    398 x 298 x 265 mm
  • MOQ Weight:
    6.10 kg
  • Shade
  • F17028_DAISY-MINI-SHD
    black,gloss
  • F17033_DAISY-MINI-SHD-WHT
    white,gloss
  • F17034_DAISY-MINI-SHD-MATT
    black,matt
  • F17465_DAISY-MINI-SHD-WHT-MATT
    white,matt
  • F17666_DAISY-MINI-SHD-MET
    metal,gloss
  • F17667_DAISY-MINI-SHD-MET-MATT
    metal,matt
  • Quantity in box:
    252 pcs
  • Box size:
    398 x 298 x 265 mm
  • Box weight:
    5.90 kg
  • MPQ:
    4 pcs
  • MOQ:
    252 pcs
  • MOQ Size:
    398 x 298 x 265 mm
  • MOQ Weight:
    5.90 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






  • PCB drawing
  • PRODUCT NAME(S):
    F18127_DAISY-MINI-WWW-D
    F17028_DAISY-MINI-SHD

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Related Content

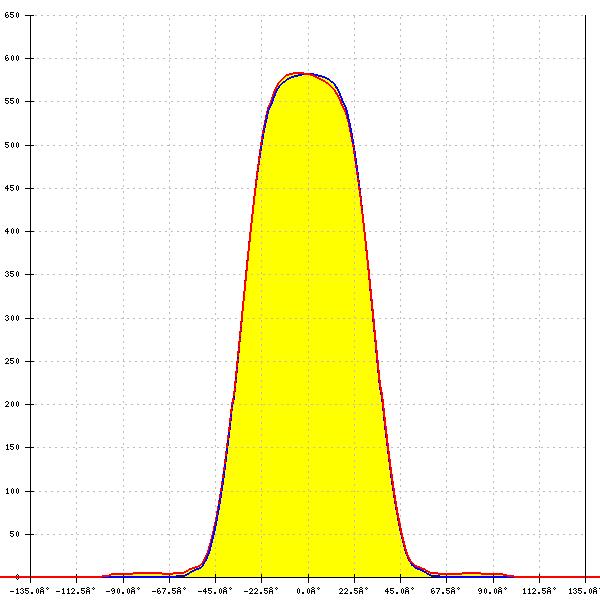

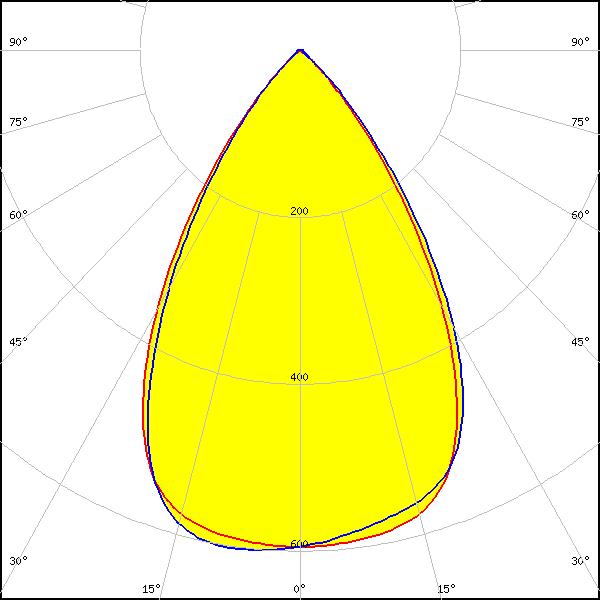

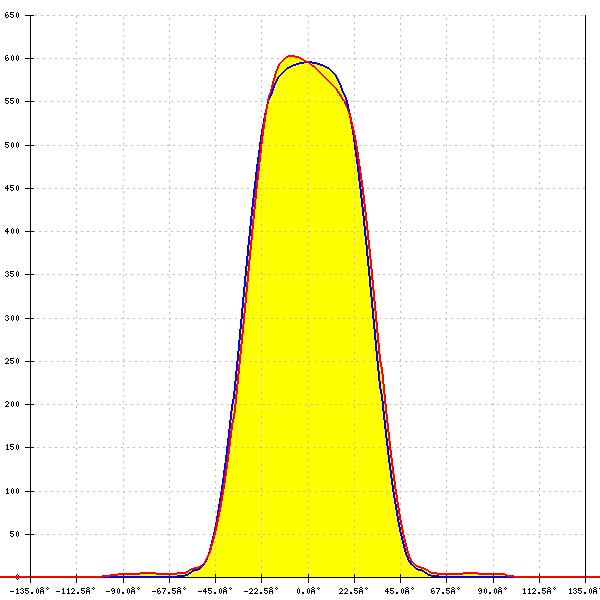

Optical results

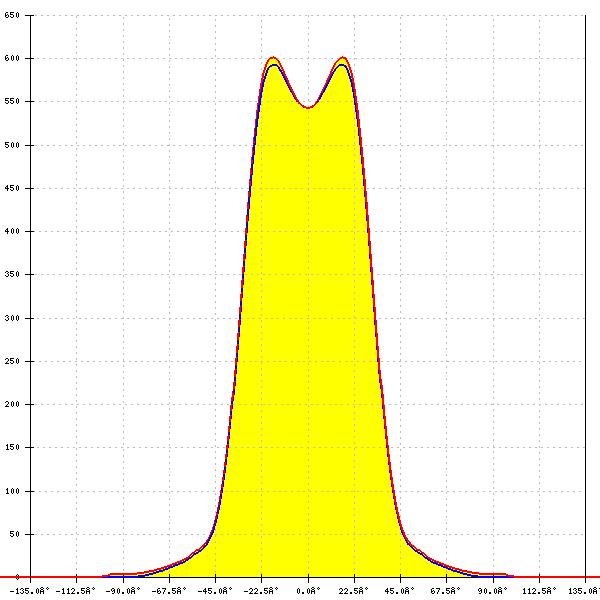

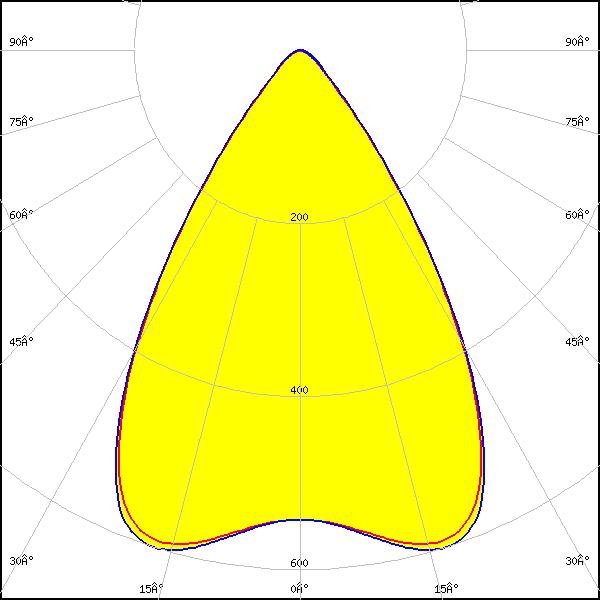

LED: J Series 2835
Required components:
F17667_DAISY-MINI-SHD-MET-MATT
FWHM: 67°
FWTM: 91°
Peak intensity: 0.663 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

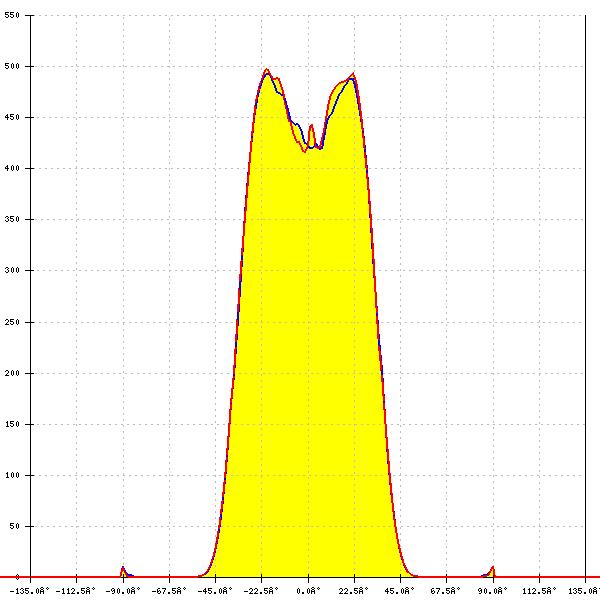

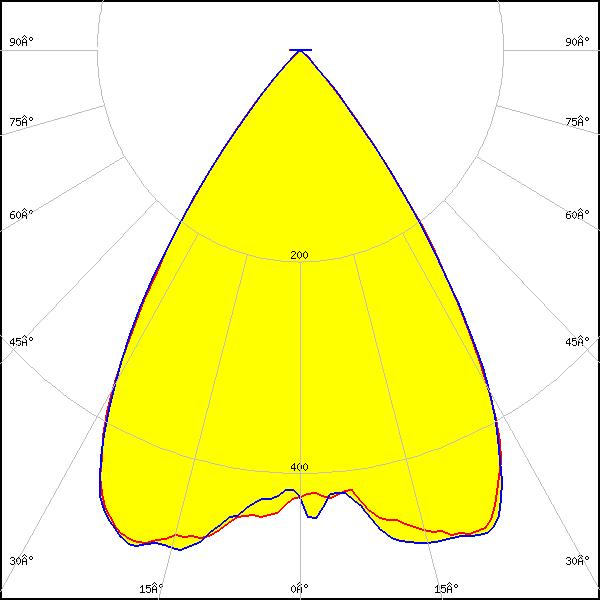

LED: XQ-E HI
Required components:
F17028_DAISY-MINI-SHD
FWHM: 68°
FWTM: -
Efficiency: 67 %
LEDs/each optic: 1
Light colour/type: White

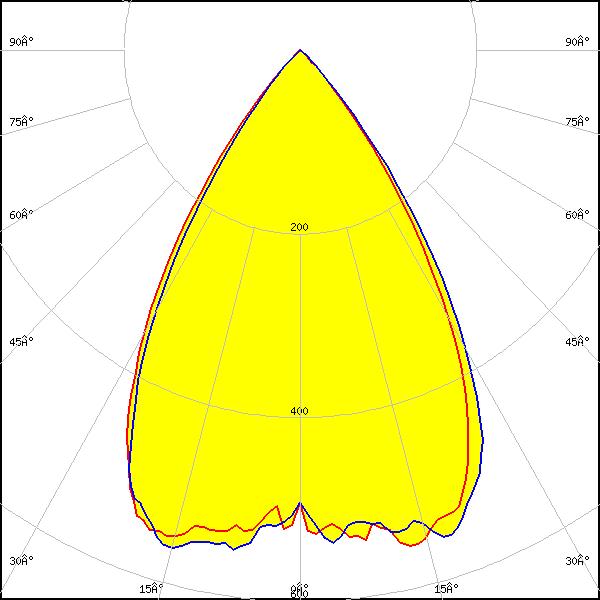

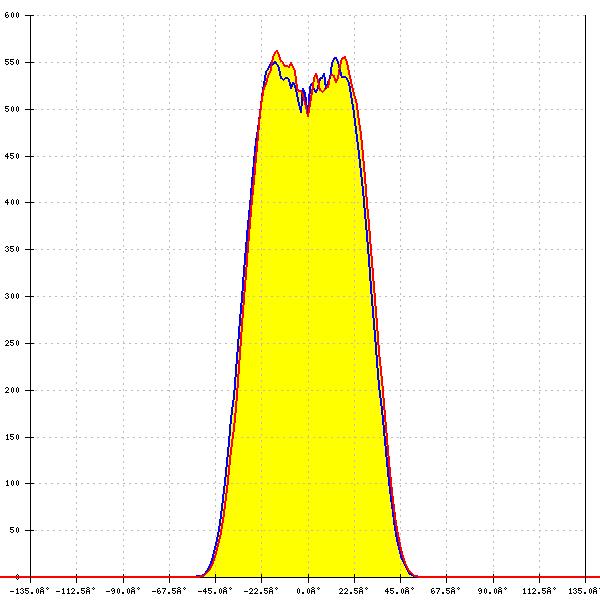

LED: LUXEON 3030 2D (Round LES)
Required components:
F17028_DAISY-MINI-SHD
FWHM: 63°
FWTM: -
Efficiency: 67 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON HL1Z
Required components:
F17028_DAISY-MINI-SHD
FWHM: 60°
FWTM: 76°
Peak intensity: 0.731 cd/lm
Efficiency: 67 %
LEDs/each optic: 1
Light colour/type: White

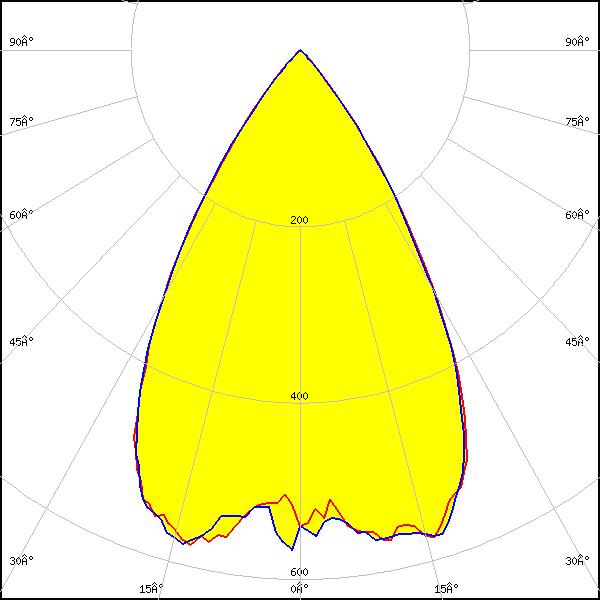

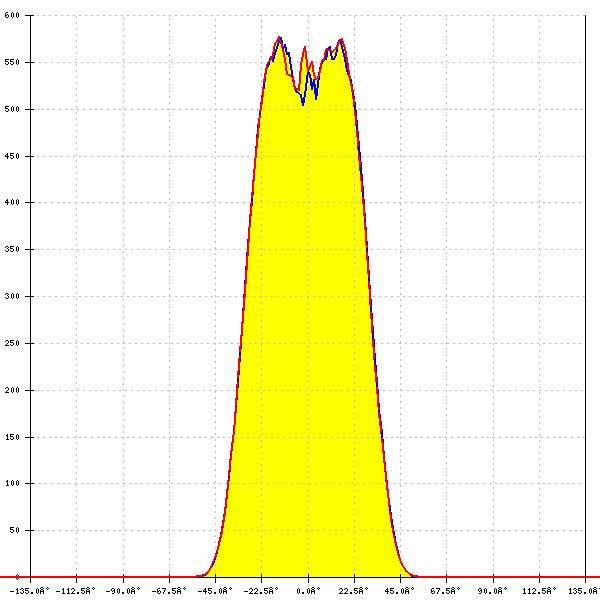

LED: NCSxE17A
Required components:
F17028_DAISY-MINI-SHD
FWHM: 62°
FWTM: -
Efficiency: 65 %
LEDs/each optic: 1
Light colour/type: White

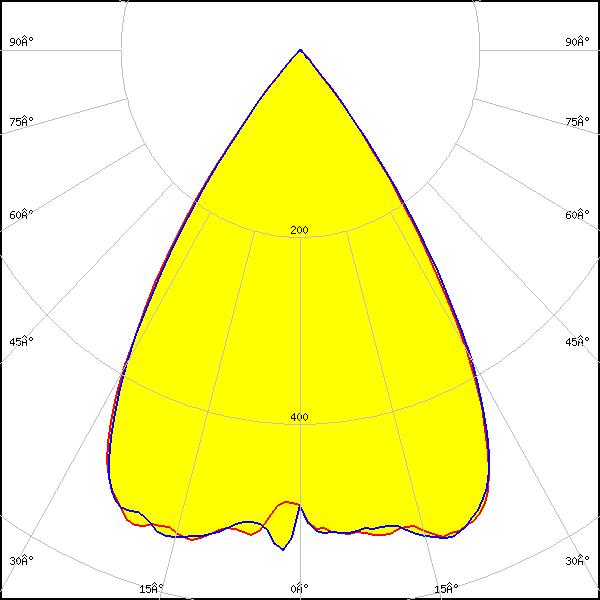

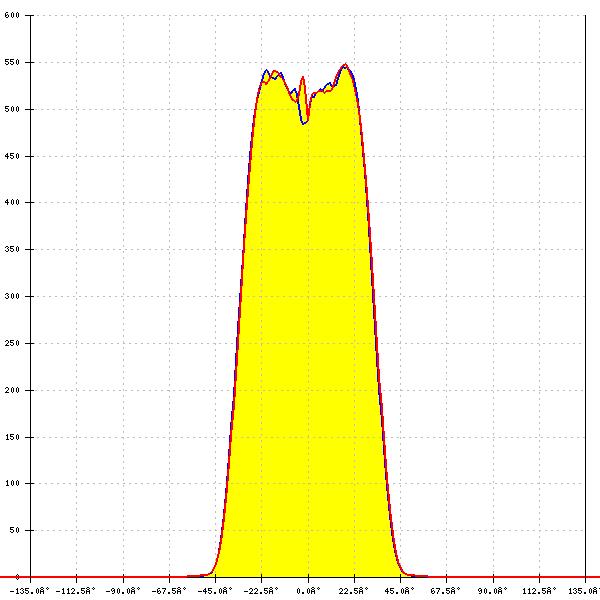

LED: NFSx757G
Required components:
F17028_DAISY-MINI-SHD
FWHM: 65°
FWTM: -
Efficiency: 69 %
LEDs/each optic: 1
Light colour/type: White

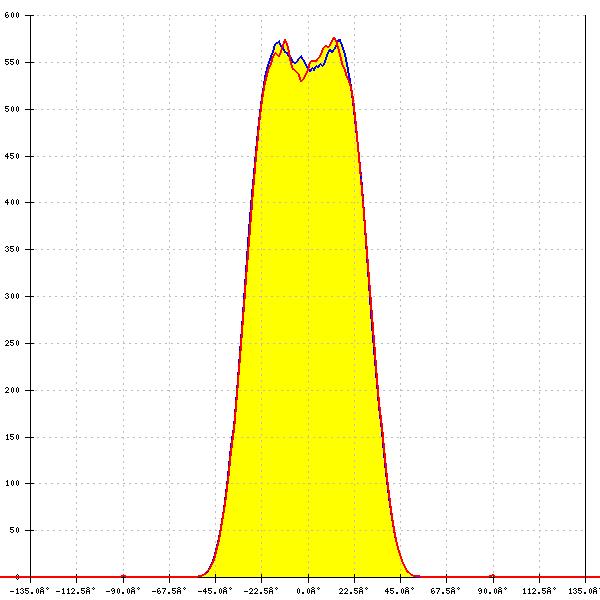

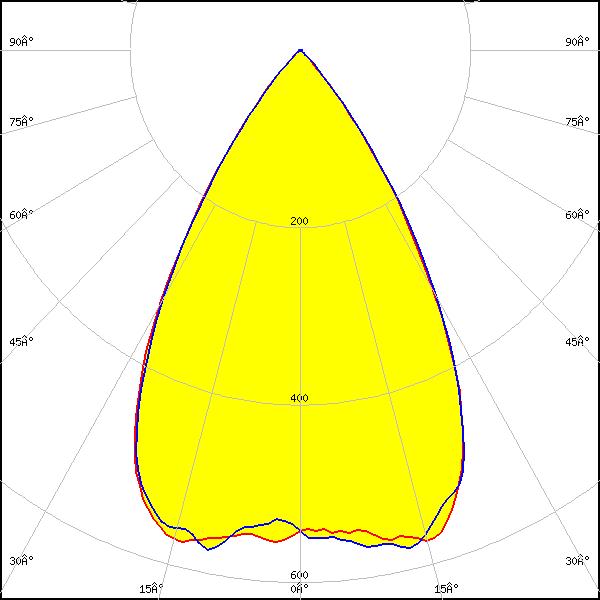

LED: NVSxE21A
Required components:
F17028_DAISY-MINI-SHD
FWHM: 62°
FWTM: -
Efficiency: 64 %
LEDs/each optic: 1
Light colour/type: White

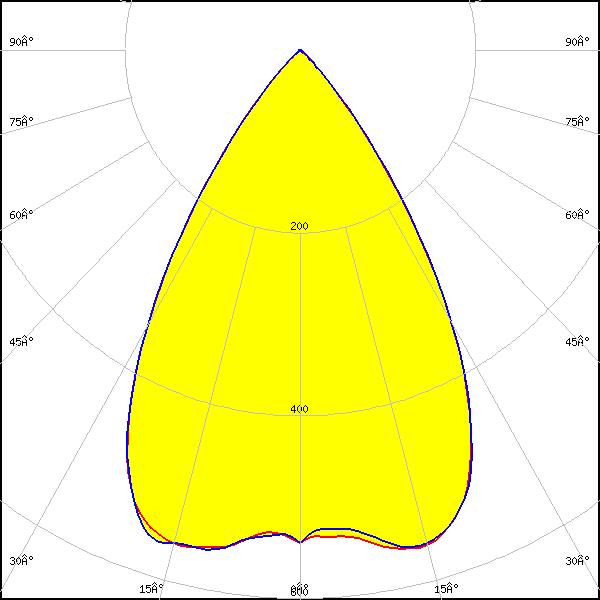

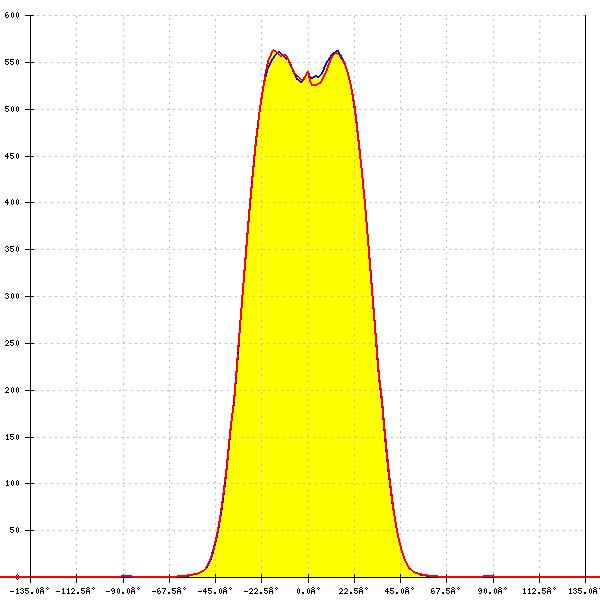

LED: LH231B
Required components:
F17034_DAISY-MINI-SHD-MATT
FWHM: 65°
FWTM: 86°
Peak intensity: 0.585 cd/lm
Efficiency: 67 %
LEDs/each optic: 1
Light colour/type: White

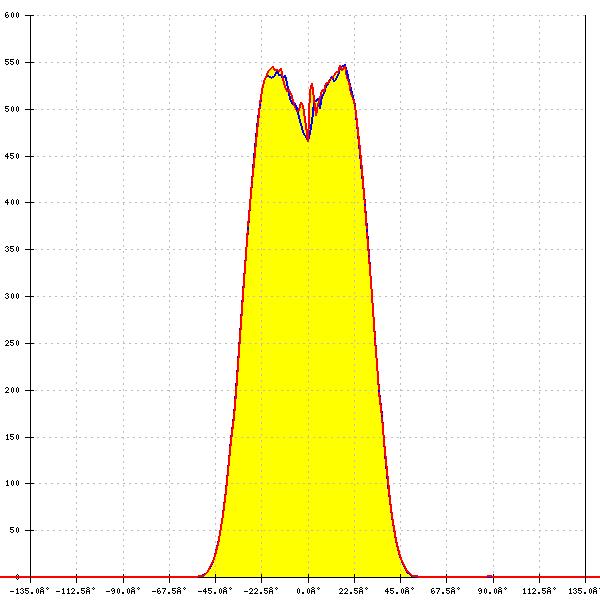

LED: LM101B
Required components:
F17028_DAISY-MINI-SHD
FWHM: 63°
FWTM: -
Efficiency: 67 %
LEDs/each optic: 1
Light colour/type: White

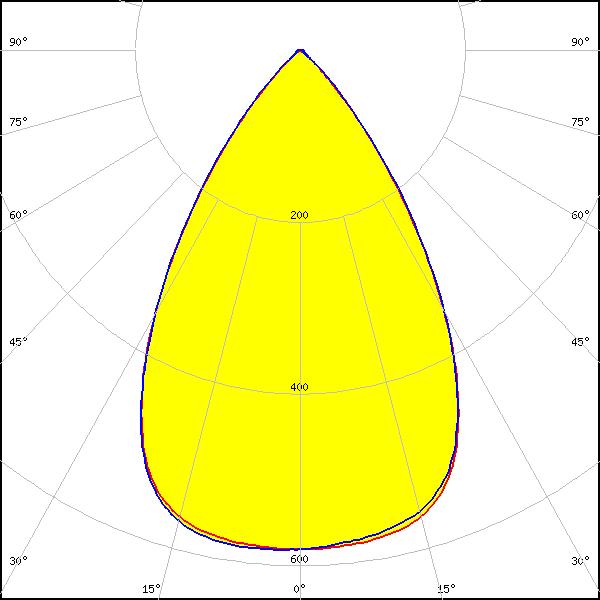

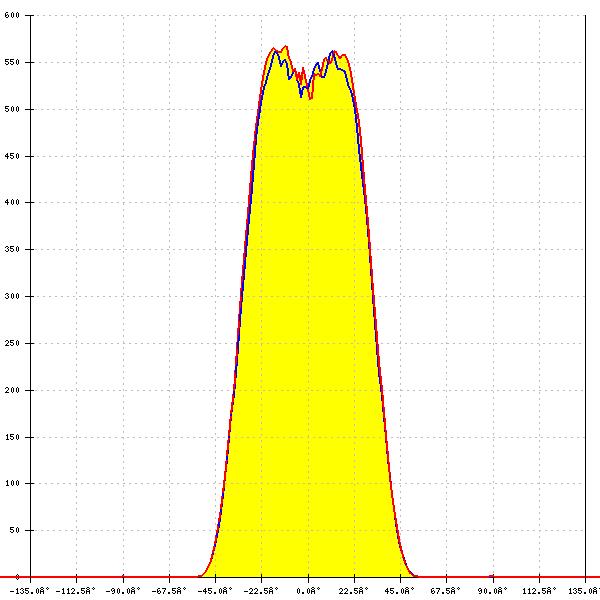

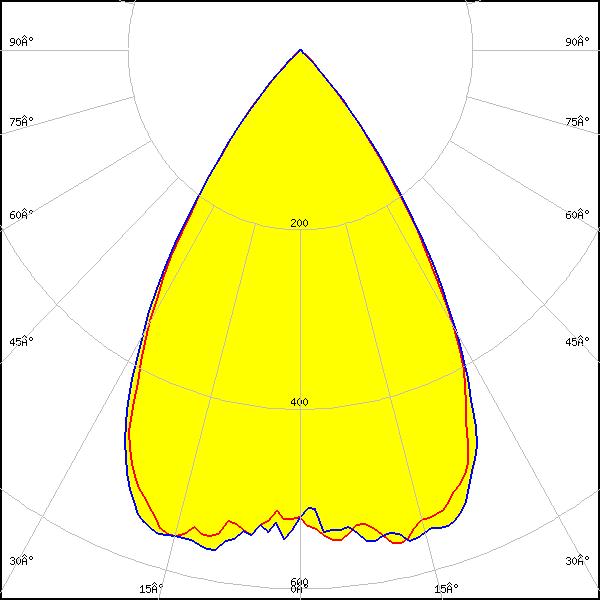

LED: LM28xB Series
Required components:
F17028_DAISY-MINI-SHD
FWHM: 64°
FWTM: -
Efficiency: 68 %
LEDs/each optic: 1
Light colour/type: White

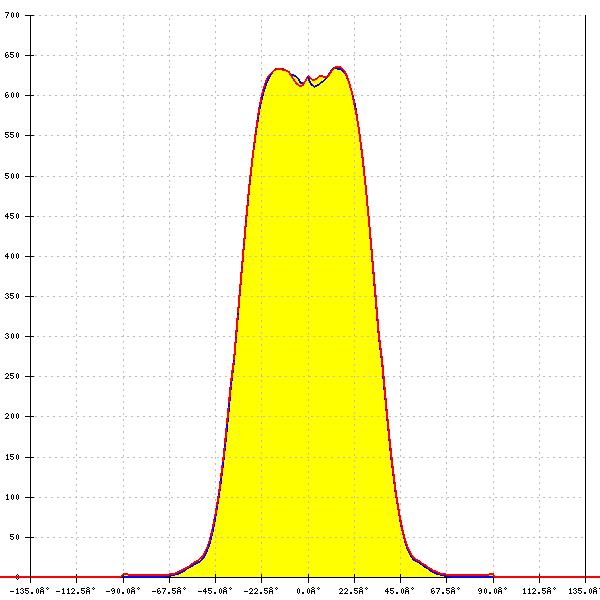

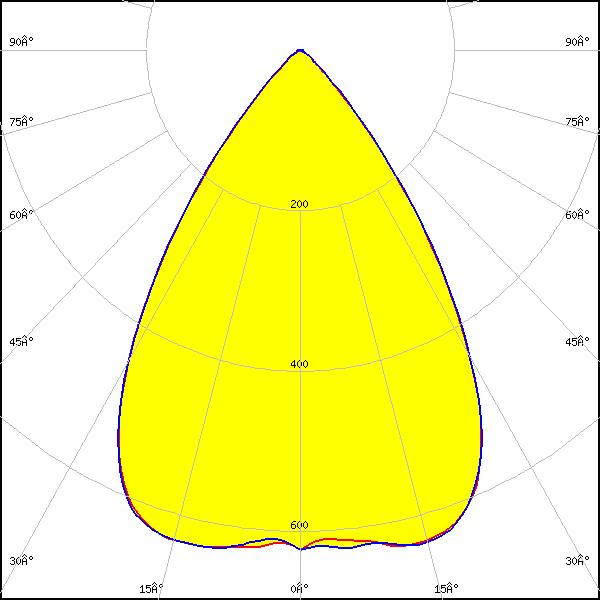

LED: LM301B EVO
Required components:
F17034_DAISY-MINI-SHD-MATT
FWHM: 68°
FWTM: 92°
Peak intensity: 0.658 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

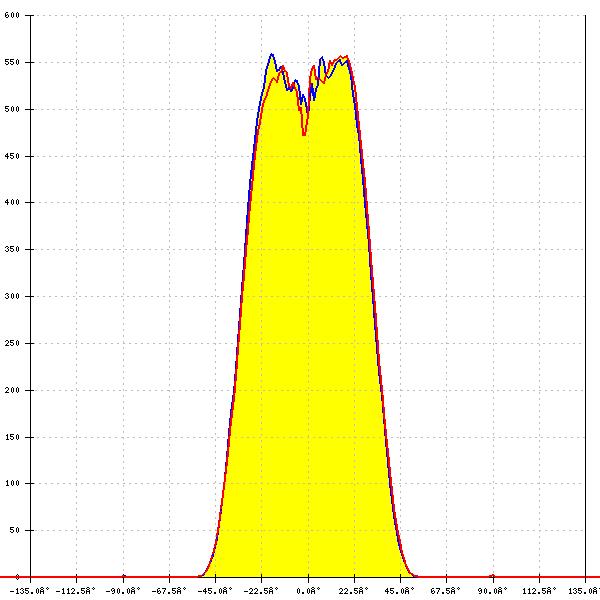

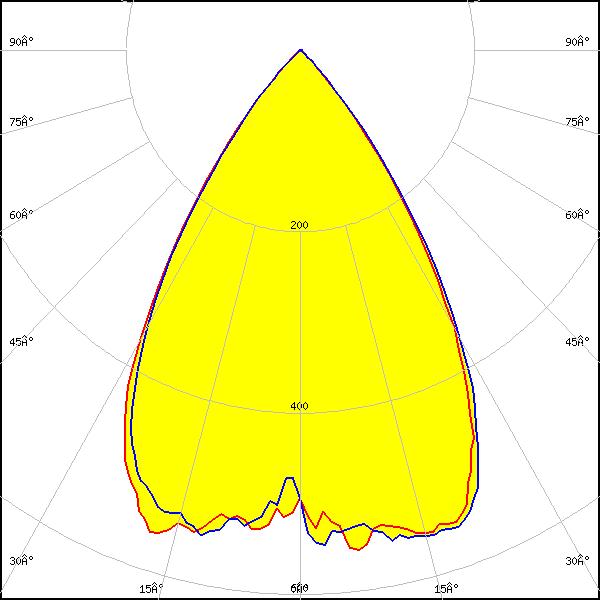

LED: LM302Z plus
Required components:
F17028_DAISY-MINI-SHD
FWHM: 65°
FWTM: -
Efficiency: 68 %
LEDs/each optic: 1
Light colour/type: White

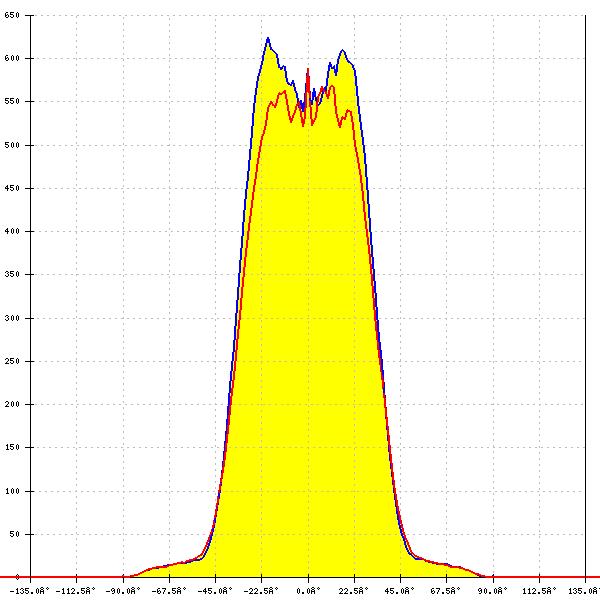

LED: LM561B
Required components:
F17033_DAISY-MINI-SHD-WHT
FWHM: 69° + 65°
FWTM: 0° + 0°
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White

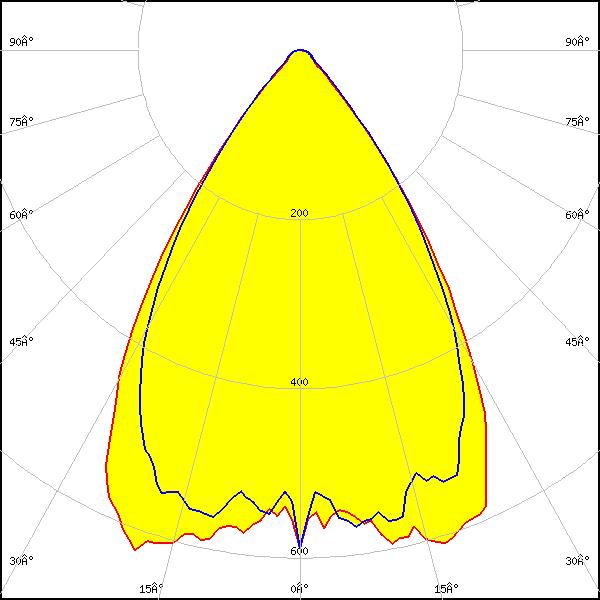

LED: LM561B
Required components:
F17465_DAISY-MINI-SHD-WHT-MATT
FWHM: 69° + 65°
FWTM: 0° + 0°
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White

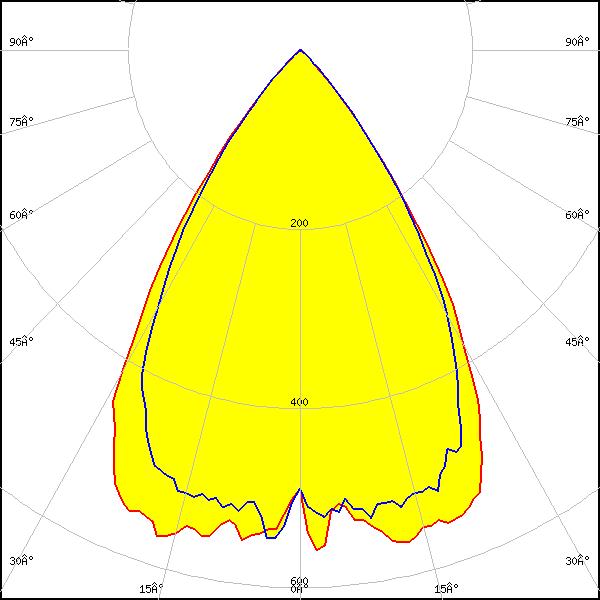

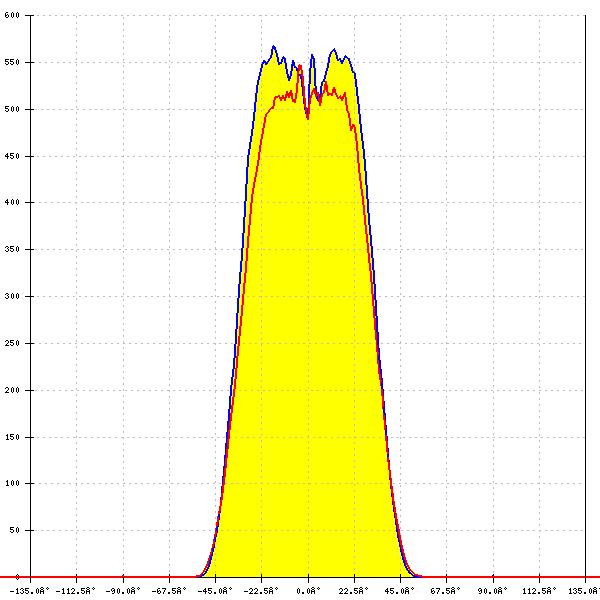

LED: LM561B
Required components:
F17028_DAISY-MINI-SHD
FWHM: 68° + 64°
FWTM: 0° + 0°
Efficiency: 68 %
LEDs/each optic: 1
Light colour/type: White

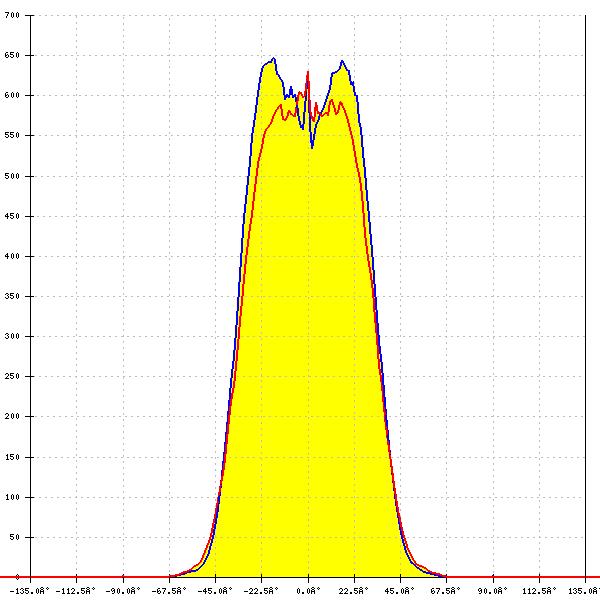

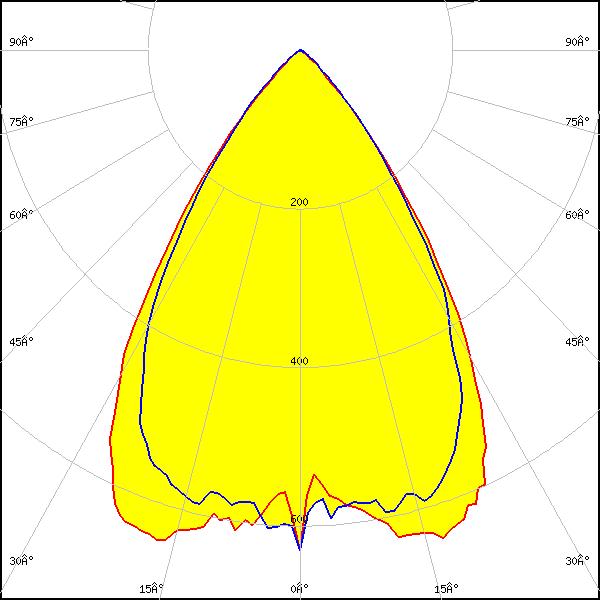

LED: LM561B
Required components:
F17666_DAISY-MINI-SHD-MET
FWHM: 69° + 65°
FWTM: 0° + 0°
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White

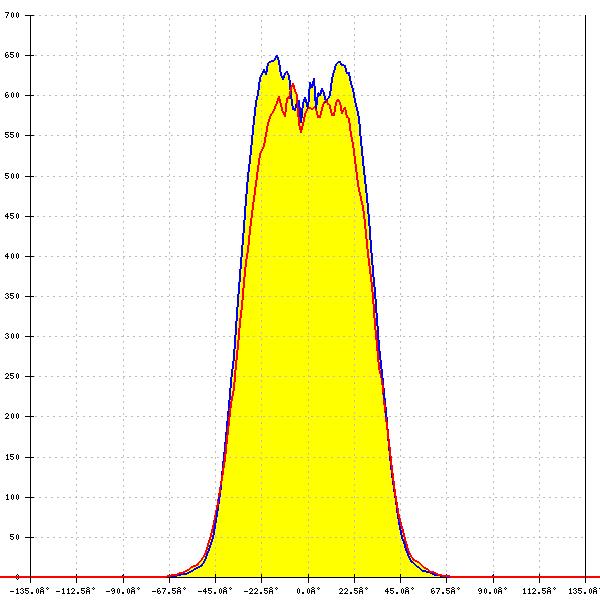

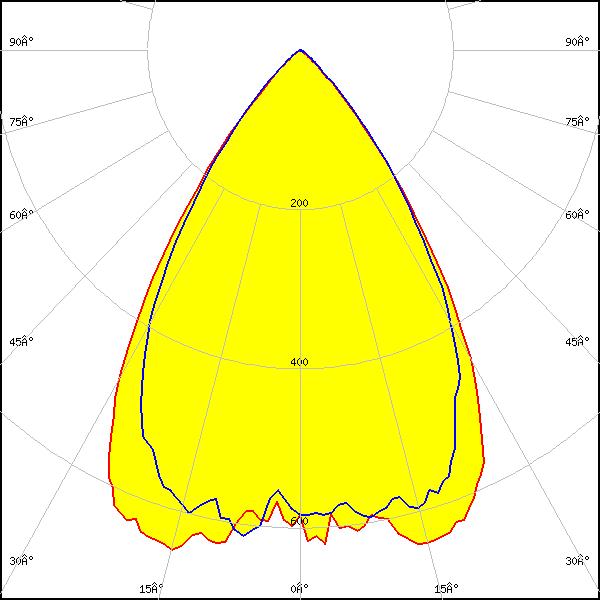

LED: LM561B
Required components:
F17667_DAISY-MINI-SHD-MET-MATT
FWHM: 72° + 70°
FWTM: 0° + 0°
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White

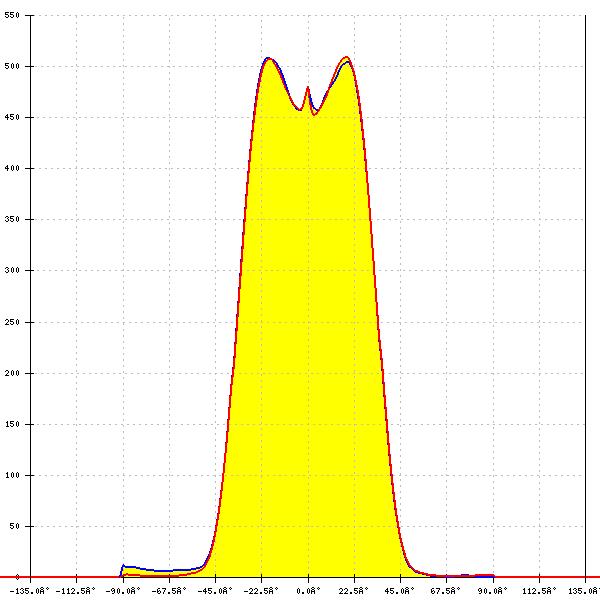

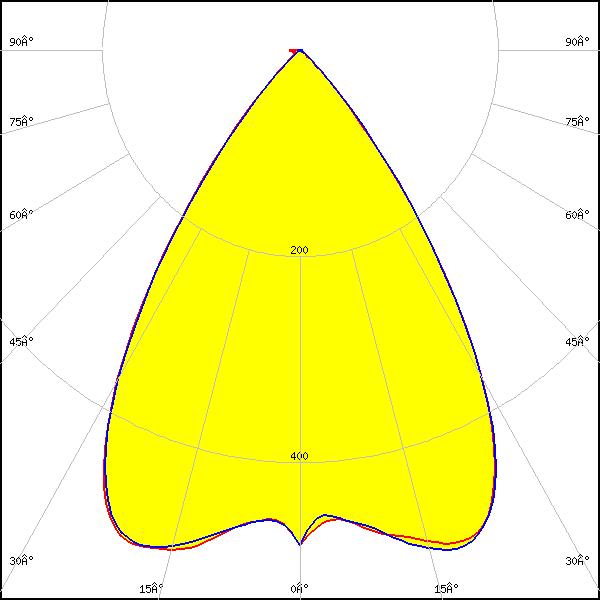

LED: SEOUL 3030
Required components:
F17028_DAISY-MINI-SHD
FWHM: 66°
FWTM: -
Efficiency: 68 %
LEDs/each optic: 1
Light colour/type: White
LED: SEOUL 3030
Required components:
F17028_DAISY-MINI-SHD
FWHM: 68°
FWTM: 88°
Peak intensity: 0.554 cd/lm
Efficiency: 69 %
LEDs/each optic: 1
Light colour/type: White
