APPLICATION EXAMPLE

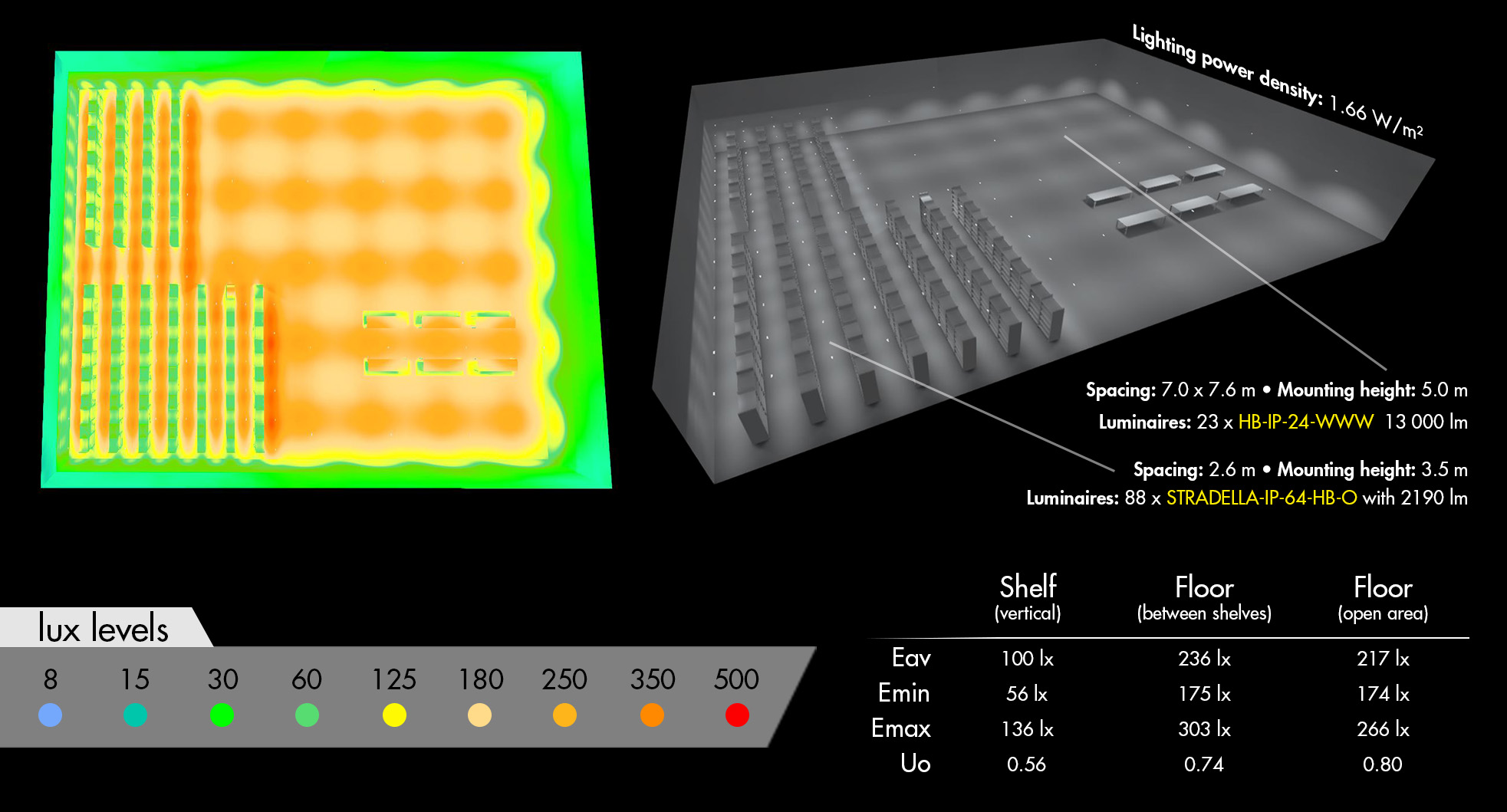

Warehouse lighting with STRADELLA-IP-64 and HB-IP-24.
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
SETUP:
| Application: | Warehouse lighting |
| Open area | |
| Optics: | HB-IP-24-WWW |
| Number of luminaires: | 23 pcs |
| Luminous flux (Luminaire): | 13 000 lm |
| Spacing: | 7.0 x 7.6 m |
| Mounting height: | 5.0 m |
| Shelf area | |
| Optics: | STRADELLA-IP-64-HB-O |
| Number of luminaires: | 88 pcs |
| Luminous flux (Luminaire): | 2190 lm |
| Spacing: | 2.6 m |
| Mounting height: | 3.5 m |
RESULTS:
| Lighting power density: | 1.66 W/m2 |
| Shelf (vertical) | Floor (between shelves) | Floor (open area) | |
| Eav | 100 lx | 236 lx | 217 lx |
| Emin | 56 lx | 175 lx | 174 lx |
| Emax | 136 lx | 303 lx | 266 lx |
| Uo | 0.56 | 0.74 | 0.80 |
Warehouse lighting with STRADELLA-IP-64 and HB-IP-24.
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
