APPLICATION EXAMPLE

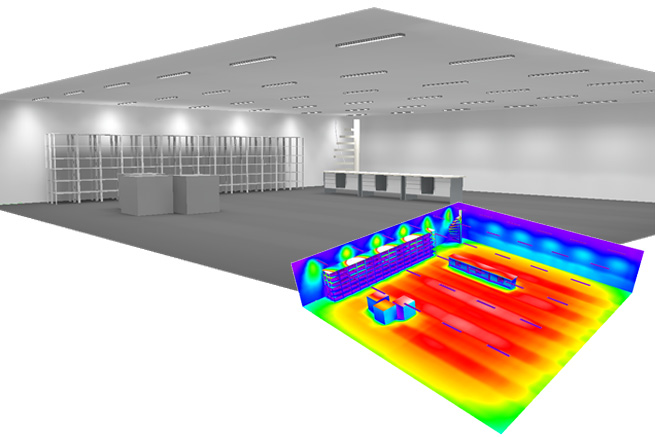

Warehouse lighting with LINNEA-90
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
SETUP:
| Application: | Warehouse lighting |
| Optics: | LINNEA-90 |
| Luminaire type: | Linear |
| Luminous flux (luminaire): | 4000 lm |
| Power (LEDs/luminaire): | 34 W |
| No. of optics in luminaire: | 4 pcs |
| No. of luminaires in a row: | 6 pcs |
| No. of luminaires in total: | 36 pcs |
| Room height: | 3.2 m |
| Installation height: | 5 cm from ceiling |
RESULTS:
| Workplane at 0.8 m height | |
| Average: | 469 lx |
| Min: | 317 lx |
| Max: | 535 lx |
| Uo: | 0.68 |
| F15523_LINNEA-90 | ||
| F15940_LINNEA-90-B |
