APPLICATION EXAMPLE

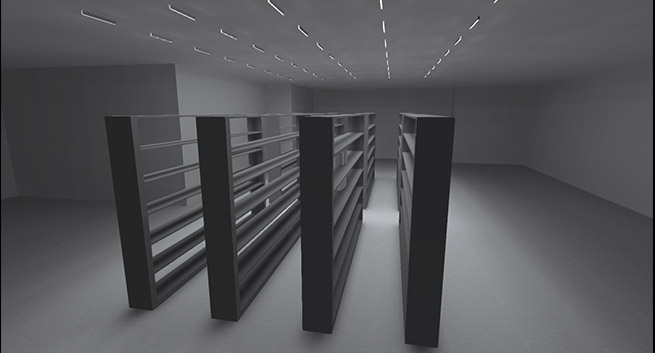

Warehouse aisle and shelf lighting with LINNEA-O
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
SETUP:
| Application: | Aisle and shelf lighting |
| Optics: | LINNEA-O |
| LED: | Mid-power 5630 LED |
| Luminous flux (Luminaire): | 3347 lm |
| Power (Luminaire): | 27 W |
| Luminous efficacy: | 124 lm/W |
| Efficiency (Optics): | 84 % |
| Mounting height: | 9 m |
| Arrangement: | Continuous row |
| Number of luminaires in a row: | 8 pcs |
| Total number of luminaires: | 40 pcs |
RESULTS:

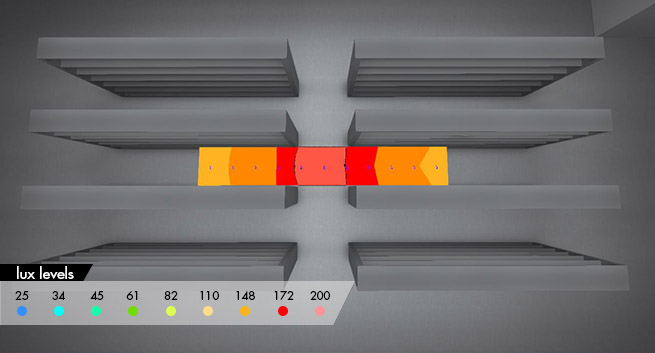

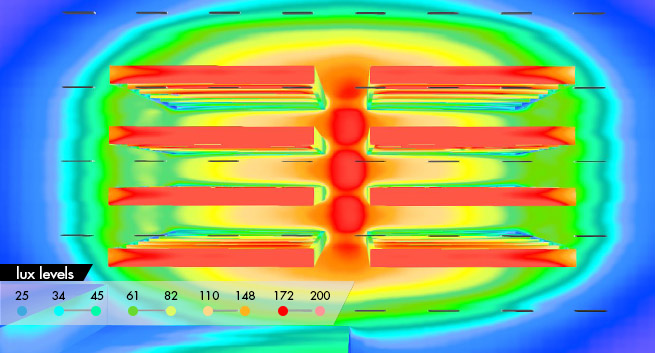

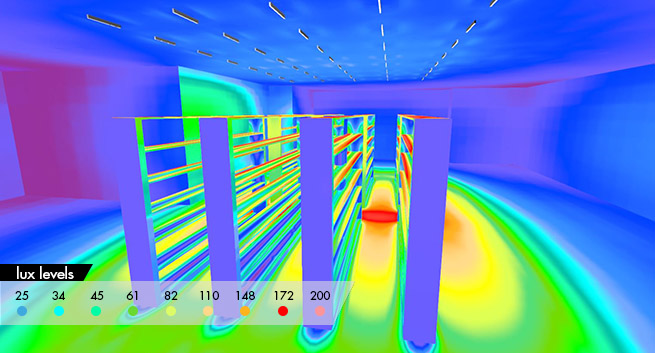

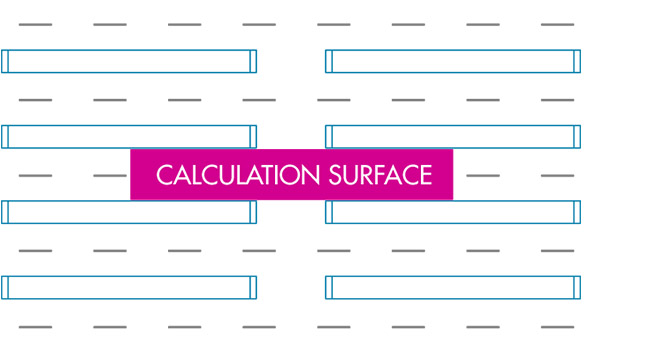

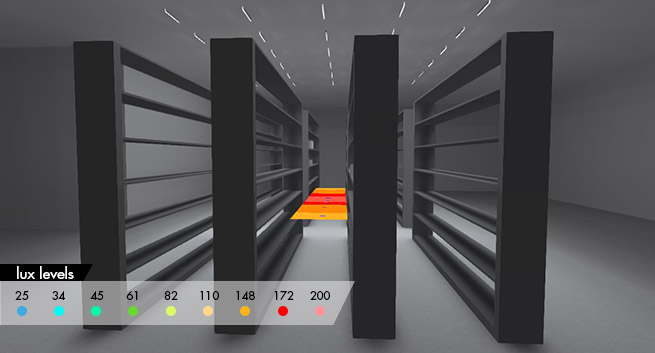

| Calculation surface results at 1.6 m height | |
| Average: | 171 lx |
| Min: | 143 lx |
| Max: | 222 lx |
| Uo: | 0.84 |
| UGR max: | 25 |
| F15756_LINNEA-O | ||
| F15952_LINNEA-O-B |
