F15756_LINNEA-O
Print

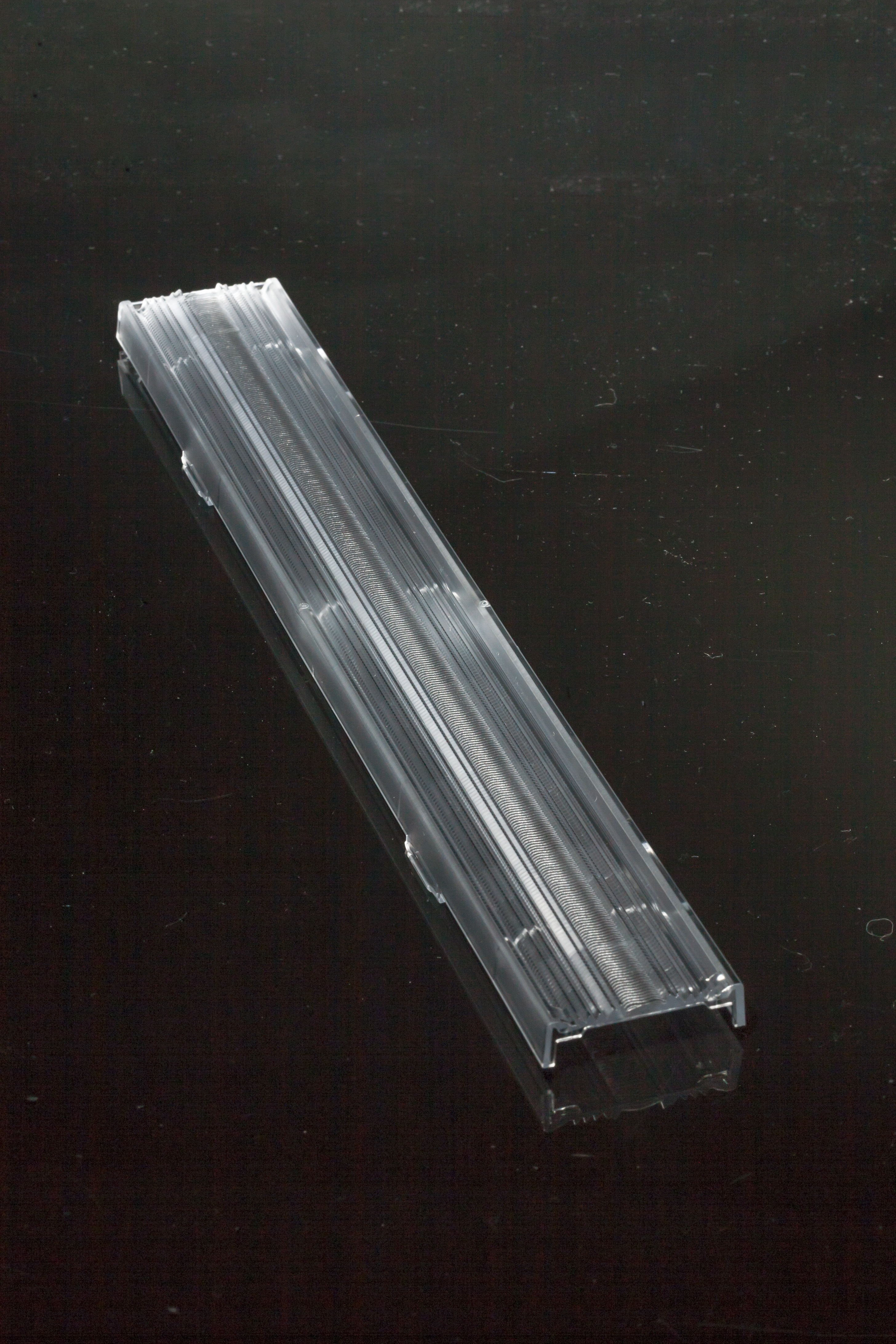

~35° + 70° oval beam optimized for 1.0 mm metal sheet or profile. Variant made from PC.
Component Materials
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES
Optical results

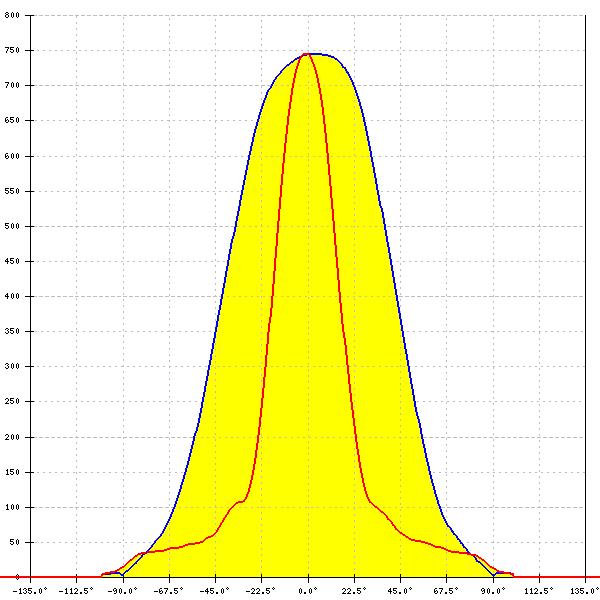

LED:
CALOSNU405-M7W1
FWHM:
88° + 35°
FWTM:
137° + 84°
Peak intensity:
0.750 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

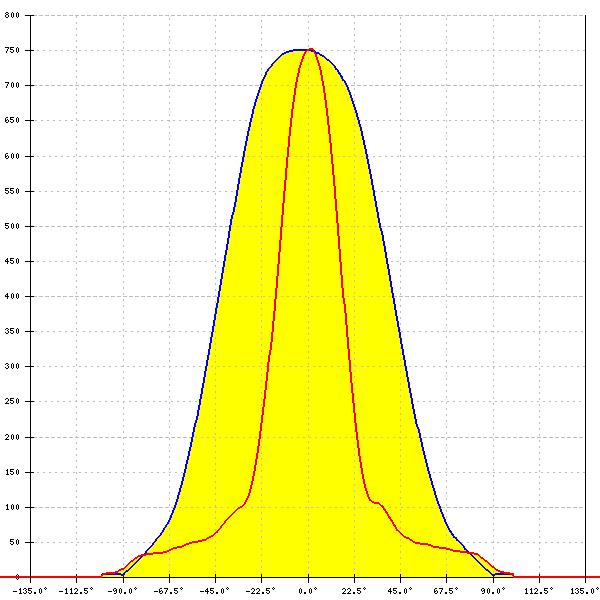

LED:
CALOSNU410-M7W1
FWHM:
88° + 35°
FWTM:
136° + 83°
Peak intensity:
0.750 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

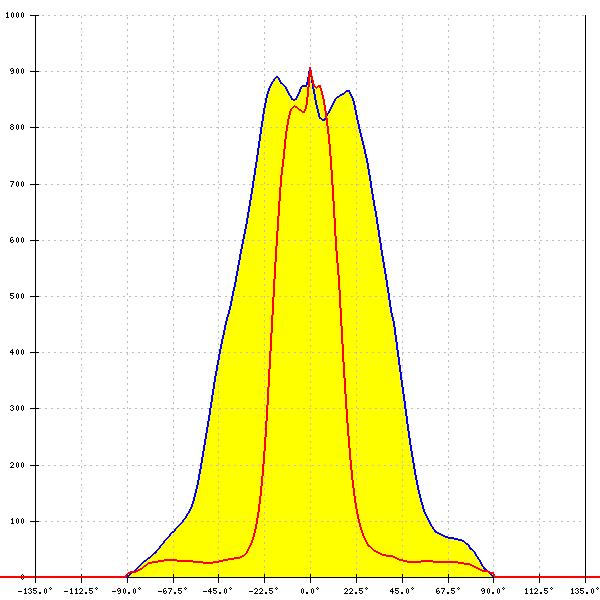

LED:

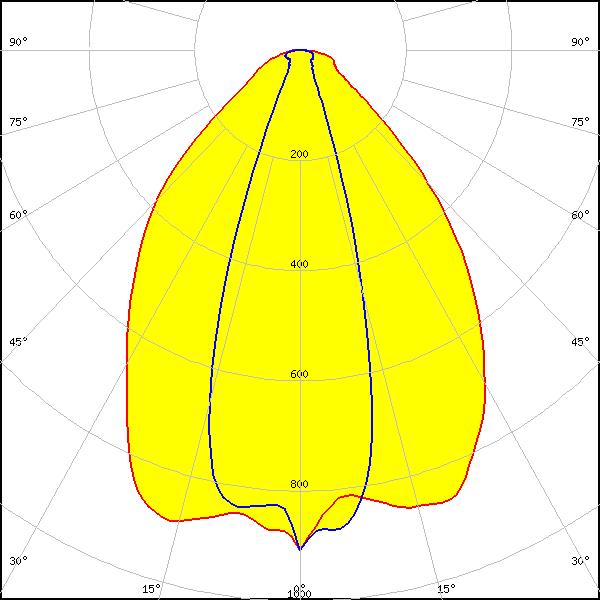

Bridgelux SMD 2835
FWHM:
82° + 33°
FWTM:
125° + 52°
Peak intensity:
0.908 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White

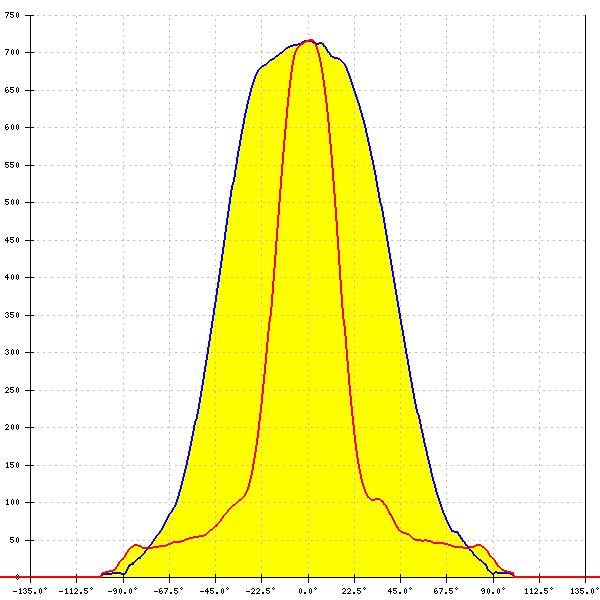

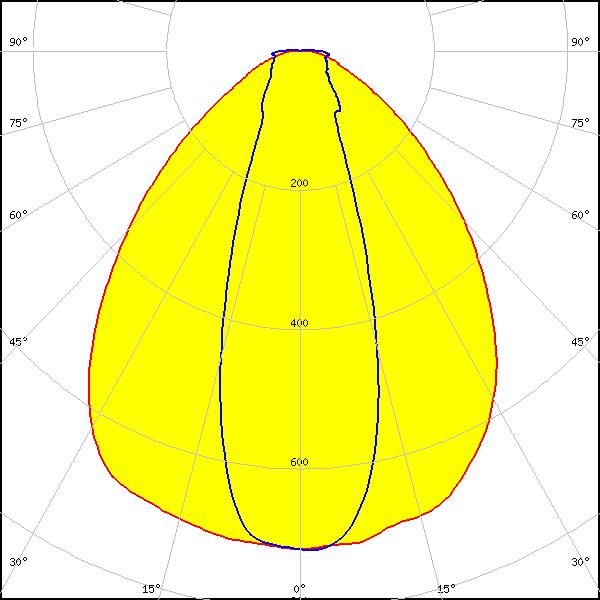

LED:
XP-E
FWHM:
90° + 35°
FWTM:
138° + 86°
Peak intensity:
0.720 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

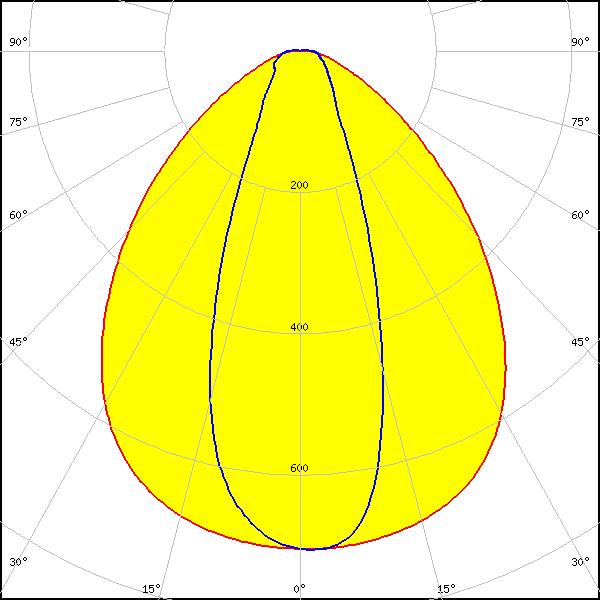

LED:

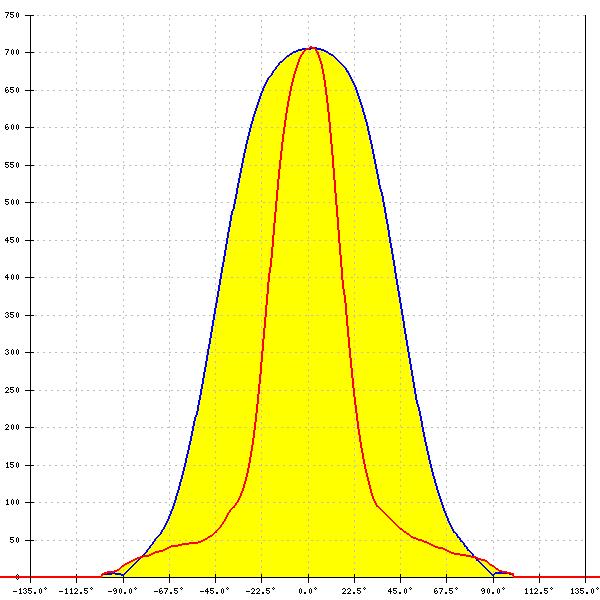

L-iC-282-827-865-011A
FWHM:
91° + 39°
FWTM:
139° + 84°
Peak intensity:
0.710 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

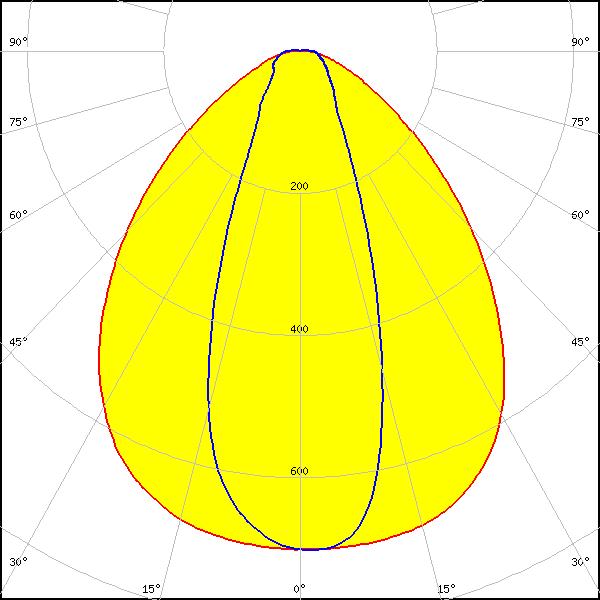

LED:

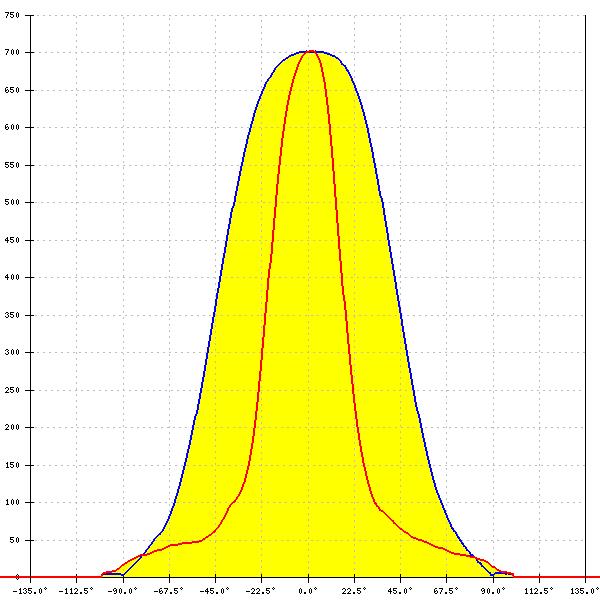

LP-282-840-009A 60/300
FWHM:
91° + 39°
FWTM:
139° + 85°
Peak intensity:
0.700 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:

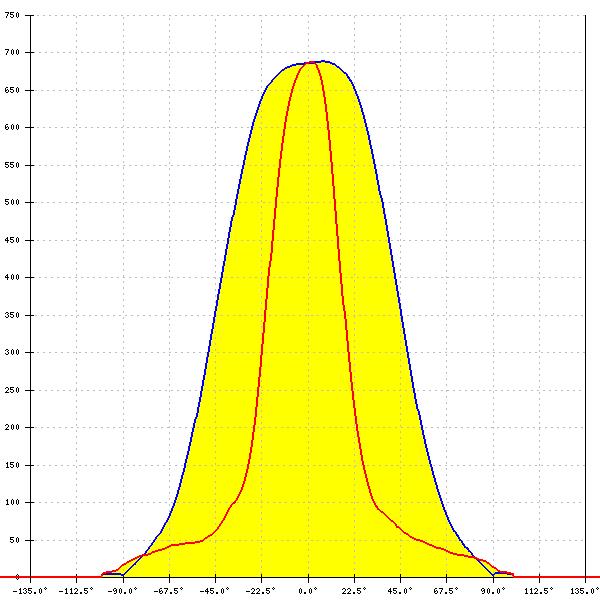

LS-282-840-011A
FWHM:
92° + 39°
FWTM:
140° + 86°
Peak intensity:
0.690 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

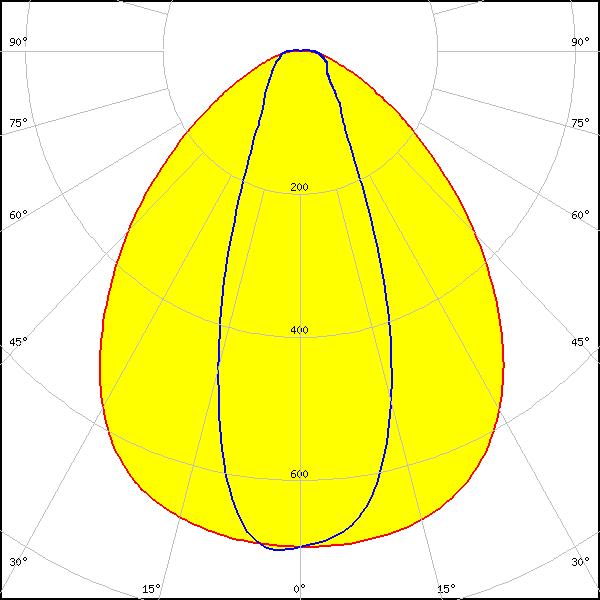

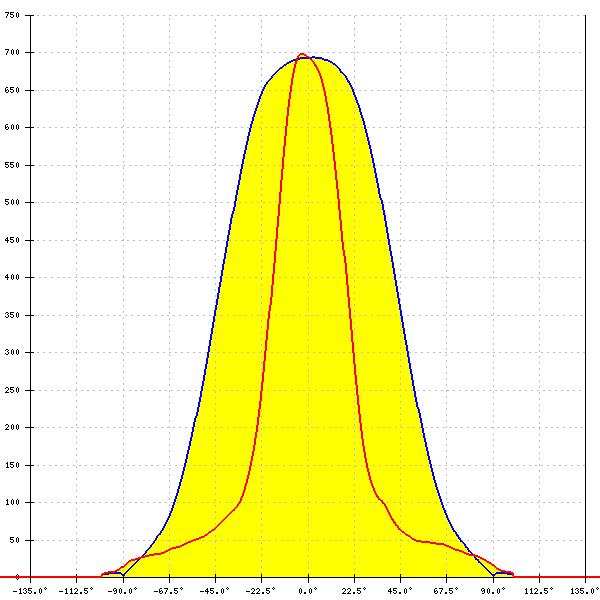

LED:
LX-282-840-023A
FWHM:
91° + 39°
FWTM:
139° + 86°
Peak intensity:
0.700 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
PL-LIN-IND-Z1 2800 560x24
FWHM:
91° + 39°
FWTM:
140° + 94°
Peak intensity:
0.736 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
PL-LIN-Z5 1100 280x20
FWHM:
91° + 38°
FWTM:
139° + 85°
Peak intensity:
0.707 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

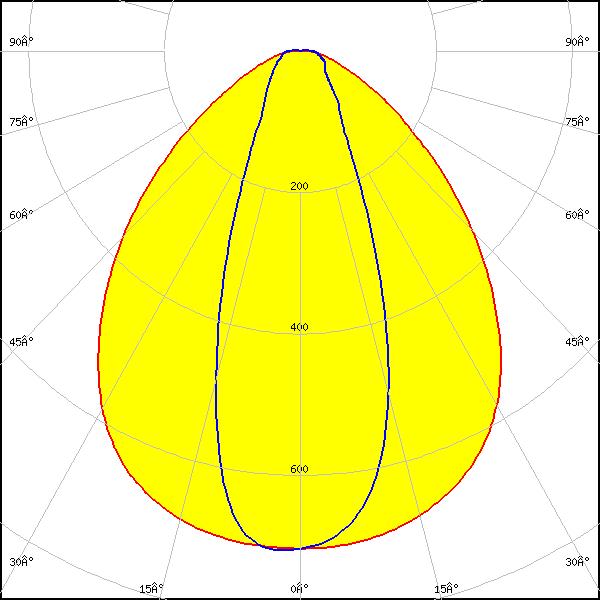

LED:
PL-LIN-Z5 2000 280x20
FWHM:
92° + 39°
FWTM:
140° + 85°
Peak intensity:
0.708 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

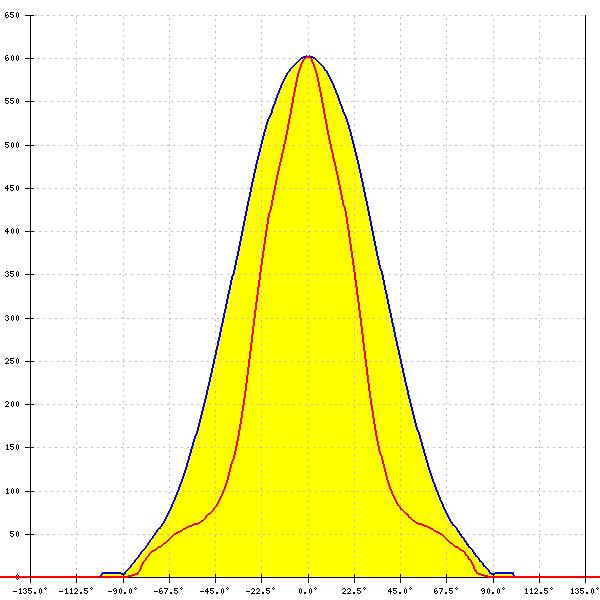

LED:
LinearZ 280-112 Circadian TW
FWHM:
81° + 56°
FWTM:
142° + 111°
Peak intensity:
0.602 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
Tunable White

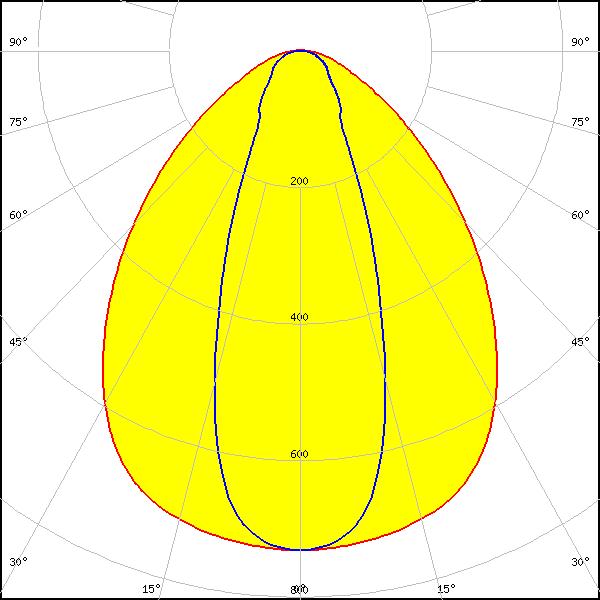

LED:

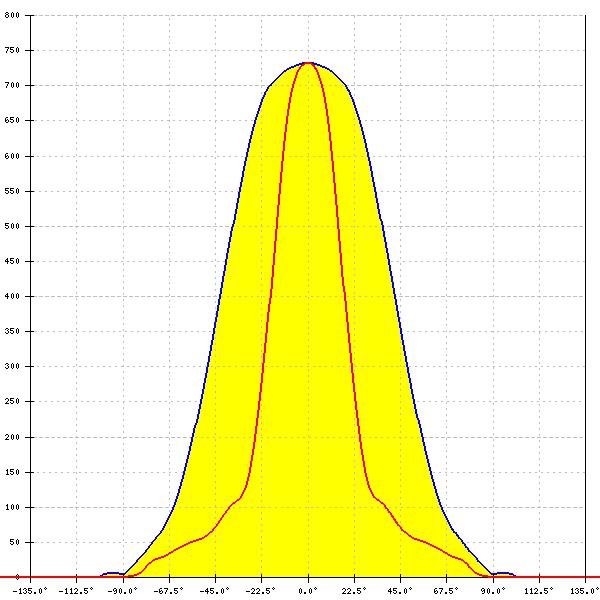

LinearZ 280-26
FWHM:
89° + 39°
FWTM:
140° + 89°
Peak intensity:
0.734 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

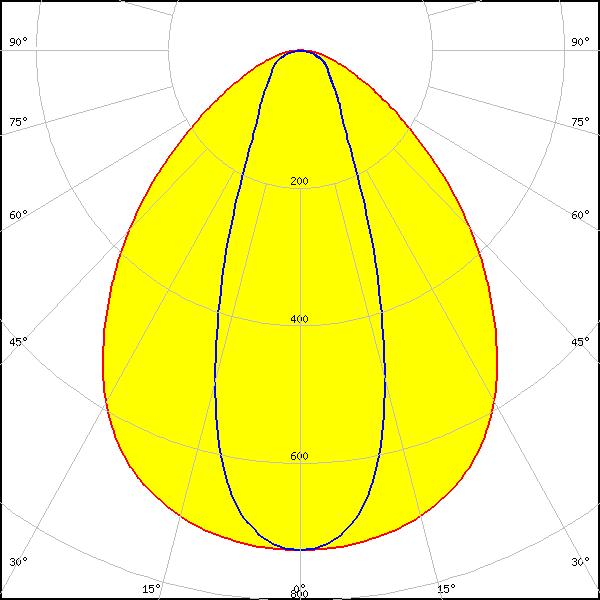

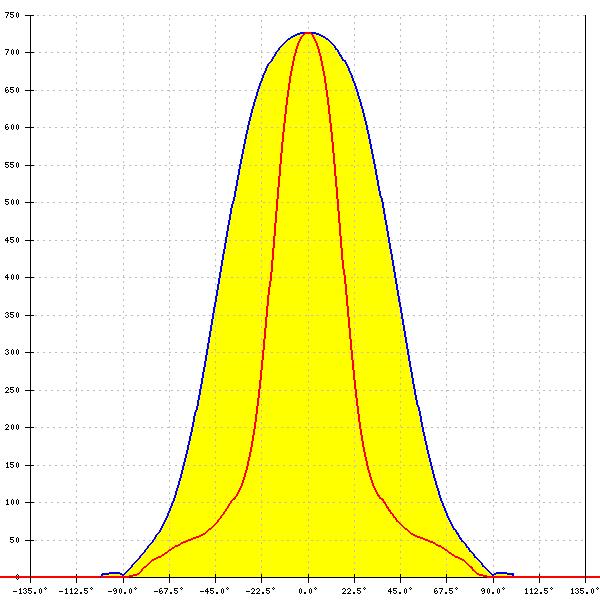

LED:
LinearZ 280-40 TW
FWHM:
90° + 38°
FWTM:
140° + 89°
Peak intensity:
0.729 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
Tunable White

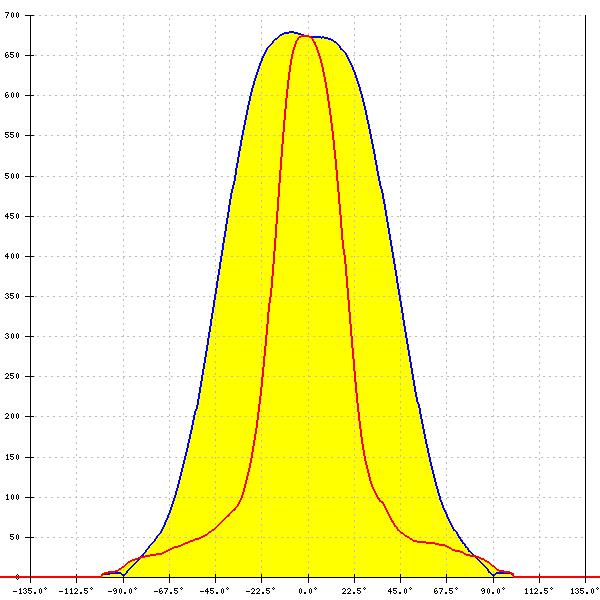

LED:

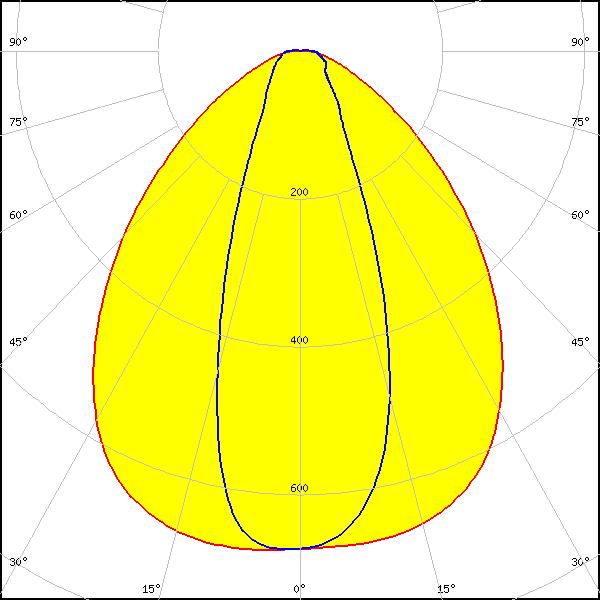

LinLED 280x24mm 1100lm 830 2C 30V LINNEA-GC G1
FWHM:
91° + 39°
FWTM:
139° + 84°
Peak intensity:
0.700 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

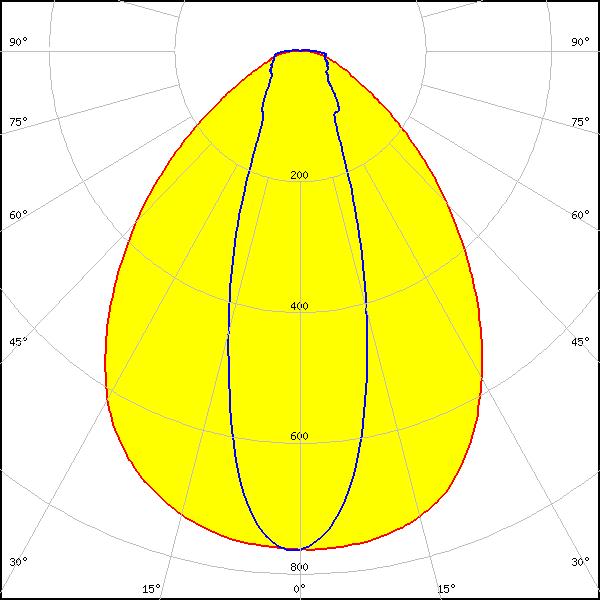

LED:

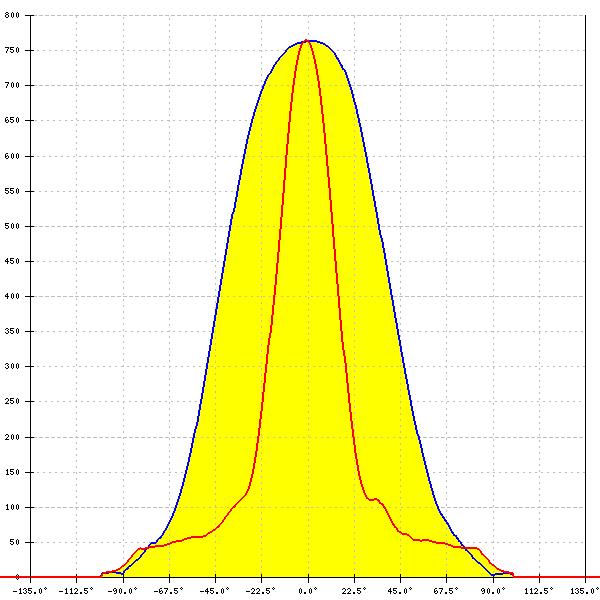

NF2x757G
FWHM:
86° + 33°
FWTM:
136° + 84°
Peak intensity:
0.770 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

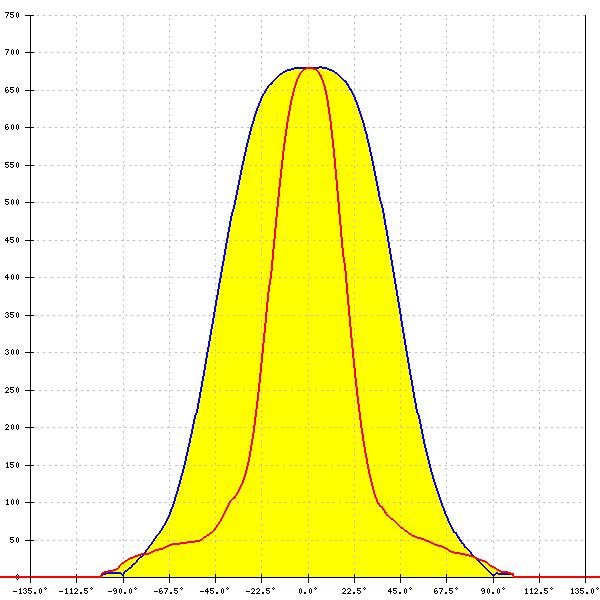

LED:

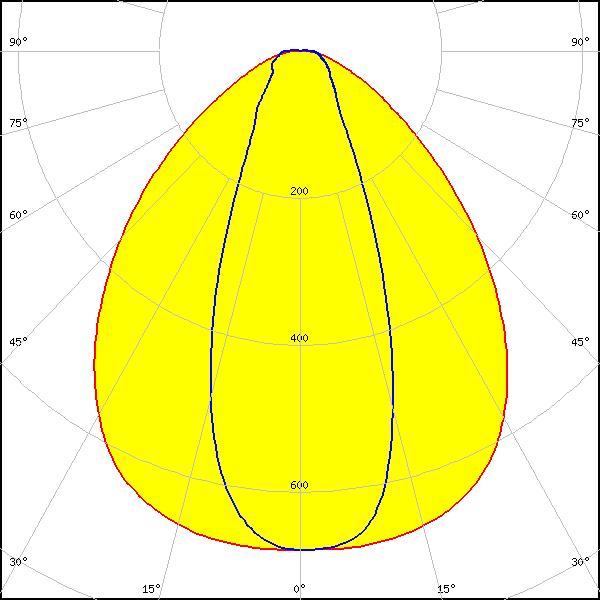

NFSW757H
FWHM:
92° + 41°
FWTM:
140° + 89°
Peak intensity:
0.681 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

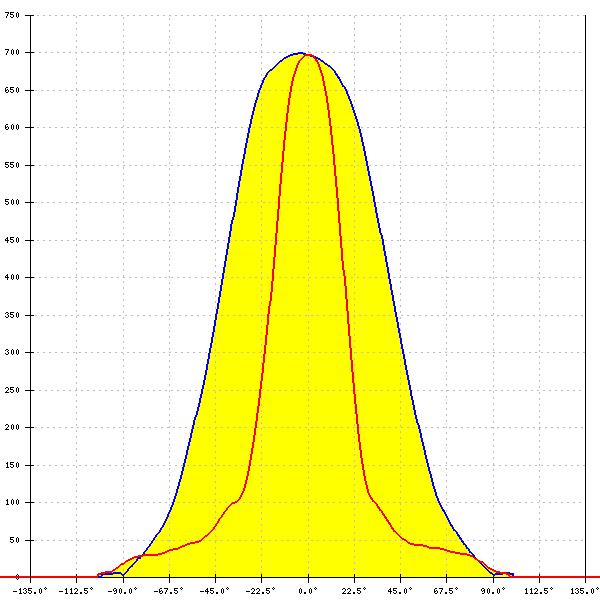

LED:

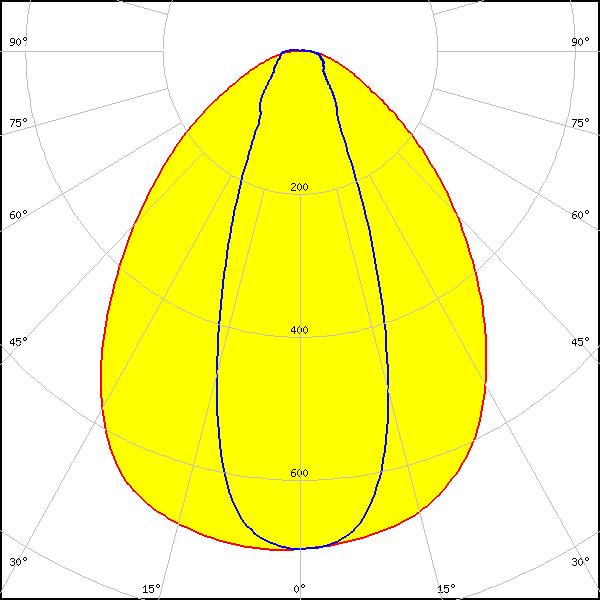

NFSx757G
FWHM:
87° + 38°
FWTM:
140° + 85°
Peak intensity:
0.700 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

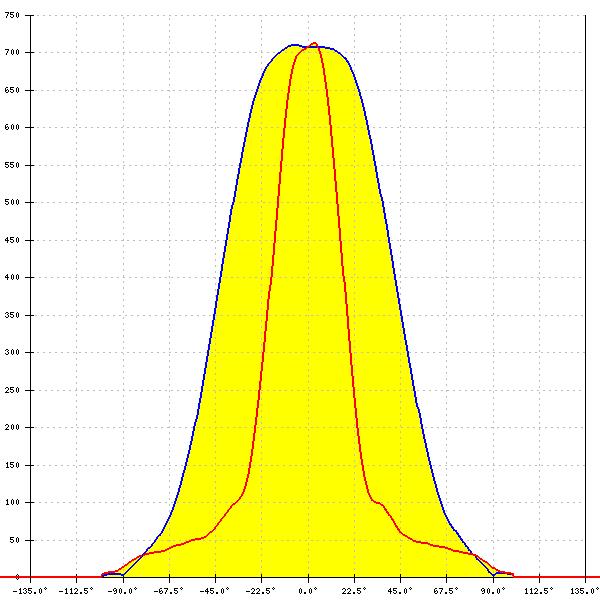

LED:

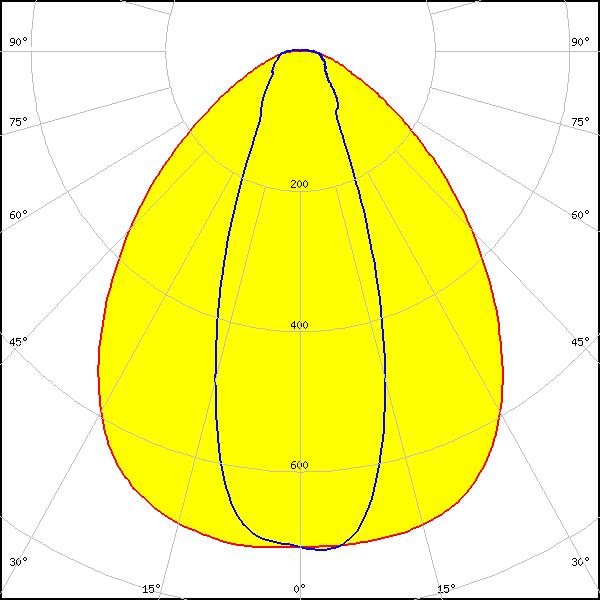

DURIS S5 (2 chip)
FWHM:
90° + 38°
FWTM:
138° + 86°
Peak intensity:
0.710 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

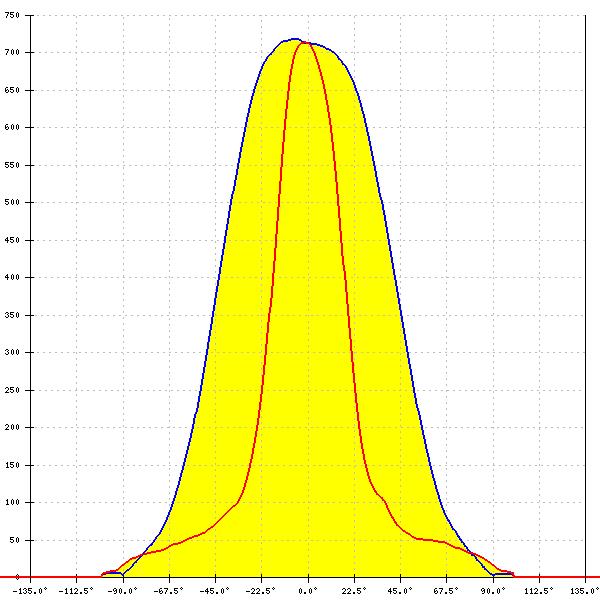

LED:

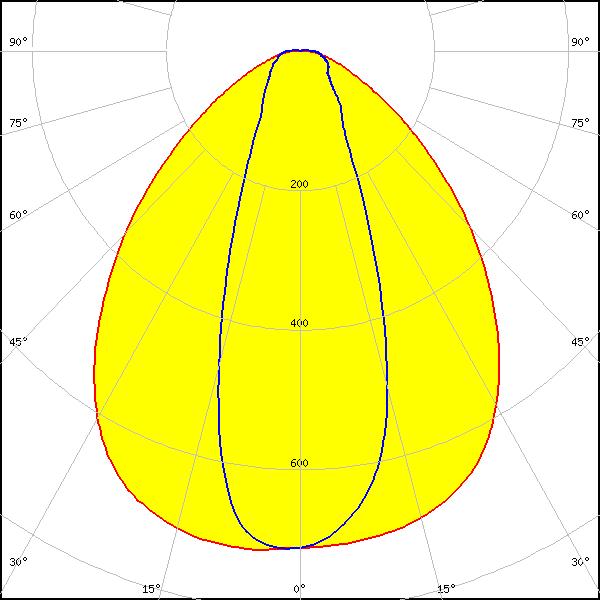

DURIS S5 (Single chip)
FWHM:
91° + 38°
FWTM:
139° + 88°
Peak intensity:
0.720 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

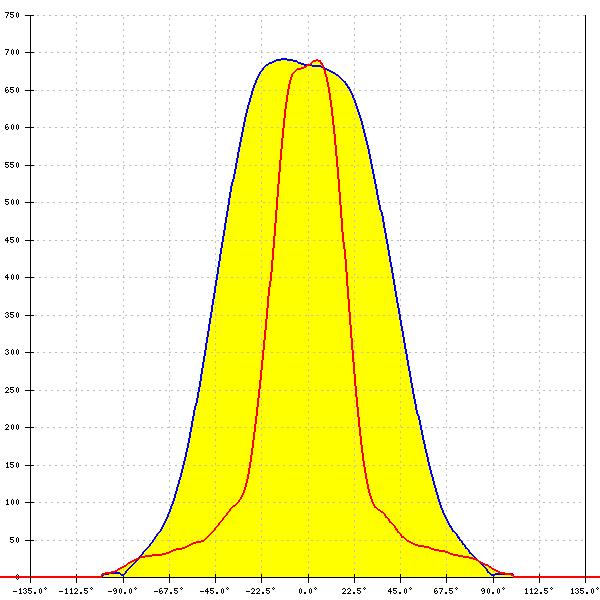

LED:

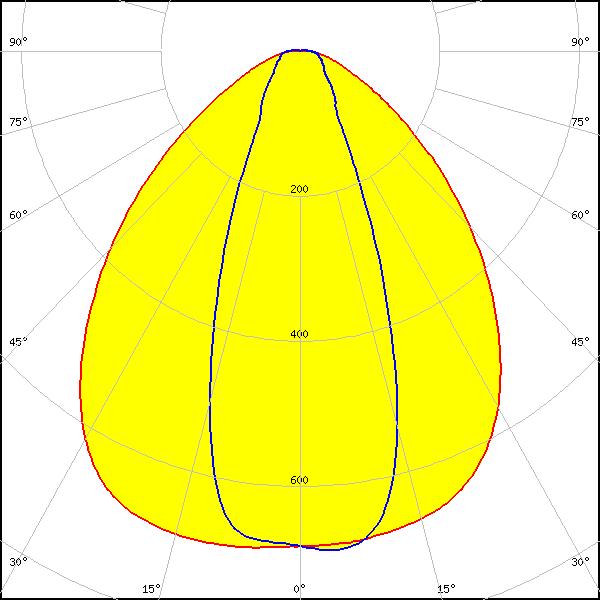

Fortimo LED Strip 1ft 1100lm FC HV4 & LV4
FWHM:
92° + 40°
FWTM:
140° + 85°
Peak intensity:
0.690 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo LED Strip 1ft 1100lm FC HV5 & LV5
FWHM:
89° + 38°
FWTM:
140° + 92°
Peak intensity:
0.749 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

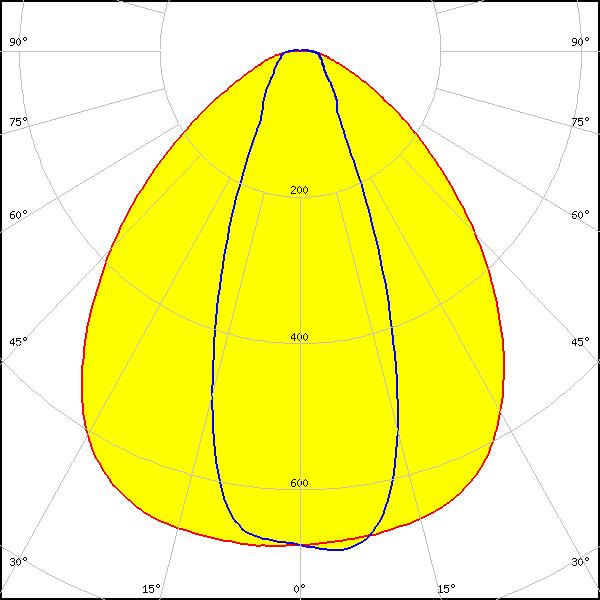

LED:

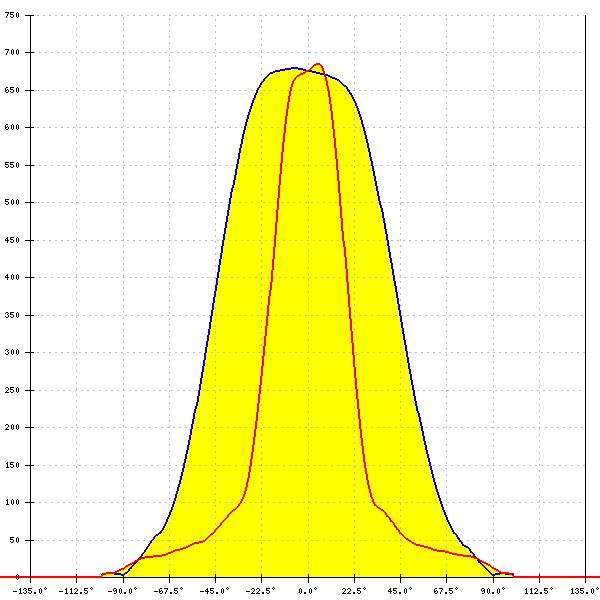

Fortimo LED Strip 1ft 650lm FC HV4 & LV4
FWHM:
93° + 40°
FWTM:
140° + 85°
Peak intensity:
0.690 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo LED Strip 1ft 650lm FC HV5 & LV5
FWHM:
85° + 33°
FWTM:
136° + 90°
Peak intensity:
0.795 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LM28xB Series
FWHM:
88° + 33°
FWTM:
137° + 84°
Peak intensity:
0.540 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

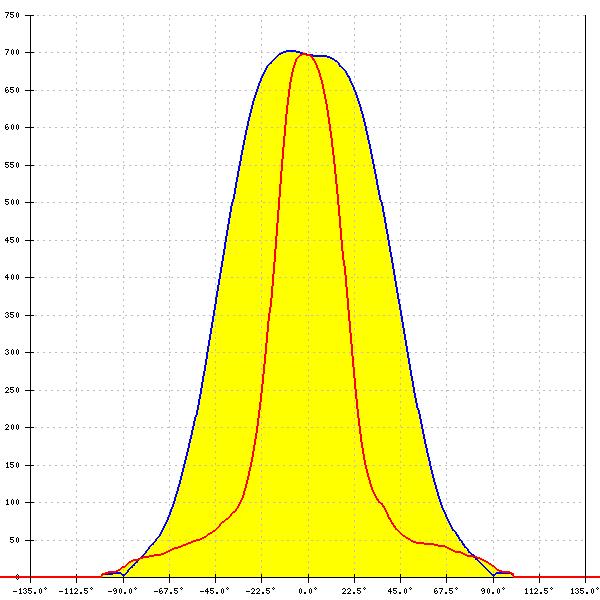

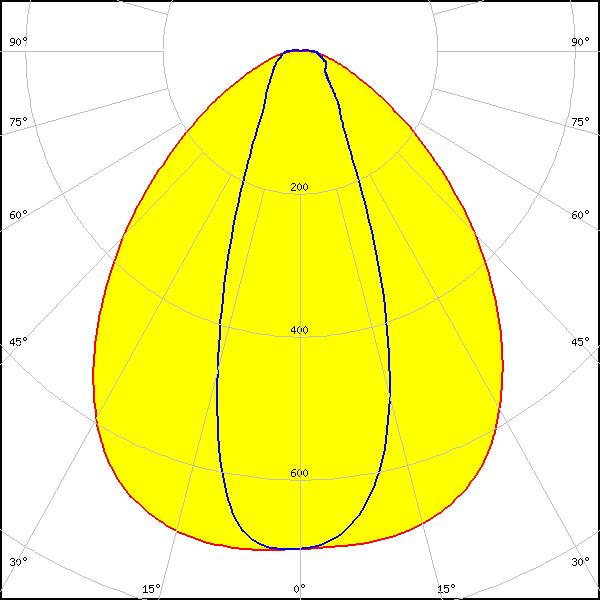

LED:
LM561B Plus
FWHM:
91° + 39°
FWTM:
139° + 84°
Peak intensity:
0.700 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:

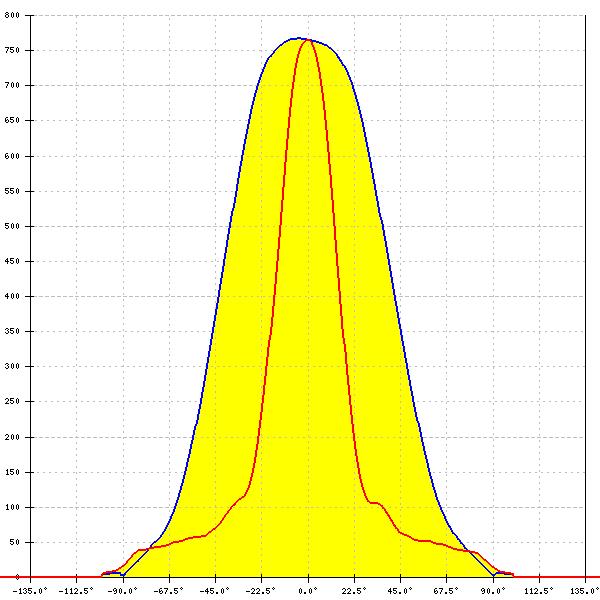

LT-H282C
FWHM:
88° + 33°
FWTM:
136° + 84°
Peak intensity:
0.770 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:

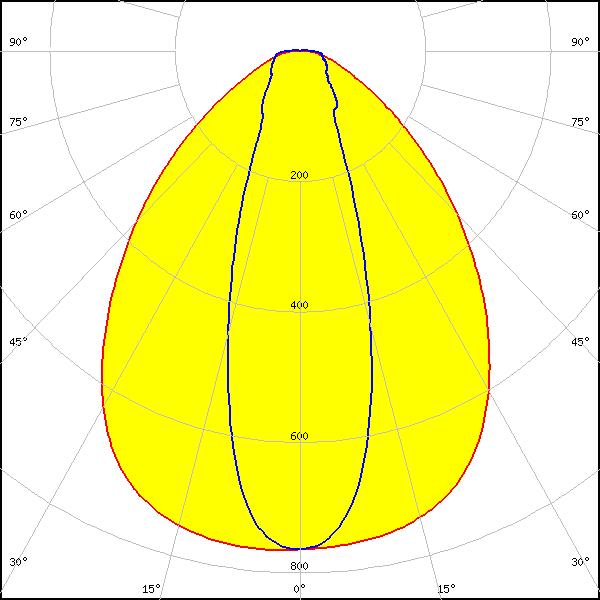

LT-H562C
FWHM:
88° + 33°
FWTM:
136° + 84°
Peak intensity:
0.770 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LT-Q282B
FWHM:
86° + 33°
FWTM:
136° + 84°
Peak intensity:
0.800 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

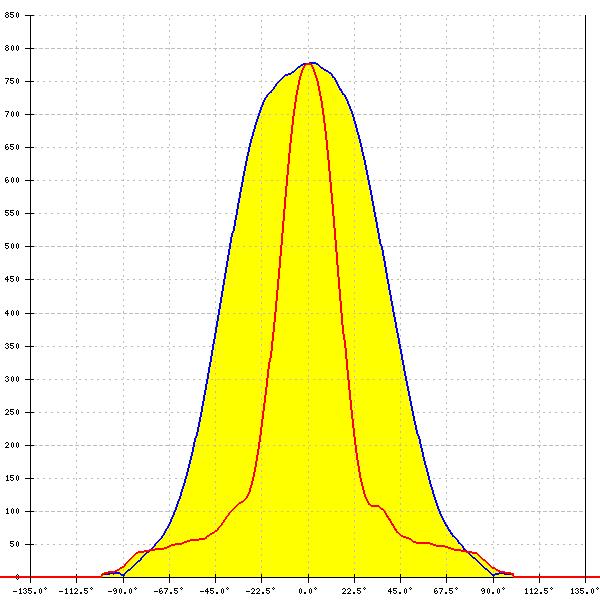

LED:
LT-S282H
FWHM:
87° + 33°
FWTM:
136° + 84°
Peak intensity:
0.770 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

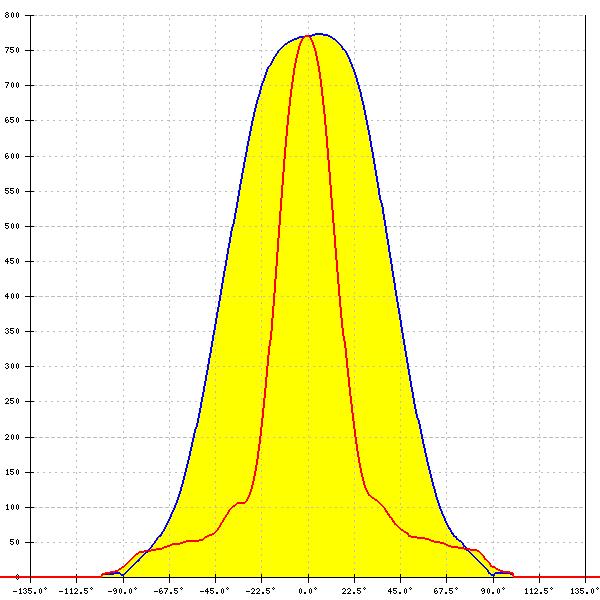

LED:
LT-S562H
FWHM:
87° + 33°
FWTM:
136° + 84°
Peak intensity:
0.770 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LT-V282E
FWHM:
87° + 33°
FWTM:
136° + 84°
Peak intensity:
0.770 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:

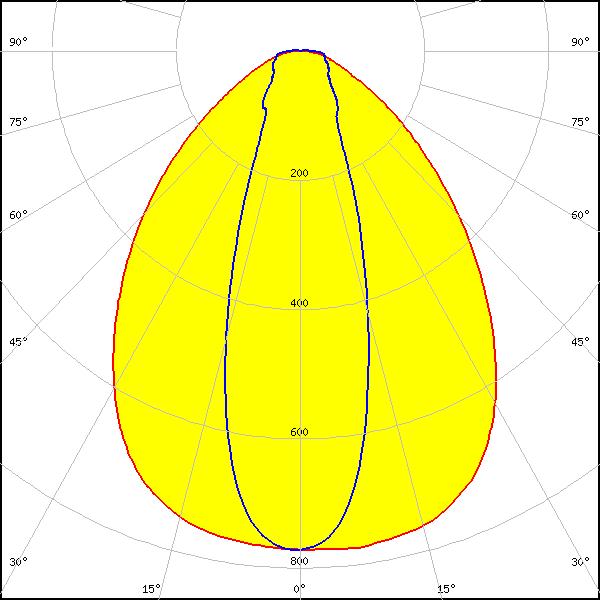

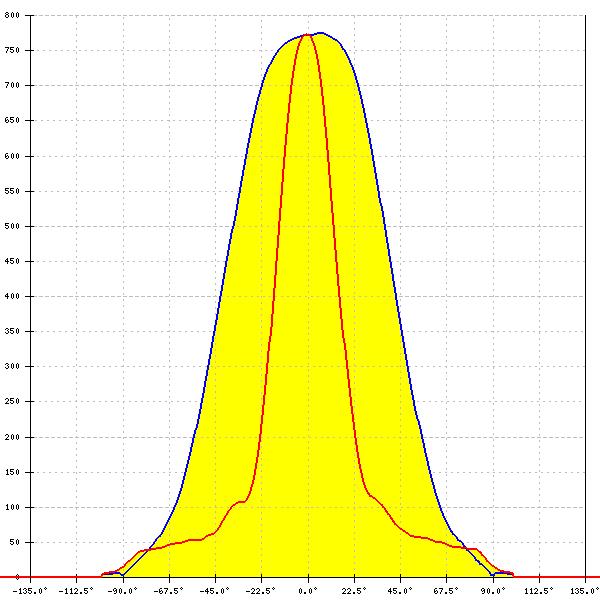

LT-V562E
FWHM:
87° + 33°
FWTM:
136° + 84°
Peak intensity:
0.770 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:

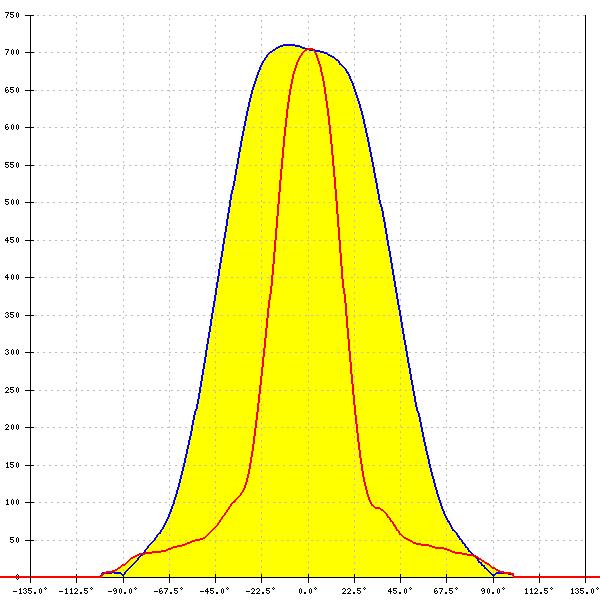

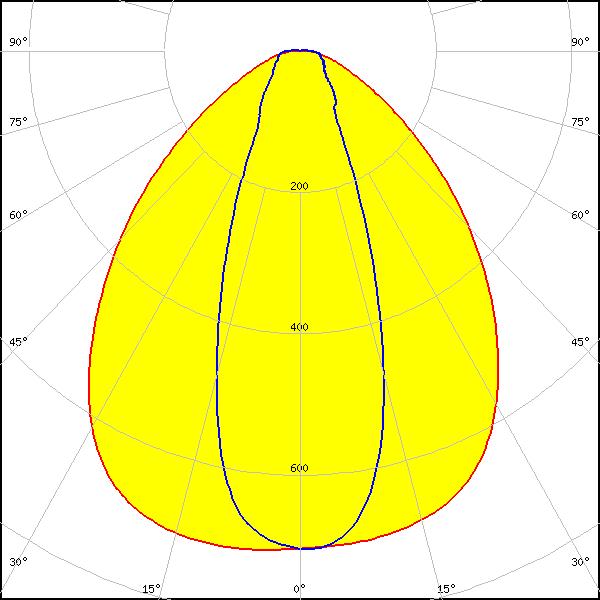

SEOUL 5630D
FWHM:
91° + 38°
FWTM:
139° + 86°
Peak intensity:
0.710 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SEOUL DC 3030
FWHM:
89° + 37°
FWTM:
138° + 87°
Peak intensity:
0.740 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

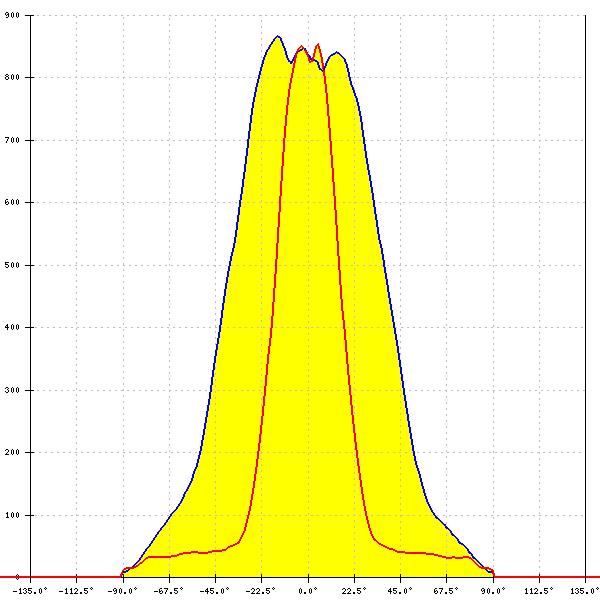

LED:

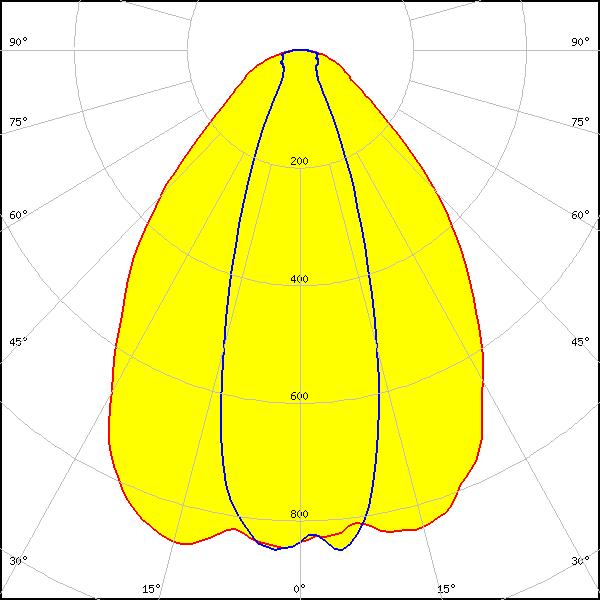

SEOUL DC 3030C
FWHM:
82° + 34°
FWTM:
134° + 60°
Peak intensity:
0.867 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

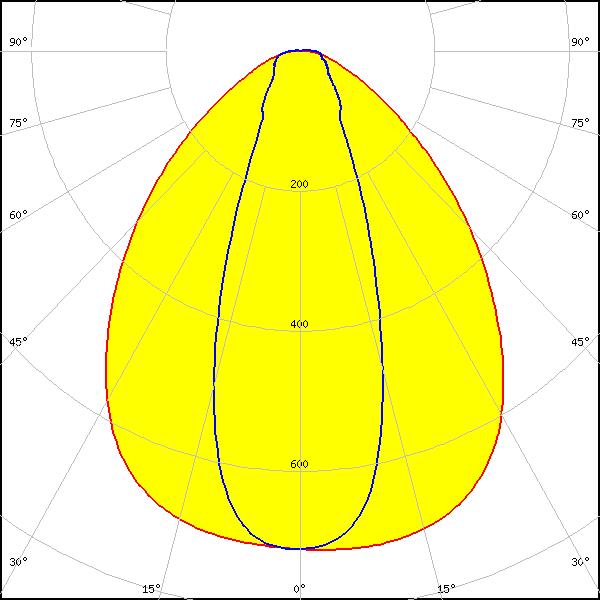

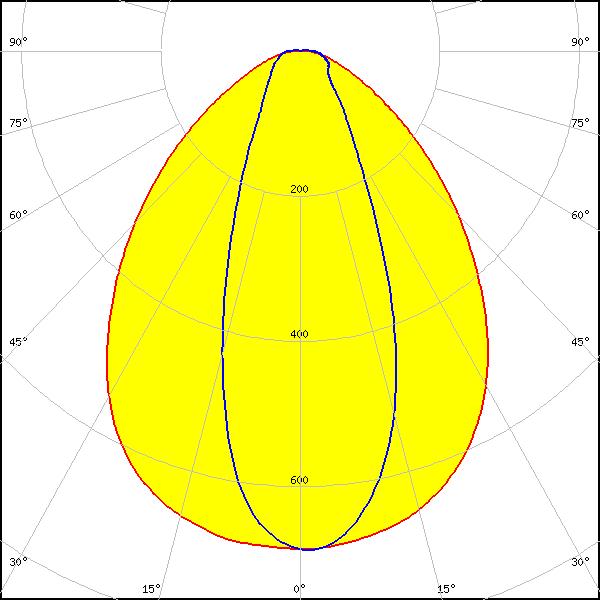

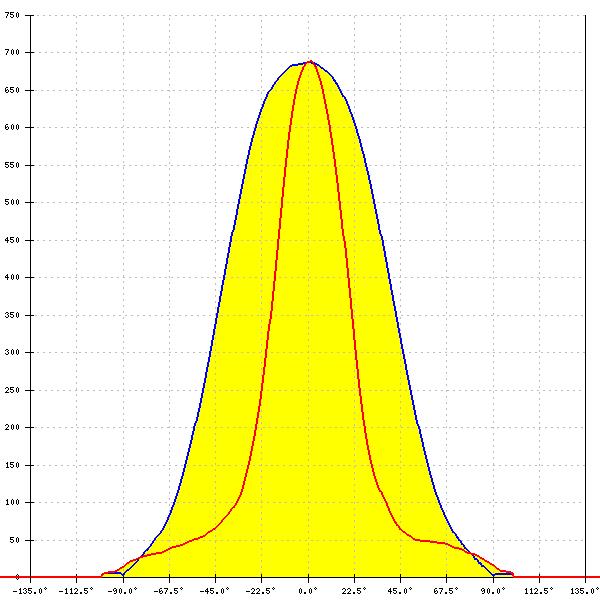

LED:
LLE G4 24x280mm 1250lm
FWHM:
89° + 38°
FWTM:
138° + 86°
Peak intensity:
0.720 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LLE G4 24x280mm 2000lm ADV
FWHM:
88° + 40°
FWTM:
139° + 88°
Peak intensity:
0.690 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

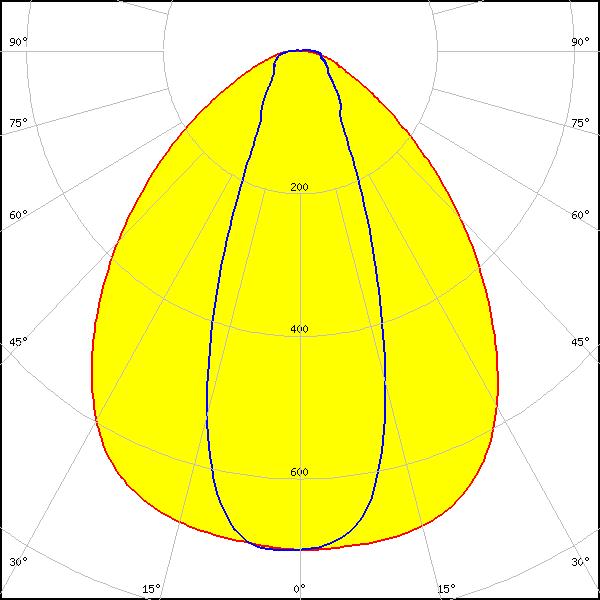

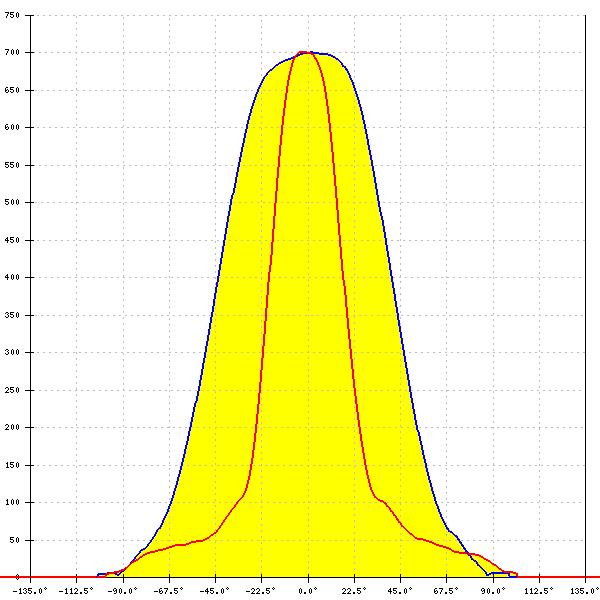

LED:
LLE G4 24x280mm 650lm
FWHM:
90° + 39°
FWTM:
138° + 87°
Peak intensity:
0.700 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
