APPLICATION EXAMPLE

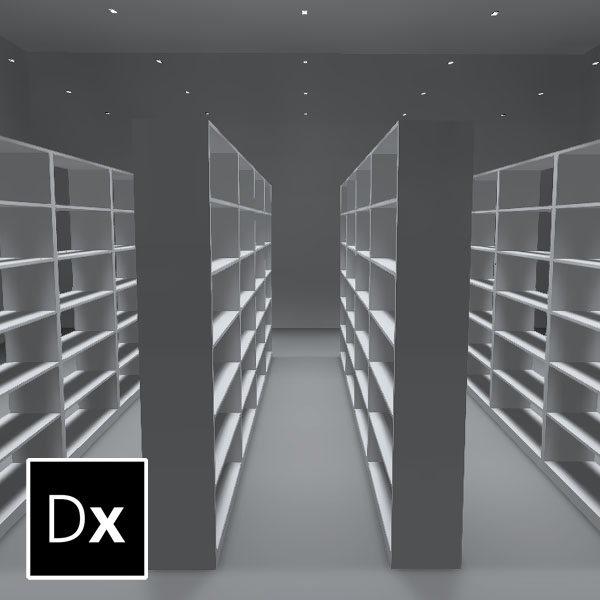

Warehouse aisle and shelf lighting with HB-IP-24-O


For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

SETUP:

Application:Warehouse lighting

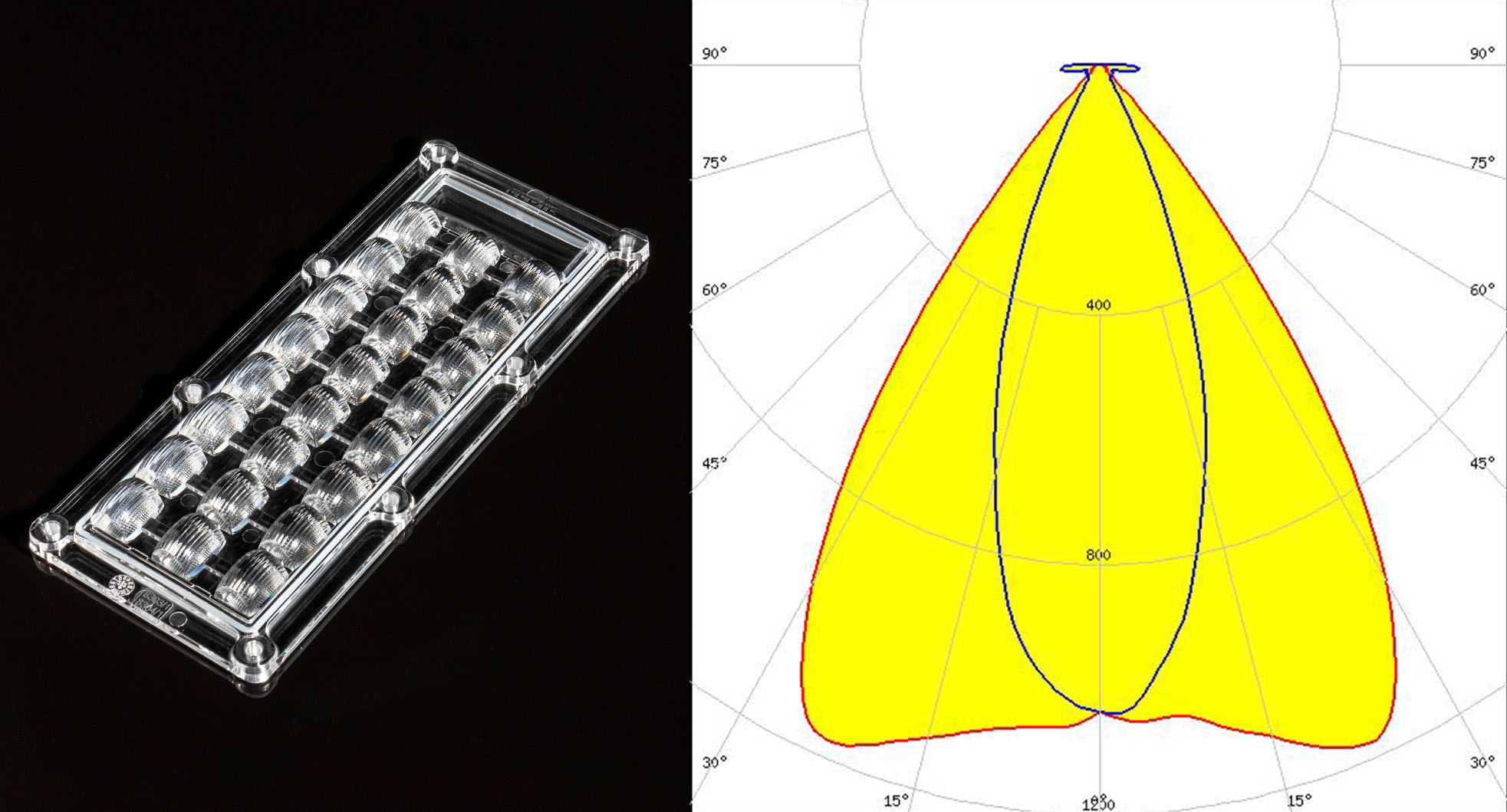

Optics:HB-IP-24-O
LED:Flat 5050
Luminaire power:23 W
Luminous flux (Luminaire):4300 lm
Efficacy (w/o driver)187 lm/W
Spacing:2.8 x 3.0 m
Mounting height:7 m

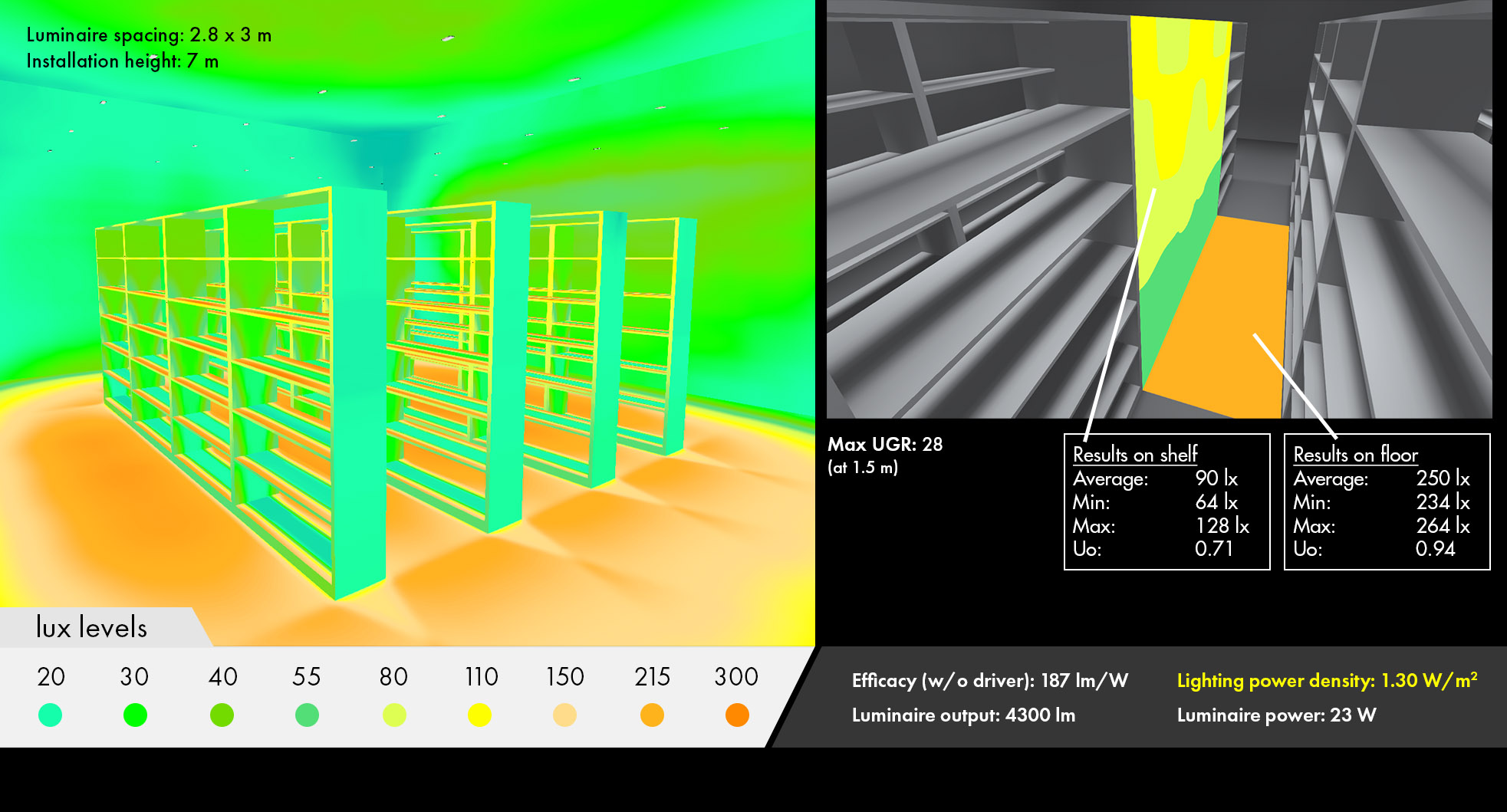

RESULTS:

Lighting power density:1.30 W/m2
Max UGR at 1.5 m28
Results on shelf
Average:90 lx
Min:64 lx
Max:128 lx
Uo:0.71
Results on floor
Average:250 lx
Min:234 lx
Max:264 lx
Uo:0.94

Download the simulation for HB-IP-24-O
