APPLICATION EXAMPLE
Wall-grazing with LILIAN-ON
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
SETUP:
| Application: | Wall-grazing |
| Optics: | LILIAN-ON |
| LED: | NICHIA NCSAE17AT |
| LED type: | CSP |
| PCB: | Zhaga PCB L28W2 |
| PCB size: | 280 x 20 mm |
| Number of LEDs on PCB: | 24 pcs |

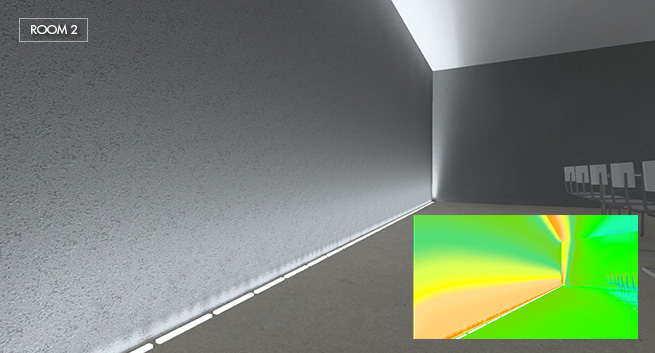

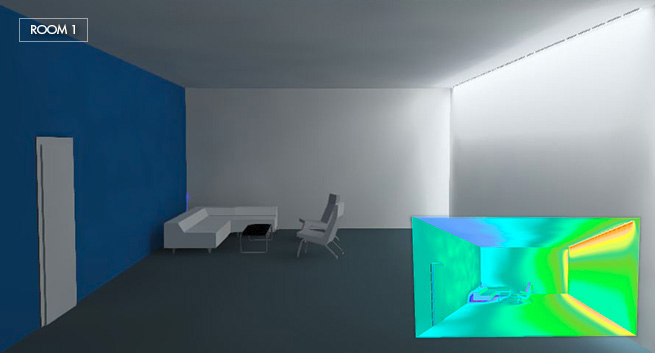

| ROOM 1 | |
| Luminaire arrangement: | Linear, top, surface mounted |
| Number of luminaires: | 23 pcs |
| Mounting height: | 3.19 m |

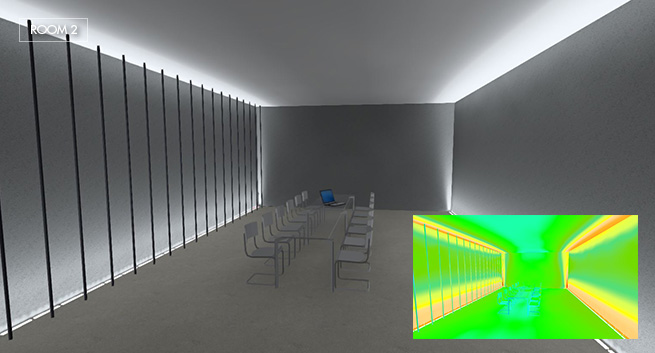

| ROOM 2 | |
| Luminaire arrangement: | Linear, bottom |
| Number of luminaires: | 25 pcs/wall |
| Mounting height: | 0 m |
| C16507_LILIAN-ON |
