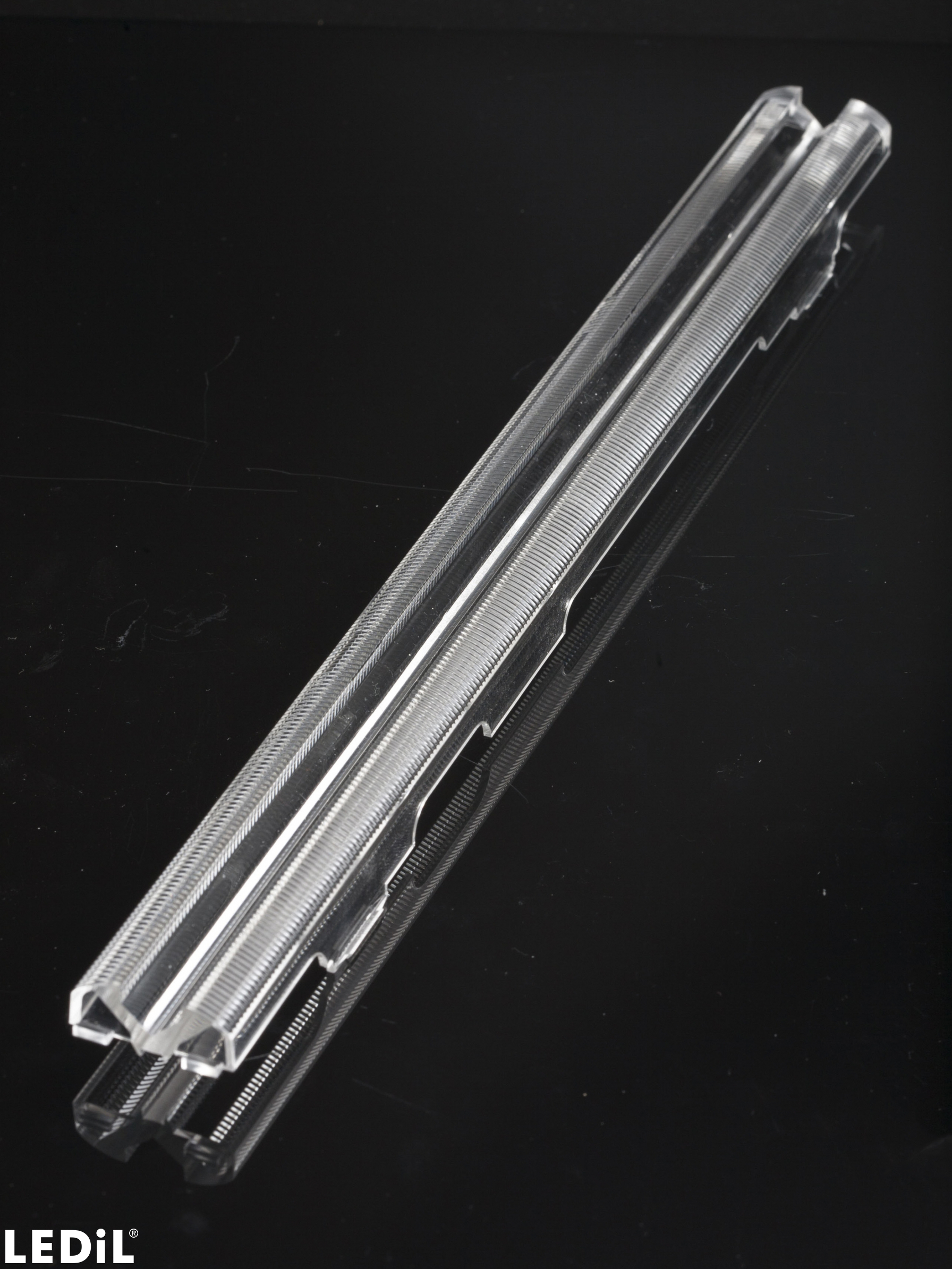

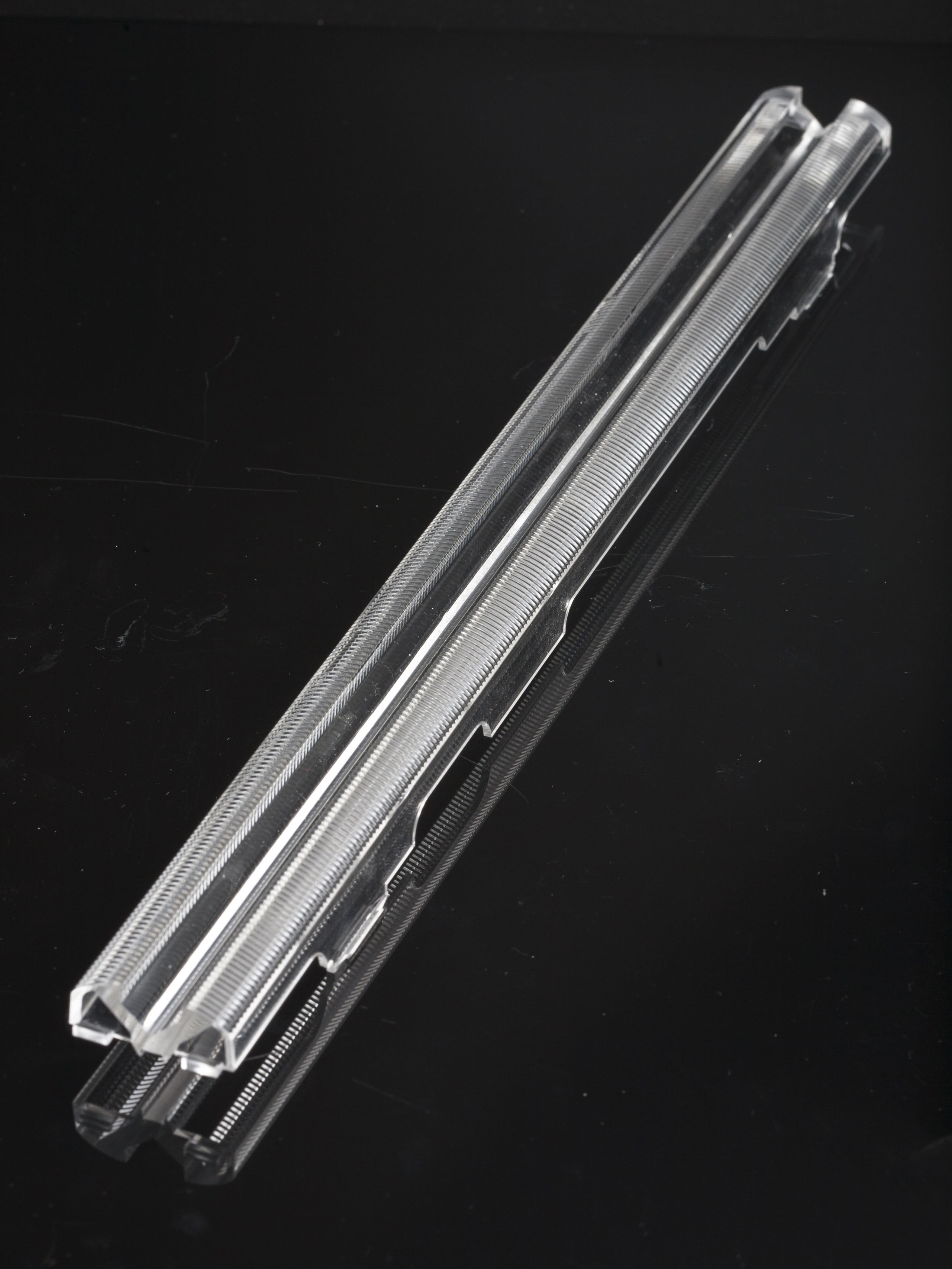

    C16507_LILIAN-ON

    Print

    ~10° + 80° beam for wall grazing

    Specification
    • Dimensions:
      286 x  27 mm
    • Height:
      14.76 mm
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    Ordering information
    • Quantity in box:
      84 pcs
    • Box size:
      400 x 300 x 160 mm
    • Box weight:
      4.3 kg
    • MPQ:
      14 pcs
    • MOQ:
      84 pcs
    • MOQ size:
      400 x 300 x 160 mm
    • MOQ weight:
      4.3 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    • PCB drawing
      • PRODUCT NAME(S):
      C16507_LILIAN-ON
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Case story

    Moscow Paleontological Museum

    News

    New Products - 2019-01-31

    News

    LILIAN the narrow optic for architectural lighting

    Application example

    Wall-grazing with LILIAN-ON

    Luminaire, example

    Wall-grazing luminaire with LILIAN-ON

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    News

    PRODUCT NEWS - LUCIA-S

    Application area

    Indoor Architectural Lighting

    Optical results

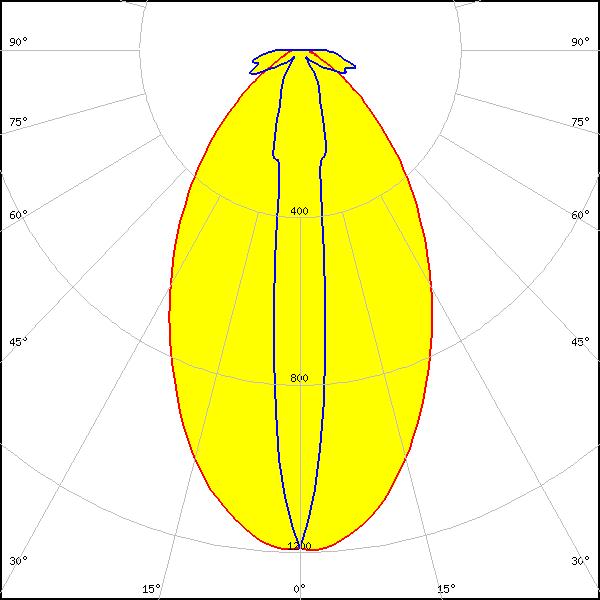

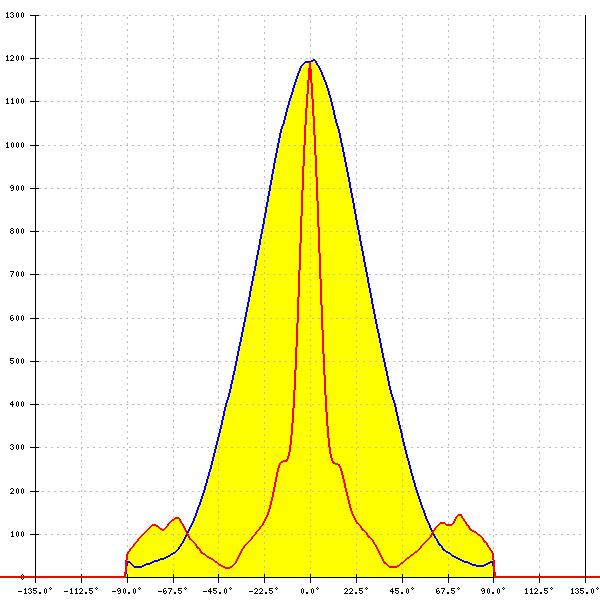

    LED: XD16
    FWHM: 64° + 12°
    FWTM: 117° + 46°
    Peak intensity: 1.196 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

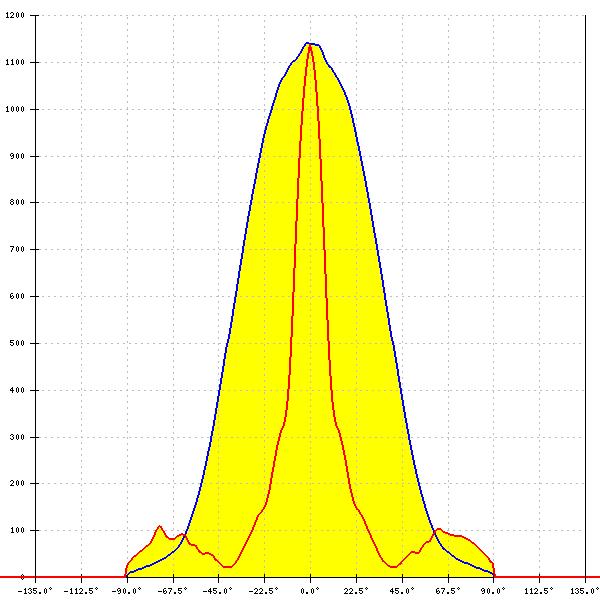

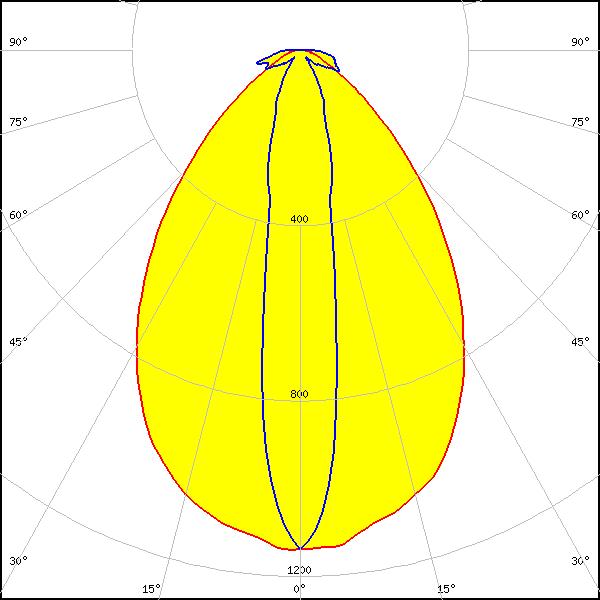

    LED: XM-L
    FWHM: 76° + 18°
    FWTM: 118° + 54°
    Peak intensity: 1.142 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: RGBW

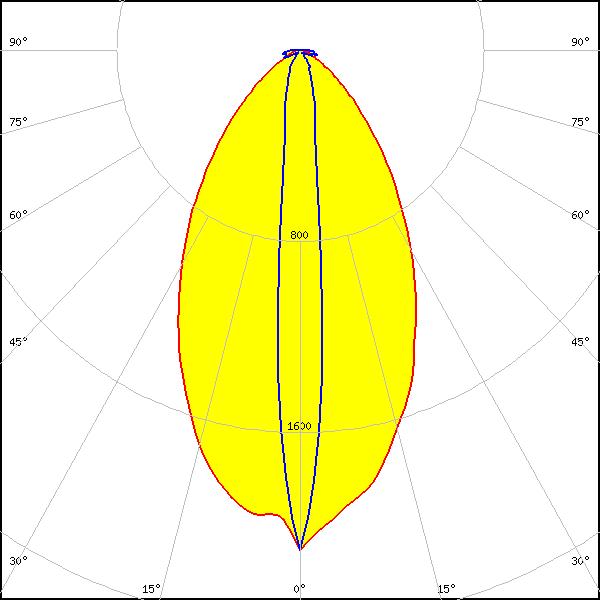

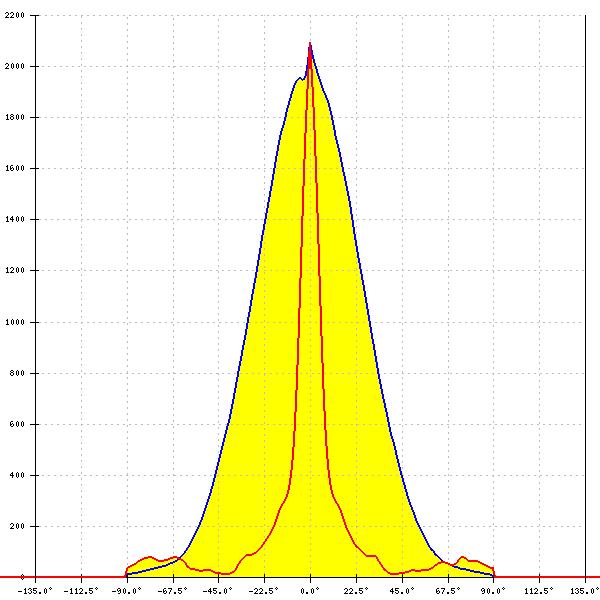

    LED: XP-E
    FWHM: 57° + 11°
    FWTM: 106° + 34°
    Peak intensity: 2.090 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G
    FWHM: 66° + 11°
    FWTM: 112° + 36°
    Peak intensity: 1.610 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

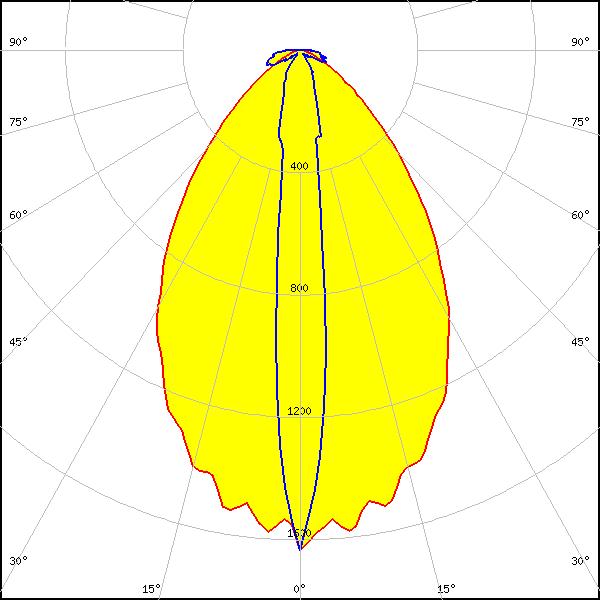

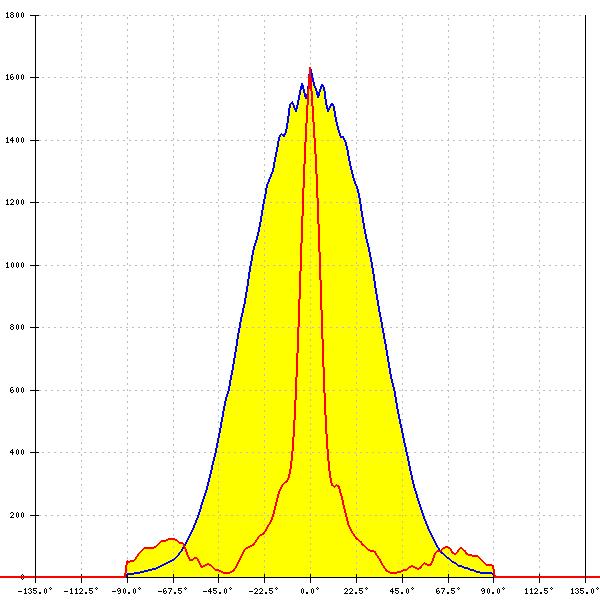

    LED: XP-G2
    FWHM: 70° + 12°
    FWTM: 115° + 40°
    Peak intensity: 1.600 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

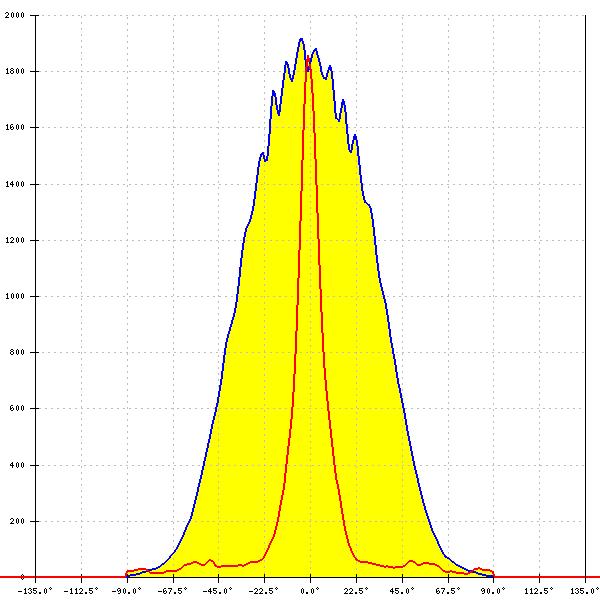

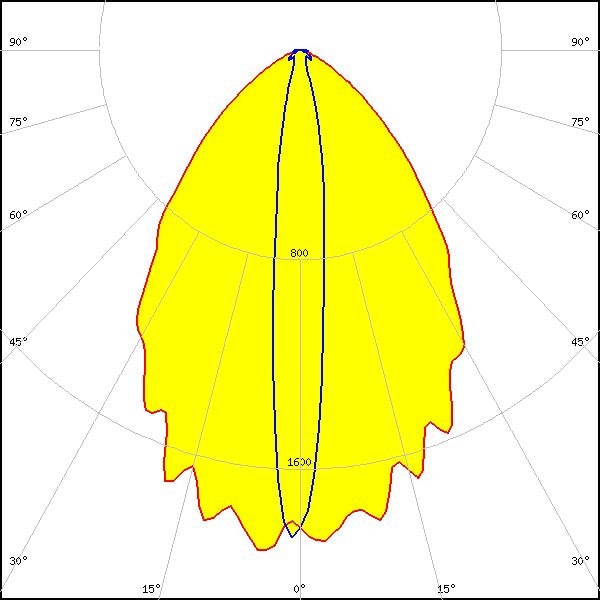

    LED: LUXEON 2835 Architectural
    FWHM: 72° + 12°
    FWTM: 118° + 32°
    Peak intensity: 2.000 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: RGBW
    LED: LUXEON 3030 2D (Square LES)
    FWHM: 72° + 18°
    FWTM: 118° + 58°
    Peak intensity: 1.007 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

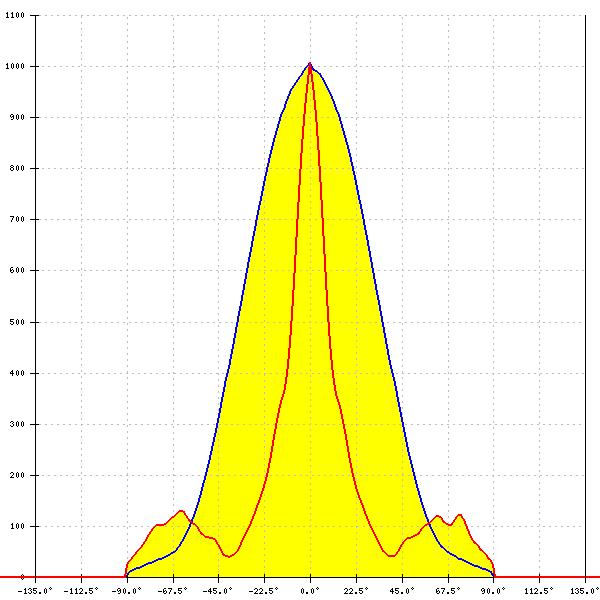

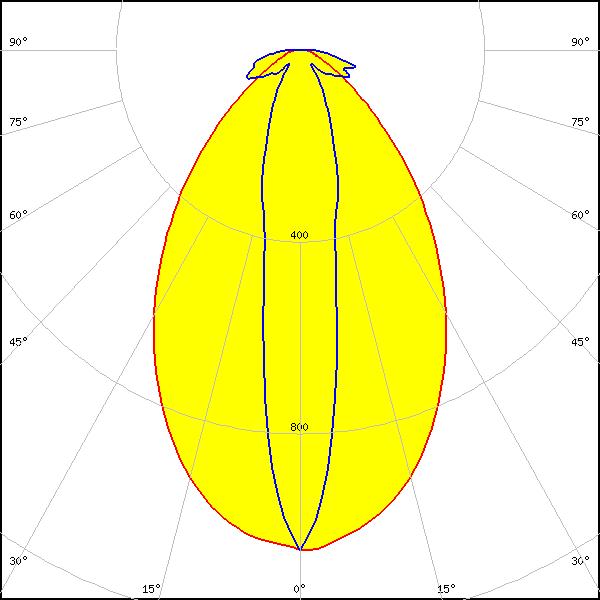

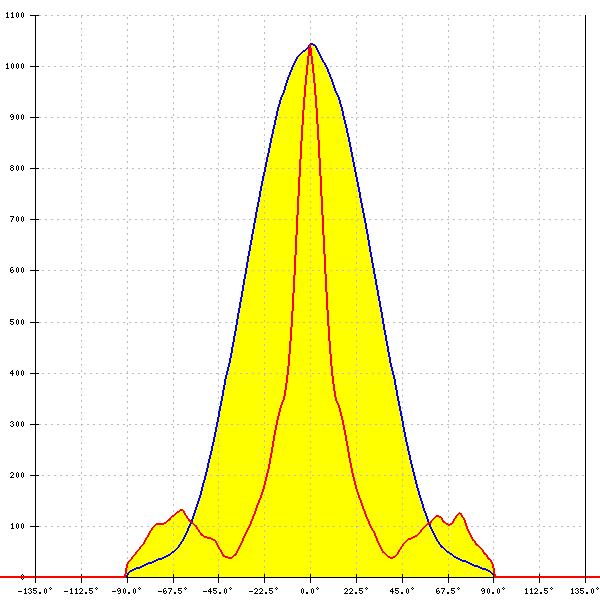

    LED: LUXEON 5050 Round LES
    FWHM: 70° + 18°
    FWTM: 118° + 58°
    Peak intensity: 1.043 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

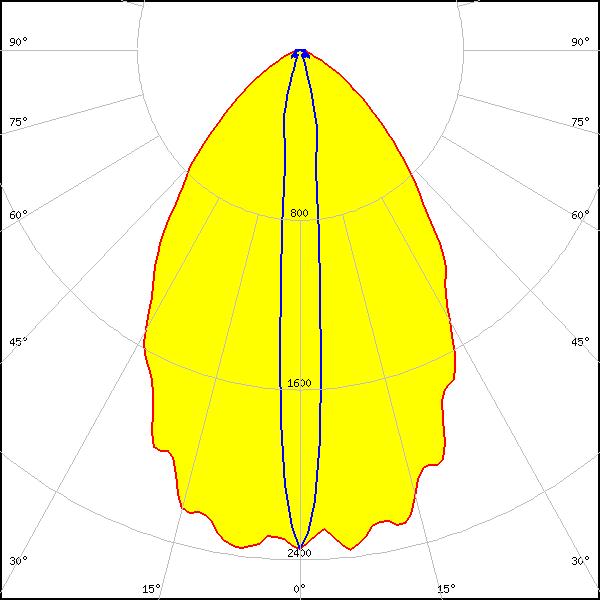

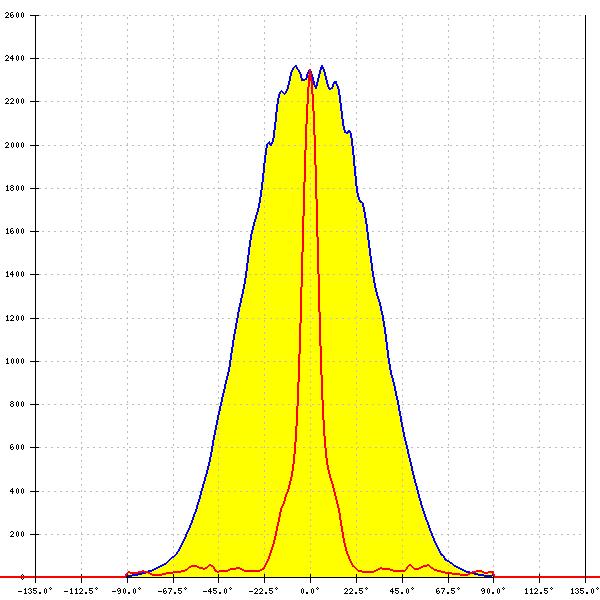

    LED: LUXEON CZ
    FWHM: 72° + 9°
    FWTM: 118° + 31°
    Peak intensity: 2.400 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: RGBW

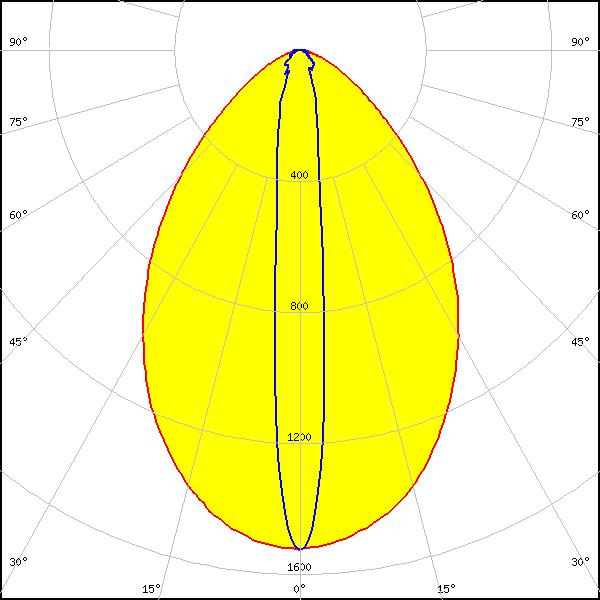

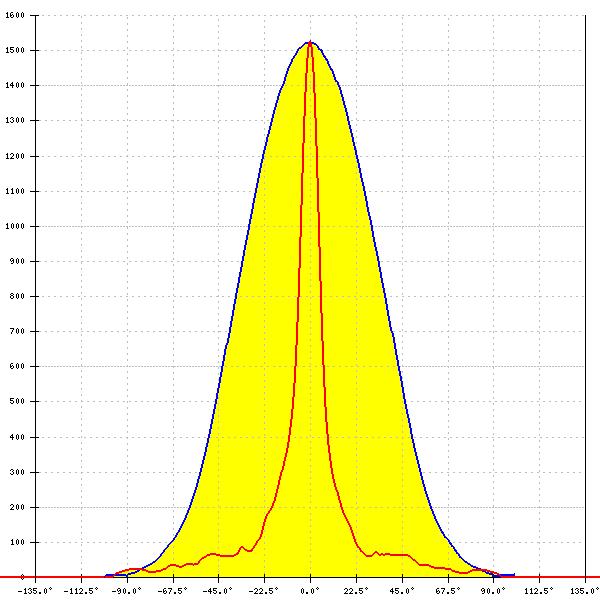

    LED: NCSxE17A
    FWHM: 76° + 12°
    FWTM: 125° + 41°
    Peak intensity: 1.500 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White

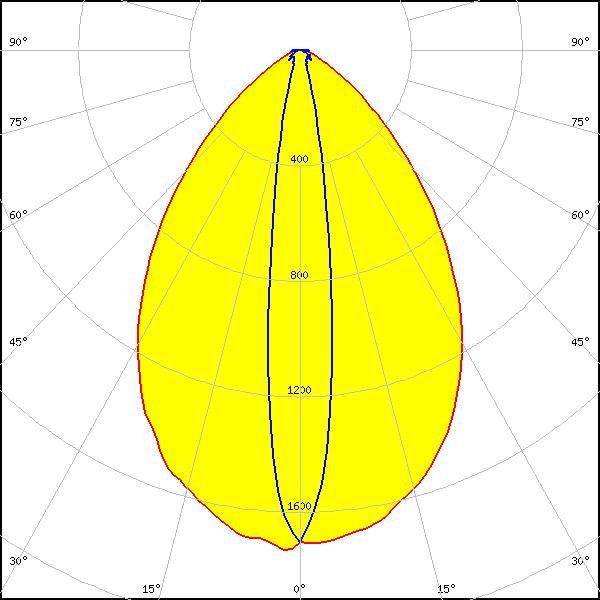

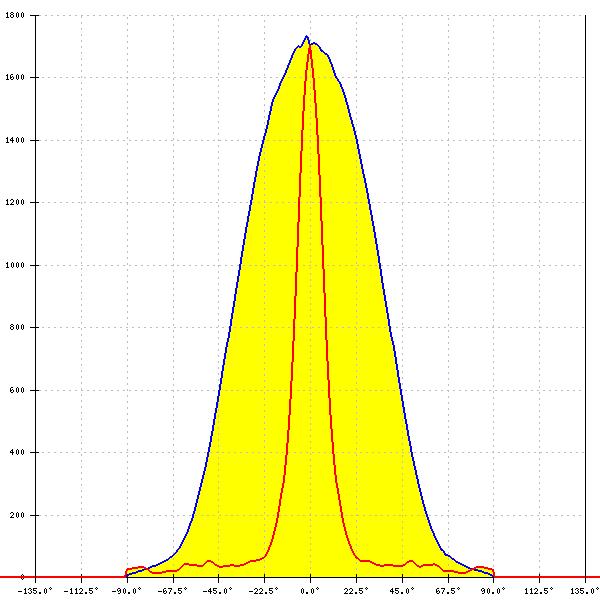

    LED: NF2x757G
    FWHM: 76° + 16°
    FWTM: 118° + 32°
    Peak intensity: 1.733 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

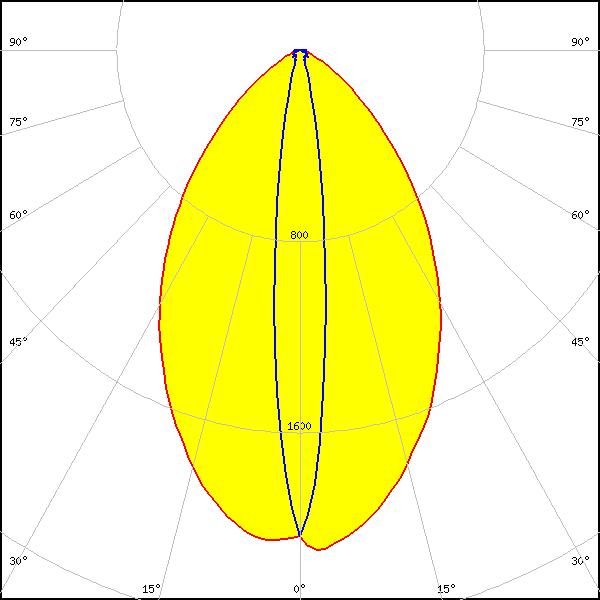

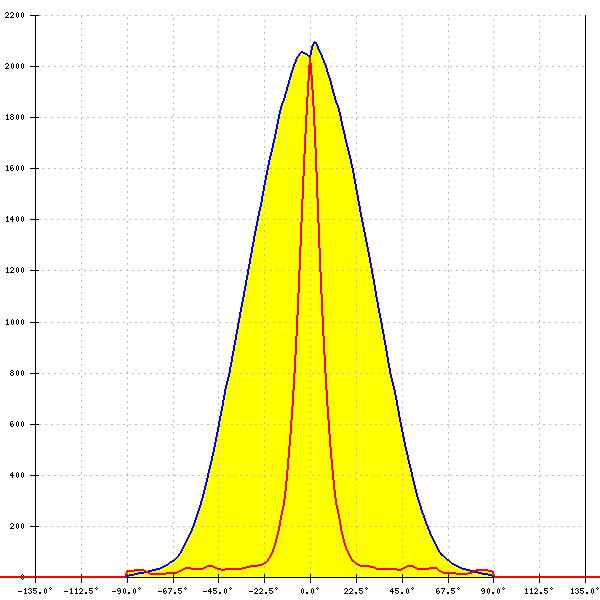

    LED: NFSx757G
    FWHM: 68° + 12°
    FWTM: 114° + 30°
    Peak intensity: 2.093 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

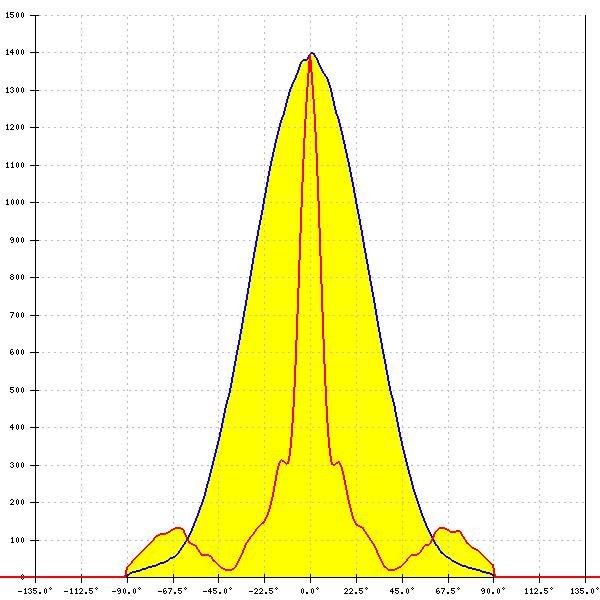

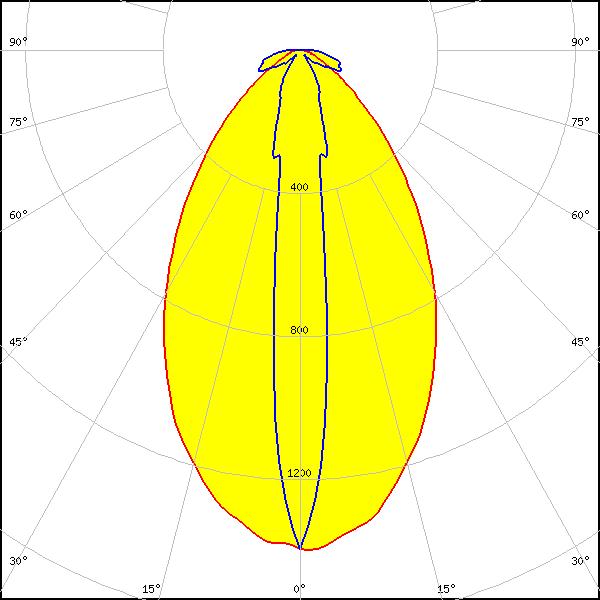

    LED: DURIS S5 (Single chip)
    FWHM: 66° + 12°
    FWTM: 114° + 47°
    Peak intensity: 1.401 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

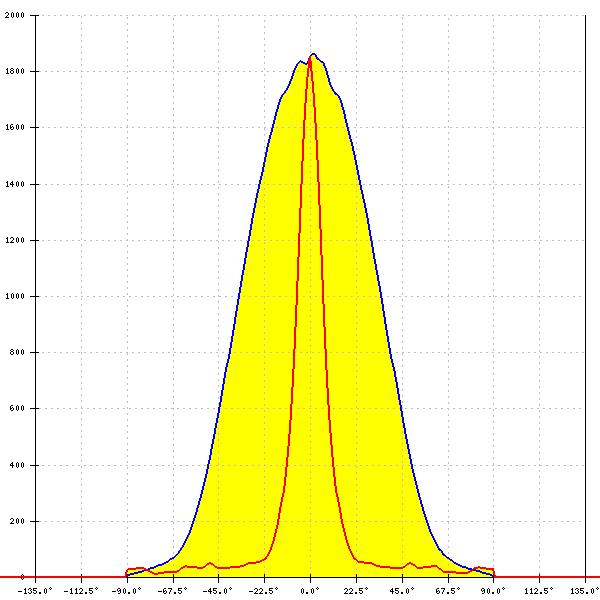

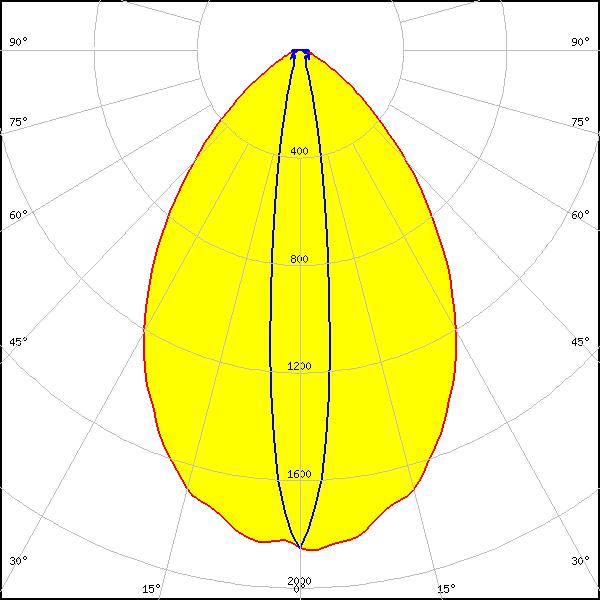

    LED: LM28xB Series
    FWHM: 74° + 14°
    FWTM: 116° + 32°
    Peak intensity: 1.860 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
