LUMINAIRE EXAMPLE
Wall-grazing luminaire with LILIAN-ON
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
SETUP:

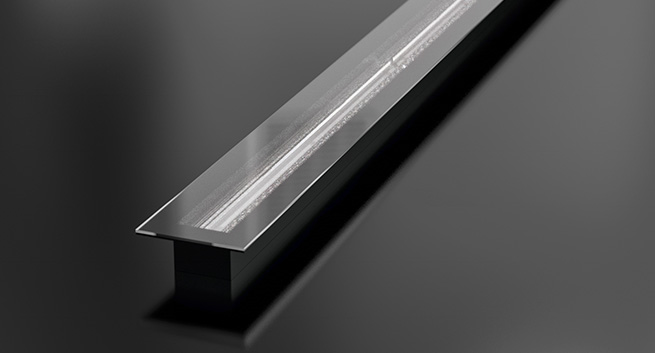

| Picture 1: | Discreet flat cover glass on top |

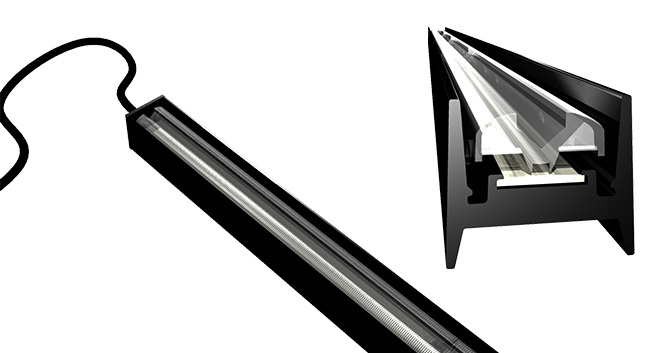

| Picture 2: | Lens recessed inside an aluminum profile |
| Optics: | LILIAN-ON |
| LED: | Nichia NCSAE17AT |
| LED type: | CSP |
| PCB: | Zhaga PCB L28W2 |
| PCB size: | 280 x 20 mm |
| Number of LEDs on PCB: | 24 pcs |
| C16507_LILIAN-ON |
