Upper room UV germicidal irradiation with LEDs and VIOLET-12X1-O


For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

UR-UVGI(-LED)
Upper room ultraviolet germicidal irradiation (with light-emitting diodes) + LEDiL VIOLET

Downlight luminaire under VIOLET is 40 cm wide, and VIOLET lens surface is around 15 cm from the edge.

Typically considered eye-safe value for 8 hour exposure: 0.3uW/cm2
Source: https://www.ncbi.nlm.nih.gov/pmc/articles/PMC2099326/

SETUP:

Application:UR-UVGI(-LED)
Optics:VIOLET-12X1-O
Optics efficiency:71 %
LED:7070 package size UVC LED (280 nm)
Total UV-C output/VIOLET-O:526 mW
Total power/12 LEDs:24 W
VIOLET installation height:2.9 m
Tilt:5° upwards
Room size:8 x 10 x 3.5 m
Surface reflectance:10 %

RESULTS:

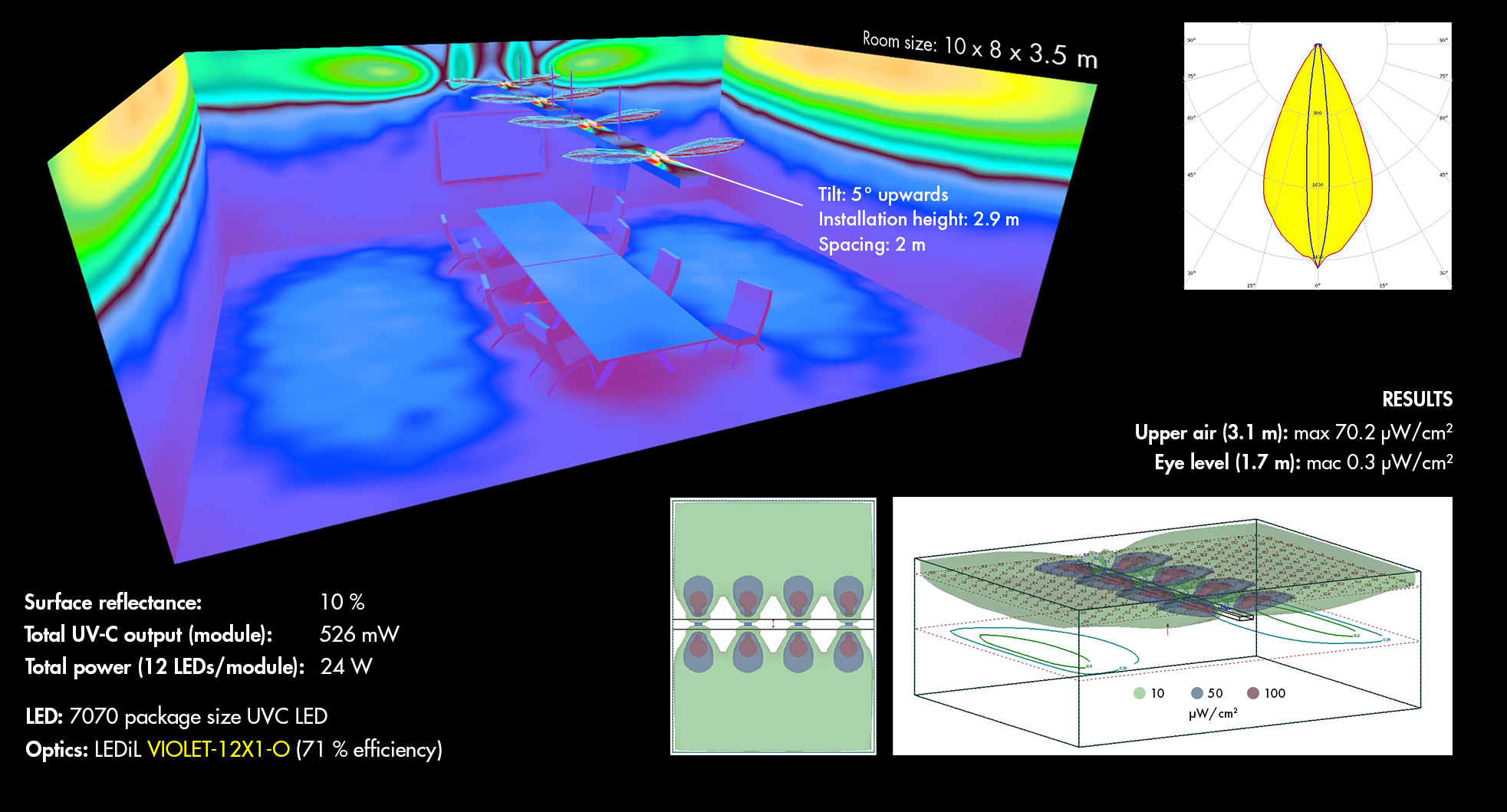

UPPER AIR (3.1 m):Max: 70.2 µW/cm²
EYE LEVEL (1.7 m):Max: 0.3 µW/cm²
