    FN18590_VIOLET-12X1-O

    Print

    ~50+10° oval beam

    NOTE: Choose PCB thickness (both 0.9 mm and 1.6 mm options approved) to ensure optical/mechanical compatibilities.

    Specification
    • Dimensions:
      295 x  42 mm
    • Height:
      8.80 mm
    • Fastening:
      screw
    • Colour:
      clear
    • Ingress protection classes:
      IP67
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      78 pcs
    • Box size:
      398 x 298 x 150 mm
    • Box weight:
      8.3 kg
    • MPQ:
      26 pcs
    • MOQ:
      26 pcs
    • MOQ size:
      400 x 300 x 70 mm
    • MOQ weight:
      2.9 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    • PCB drawing
      • PRODUCT NAME(S):
      FN18590_VIOLET-12X1-O
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Training video

    UV-C disinfection using LEDs and VIOLET - Training by Tero Makinen

    News

    New products – February 2024

    Application example

    Upper room UV germicidal irradiation with LEDs and VIOLET-12X1-O

    Application example

    Horticultural lighting with VIOLET-12X1-O

    Reference design

    STERILUV EVO UV-C solution

    Reference product

    Lumitronix UV-C LED modules

    Application guide

    LEDiL Guide for Horticultural lighting

    News

    VIOLET-12X1 gets oval light distribution

    News

    VIOLET – silicone optic for UV-C applications

    Application area

    UV-C LIGHTING

    Application area

    Special Indoor Applications

    Application area

    Indoor Architectural Lighting

    Application area

    Horticultural Lighting

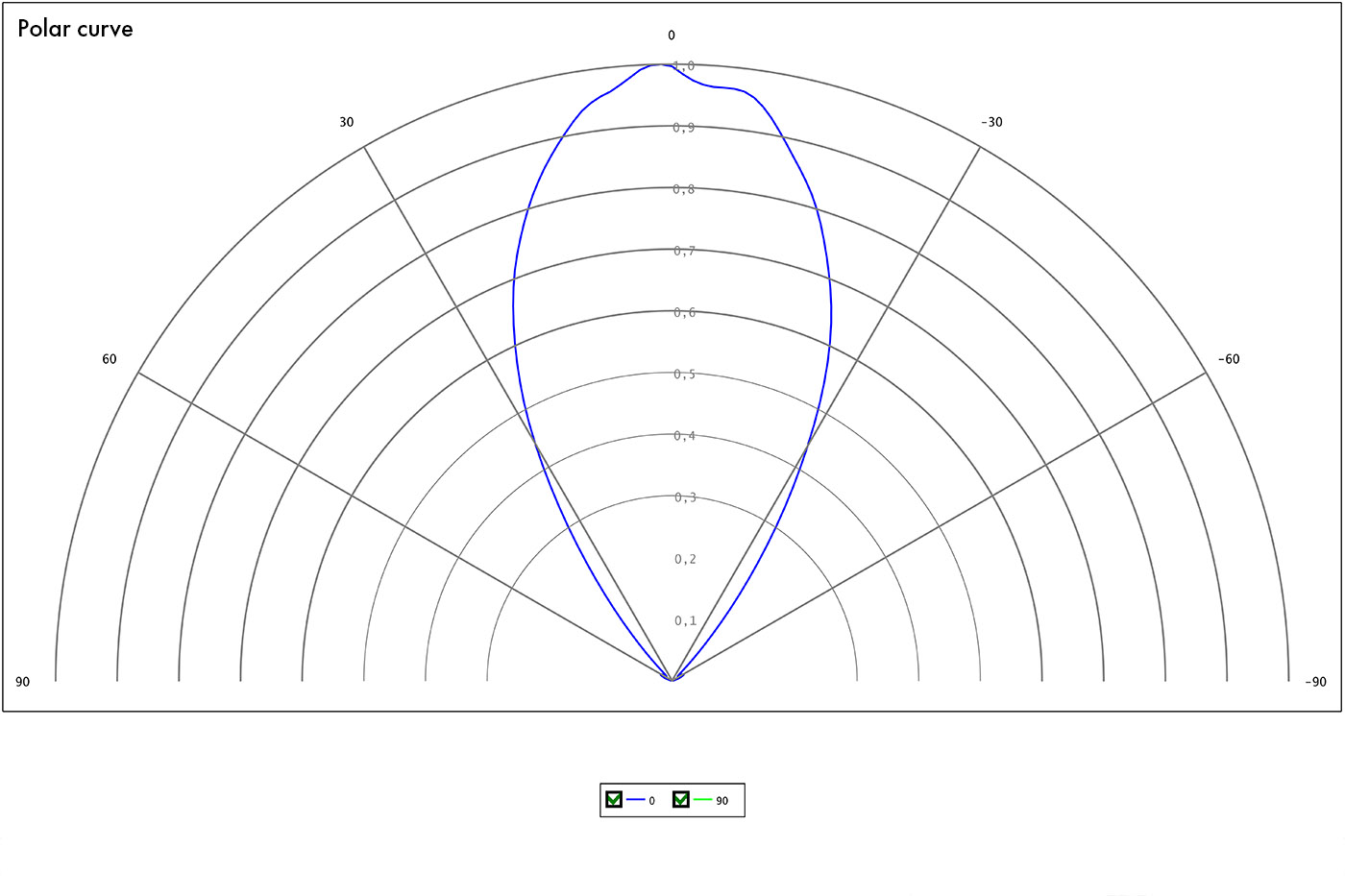

    Optical results

    LED: 110384-GC VIOLET
    FWHM: 52° + 11°
    FWTM: 80° + 23°
    Efficiency: 69 %
    LEDs/each optic: 1
    Light colour/type: UV-C
    LED: 110384-GM VIOLET
    FWHM: 53° + 13°
    FWTM: 81° + 27°
    Efficiency: 69 %
    LEDs/each optic: 1
    Light colour/type: UV-C
    LED: NCSU434B
    FWHM: 52° + 12°
    FWTM: 76° + 26°
    Efficiency: 71 %
    LEDs/each optic: 1
    Light colour/type: UV-C
    LED: OSLON UV 3535 (SU CULFP1.VC)
    FWHM: 45° + 16°
    FWTM: 77° + 43°
    Efficiency: 58 %
    LEDs/each optic: 1
    Light colour/type: UV-C
    LED: LH351H Blue 450nm
    FWHM: 52° + 16°
    FWTM: 80° + 32°
    Peak intensity: 2.166 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: Royal Blue
