APPLICATION EXAMPLE

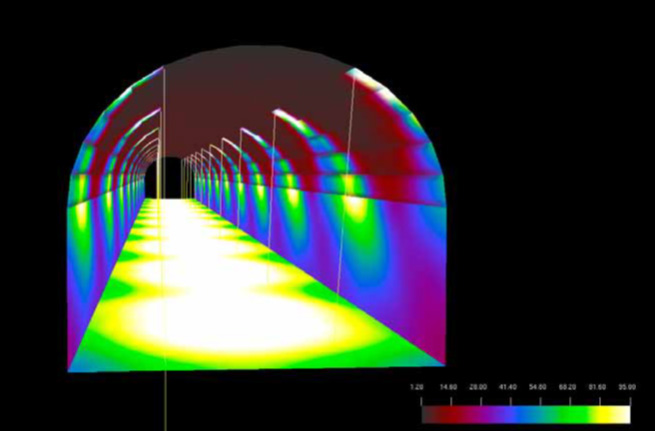

Tunnel lighting with STRADA-SQ-FS
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
SETUP:
| Application: | Tunnel lighting |
| Optics: | STRADA-SQ-FS |
| Beam type: | Asymmetric |
| Tunnel height: | 6 m |
| Installation height: | 5.55 m |
| Distance between luminaires: | 6.5 m |
| Luminous flux (Luminaire): | 4 500 lm |
| Power (LEDs/luminaire): | 33 W |
RESULTS:
| Average: | 4.6 cd/m2 |
| Max: | 6.3 cd/m2 |
| Uo: | 0.67 |
| Ul: | 0.73 |
| Percentage wall luminance / road luminance: | 100 % |
| C13757_STRADA-SQ-FS-NP | ||
| C13896_STRADA-SQ-FS | ||
| CA13758_STRADA-SQ-FS-NP | ||
| CA13897_STRADA-SQ-FS |
