    CA13897_STRADA-SQ-FS

    Print

    Forward throw beam for area lighting. Version with location pins. Assembly with installation tape.

    Specification
    • Dimensions:
      25 x  25 mm
    • Height:
      12.60 mm
    • Fastening:
      tape, pin
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    Ordering information
    • Quantity in box:
      1568 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      6.5 kg
    • MPQ:
      98 pcs
    • MOQ:
      294 pcs
    • MOQ size:
      480 x 280 x 60 mm
    • MOQ weight:
      1.5 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      CA13897_STRADA-SQ-FS

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Application example

    Tunnel lighting with STRADA-SQ-FS

    Application guide

    LEDiL guide for street lighting optics

    News

    PRODUCT NEWS - STRADA-SQ

    Application area

    Industrial Lighting

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application guide

    Street lighting optics - 2020_v.1.1_WEB

    Application area

    Architectural Outdoor Lighting

    Application area

    Area and Car Park Lighting

    Application area

    Street Lighting

    Application area

    Indoor Architectural Lighting

    Optical results

    LED: MHB-A/B
    FWHM: asymmetric
    LEDs/each optic: 1
    Light colour/type: White
    LED: MK-R
    FWHM: asymmetric
    Peak intensity: 0.900 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XHP35 HD
    FWHM: asymmetric
    Peak intensity: 1.010 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XHP35 HI
    FWHM: asymmetric
    Peak intensity: 1.200 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XHP50
    FWHM: asymmetric
    Peak intensity: 0.920 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XHP50.2
    FWHM: asymmetric
    Peak intensity: 0.850 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XHP50.3 HD
    FWHM: asymmetric
    Peak intensity: 0.918 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XHP70
    FWHM: asymmetric
    Peak intensity: 0.620 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XHP70.2
    FWHM: asymmetric
    Peak intensity: 0.650 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XM-L
    FWHM: asymmetric
    Peak intensity: 1.200 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XM-L2
    FWHM: asymmetric
    Peak intensity: 1.128 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G3
    FWHM: asymmetric
    Peak intensity: 1.040 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-L HD
    FWHM: asymmetric
    Peak intensity: 1.100 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-L2
    FWHM: asymmetric
    Peak intensity: 1.000 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XT-E
    FWHM: asymmetric
    Peak intensity: 1.200 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 7070
    FWHM: asymmetric
    Peak intensity: 0.717 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON M/MX
    FWHM: asymmetric
    Peak intensity: 0.820 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON M/MX
    FWHM: asymmetric
    Peak intensity: 0.900 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON MZ
    FWHM: asymmetric
    Peak intensity: 1.200 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON XR-M Linear (L2M0-xxxx003MC3300)
    FWHM: asymmetric
    Peak intensity: 0.970 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

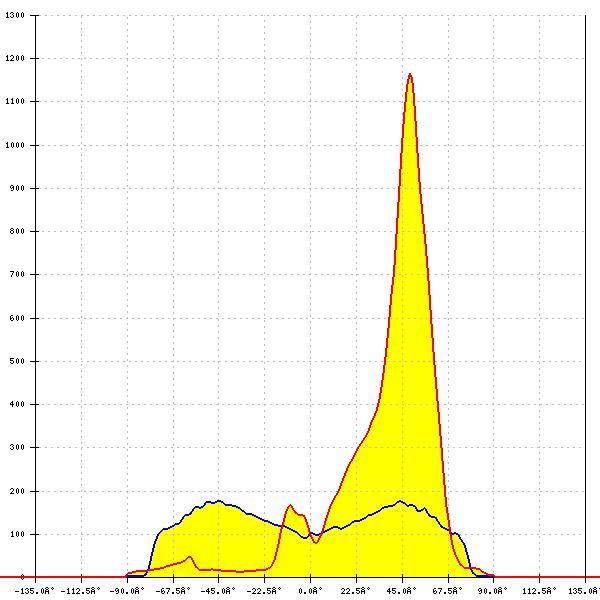

    LED: SFT-40-WCS
    FWHM: asymmetric
    Peak intensity: 1.280 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SFT-40-WCS
    FWHM: asymmetric
    Peak intensity: 1.069 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SFT-70X-WCS
    FWHM: asymmetric
    Peak intensity: 1.204 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SFT-70X-WCS
    FWHM: asymmetric
    Peak intensity: 1.026 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NV4x144A
    FWHM: asymmetric
    Peak intensity: 0.907 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSW319B
    FWHM: asymmetric
    Peak intensity: 1.200 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSxE21A
    FWHM: asymmetric
    Peak intensity: 0.755 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 9
    Light colour/type: White
    LED: NVSxE21A
    FWHM: asymmetric
    Peak intensity: 0.666 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 9
    Light colour/type: White
    LED: NVSxE21A
    FWHM: asymmetric
    Peak intensity: 1.016 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: NVSxE21A
    FWHM: asymmetric
    Peak intensity: 0.889 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: Duris S10
    FWHM: asymmetric
    Peak intensity: 0.860 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ P 7070
    FWHM: asymmetric
    Peak intensity: 1.000 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351D
    FWHM: asymmetric
    Peak intensity: 1.050 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z8Y50P
    FWHM: asymmetric
    Peak intensity: 0.820 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
