APPLICATION EXAMPLE
Tennis court lighting with SPORT-IP-24-FT6
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

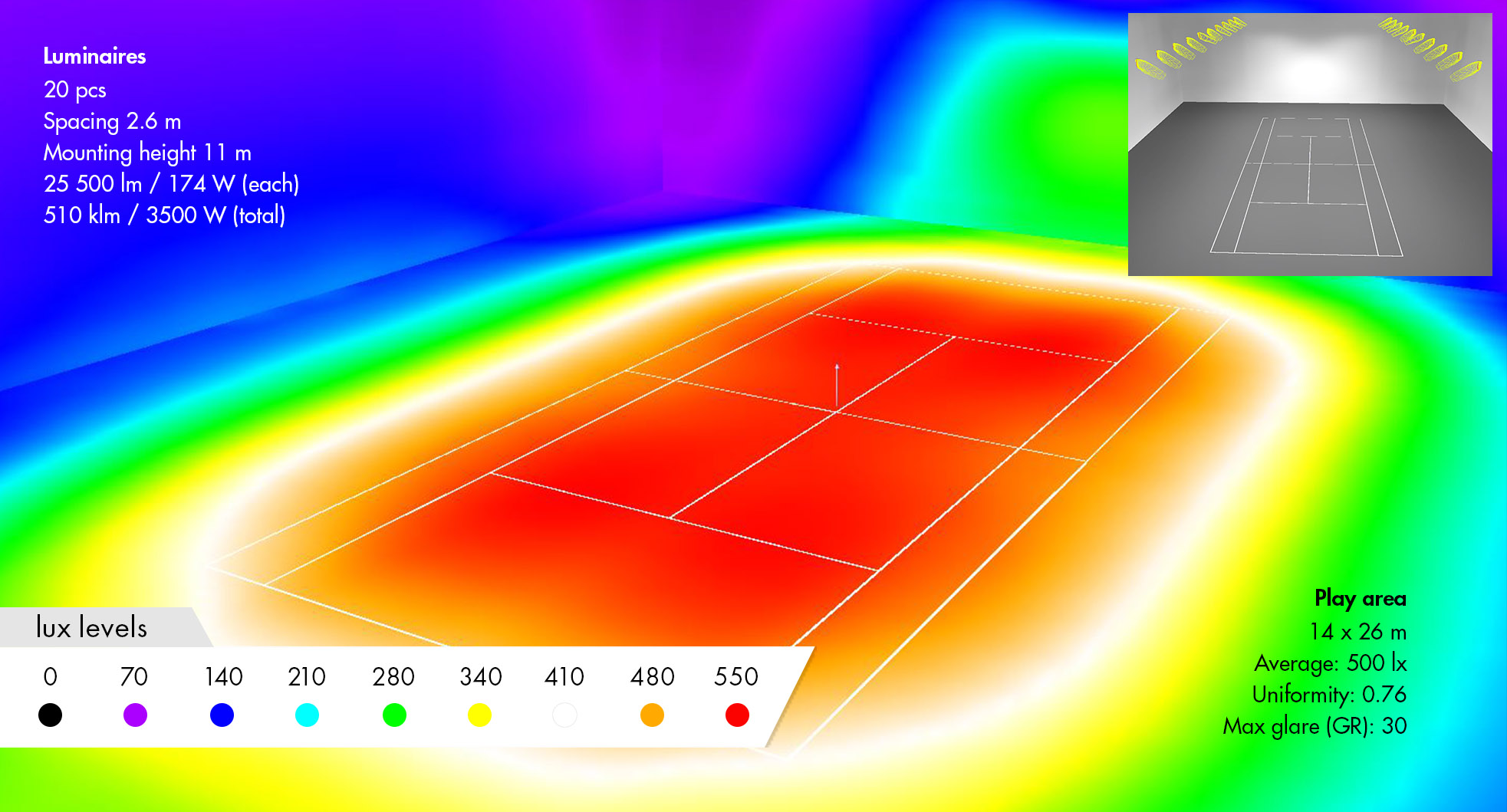

Tennis court lighting example
Setup:
| Application: | Tennis court lighting |
| Play area: | 14 x 26 m |
| Number of luminaires: | 20 pcs |
| Spacing: | 2.6 m |
| Mounting height: | 11 m |

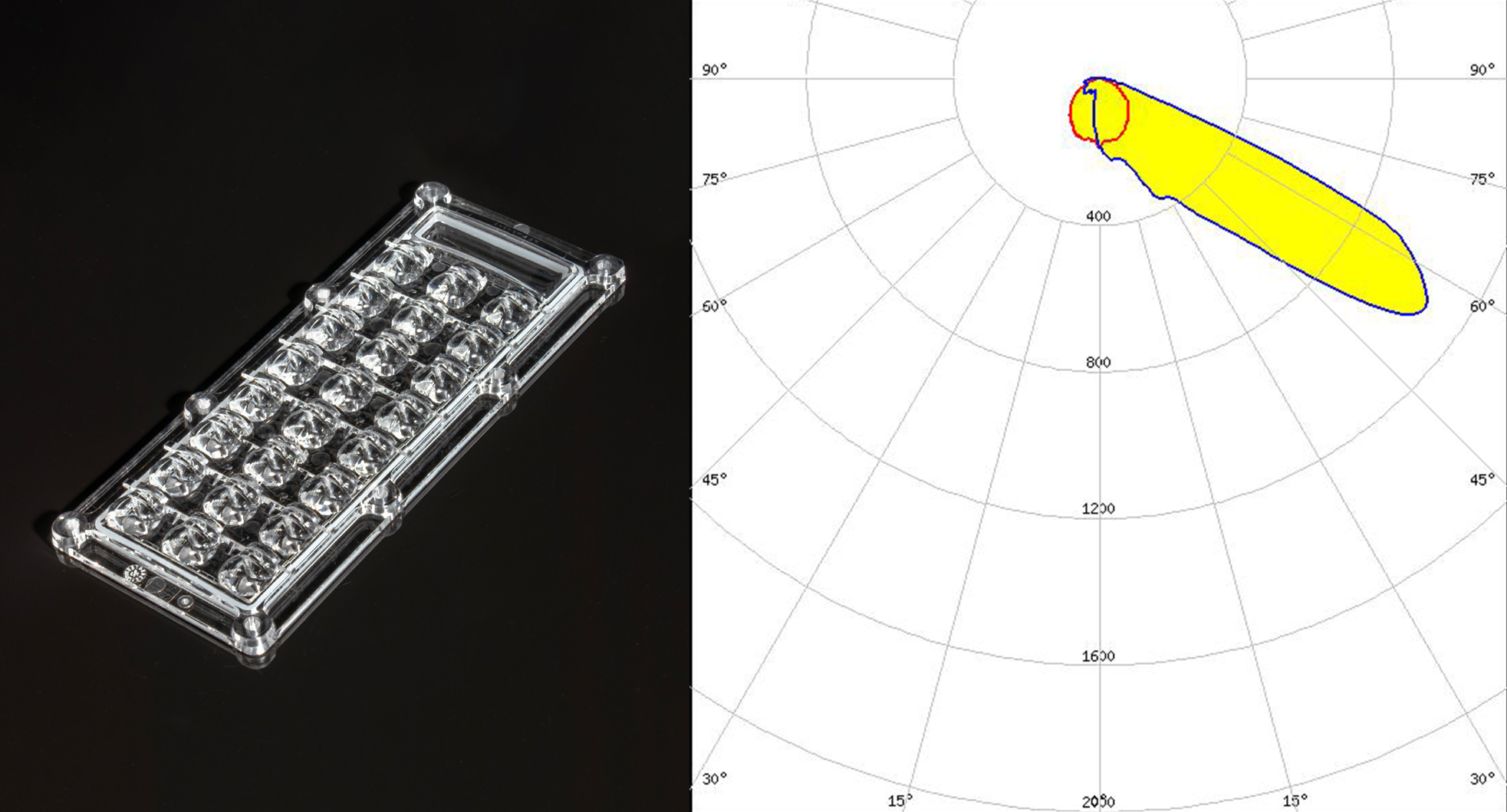

| Optics: | SPORT-IP-24-FT6 |
| Luminous flux (luminaire): | 25 500 lm |
| Luminaire power: | 174 W |
| Luminous flux (total): | 510 klm |
| Total luminaire power: | 3500 W |
Results:
| Average: | 500 lx |
| Uniformity: | 0.76 |
| Max glare (GR): | 30 |

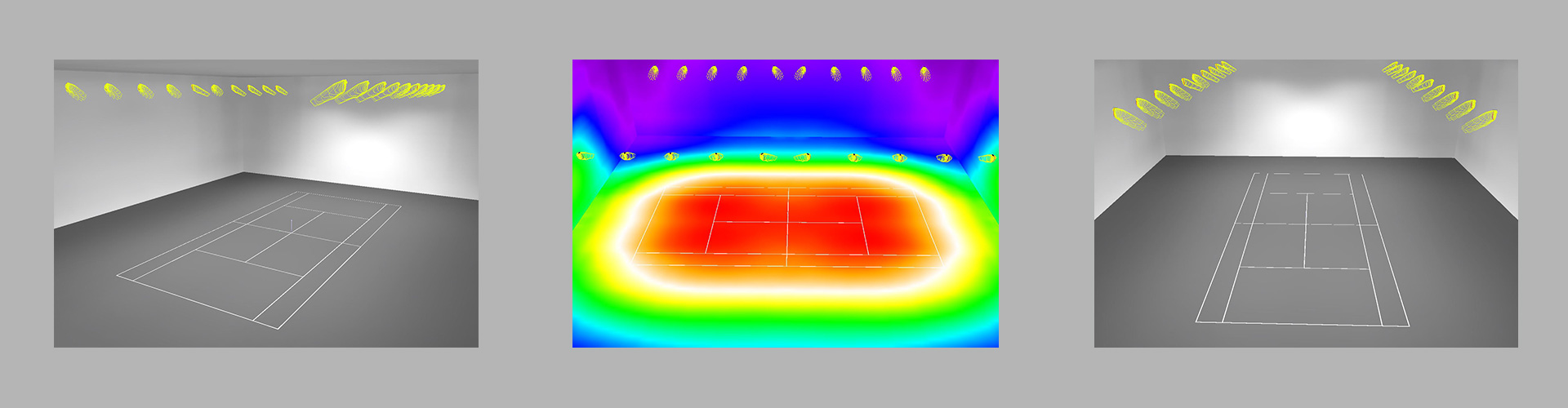

Tennis court lighting with SPORT-IP-24-FT6
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
