    CS18999_SPORT-IP-24-FT6-HT

    Print

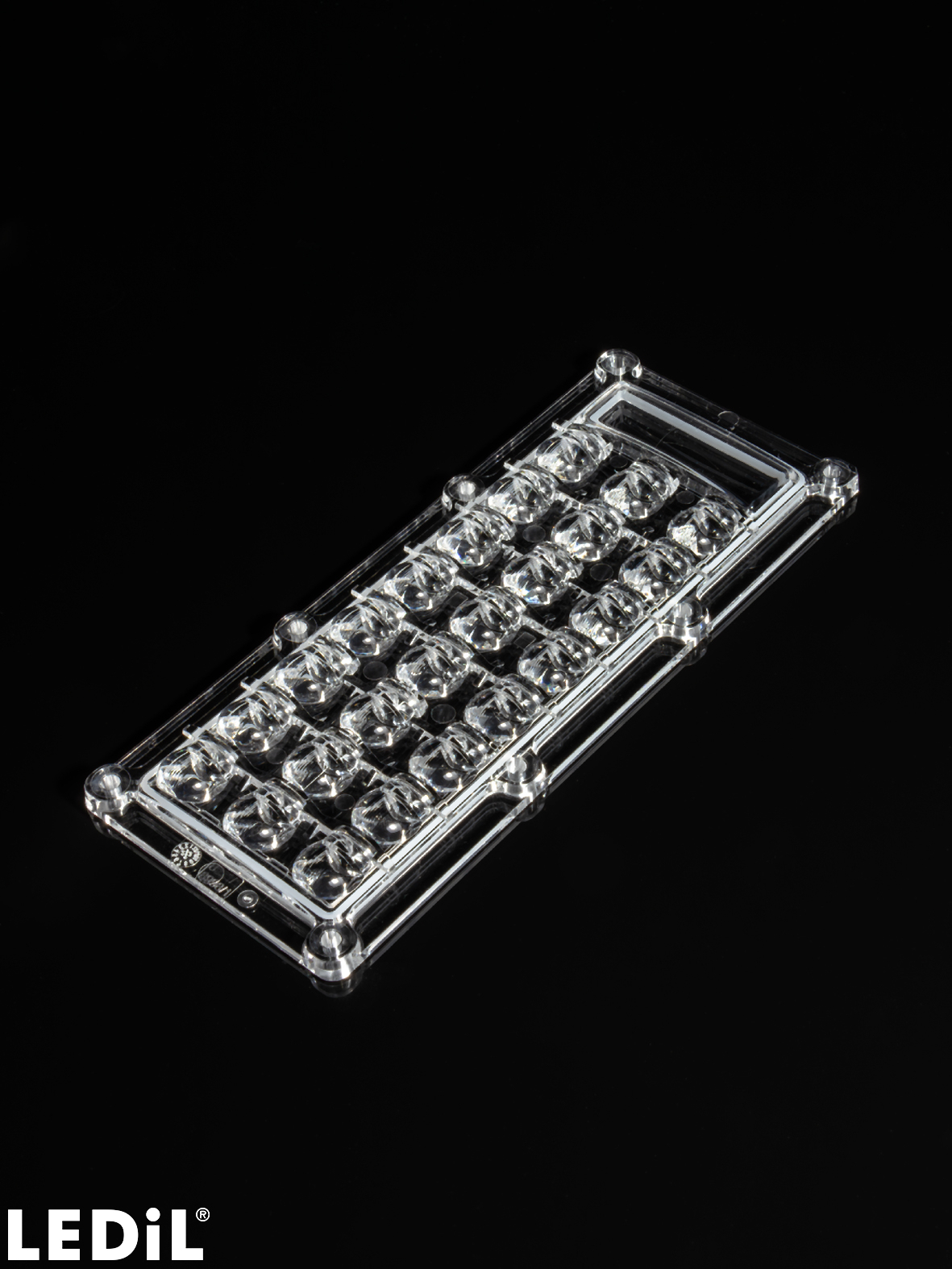

    Narrow forward throw beam with optimized cut-off for high masts. Variant from High Temperature PMMA.

    Specification
    • Dimensions:
      173 x  71 mm
    • Height:
      10.80 mm
    • Fastening:
      pin, screw
    • Colour:
      clear
    • Ingress protection classes:
      IP66, IP67
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      120 pcs
    • Box size:
      476 x 273 x 247 mm
    • Box weight:
      7.8 kg
    • MPQ:
      40 pcs
    • MOQ:
      120 pcs
    • MOQ size:
      476 x 273 x 247 mm
    • MOQ weight:
      7.8 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    • PCB drawing
      • PRODUCT NAME(S):
      CS18999_SPORT-IP-24-FT6-HT

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Application example

    Tennis court lighting with SPORT-IP-24-FT6

    Application example

    Volleyball court lighting with SPORT-IP-24-FT6

    Application example

    Football pitch lighting with SPORT-IP-24

    Application area

    Tunnel and Transportation Lighting

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    News

    New products – September, 2023

    Luminaire, example

    Sports field luminaire with SPORT-IP-24

    News

    Not shy of competition – SPORT-IP-24

    Application area

    SPORTS INDOOR LIGHTING

    Application area

    Area and Car Park Lighting

    Application guide

    LEDiL guide for sports lighting optics

    News

    SPORT-2X2-S1 – Our narrowest, most powerful sport beam + new optic material for higher temperatures

    Application area

    Sports outdoor lighting

    Optical results

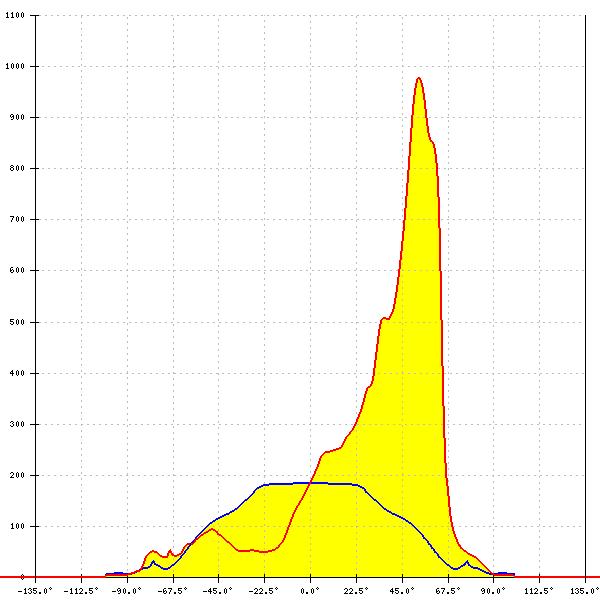

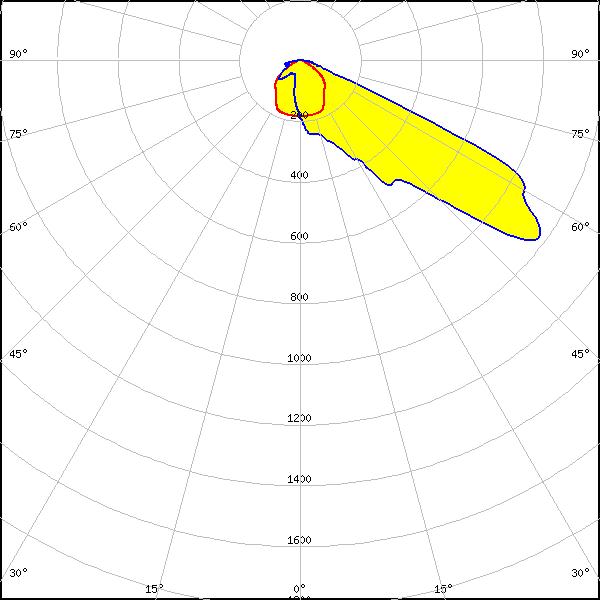

    LED: NV4WB35AM
    FWHM: asymmetric
    Peak intensity: 1.076 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

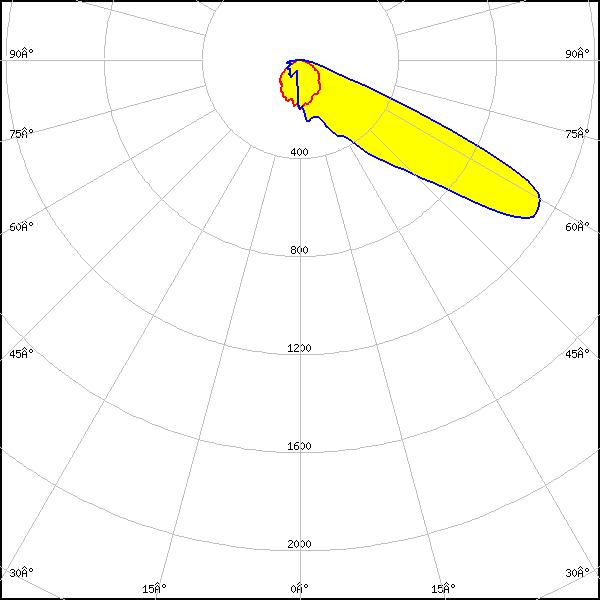

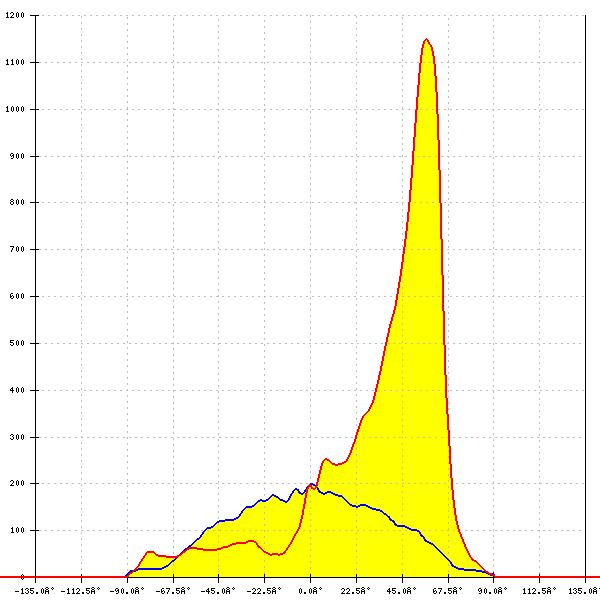

    LED: OSCONIQ P 3737 (3W version)
    FWHM: asymmetric
    Peak intensity: 1.149 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

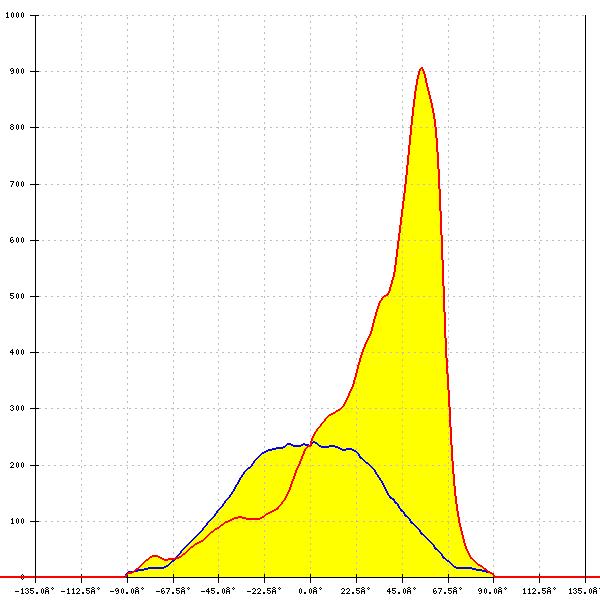

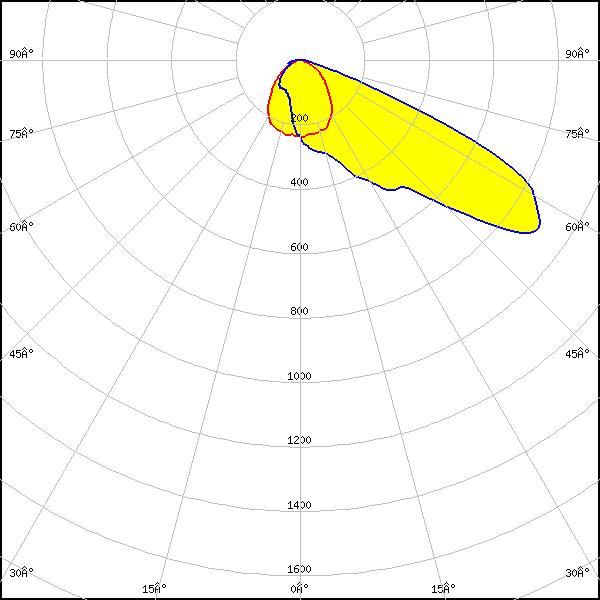

    LED: LH502D
    FWHM: asymmetric
    Peak intensity: 0.906 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
