APPLICATION EXAMPLE

Tennis court lighting with SPORT-2X2.


For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

Three different lighting setups to meet requirements for tennis court lighting.

SETUP:

Application:Sports lighting
Number of poles:6 pcs
Mounting height:9 m
Area for calculations:36 m x 18 m

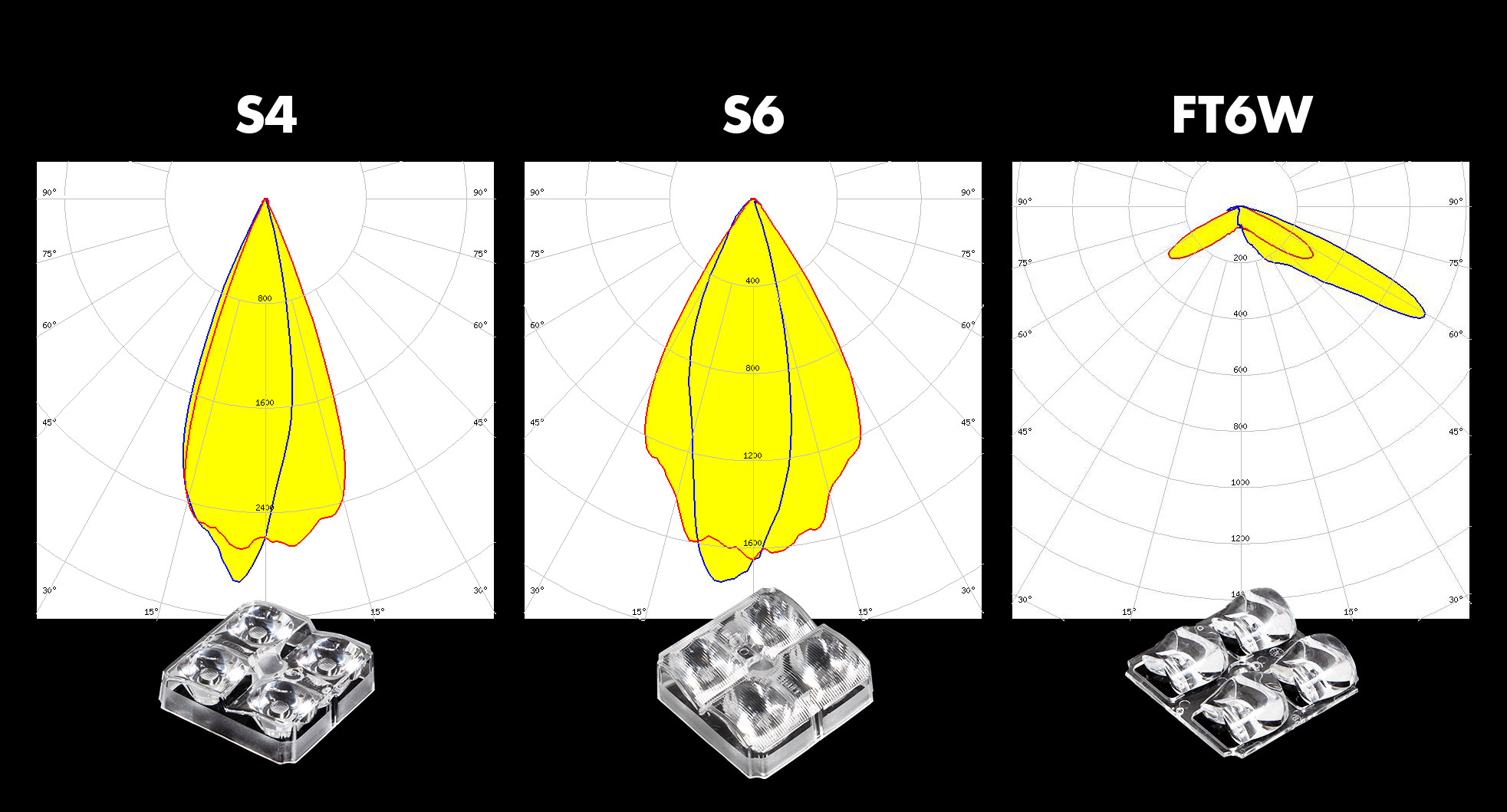

Optics - Setup #1:SPORT-2X2-S4
Optics - Setup #2:SPORT-2X2-S6
Optics - Setup #3:SPORT-2X2-FT6W

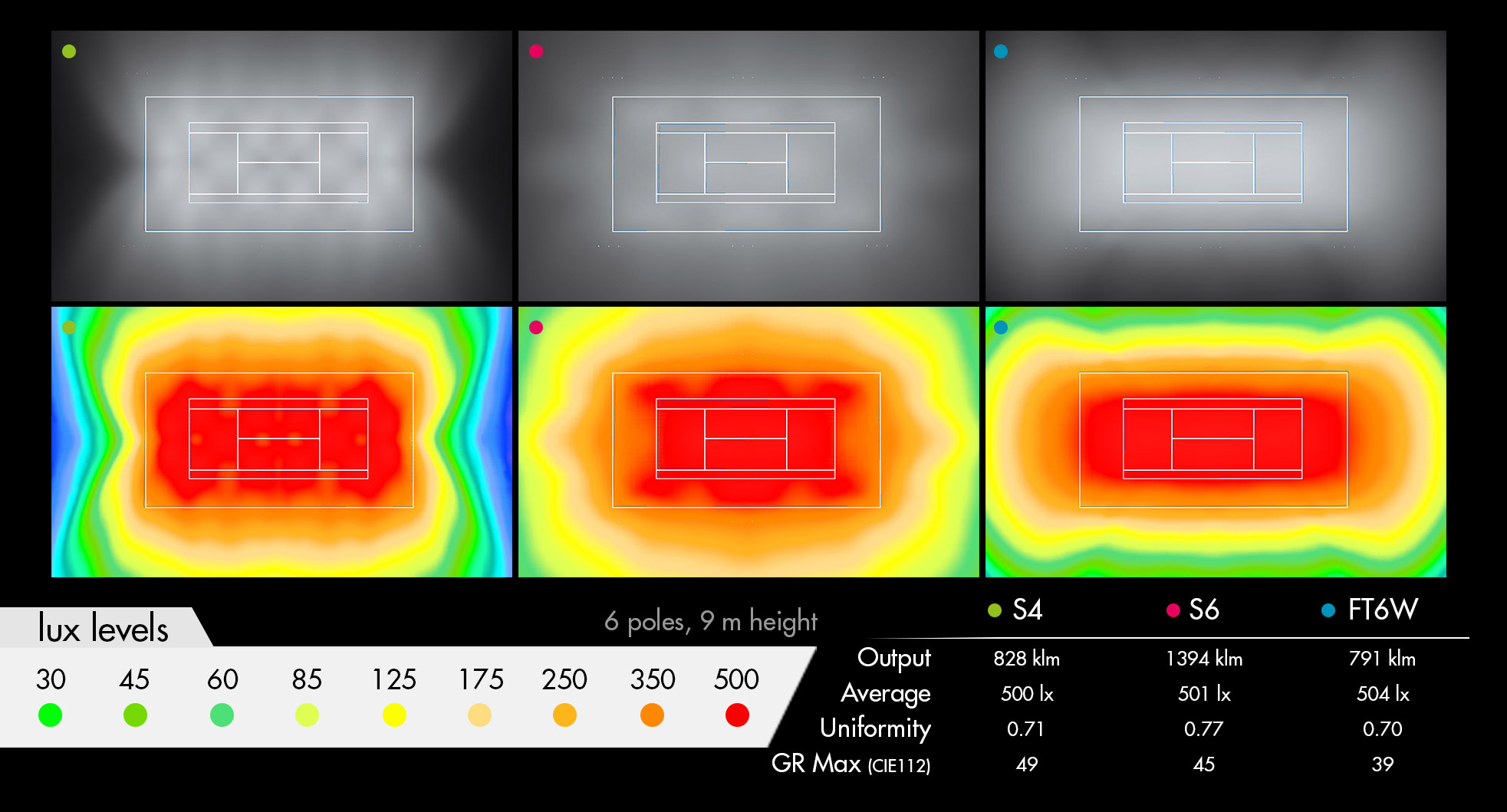

RESULTS:

S4S6FT6W
Output:828 klm1394 klm791 klm
Average:500 lx501 lx504 lx
Uniformity:0.710.770.70
GR Max (CIE112)494539


Tennis court lighting with SPORT-2X2.


For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
