Application example

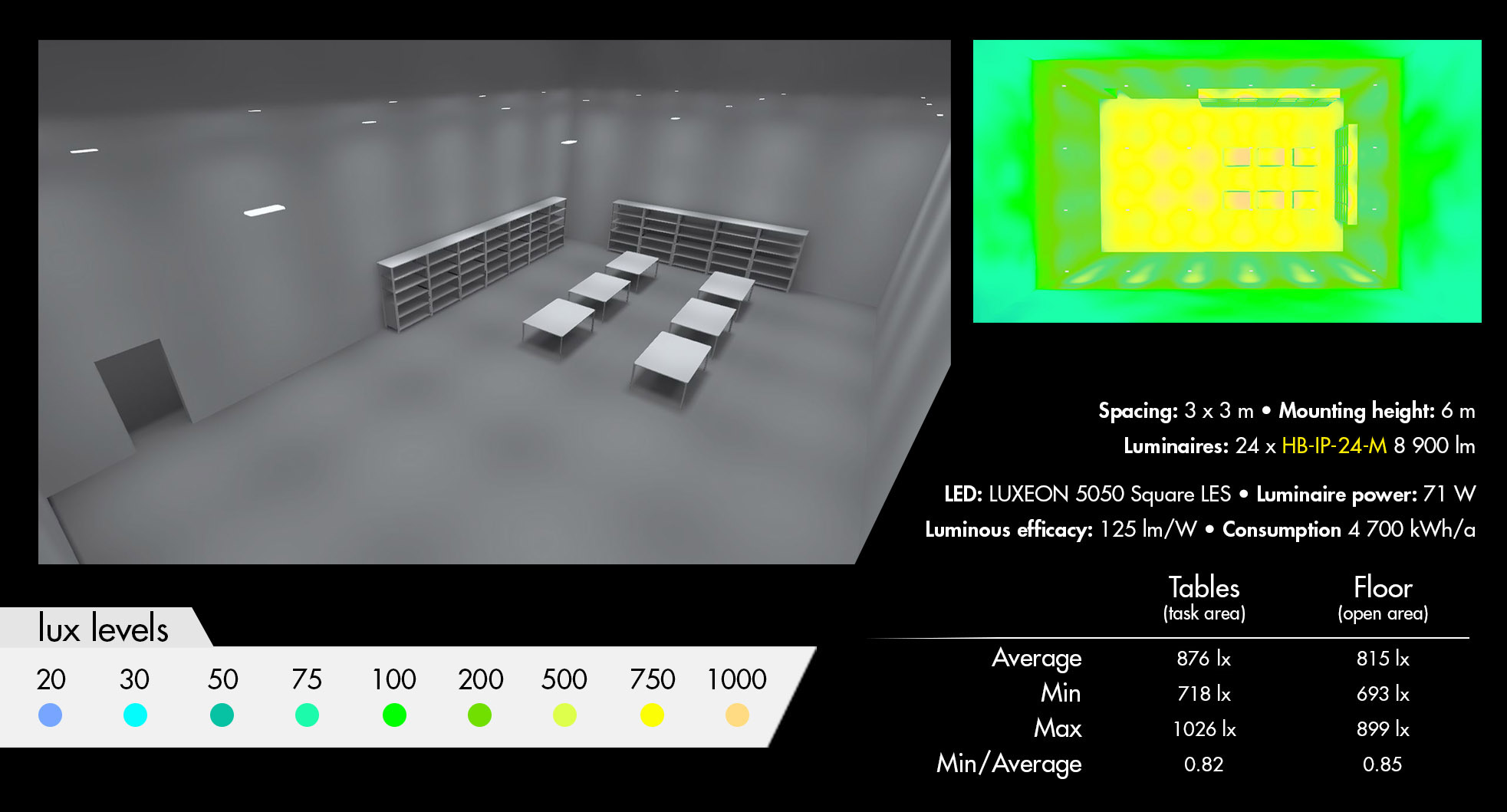

Task area lighting with HB-IP-24-M.
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
SETUP:
| Application: | Task lighting |

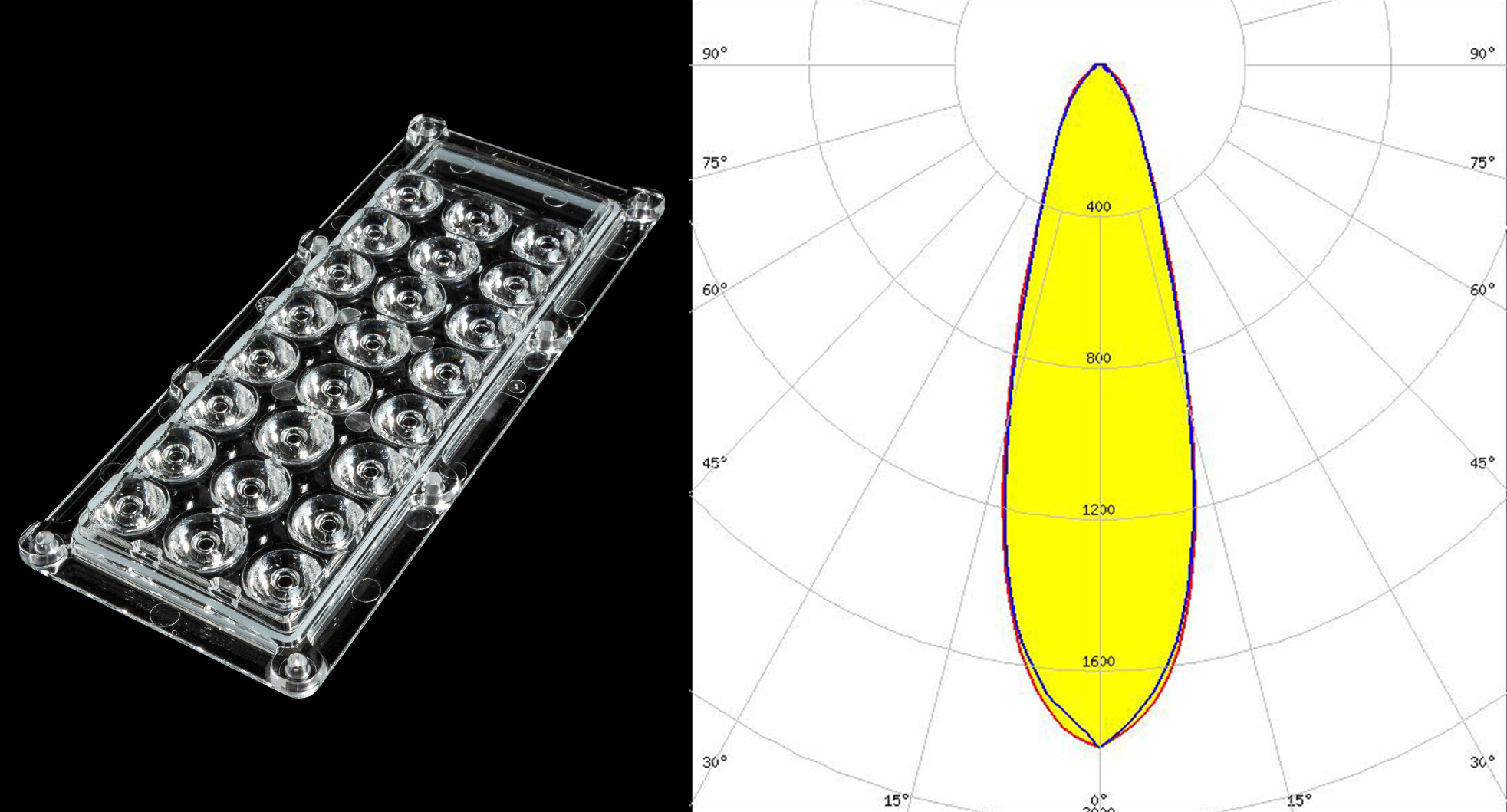

| Optics: | HB-IP-24-M |
| LED: | Flat 5050 |
| Luminaire power: | 71 W |
| Number of luminaires: | 24 pcs |
| Luminous flux (Luminaire): | 8900 lm |
| Spacing: | 3 x 3 m |
| Mounting height: | 6 m |
RESULTS:
| Luminous efficacy: | 125 lm/W |
| Consumption: | 4700 kWh/a |
| Tables (Task area) | |
| Average: | 876 lx |
| Min: | 718 lx |
| Max: | 1026 lx |
| Min/Average: | 0.82 |
| Floor (Open area) | |
| Average: | 815 lx |
| Min: | 693 lx |
| Max: | 899 lx |
| Min/Average: | 0.85 |
