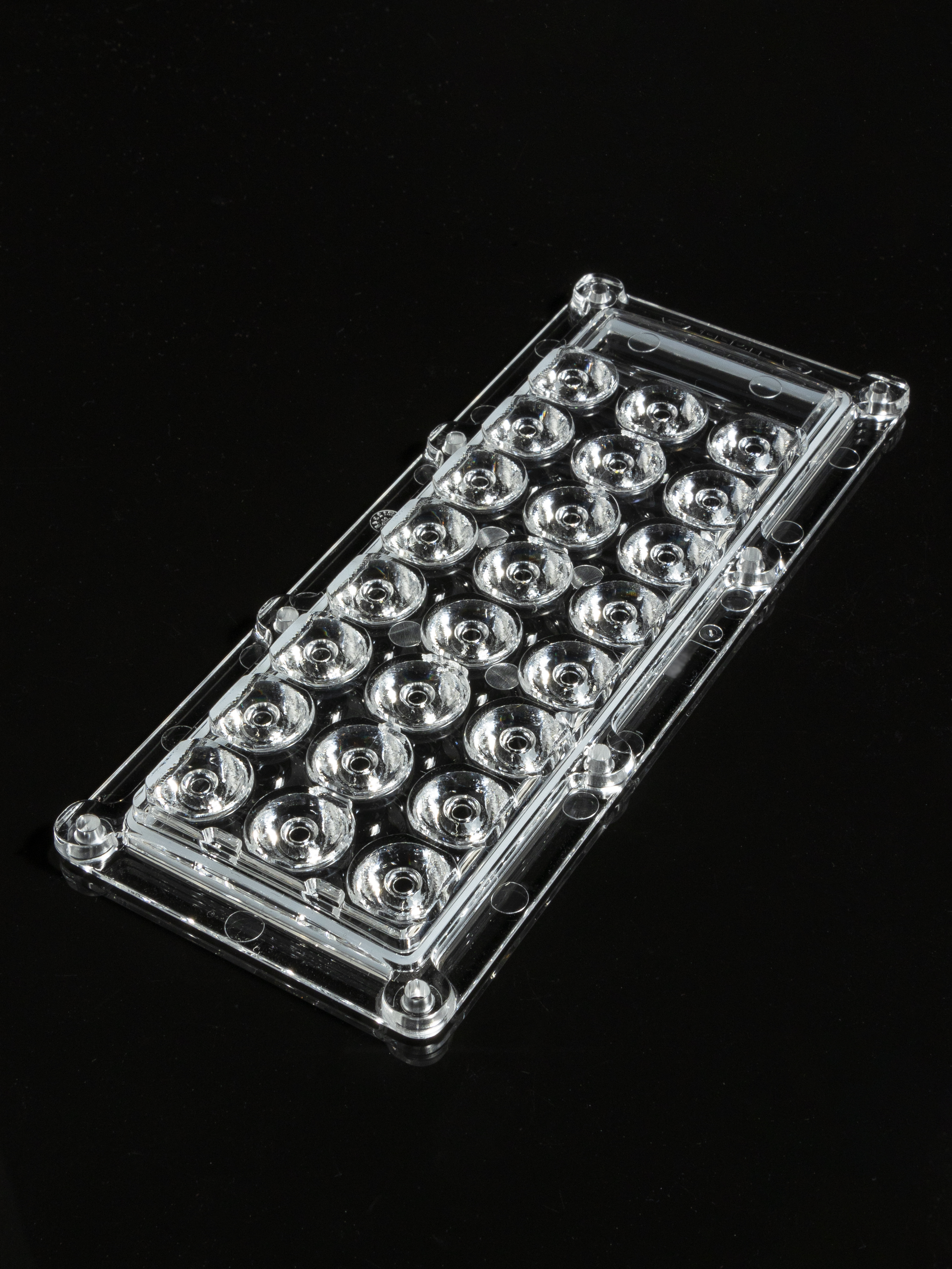

    CS18047_HB-IP-24-M

    Print

    ~30° wide beam.

    Specification
    • Dimensions:
      173 x  71 mm
    • Height:
      10.00 mm
    • Fastening:
      pin, screw
    • Colour:
      clear
    • Ingress protection classes:
      IP66, IP67
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      120 pcs
    • Box size:
      476 x 273 x 247 mm
    • Box weight:
      7.0 kg
    • MPQ:
      40 pcs
    • MOQ:
      120 pcs
    • MOQ size:
      476 x 273 x 247 mm
    • MOQ weight:
      7.0 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    • PCB drawing
      • PRODUCT NAME(S):
      CS18047_HB-IP-24-M
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Application guide

    LEDiL Guide for Sports lighting optics

    PCN

    Product change notification NR183 - Additional gasket material approved for LEDiL products

    News

    New products – October 21, 2021

    Application example

    Task area lighting with HB-IP-24-M

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    News

    STRADA-IP-24 – Real value for luminaire designers and end-users

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    News

    Boost your luminaire efficiency and output with the new STRADA-IP-24 family

    Application area

    Area and Car Park Lighting

    Application area

    Indoor Architectural Lighting

    Application area

    Industrial Lighting

    Optical results

    LED: LIGHT ENGINE STRADA-IP 24 LEDs 147.4 x 46.2 x 1.5
    FWHM: 29°
    FWTM: 68°
    Peak intensity: 1.990 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

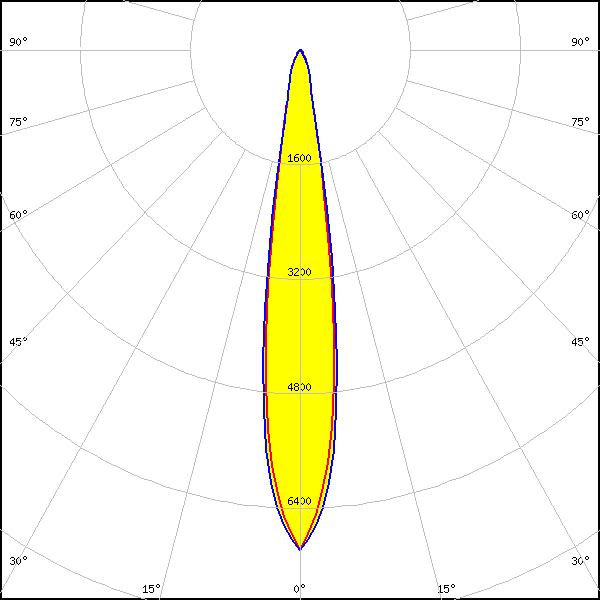

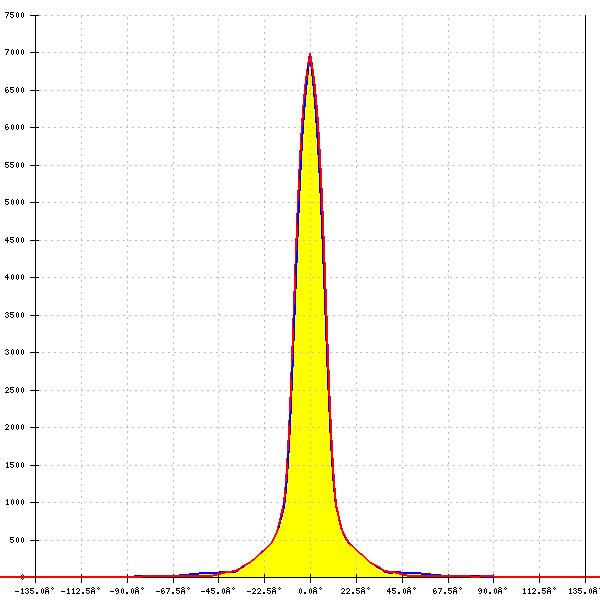

    LED: J Series 3030
    FWHM: 18°
    FWTM: 38°
    Peak intensity: 5.232 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: J Series 5050C 6V E Class
    FWHM: 27°
    FWTM: 60°
    Peak intensity: 2.469 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G3
    FWHM: 26°
    FWTM: 54°
    Peak intensity: 2.934 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5050 HE
    FWHM: 26°
    FWTM: 62°
    Peak intensity: 2.344 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5050 Round LES
    FWHM: 28°
    FWTM: 64°
    Peak intensity: 2.288 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5050 Square LES
    FWHM: 29°
    FWTM: 68°
    Peak intensity: 1.936 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON XR-5050 HE (L225-xxxx024MLU010)
    FWHM: 27°
    FWTM: 64°
    Peak intensity: 2.260 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RecLED 147x47mm 5800lm 7x0 5050 STRADA-IP-24 G2
    FWHM: 33°
    FWTM: 74°
    Peak intensity: 1.683 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NFMW48xA
    FWHM: 30°
    FWTM: 66°
    Peak intensity: 2.140 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Duris S8
    FWHM: 33°
    FWTM: 74°
    Peak intensity: 1.683 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

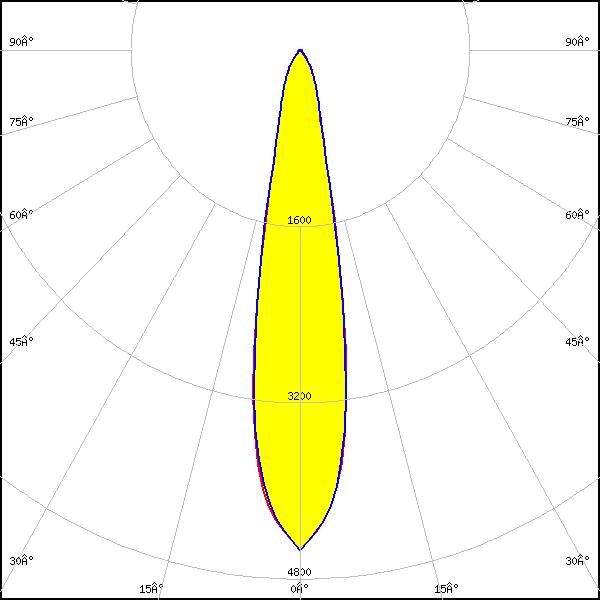

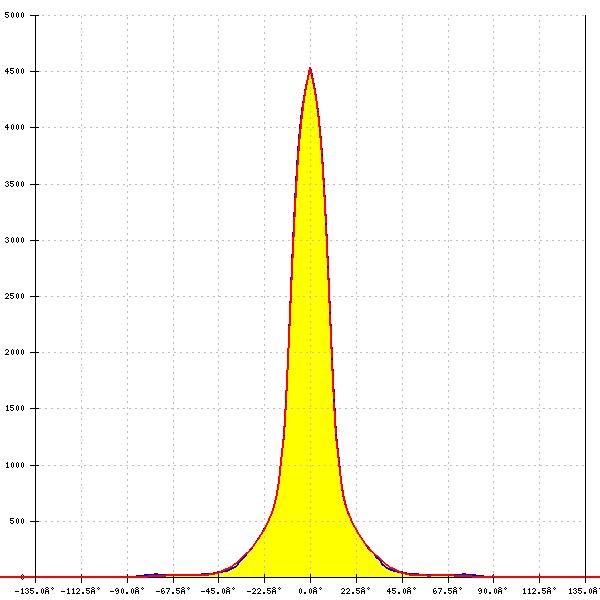

    LED: OSCONIQ P 3737 (2W version)
    FWHM: 20°
    FWTM: 44°
    Peak intensity: 4.539 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

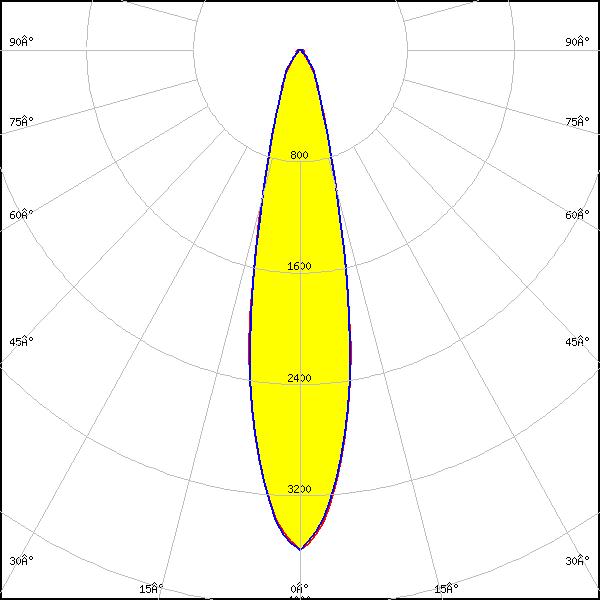

    LED: OSCONIQ P 3737 (3W version)
    FWHM: 24°
    FWTM: 48°
    Peak intensity: 3.593 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: HiLOM RM24 ZP (LH502C)
    FWHM: 30°
    FWTM: 68°
    Peak intensity: 2.021 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: HiLOM RM24 ZP (LH502D)
    FWHM: 27°
    FWTM: 65°
    Peak intensity: 2.234 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH502C
    FWHM: 30°
    FWTM: 68°
    Peak intensity: 2.026 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH502D
    FWHM: 28°
    FWTM: 62°
    Peak intensity: 2.409 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH508C
    FWHM: 29°
    FWTM: 67°
    Peak intensity: 2.050 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LM301D
    FWHM: 18°
    FWTM: 42°
    Peak intensity: 4.567 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CHI-VP-10K5-740-36
    FWHM: 27°
    FWTM: 63°
    Peak intensity: 2.260 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CHIEC-VE-11K4-740-48
    FWHM: 28°
    FWTM: 65°
    Peak intensity: 2.224 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SEOUL DC 5050 6V
    FWHM: 31°
    FWTM: 70°
    Peak intensity: 1.928 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE 3x8 6000lm HP HE EXC3 OTD
    FWHM: 28°
    FWTM: 65°
    Peak intensity: 2.169 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White
