APPLICATION EXAMPLE
Street lighting with STRADA-IP-8MX-SCL
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
SETUP:
| Application: | Street lighting |
| Class: | Mexican road requirements |
| Optics: | STRADA-IP-8MX-SCL |
| Road width: | 8 m |
| Number of lanes: | 2 pcs |
| Arrangement: | Single row, bottom |
| Luminous flux (Luminaire): | 12 325 lm |
| Pole distance: | 60 m |
| Mounting height: | 8 m |
| Overhang: | -1.1 m |

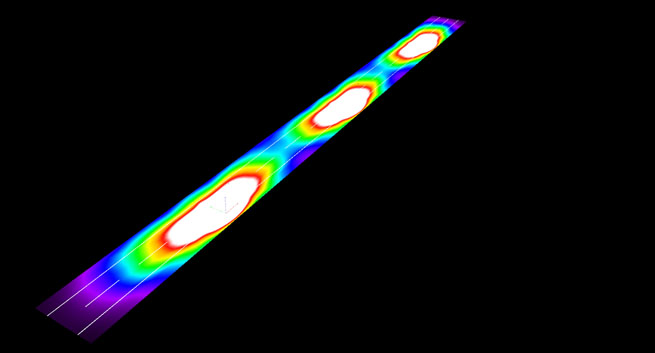

RESULTS:
| Average: | 14 lx |
| Min: | 4.7 lx |
| Max: | 35 lx |
| Uo: | 0.34 |
| CS16881_STRADA-IP-8MX-SCL-PC |
