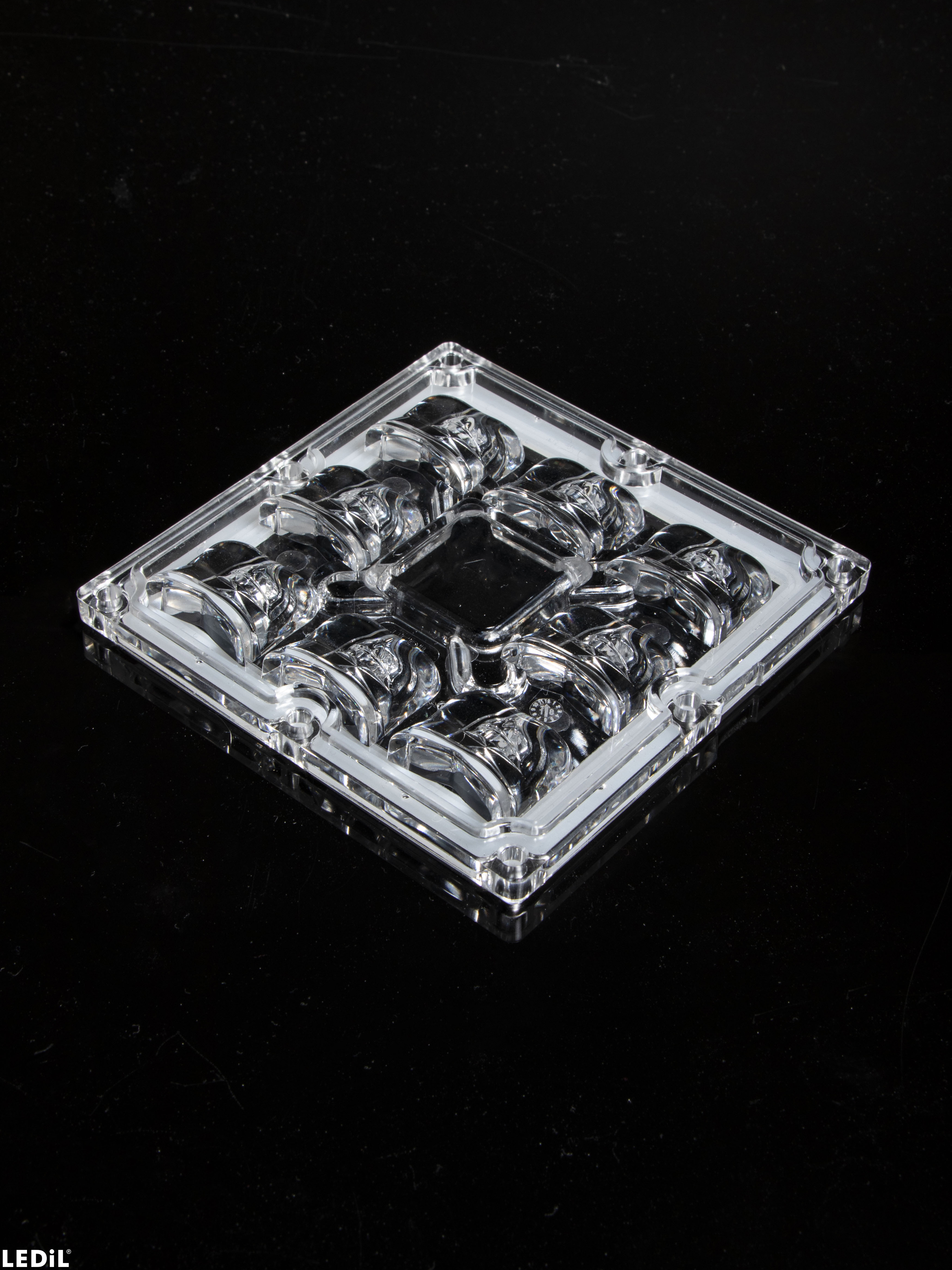

CS16881_STRADA-IP-8MX-SCL-PC

Type II/III (long) beam for very wide pole to pole distances. Ideal for pedestrian paths and residential roads. EN13201 P-classes. Variant made from PC.

Specification

Dimensions:

90 x 90 mm
Height:

11.20 mm
Colour:

clear
Ingress protection classes:

IP66, IP67
RoHS and REACH compliant:

Yes

Product Data User Agreement and Disclaimer.

Component Materials

STRADA-IP-8MX-SCL-PC
Multi-lens
PC
STRADA-IP-8MX-SEAL
Seal
Silicone
Request material files from Tech Support

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information

Quantity in box:

156 pcs
Box size:

480 x 280 x 300 mm
Box weight:

7.7 kg
MPQ:

52 pcs
MOQ:

52 pcs
MOQ size:

480 x 280 x 110 mm
MOQ weight:

2.7 kg

Documents

Family datasheet
Product datasheet
2D mechanical drawing
Request a 3D mechanical model

Request a 3D mechanical model: CS16881_STRADA-IP-8MX-SCL-PC

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Reason for request:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

PRODUCT NAME(S):

CS16881_STRADA-IP-8MX-SCL-PC

Add more products:

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Preferred distributor:

Request samples:

Message:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

CONTACT US

REQUEST SAMPLES

WHERE TO BUY

FIND A DISTRIBUTOR

ORDER ONLINE

Related Content

User and installation guide

General guide to LEDiL optics

PCN

Product change notification NR183 - Additional gasket material approved for LEDiL products

News

New Products - 2019-03-21

Application example

Street lighting with STRADA-IP-8MX-SCL

Application guide

Guide for Street lighting optics

News

MX series the ultimate in street area car park and industrial lighting optics

Application guide

Guide_for_Urban_lighting_optics_2025_v.1.1_WEB

PCN

Product change notification NR196 - Additional Optical PMMA material grade approved

PCN

Product change notification NR178 - Additional PMMA material approved

PCN

Product change notification NR174 - Additional PMMA material approved

Application guide

Street lighting optics - 2020_v.1.1_WEB

Application area

Architectural Outdoor Lighting

Application area

Area and Car Park Lighting

Application area

Street Lighting

Application area

Indoor Architectural Lighting

Optical results

LED: LUXEON 5050 Round LES

FWHM: asymmetric

Peak intensity: 0.890 cd/lm

Efficiency: 87 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: LUXEON 5050 Square LES

FWHM: asymmetric

Peak intensity: 0.801 cd/lm

Efficiency: 86 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: LUXEON 5050 Square LES

FWHM: asymmetric

Peak intensity: 0.885 cd/lm

Efficiency: 87 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: NV4WB35AM

FWHM: asymmetric

Peak intensity: 1.199 cd/lm

Efficiency: 86 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: NVSxE21A

FWHM: asymmetric

Peak intensity: 0.661 cd/lm

Efficiency: 83 %

LEDs/each optic: 4

Light colour/type: White

Datasheet

Light distribution files

LED: Duris S8

FWHM: 157° + 55°

FWTM: 172° + 143°

Peak intensity: 0.727 cd/lm

Efficiency: 85 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: Duris S8

FWHM: asymmetric

Peak intensity: 0.739 cd/lm

Efficiency: 85 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files
