APPLICATION EXAMPLE

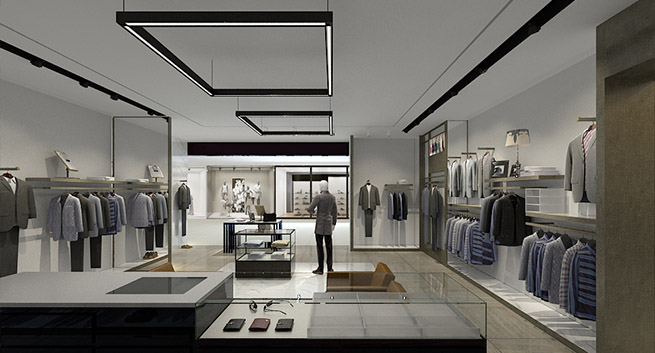

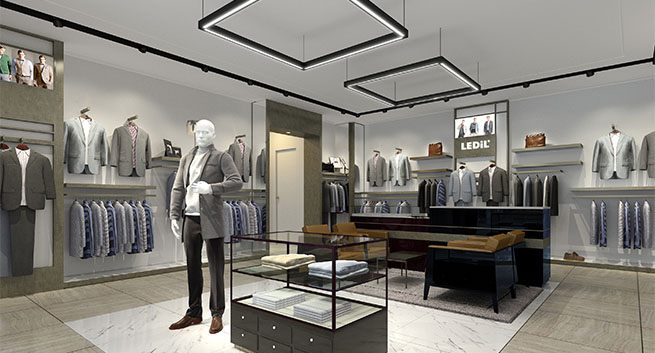

Low contrast retail lighting with LINDA and ELISE
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
SETUP:
| Application: | Fashion retail |
| General lighting | |
| Optics: | LINDA-WW |
| LEDs: | Mid-power 2835 |
| Number of LEDs under each optical element: | 96 LEDs x 4 optics = 384 LEDs in total |
| Installation height: | 3 m |
| Number of optics in a luminaire: | 4 x 1160 mm |
| Luminaire output: | 11 000 lm |
| Number of luminaires: | 2 pcs |
| Track lighting | |
| Optics: | ELISE |
| LEDs: | COB LED / 14.5 mm LES size |
| Installation height: | 3 m |
| Track distance from the wall: | 1 m |
| Luminaire output: | 2000 lm |
RESULTS:
| Average under LINDA luminaires: | 500 lx |
| Average on illuminated objects: | 900 lx |
| F16749_LINDA-WW | ||
| C16824_ELISE-70-M |
