APPLICATION EXAMPLE

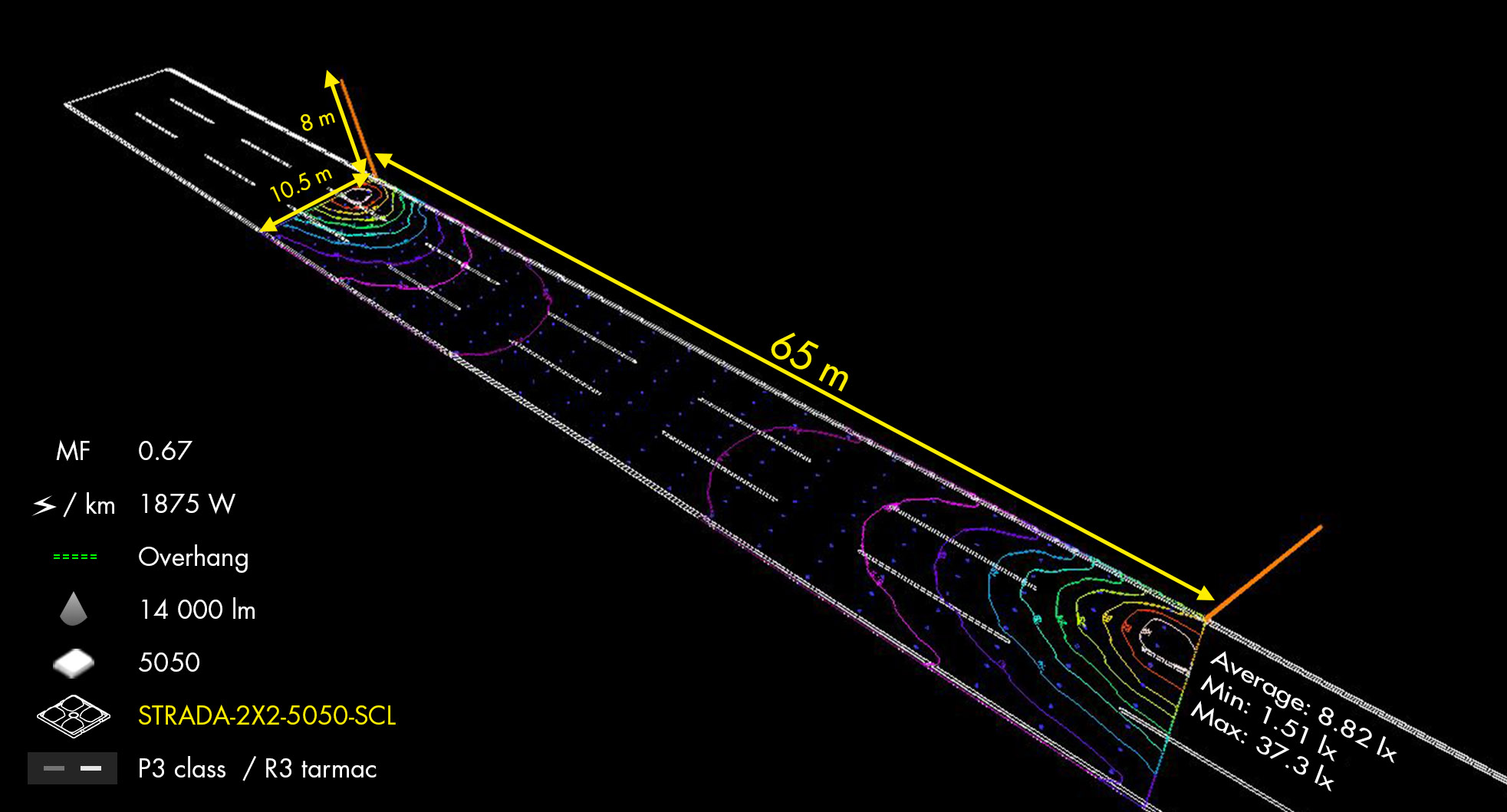

P3 Street lighting with STRADA-2X2-5050-SCL
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
SETUP:
| Application: | Street lighting |
| Roadway class: | P3 |
| Tarmac: | R3 |

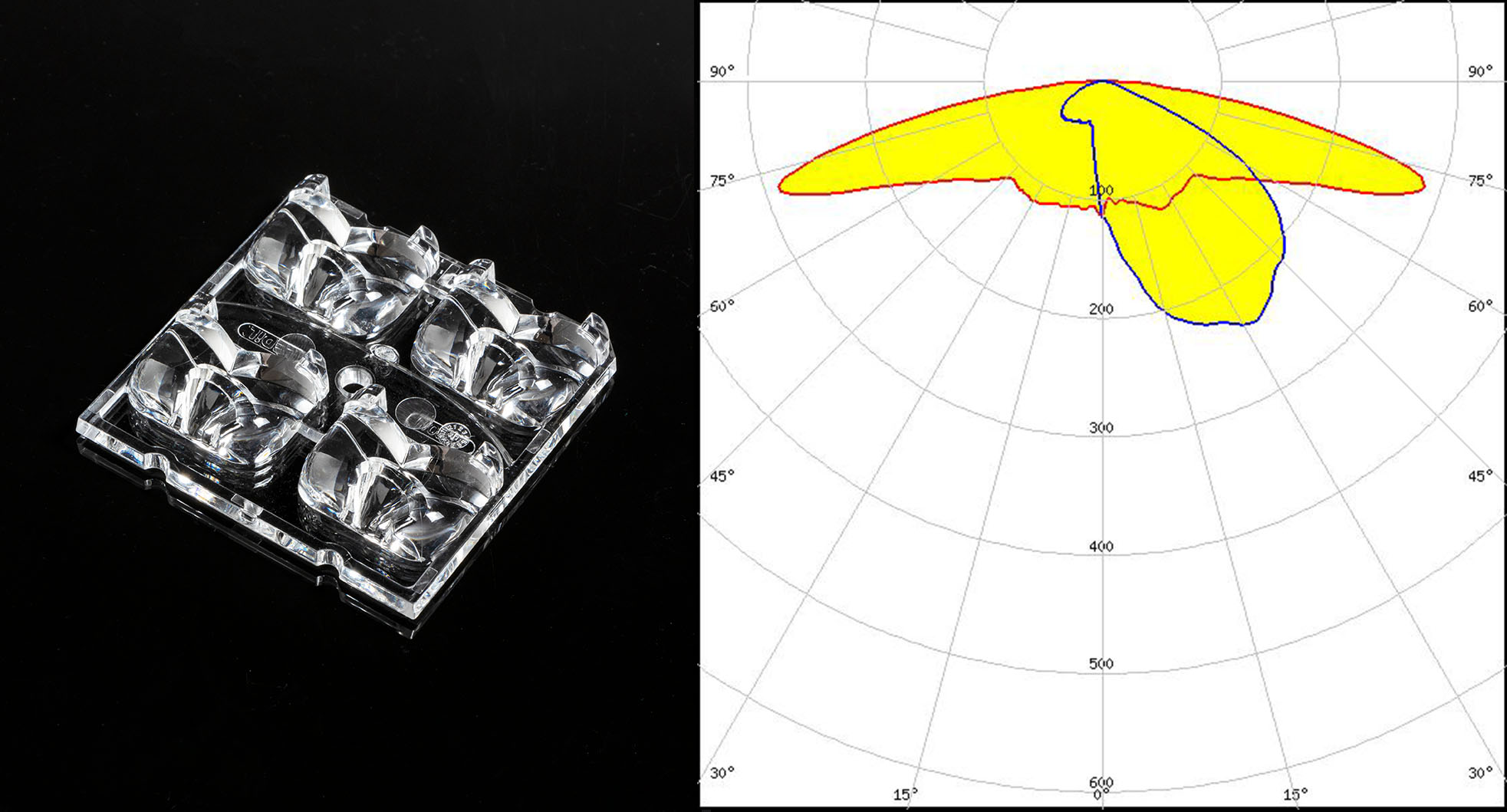

| Optics: | STRADA-2X2-5050-SCL |
| LED: | Flat 5050 |
| Road width: | 10.5 m |
| Number of lanes: | 3 |
| Arrangement: | single side, bottom |
| Pole distance: | 65 m |
| Mounting height: | 8 m |
| Overhang: | 0 m |
| Boom angle: | 0° |
| Boom lenght: | 0 m |
| Pole distance from roadway: | 0 m |
| Maintenance factor: | 0.67 |
| Total lumen output/luminaire: | 14 000 lm |
| Power consumption/km: | 1875 W |
| Energy consumption/year: | 500 kWh |
RESULTS:
| Average: | 8.82 lx |
| Min: | 1.51 lx |
| Max: | 37.3 lx |
P3 Street lighting with STRADA-2X2-5050-SCL
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
