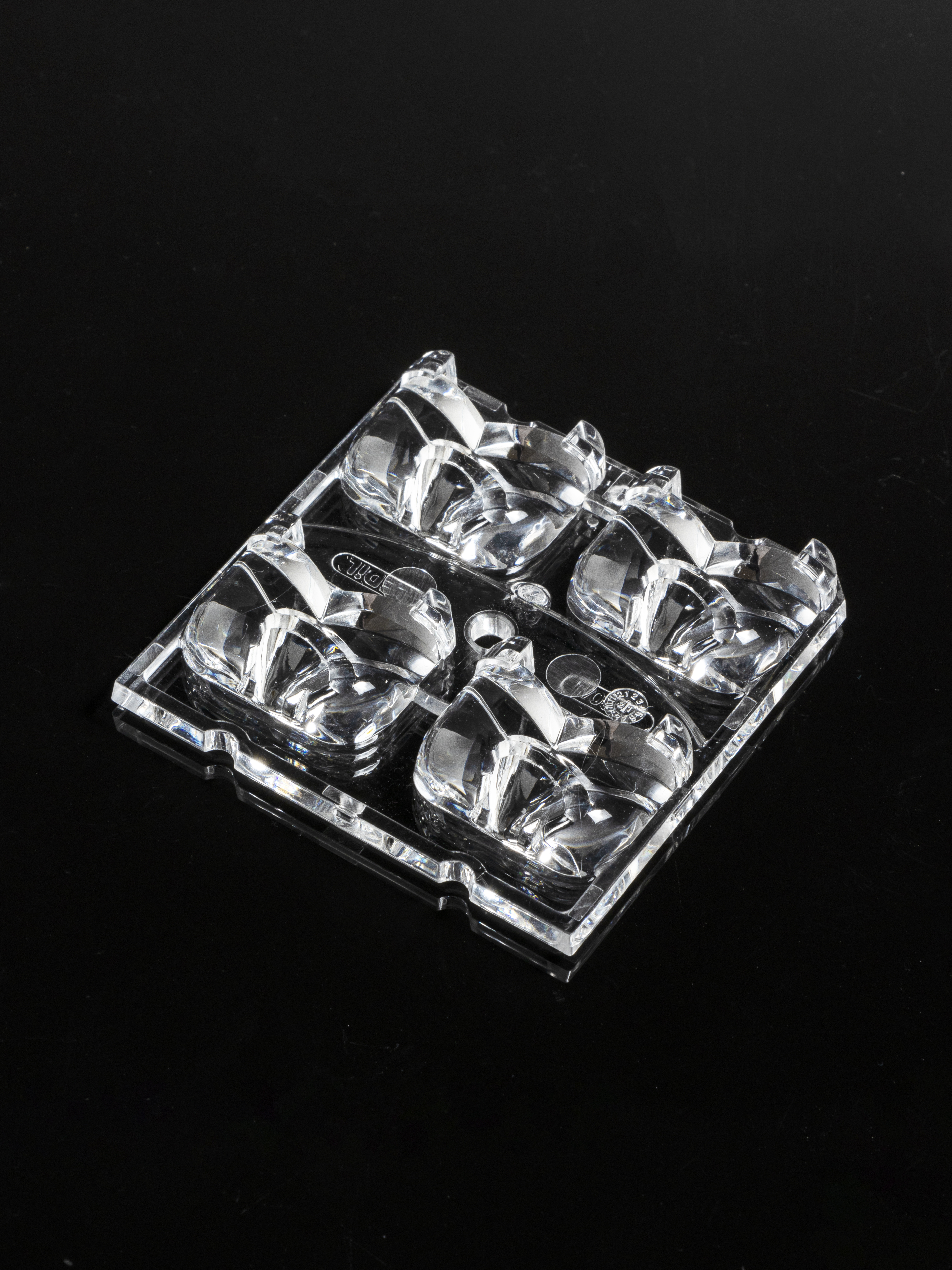

    C17830_STRADA-2X2-5050-SCL

    Print

    Type II/III (long) beam for very wide pole to pole distances. Ideal for pedestrian paths and residential roads. EN13201 P-classes.

    Specification
    • Dimensions:
      50 x  50 mm
    • Height:
      7.06 mm
    • Fastening:
      pin, screw
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    Ordering information
    • Quantity in box:
      800 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      8.9 kg
    • MPQ:
      160 pcs
    • MOQ:
      160 pcs
    • MOQ size:
      480 x 280 x 80 mm
    • MOQ weight:
      2.0 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    • PCB drawing
      • PRODUCT NAME(S):
      C17830_STRADA-2X2-5050-SCL
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    New products – May 19, 2021

    Application example

    P3 Street lighting with STRADA-2X2-5050-SCL

    Application area

    Urban lighting with LEDiL optics

    Application guide

    Guide_for_Urban_lighting_optics_2025_v.1.1_WEB

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application guide

    Street lighting optics - 2020_v.1.1_WEB

    Application area

    Architectural Outdoor Lighting

    Application area

    Area and Car Park Lighting

    Application area

    Street Lighting

    Application area

    Indoor Architectural Lighting

    Optical results

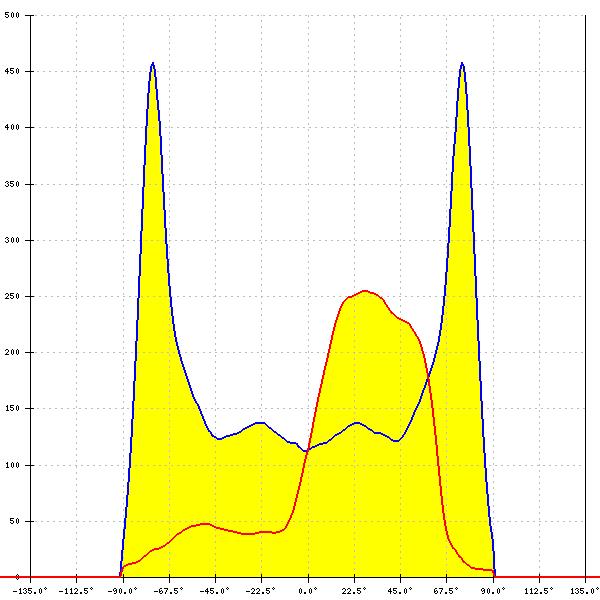

    LED: J Series 5050 Round LES
    FWHM: asymmetric
    Peak intensity: 0.871 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: J Series 5050 Round LES
    FWHM: asymmetric
    Peak intensity: 0.508 cd/lm
    Efficiency: 71 %
    LEDs/each optic: 1
    Light colour/type: White

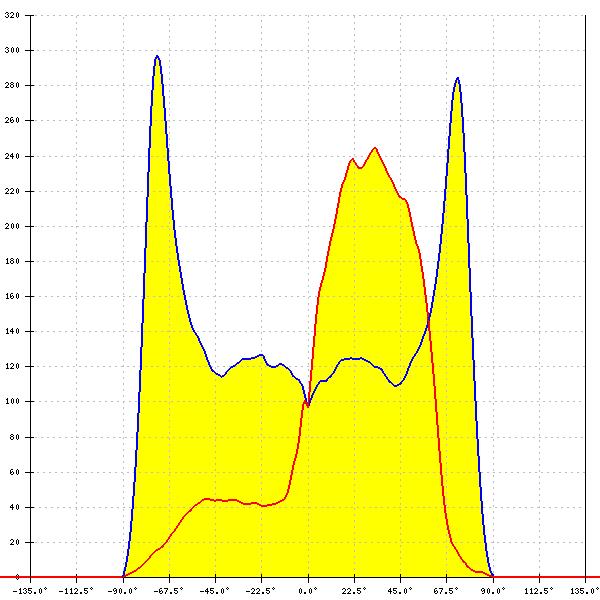

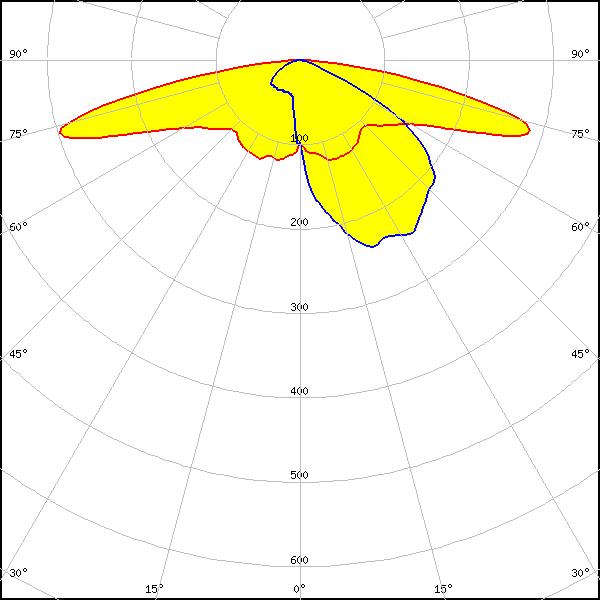

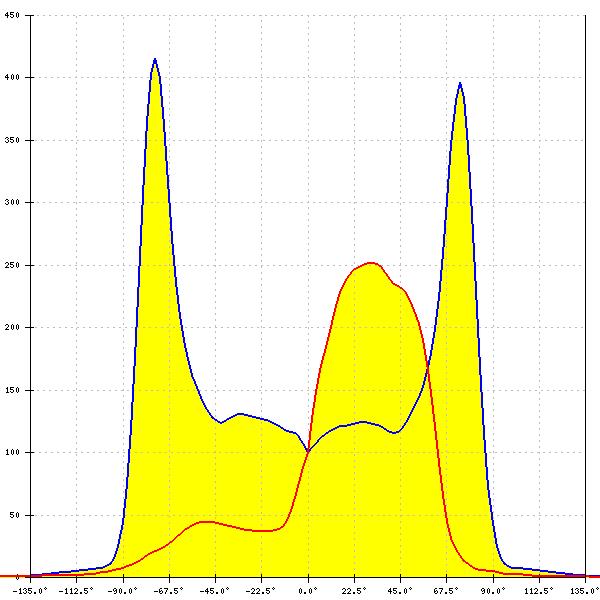

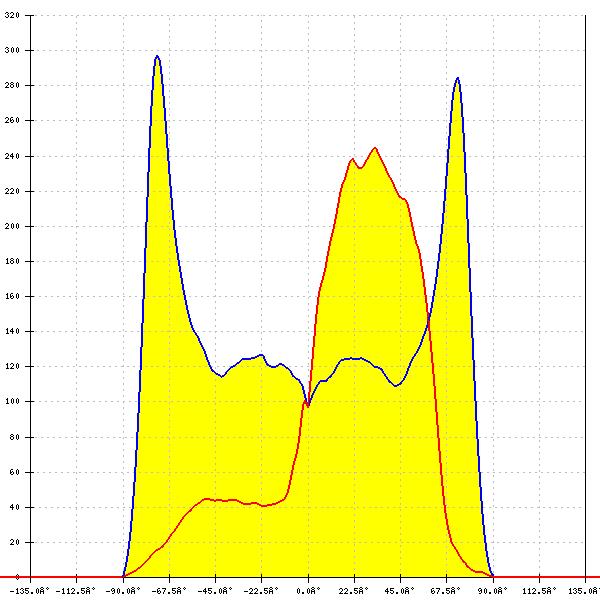

    LED: J Series 5050B 6V K Class
    FWHM: asymmetric
    Peak intensity: 0.544 cd/lm
    Efficiency: 70 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: J Series 5050B 6V K Class
    FWHM: asymmetric
    Peak intensity: 0.775 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

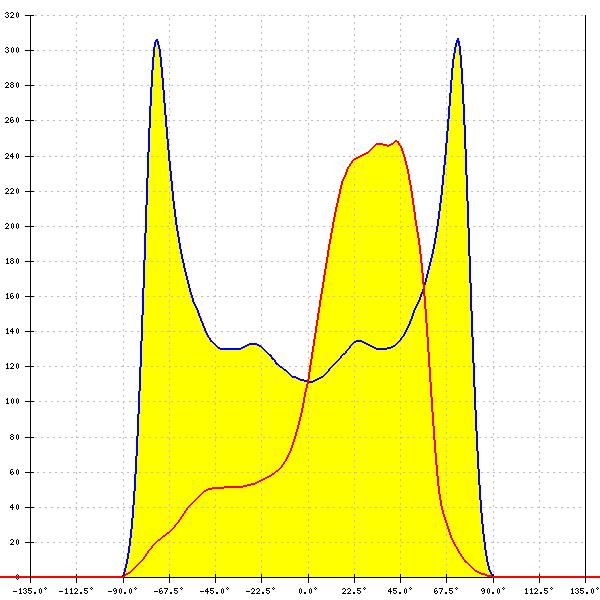

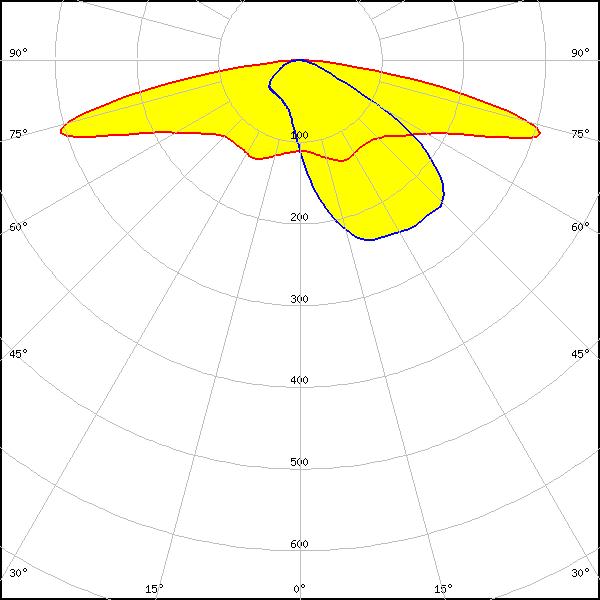

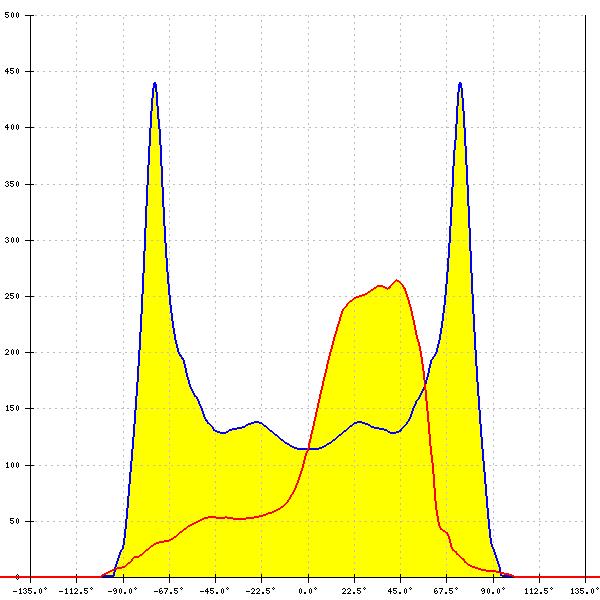

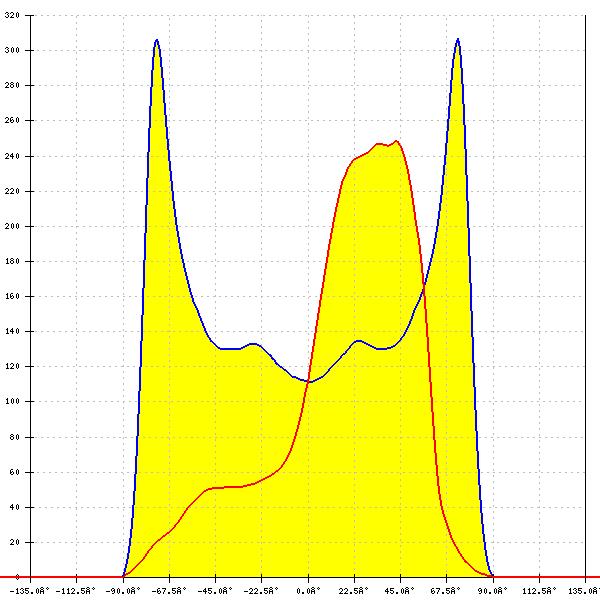

    LED: J Series 5050C 6V E Class
    FWHM: asymmetric
    Peak intensity: 0.542 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: J Series 5050C 6V E Class
    FWHM: asymmetric
    Peak intensity: 1.027 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

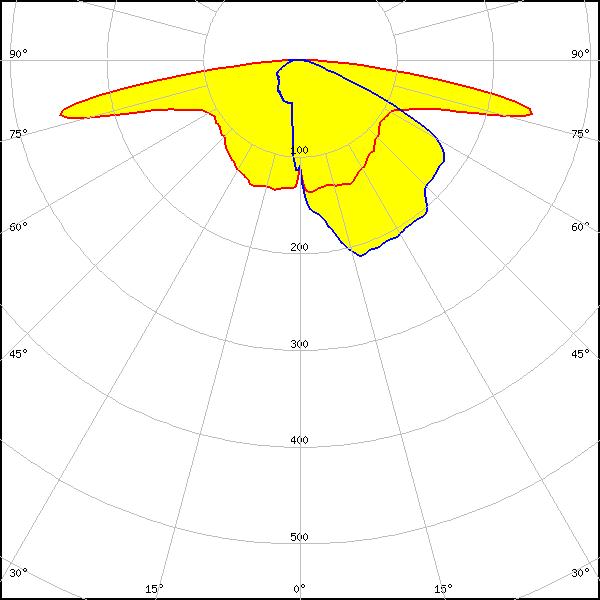

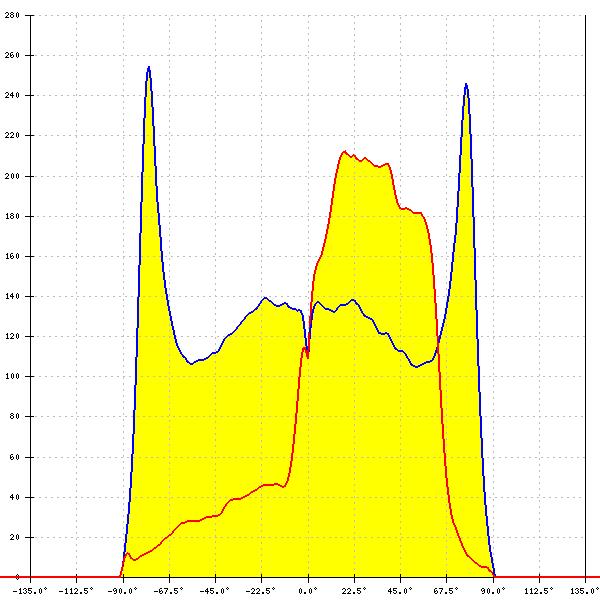

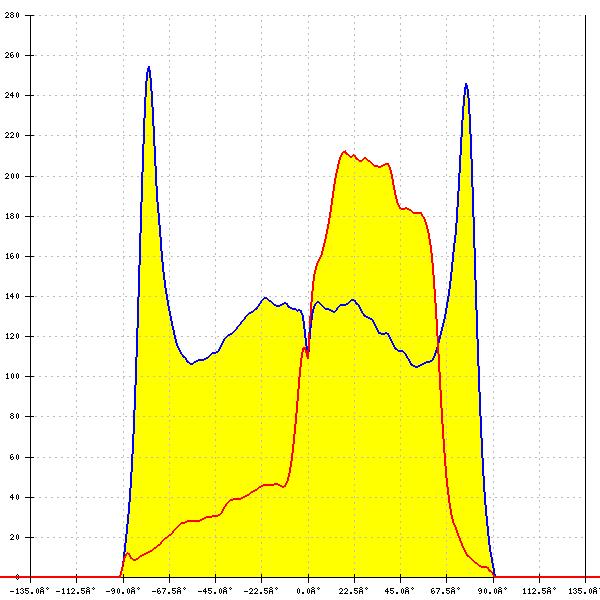

    LED: XP-G3
    FWHM: asymmetric
    Peak intensity: 0.595 cd/lm
    Efficiency: 65 %
    LEDs/each optic: 1
    Light colour/type: White

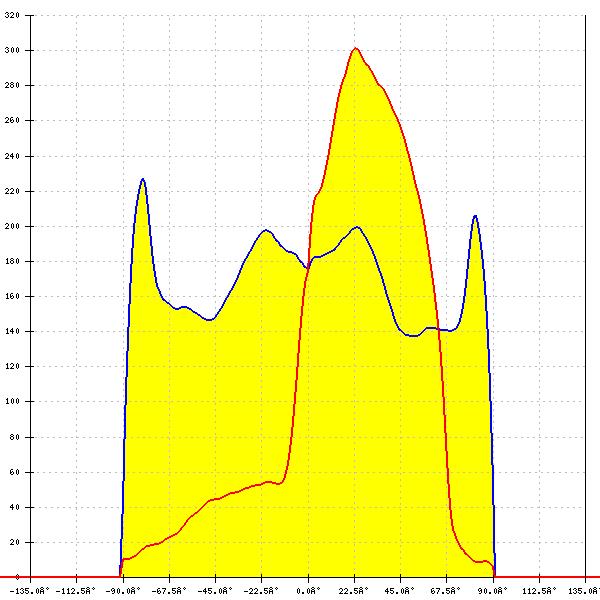

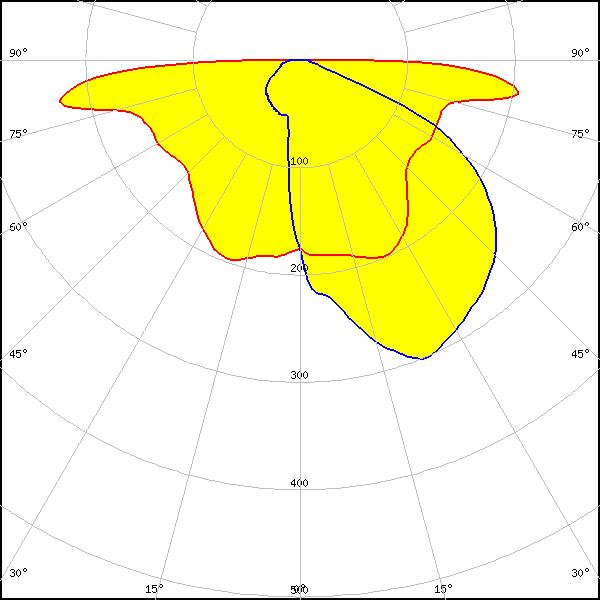

    LED: XP-L RGBW HD
    FWHM: asymmetric
    Peak intensity: 0.520 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

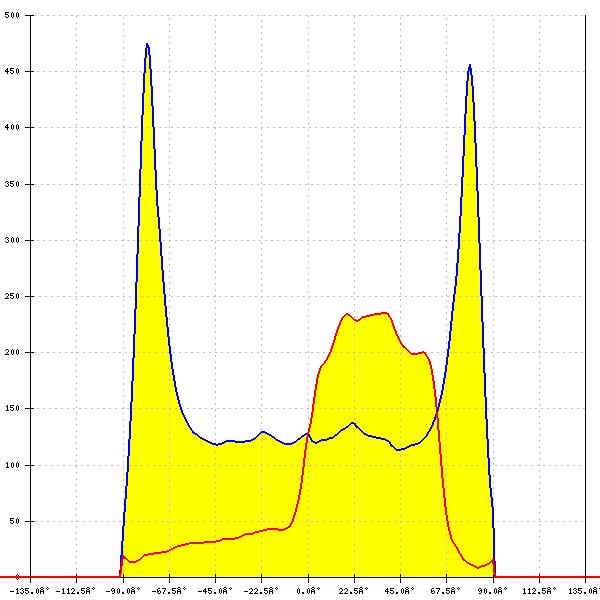

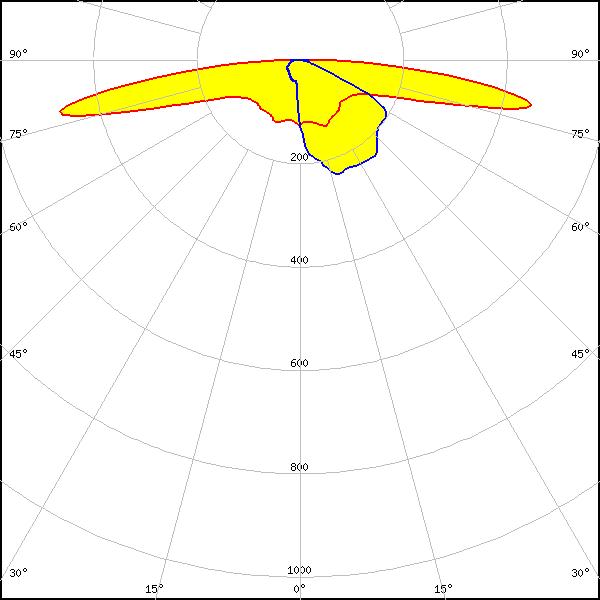

    LED: XP-L RGBW HI
    FWHM: asymmetric
    Peak intensity: 1.095 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

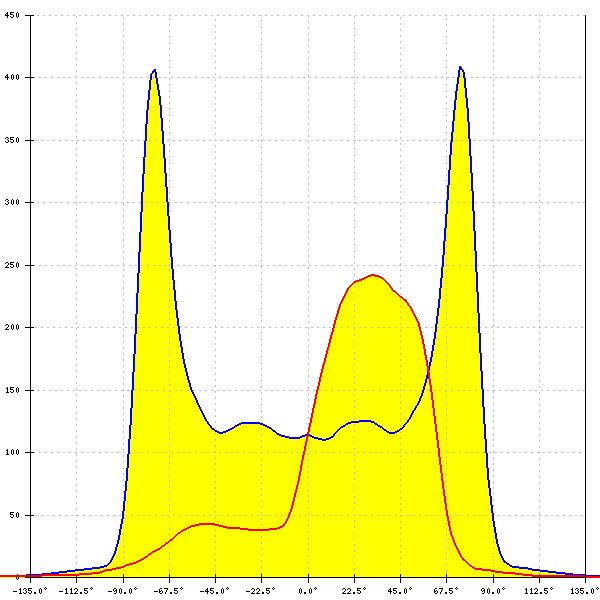

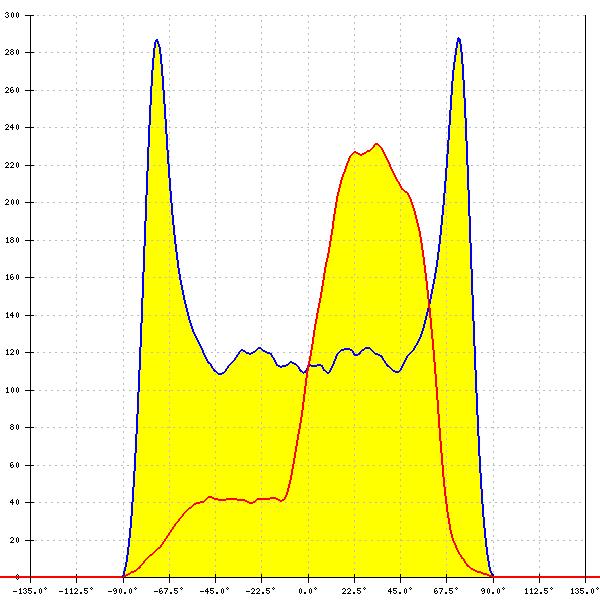

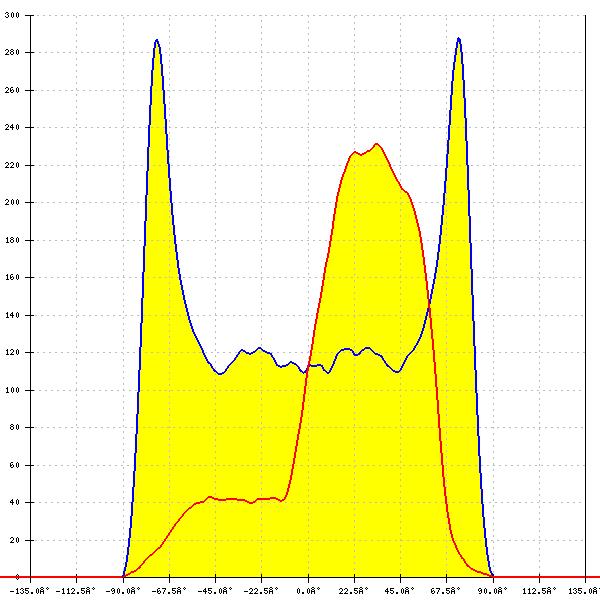

    LED: LUXEON 5050 HE
    FWHM: asymmetric
    Peak intensity: 0.802 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5050 HE
    FWHM: asymmetric
    Peak intensity: 0.556 cd/lm
    Efficiency: 69 %
    LEDs/each optic: 1
    Light colour/type: White

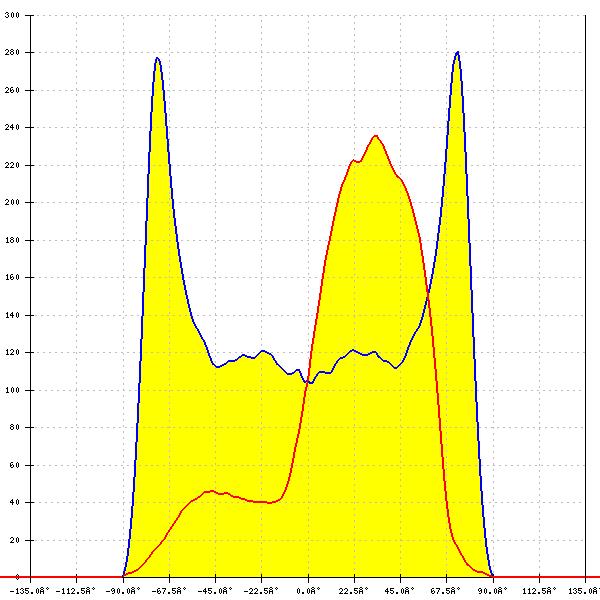

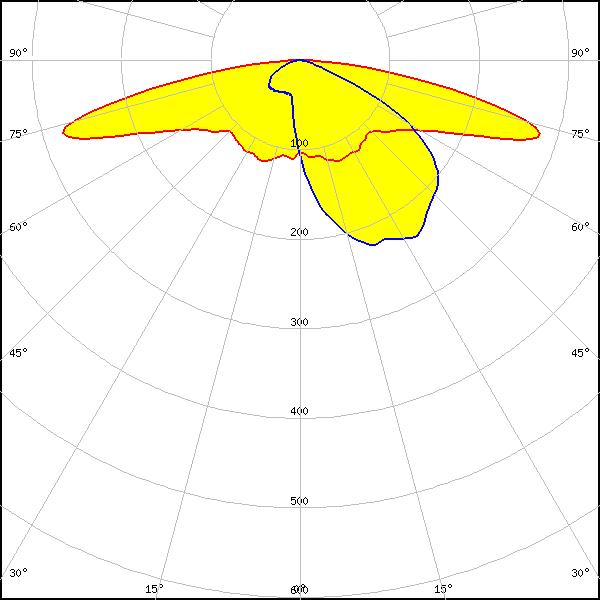

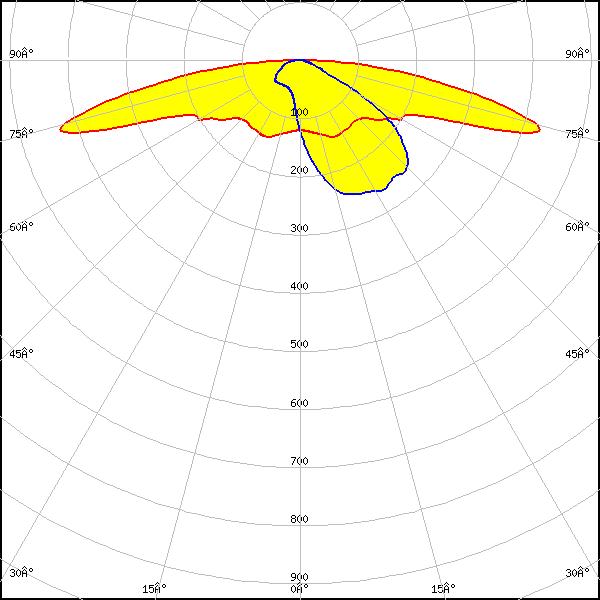

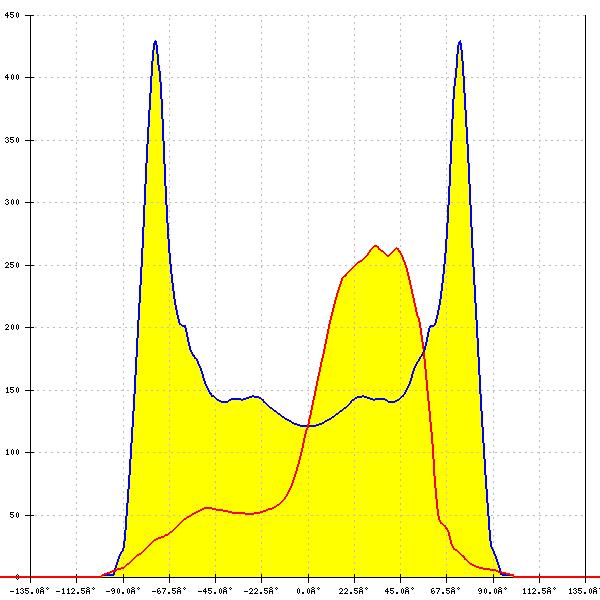

    LED: LUXEON 5050 HE Plus
    FWHM: asymmetric
    Peak intensity: 0.512 cd/lm
    Efficiency: 69 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5050 HE Plus
    FWHM: asymmetric
    Peak intensity: 0.914 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5050 Round LES
    FWHM: asymmetric
    Peak intensity: 0.567 cd/lm
    Efficiency: 69 %
    LEDs/each optic: 1
    Light colour/type: White

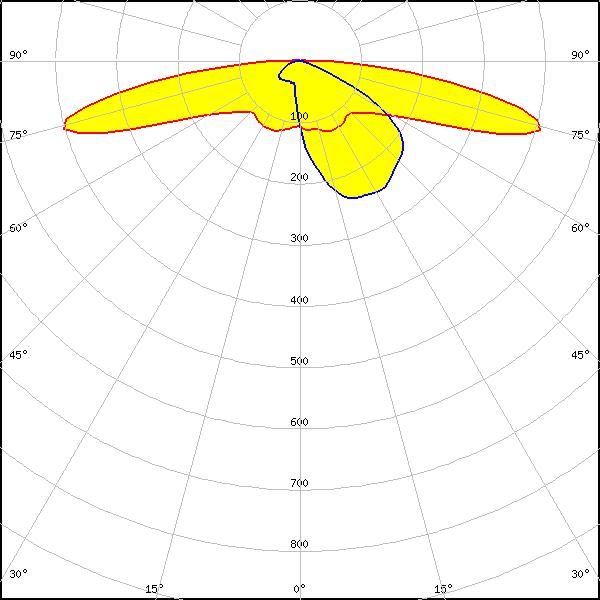

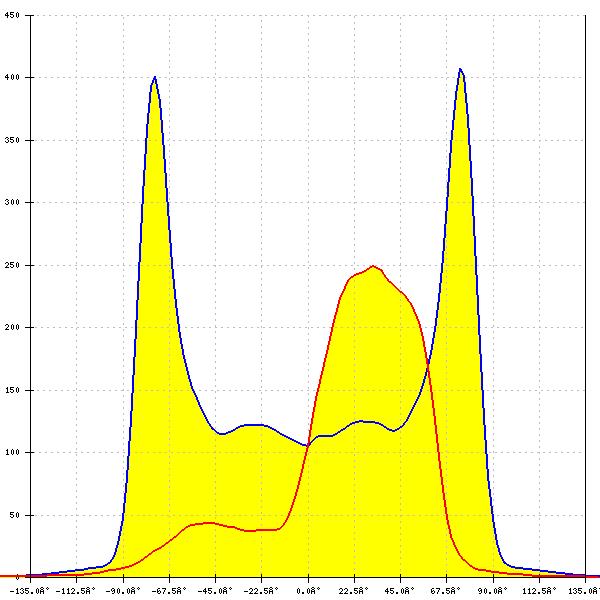

    LED: LUXEON 5050 Square LES
    FWHM: asymmetric
    Peak intensity: 0.519 cd/lm
    Efficiency: 70 %
    LEDs/each optic: 1
    Light colour/type: White

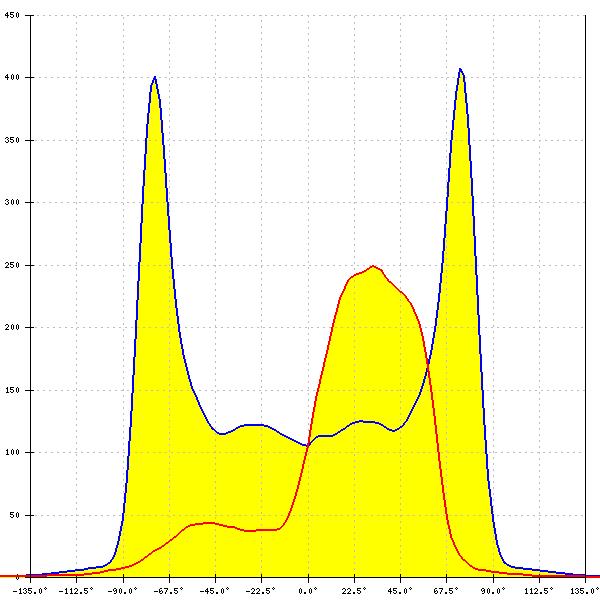

    LED: LUXEON 5050 Square LES
    FWHM: asymmetric
    Peak intensity: 0.779 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

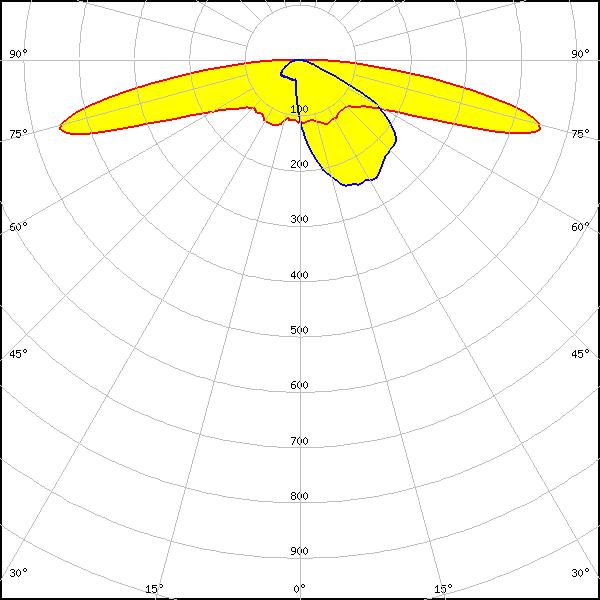

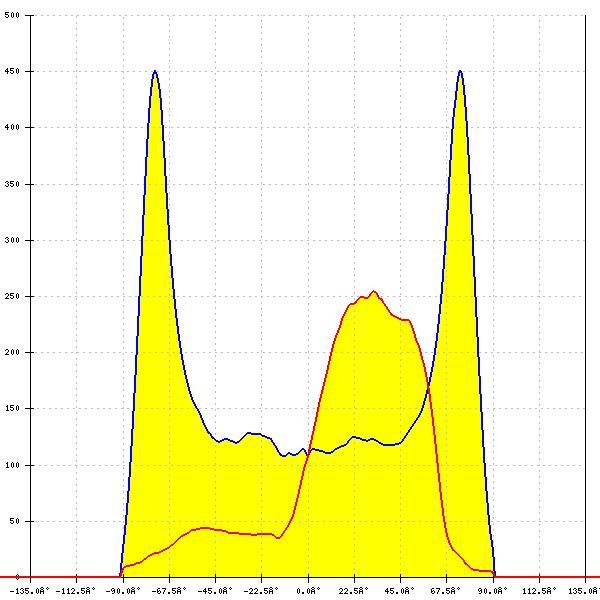

    LED: MP-5050-240E_810E
    FWHM: asymmetric
    Peak intensity: 0.813 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

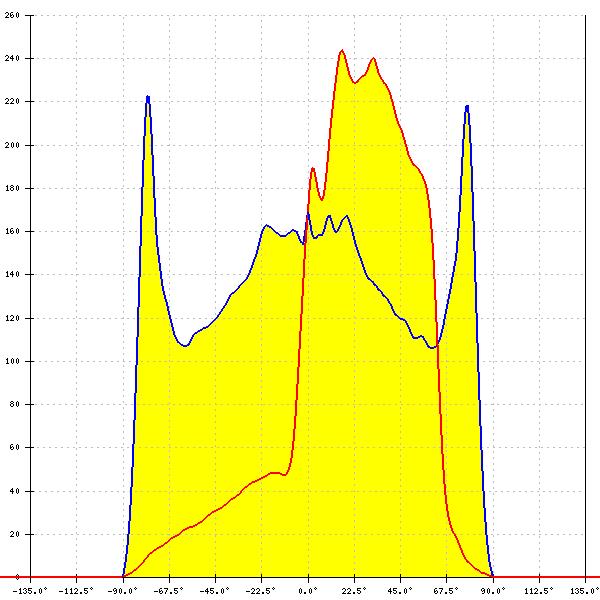

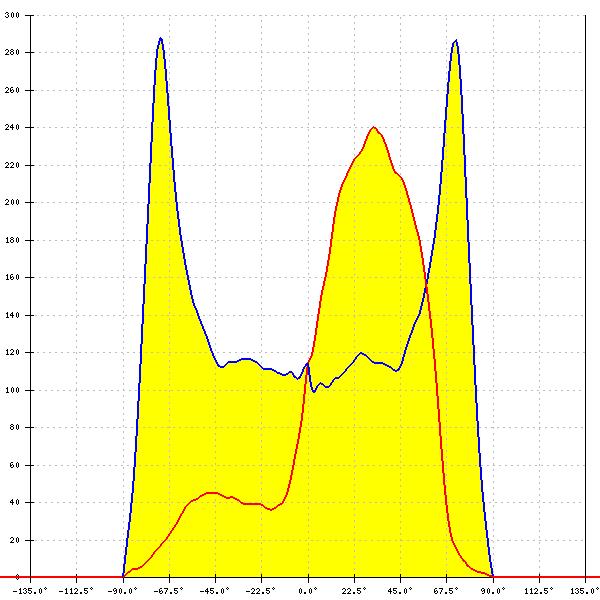

    LED: RecLED 122x50mm 1900lm 730 2x4 Opt G1
    FWHM: asymmetric
    Peak intensity: 0.572 cd/lm
    Efficiency: 66 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RecLED 122x50mm 2x4 5050
    FWHM: asymmetric
    Peak intensity: 0.480 cd/lm
    Efficiency: 69 %
    LEDs/each optic: 1
    Light colour/type: White

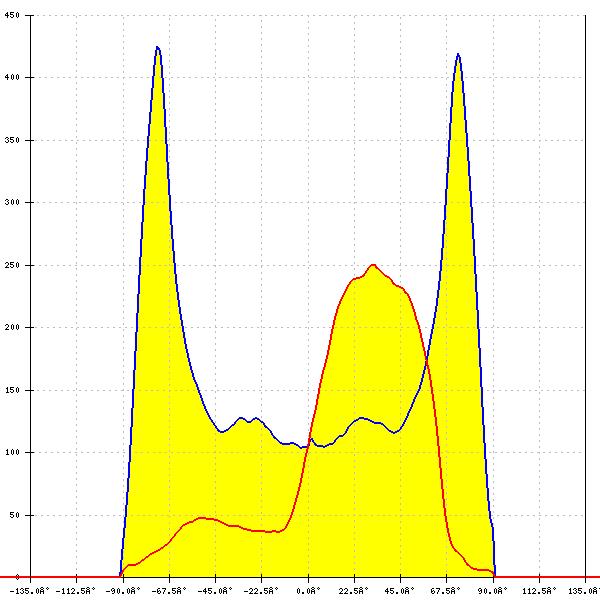

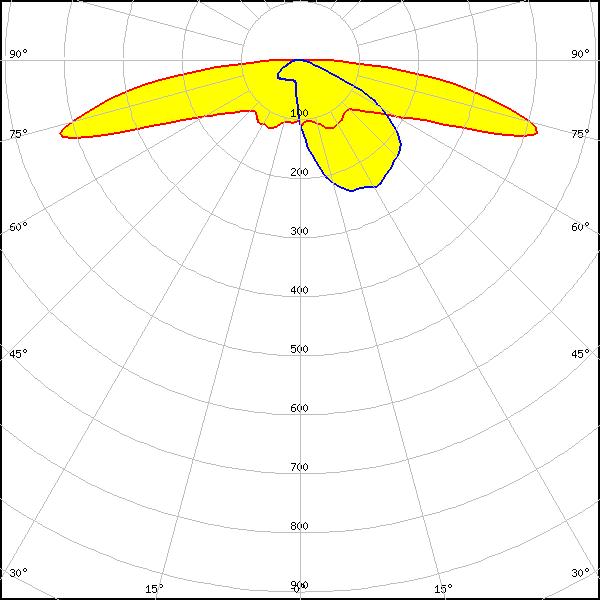

    LED: Duris S8
    FWHM: asymmetric
    Peak intensity: 0.751 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Duris S8
    FWHM: asymmetric
    Peak intensity: 0.480 cd/lm
    Efficiency: 69 %
    LEDs/each optic: 1
    Light colour/type: White

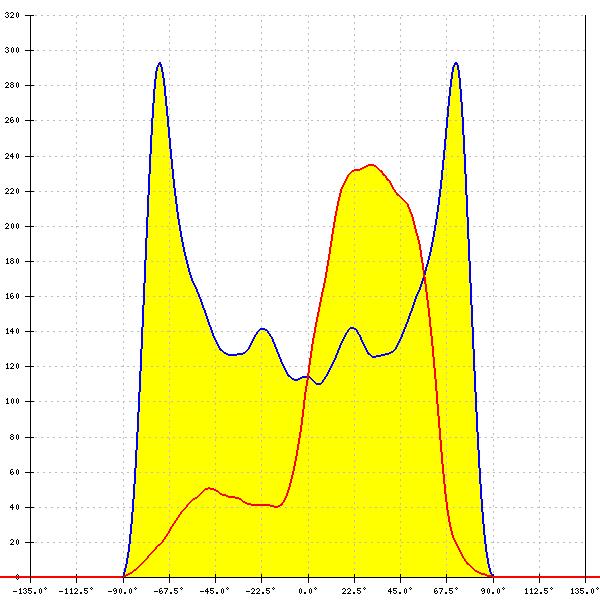

    LED: OSCONIQ S 5050 (Q9LR32)
    FWHM: asymmetric
    Peak intensity: 0.813 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ S 5050 (Q9LR32)
    FWHM: asymmetric
    Peak intensity: 0.477 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ S 5050 SFC
    FWHM: asymmetric
    Peak intensity: 0.596 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ S 5050 SFC
    FWHM: asymmetric
    Peak intensity: 0.993 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

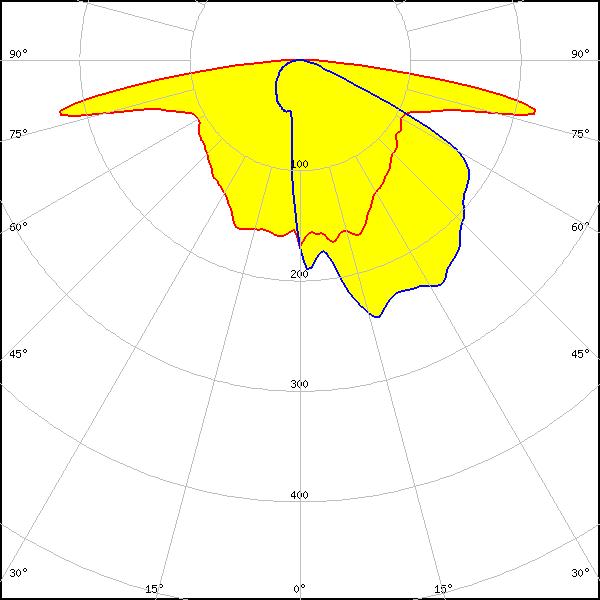

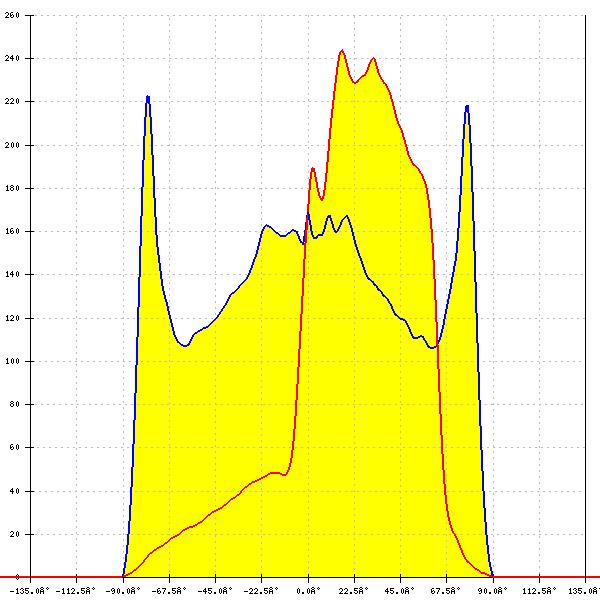

    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: asymmetric
    Peak intensity: 0.572 cd/lm
    Efficiency: 66 %
    LEDs/each optic: 1
    Light colour/type: White

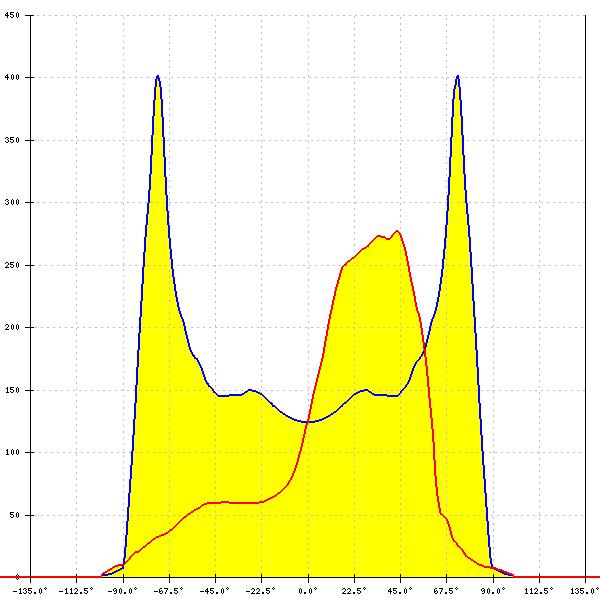

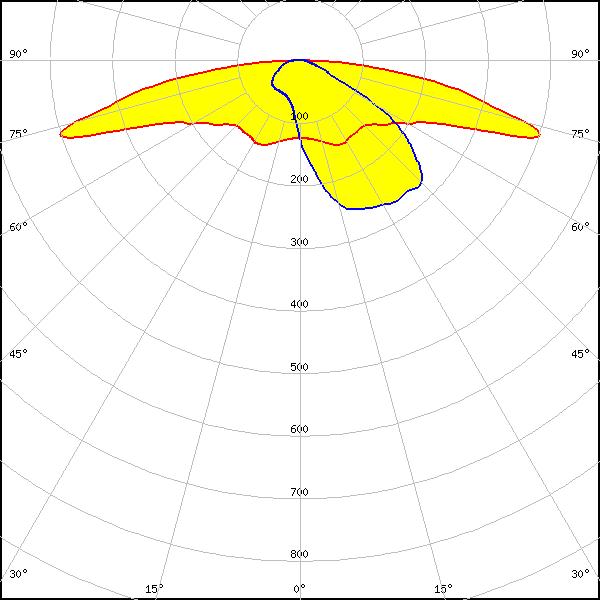

    LED: Fortimo FastFlex LED 2x8 DA (U)HE
    FWHM: asymmetric
    Peak intensity: 0.530 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo FastFlex LED 2x8 DA (U)HE
    FWHM: asymmetric
    Peak intensity: 0.886 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

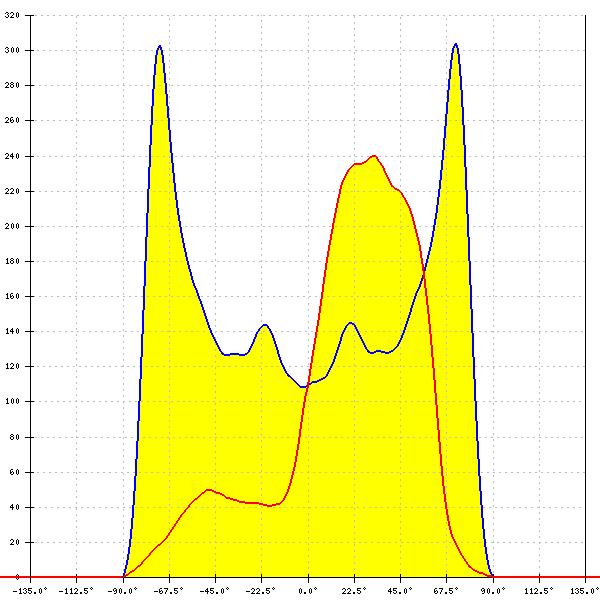

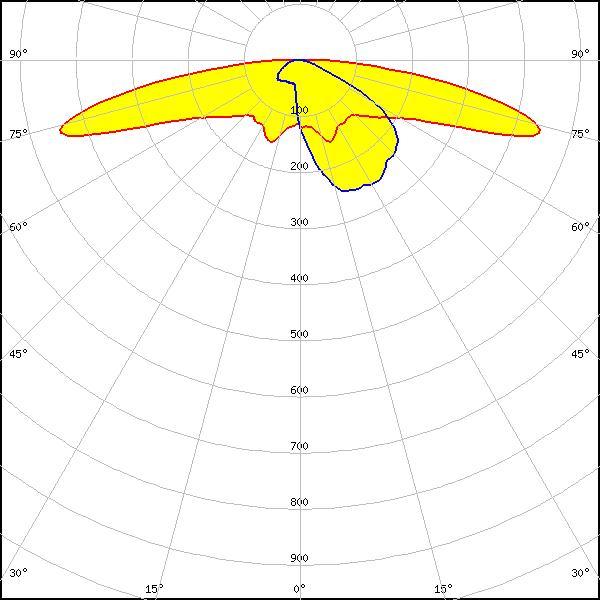

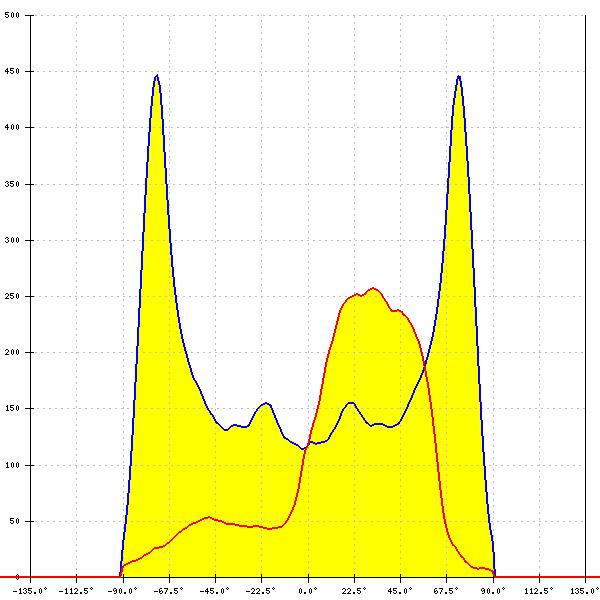

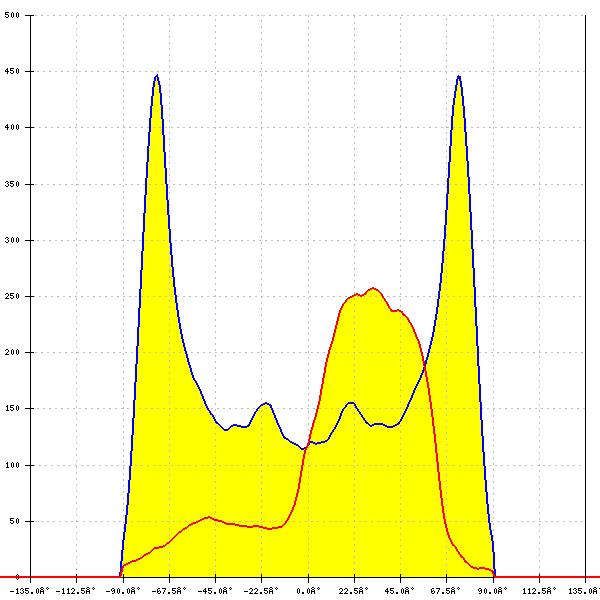

    LED: LH502C
    FWHM: asymmetric
    Peak intensity: 0.831 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

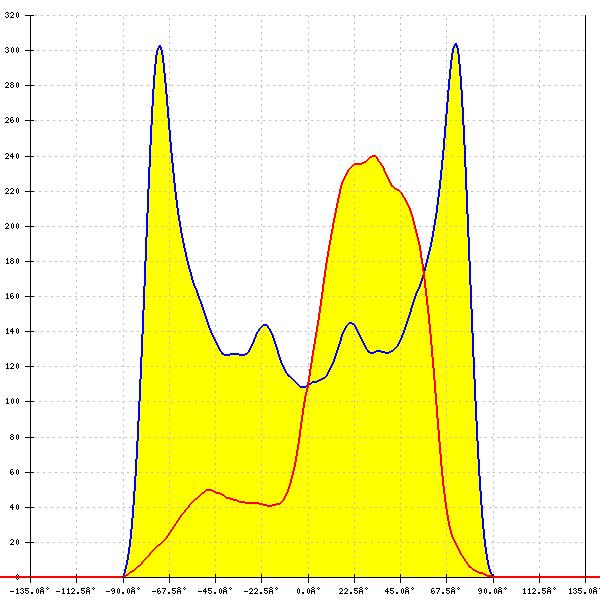

    LED: LH502C
    FWHM: asymmetric
    Peak intensity: 0.494 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 1
    Light colour/type: White

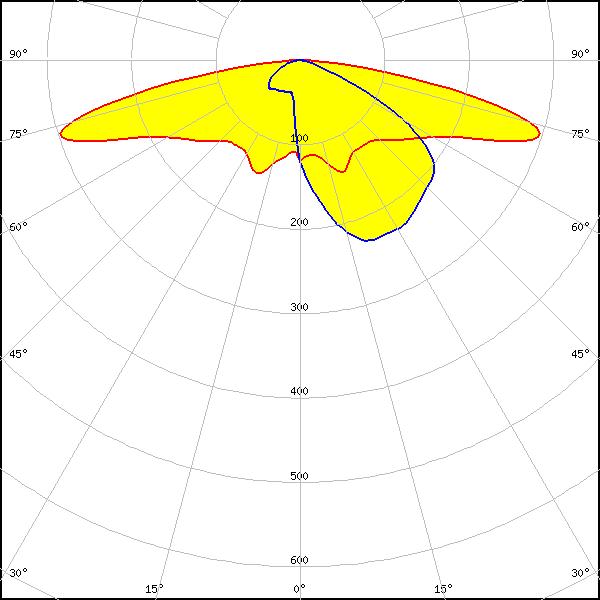

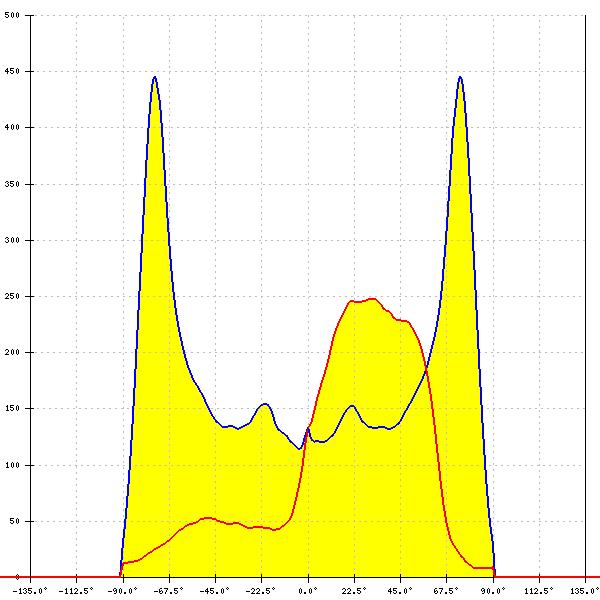

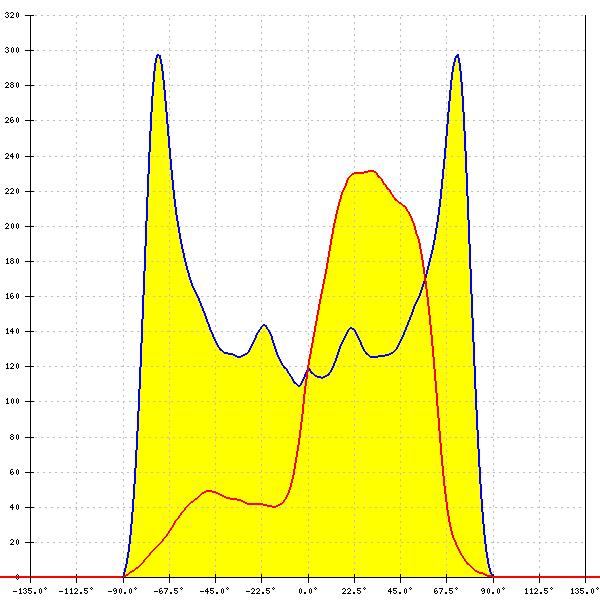

    LED: LH502D
    FWHM: asymmetric
    Peak intensity: 0.847 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

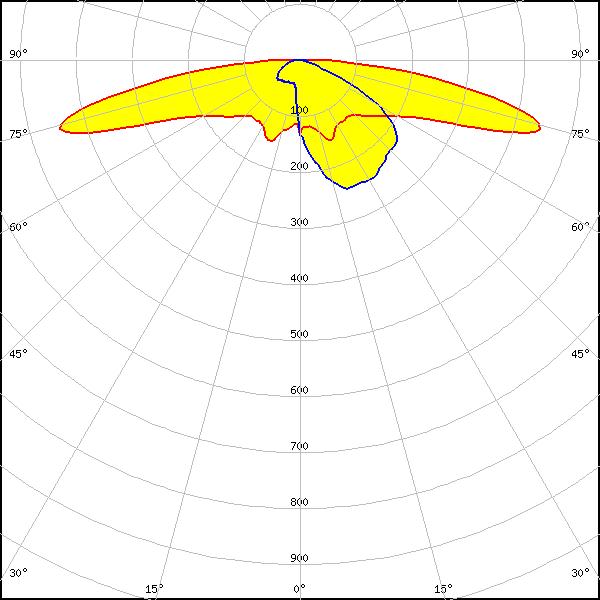

    LED: LH502D
    FWHM: asymmetric
    Peak intensity: 0.490 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 1
    Light colour/type: White

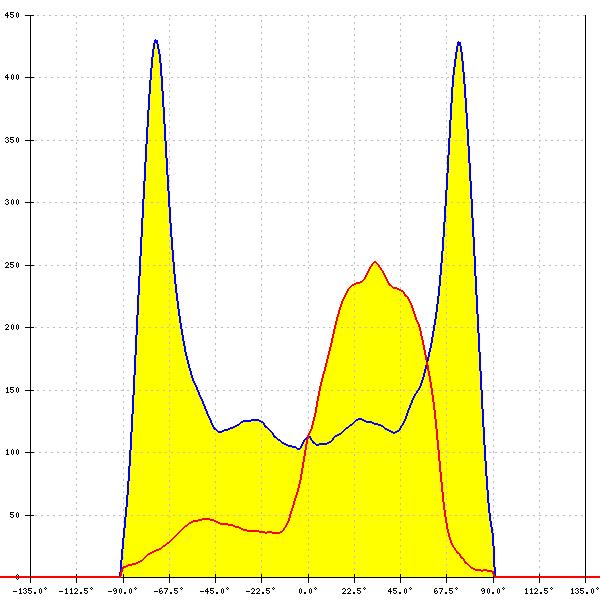

    LED: MJT 5050
    FWHM: asymmetric
    Peak intensity: 0.778 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

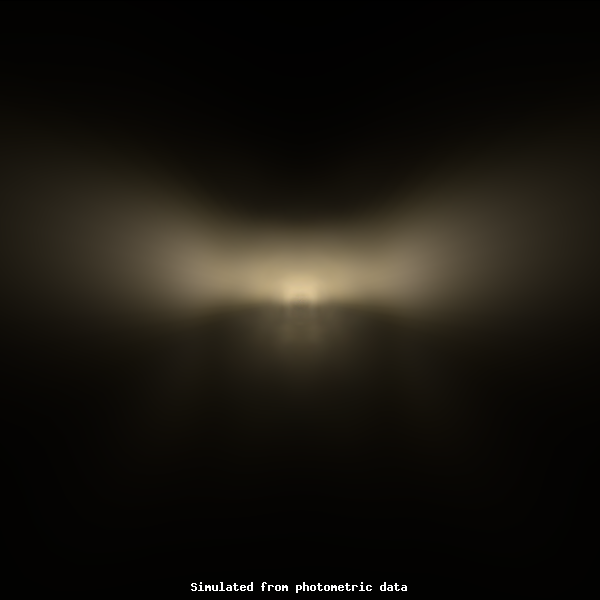

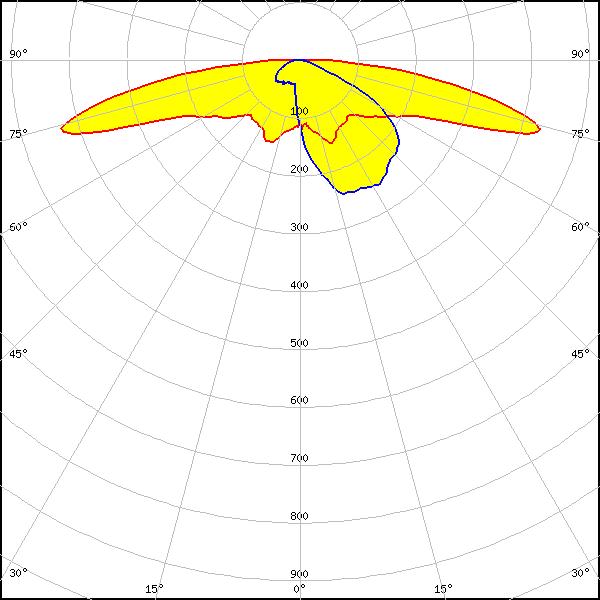

    LED: Seoul 5050 G-Series
    FWHM: asymmetric
    Peak intensity: 0.867 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Seoul 5050 G-Series
    FWHM: asymmetric
    Peak intensity: 0.548 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 1
    Light colour/type: White

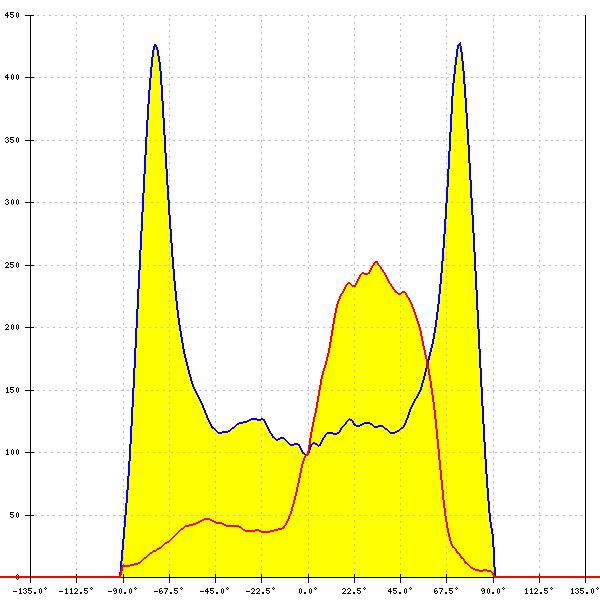

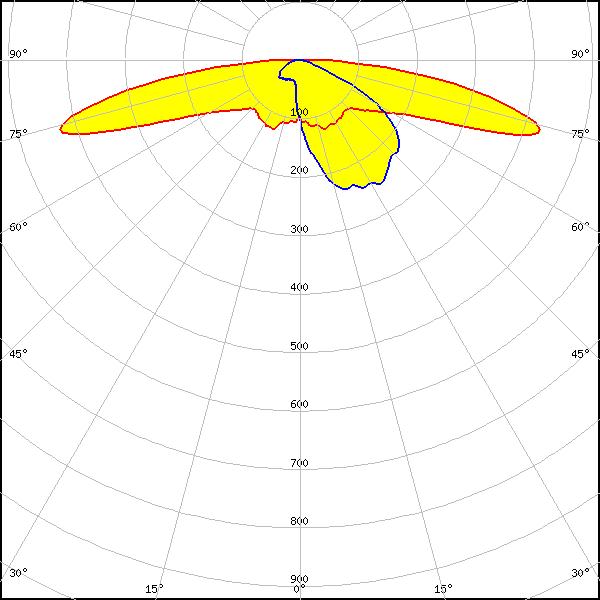

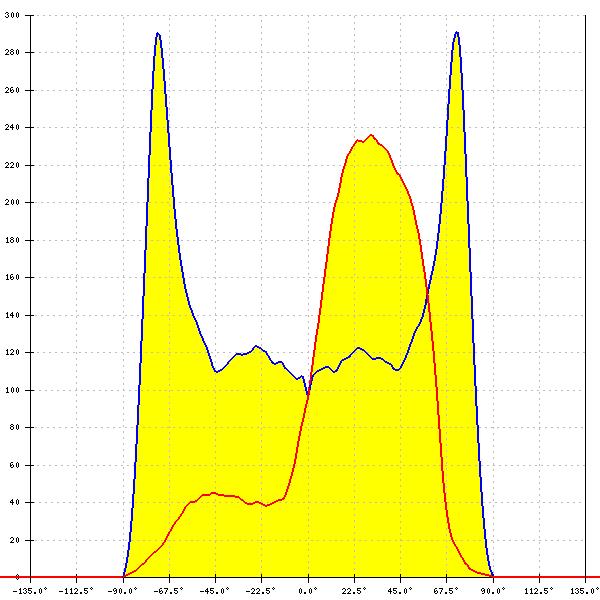

    LED: SEOUL DC 5050 6V
    FWHM: asymmetric
    Peak intensity: 0.790 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SEOUL DC 5050 6V
    FWHM: asymmetric
    Peak intensity: 0.532 cd/lm
    Efficiency: 70 %
    LEDs/each optic: 1
    Light colour/type: White

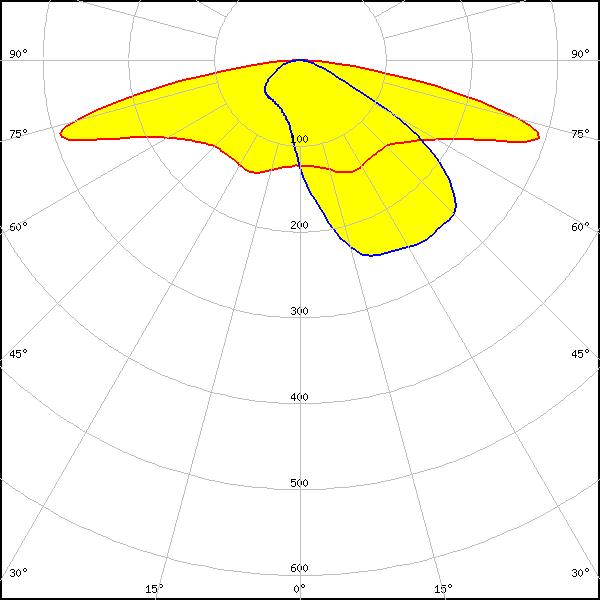

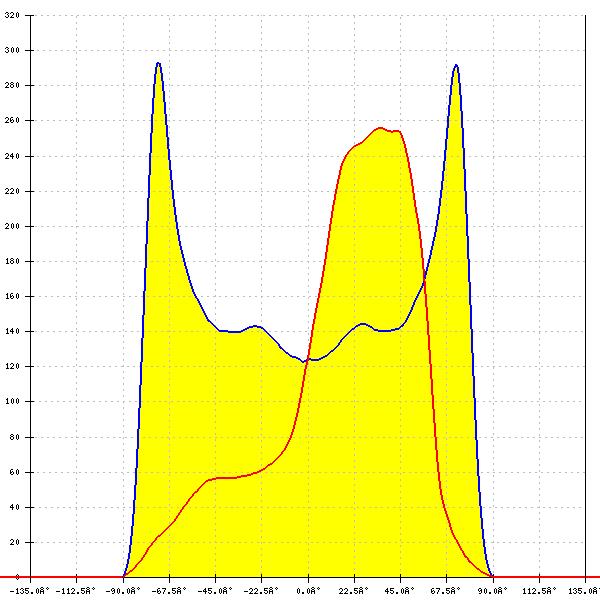

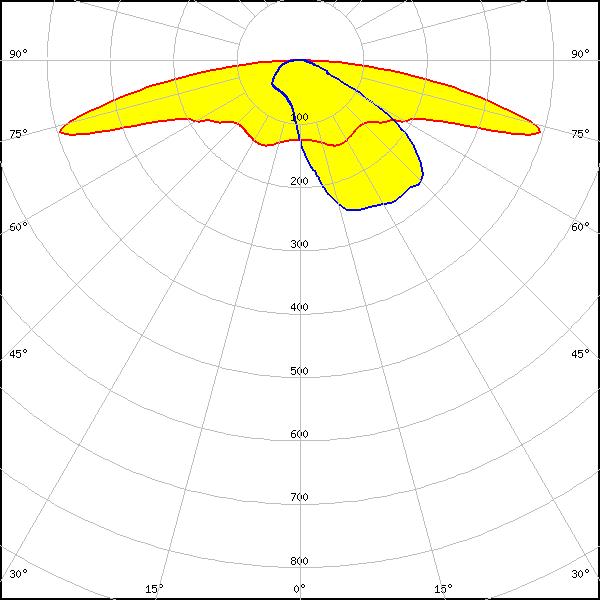

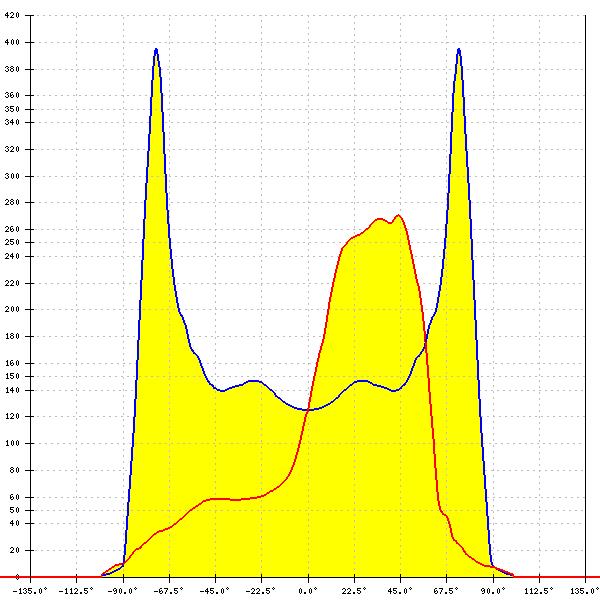

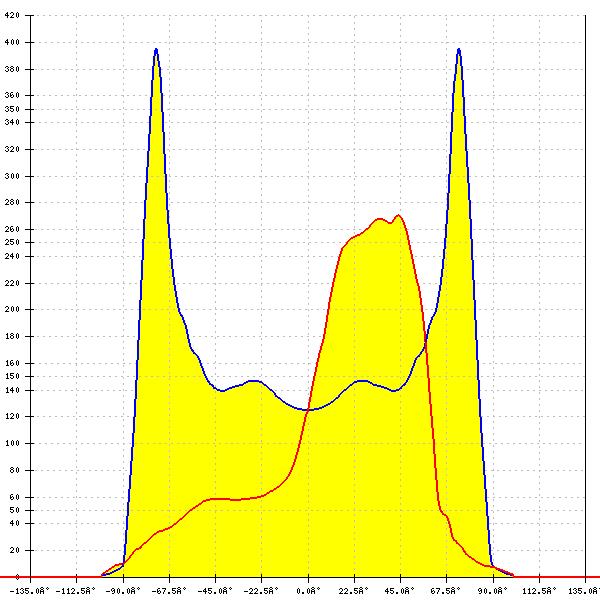

    LED: RLE 2x8 6000lm HP HE EXC3 OTD
    FWHM: asymmetric
    Peak intensity: 0.968 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
