Application example

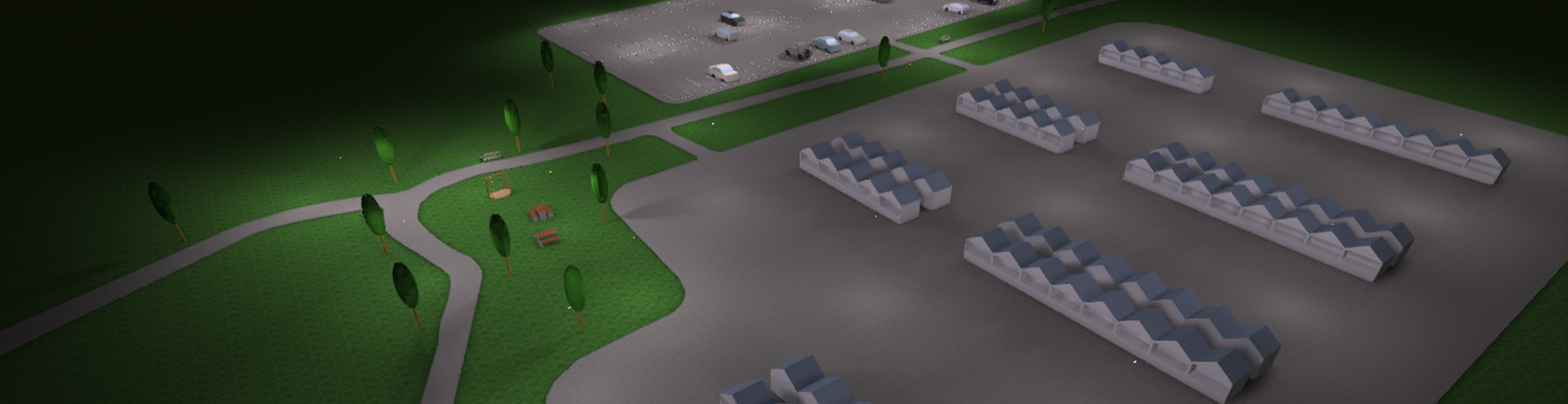

Marketplace and parking lot lighting with STRADA-IP-24
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
Setup & Results
| Application: | Outdoor area lighting |
| Parking lot | |

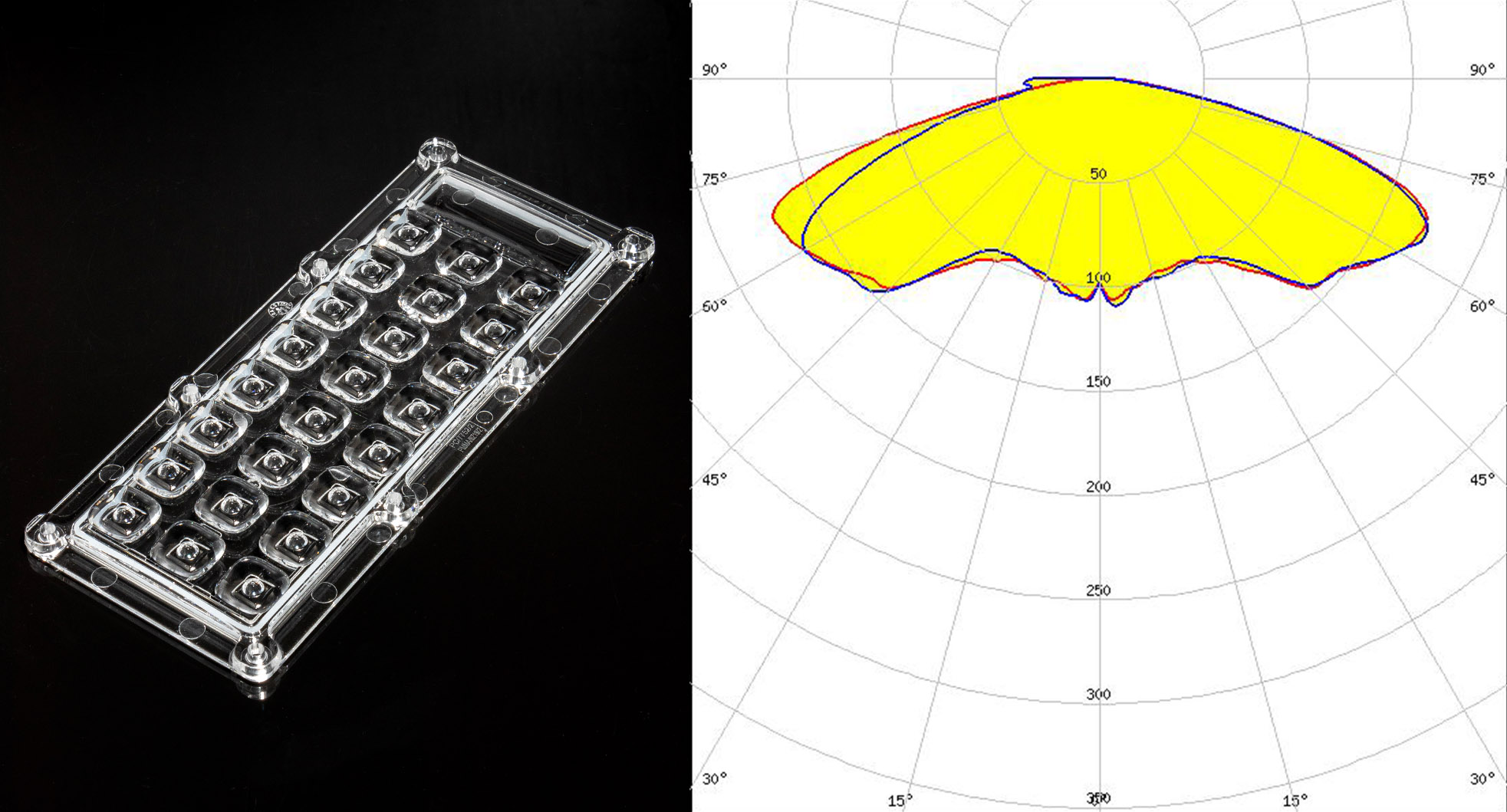

| Optics: | STRADA-IP-24-VSM |
| Luminaire luminous flux: | 12 000 lm |
| Installation height: | 6 m |
| Spacing: | 21 x 17 m |
| Average: | 45 lx |
| Uo: | 0.75 (without objects) |
| Luminous efficacy | 129 lm/W |
| Marketplace | |
| Optics: | STRADA-IP-24-T4-B |
| Luminaire luminous flux: | 17 000 lm |
| Installation height: | 8 m |
| Spacing: | 22 x 26 m |
| Average: | 18 lx |
| Uo: | 0.59 (without objects) |
| Luminous efficacy | 144 lm/W |
| CS18220_STRADA-IP-24-VSM | Variant made from PMMA | |
| CS17761_STRADA-IP-24-VSM-PC | Variant made from PC | |
| CS18286_STRADA-IP-24-T4-B | Variant made from PMMA | |
| CS17759_STRADA-IP-24-T4-B-PC | COMING - Variant made from PC |
