APPLICATION EXAMPLE

M4 Street lighting with STRADELLA-8-HV-CSP-LW1


For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

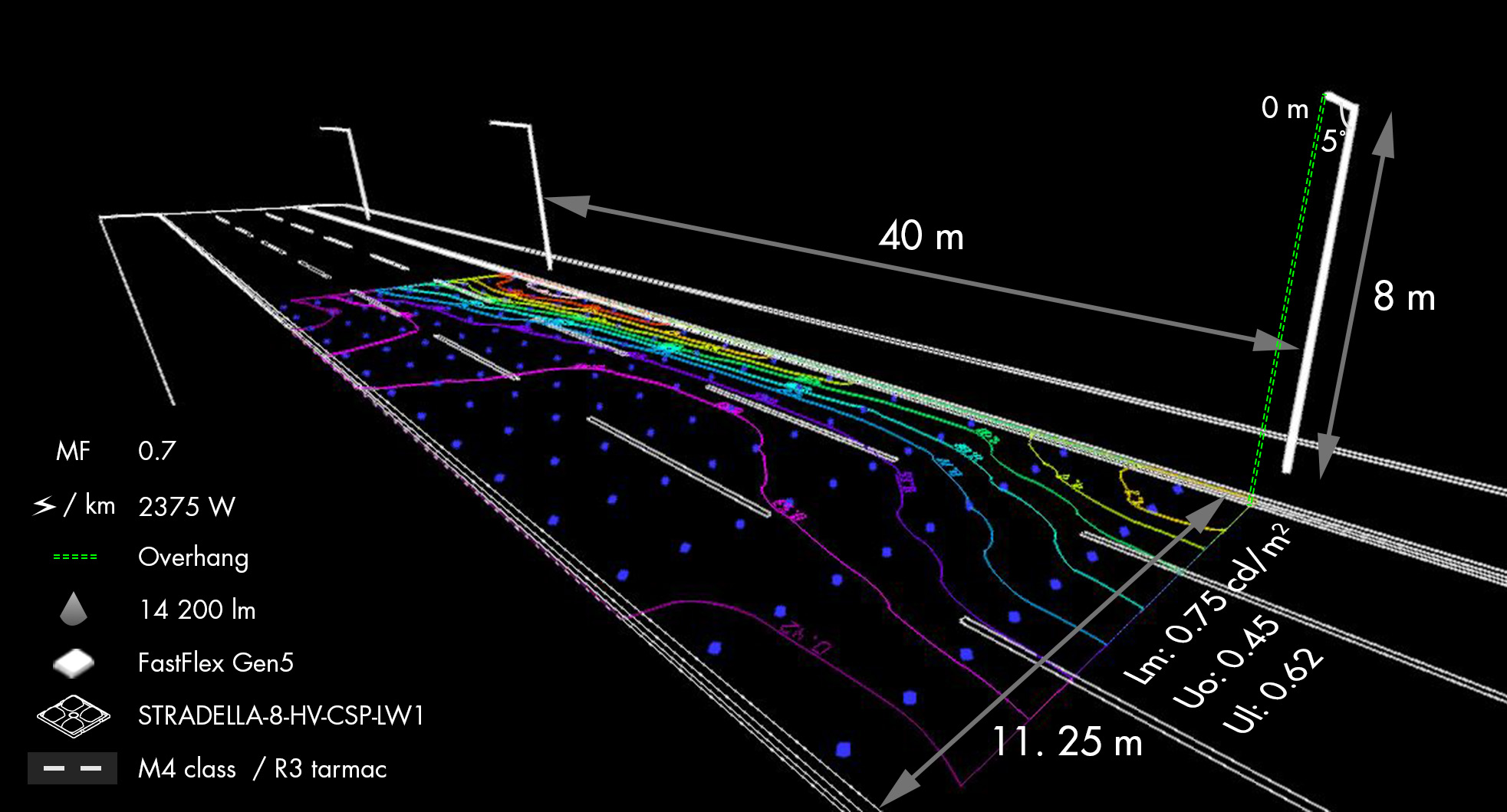

SETUP:

Application:Street lighting
Roadway class:M4
Tarmac:R3

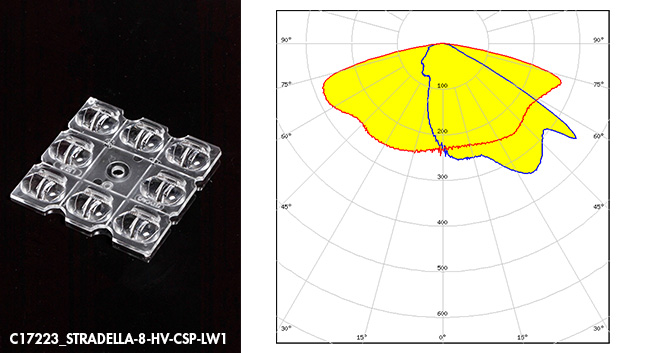

Optics:STRADELLA-8-HV-CSP-LW1
LED:FastFlex Gen5
Road width:11.25 m
Number of lanes:3
Arrangement:Single side, bottom
Pole distance:40 m
Mounting height:8 m
Overhang:0 m
Boom angle:
Boom lenght:2 m
Maintenance factor:0.7
Total lumen output/luminaire:14 200 lm
Power consumption/km:2375 W
Energy consumption/year:380 kWh

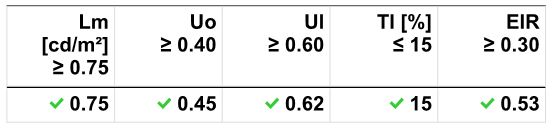

RESULTS (M4 class):


M4 Street lighting with STRADELLA-8-HV-CSP-LW1
