Application example
M3 street lighting with C18437_STRADELLA-8-HV-ME3
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

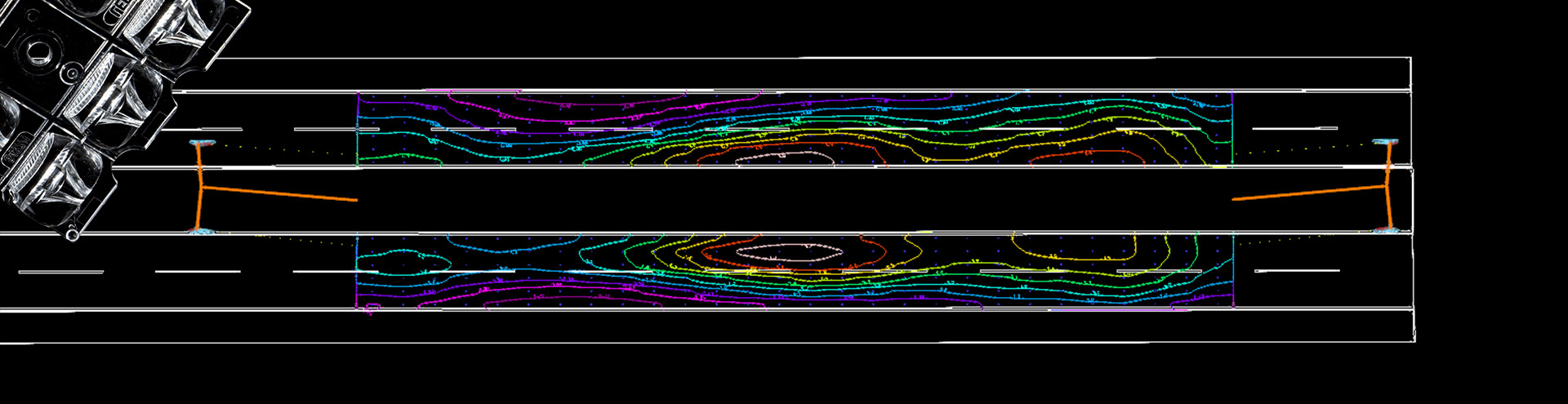

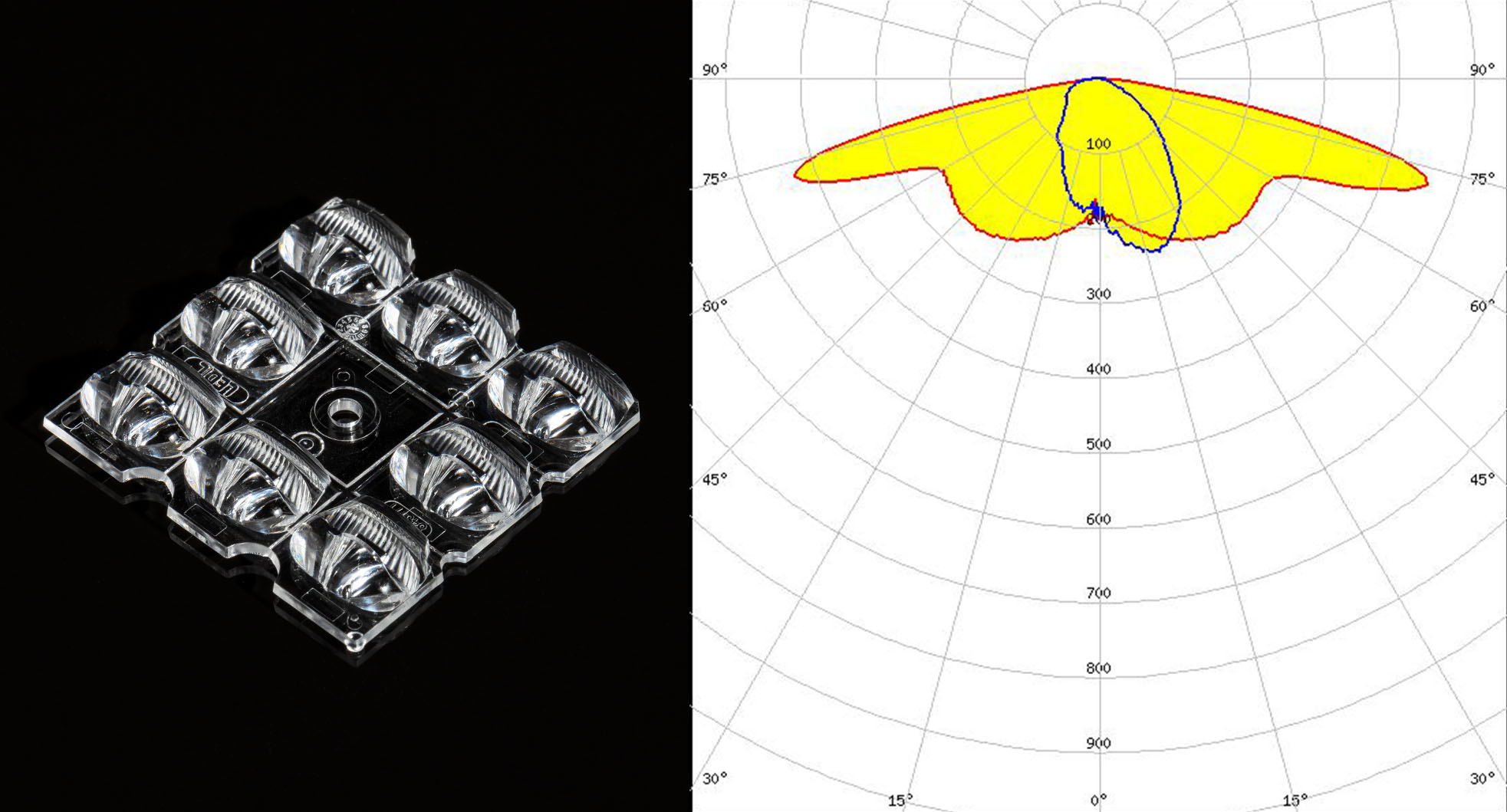

STRADELLA-8-HV-ME3 in a nutshell
– Fulfills M3 and M4 requirements with ultra long pole distance
– For up to 1:6 pole height/distance ratio
– Very energy efficient street lighting
– Low TI% and high Ul
– Made from PMMA
– 49.5 x 49.5 mm

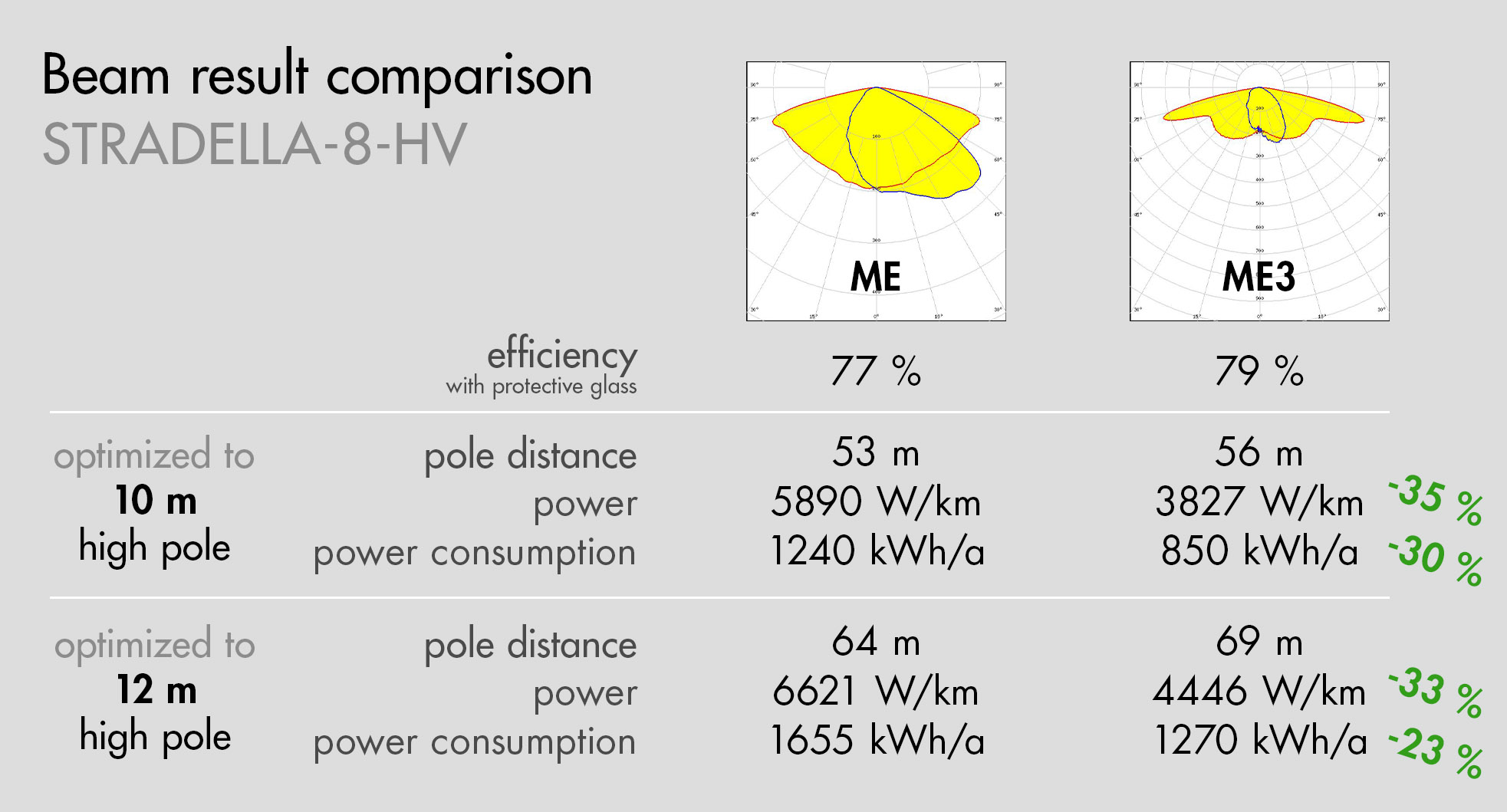

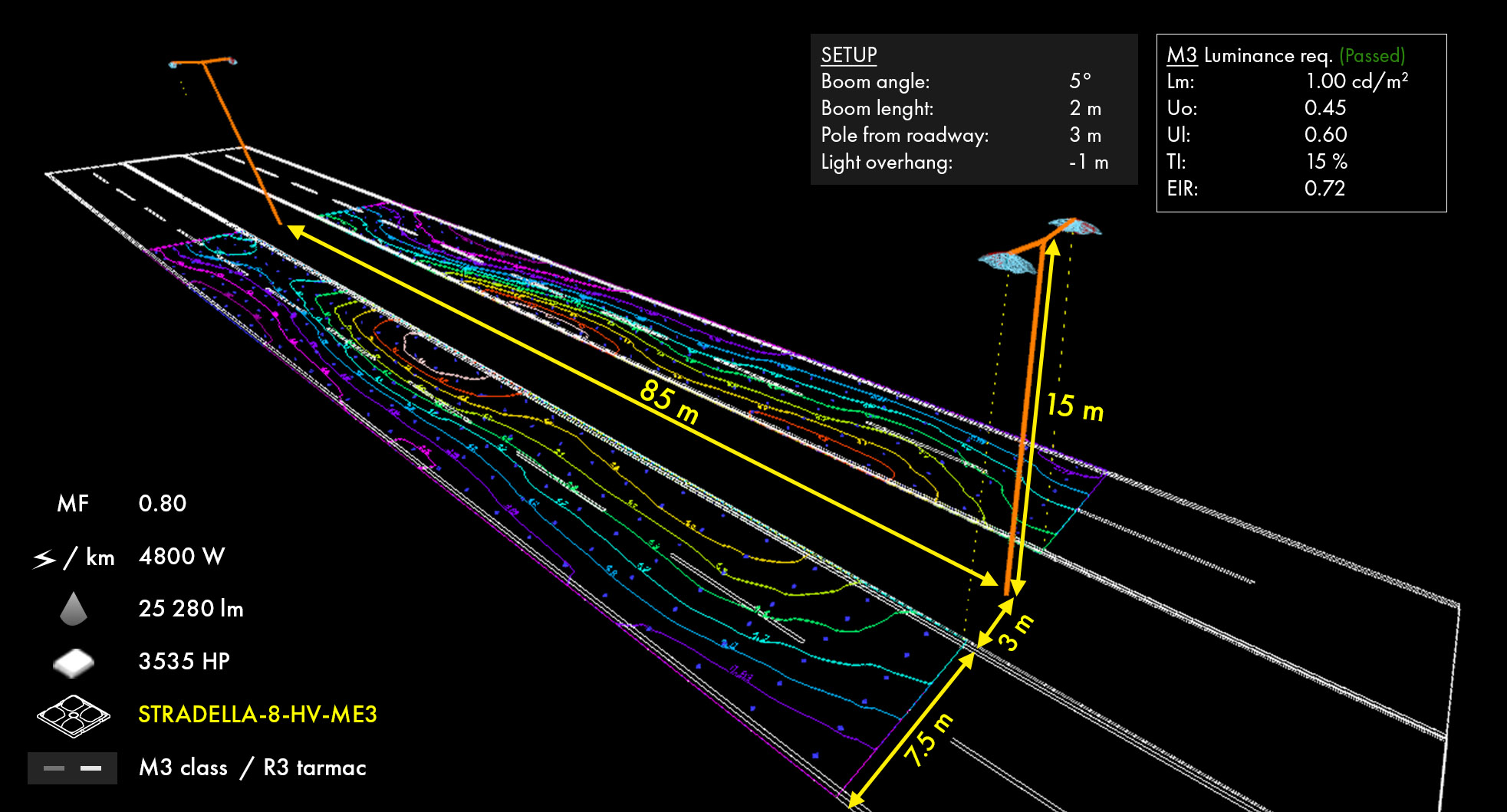

Setup:
| Application: | Street lighting |
| Roadway class: | M3 |
| Tarmac: | R3 |
| Optics: | STRADELLA-8-HV-ME3 |
| LED: | Flat 5050 |
| Road width: | 7.5 + 7.5 m |
| Number of lanes: | 4 |
| Arrangement: | Median |
| Pole distance: | 85 m |
| Mounting heigth: | 15 m |
| Overhang: | -1 m |
| Boom angle: | 5° |
| Boom length: | 2 m |
| Pole distance from roadway: | 3 m |
| Maintenance factor: | 0.8 |
| Total lumen output/luminaire: | 25 280 lm |
| Power consumption/km: | 4800 W |
| Energy consumption/year: | 1600 kWh |
Results:
| Lm: | 1.00 cd/m2 |
| Uo: | 0.45 |
| Ul: | 0.60 |
| TI: | 15 % |
| EIR: | 0.72 |
M3 street lighting with C18437_STRADELLA-8-HV-ME3
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
