C18437_STRADELLA-8-HV-ME3

Print

Beam capable to achieve ultra-long pole distances with excellent longitudinal luminance uniformity fulfilling EN13201 M-class requirements where road width is equal to or less the pole height.

Specification
  • Dimensions:
    50 x  50 mm
  • Height:
    5.61 mm
  • Fastening:
    pin, screw
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    800 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    6.6 kg
  • MPQ:
    160 pcs
  • MOQ:
    160 pcs
  • MOQ size:
    480 x 280 x 80 mm
  • MOQ weight:
    1.6 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






  • PCB drawing
  • PRODUCT NAME(S):
    C18437_STRADELLA-8-HV-ME3

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

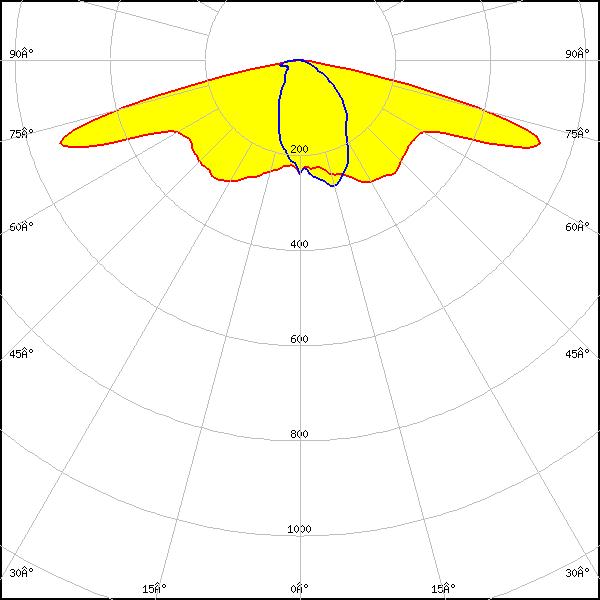

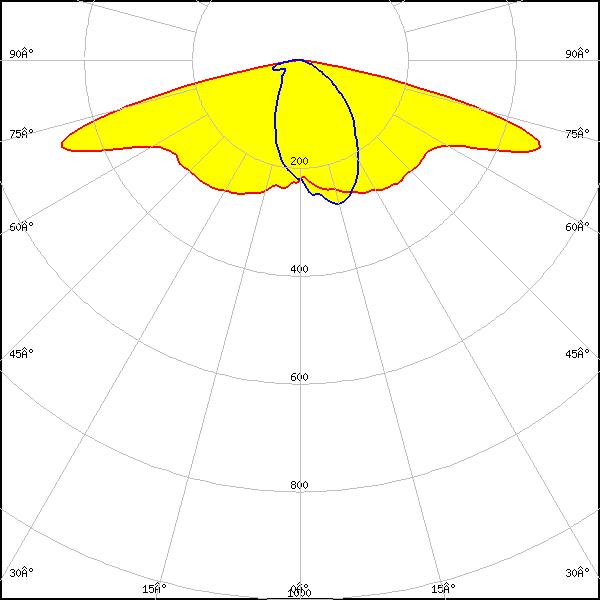

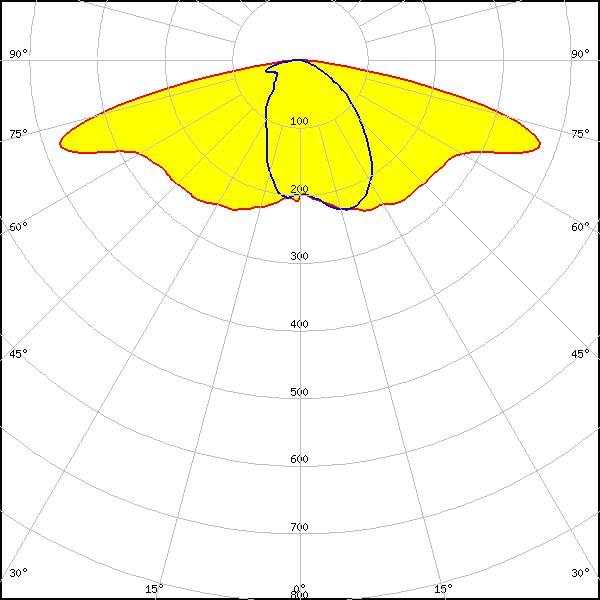

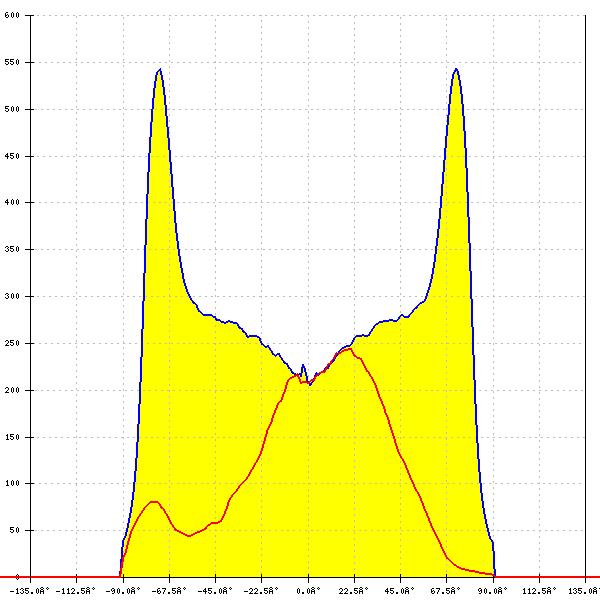

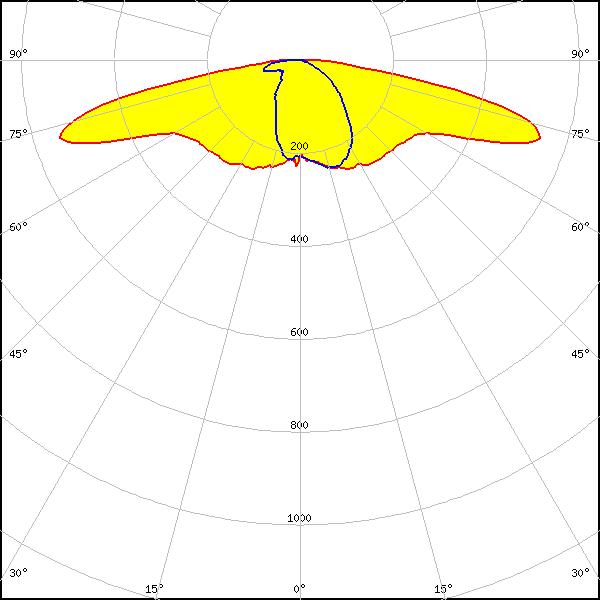

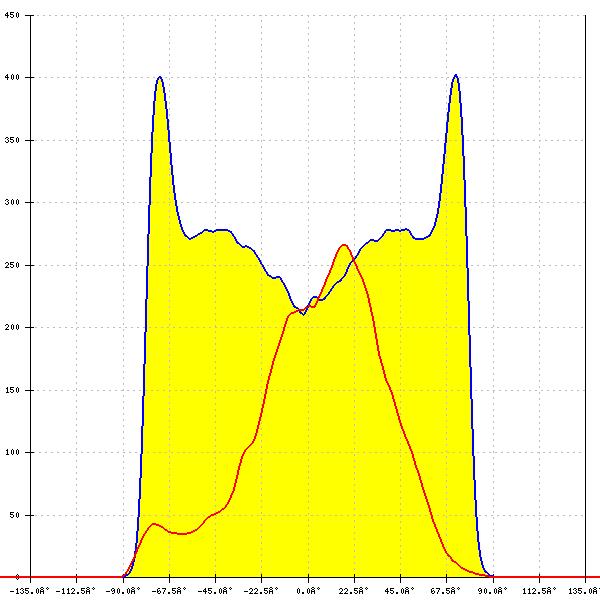

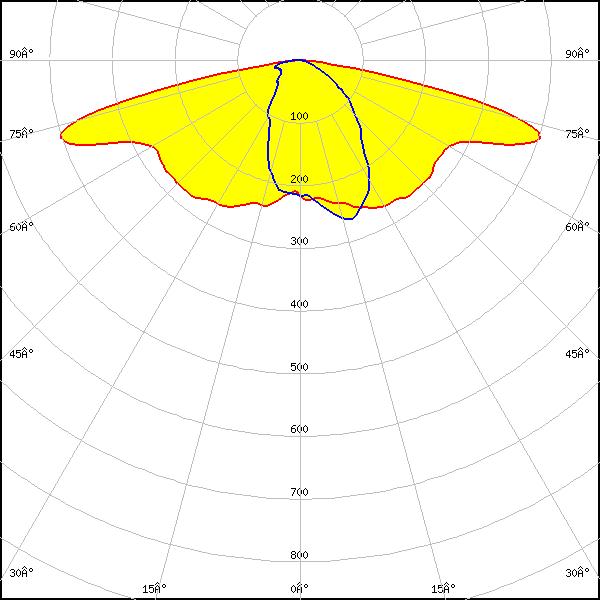

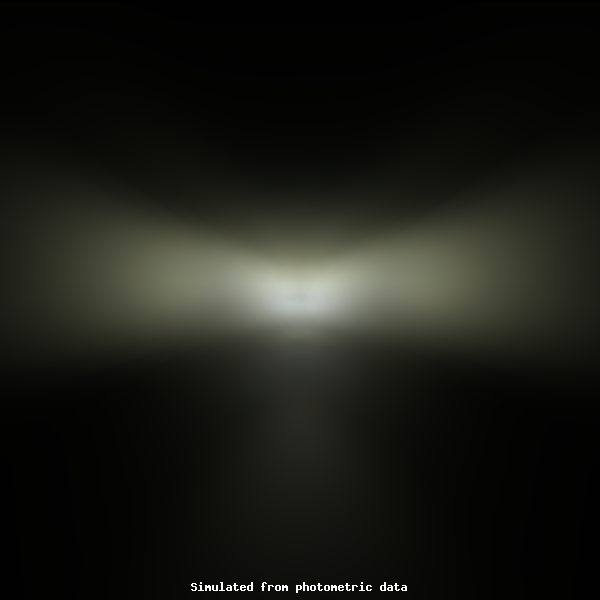

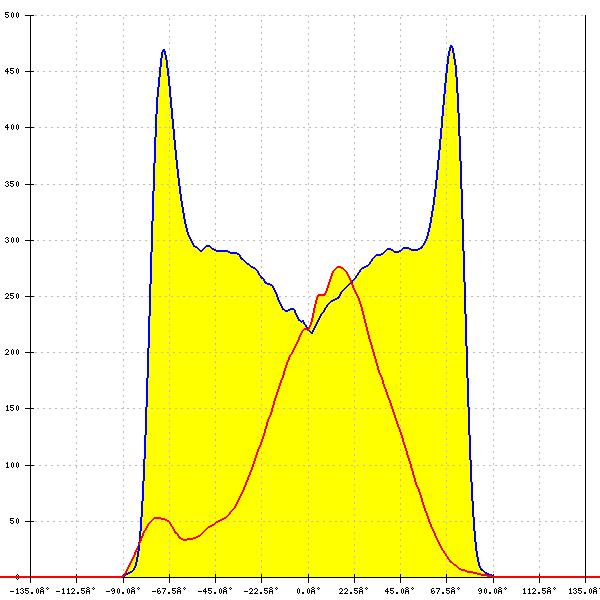

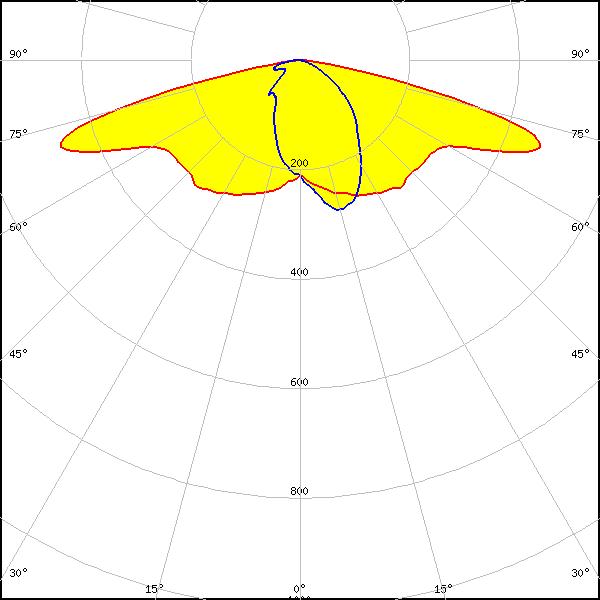

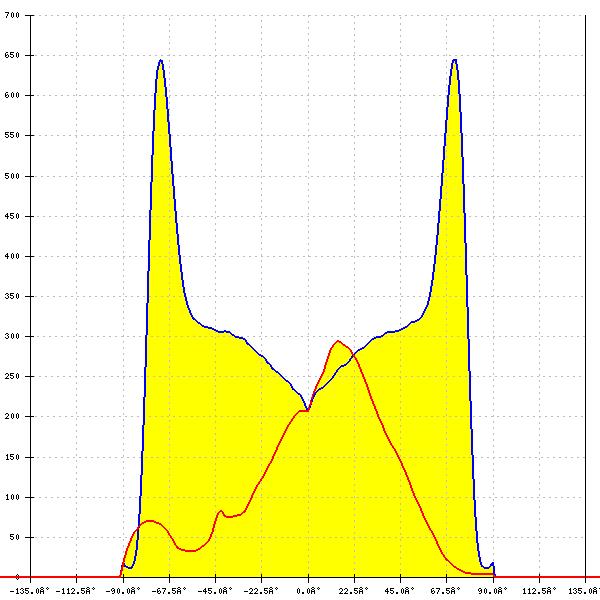

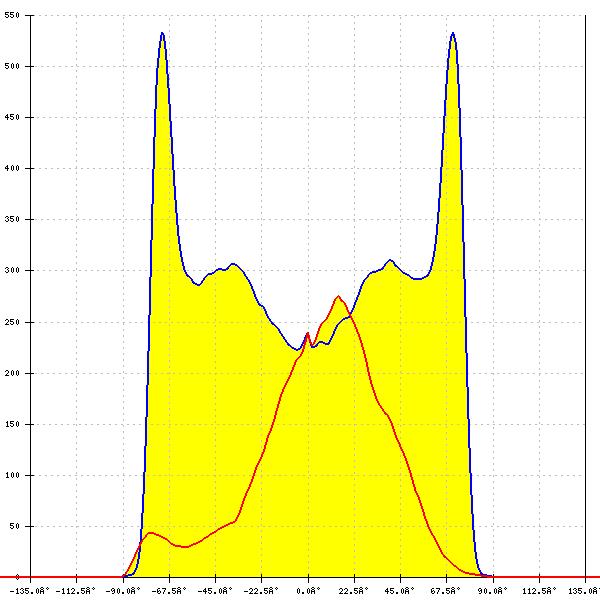

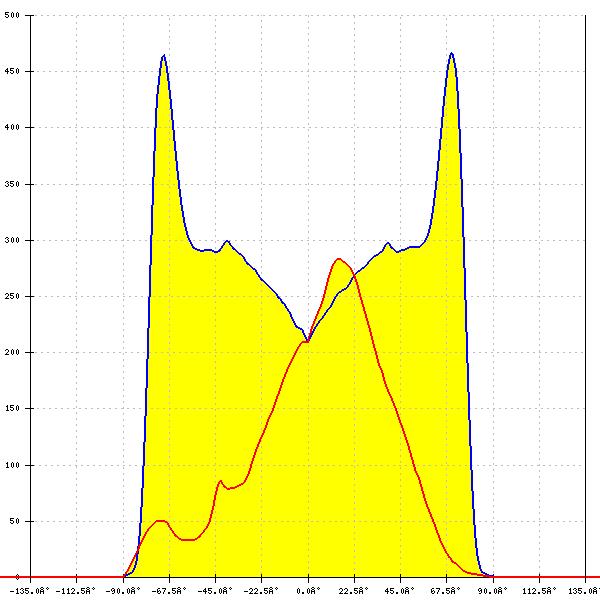

Optical results

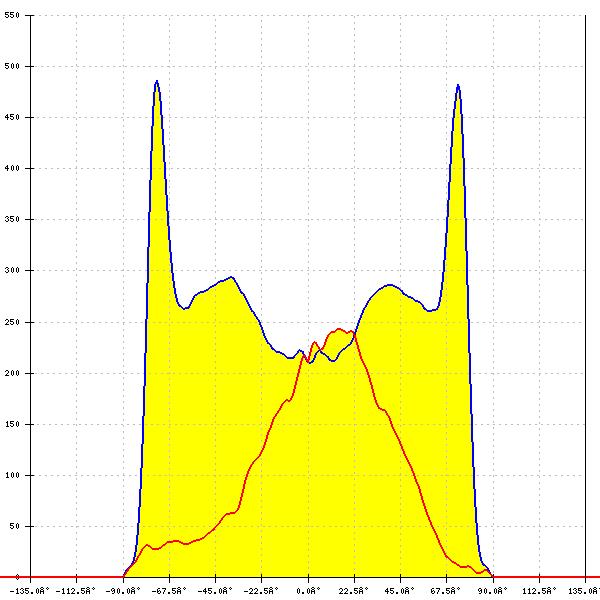

LED: XE-G
FWHM: asymmetric
Peak intensity: 0.707 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-G2 HE
FWHM: asymmetric
Peak intensity: 0.390 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-G3
FWHM: asymmetric
Peak intensity: 0.861 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-G3
FWHM: asymmetric
Peak intensity: 0.646 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White

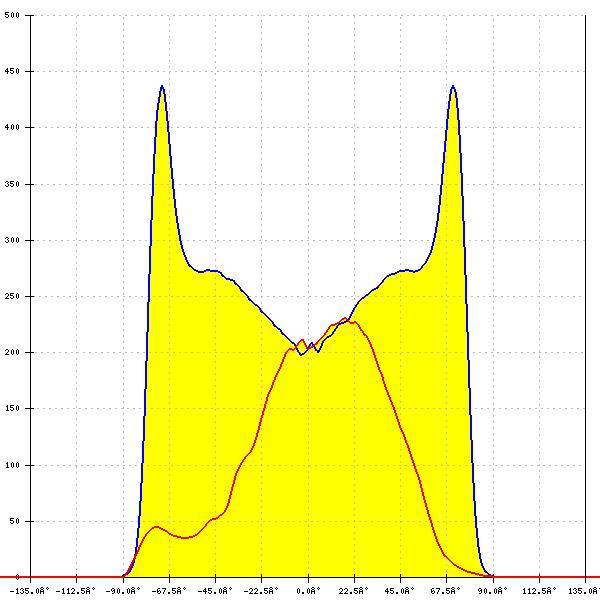

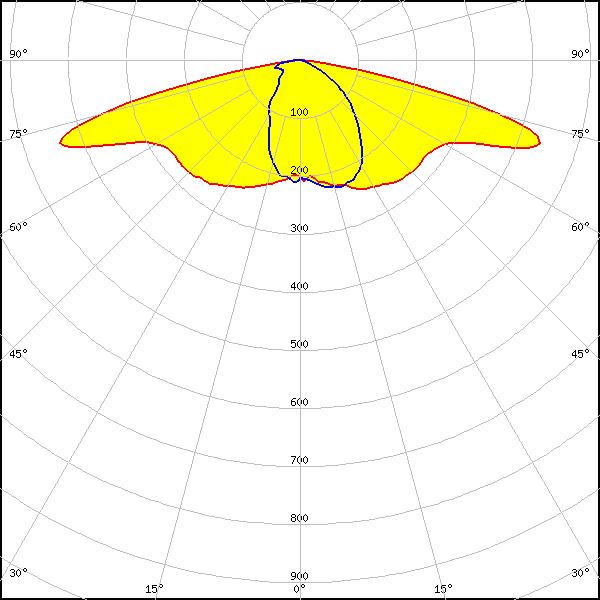

LED: XP-G4
FWHM: asymmetric
Peak intensity: 0.722 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour/type: White
LED: XQ-E HI
FWHM: asymmetric
Peak intensity: 0.847 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON 3030 2D (Round LES)
FWHM: asymmetric
Peak intensity: 0.953 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON HL1Z
FWHM: asymmetric
Peak intensity: 1.035 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON HL2X
FWHM: asymmetric
Peak intensity: 0.574 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour/type: White
LED: NF2x757G
FWHM: asymmetric
Peak intensity: 0.596 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White
LED: NVSW219F
FWHM: asymmetric
Peak intensity: 0.462 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: White
LED: NVSxE21A
FWHM: asymmetric
Peak intensity: 1.126 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: OSCONIQ S 3030 (QSLMS2.EM)
FWHM: asymmetric
Peak intensity: 0.623 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White
LED: OSLON Pure 1414
FWHM: asymmetric
Peak intensity: 1.277 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: OSLON Pure 1414
FWHM: asymmetric
Peak intensity: 0.677 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour/type: White
LED: OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity: 0.546 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour/type: White
LED: OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity: 0.937 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo FastFlex LED 4x8up PR G5
FWHM: asymmetric
Peak intensity: 0.560 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo FastFlex LED 4x8up PR G5
FWHM: asymmetric
Peak intensity: 0.891 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: LH151B
FWHM: asymmetric
Peak intensity: 1.085 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White
LED: LH351C
FWHM: asymmetric
Peak intensity: 0.467 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White
LED: LM301B
FWHM: asymmetric
Peak intensity: 0.604 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White
LED: LM301D
FWHM: asymmetric
Peak intensity: 0.565 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White
LED: LM301Z Plus
FWHM: asymmetric
Peak intensity: 0.644 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White

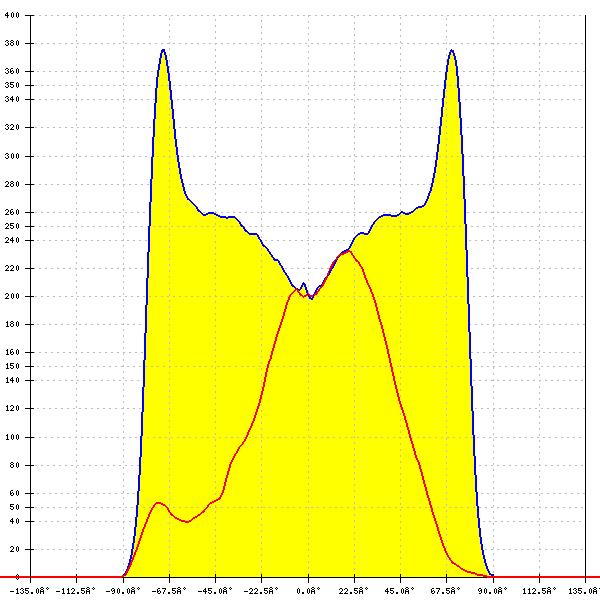

LED: Z5M4
FWHM: asymmetric
Peak intensity: 0.774 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
