APPLICATION EXAMPLE

M3 Street lighting with STRADA-2X2-LM1


For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

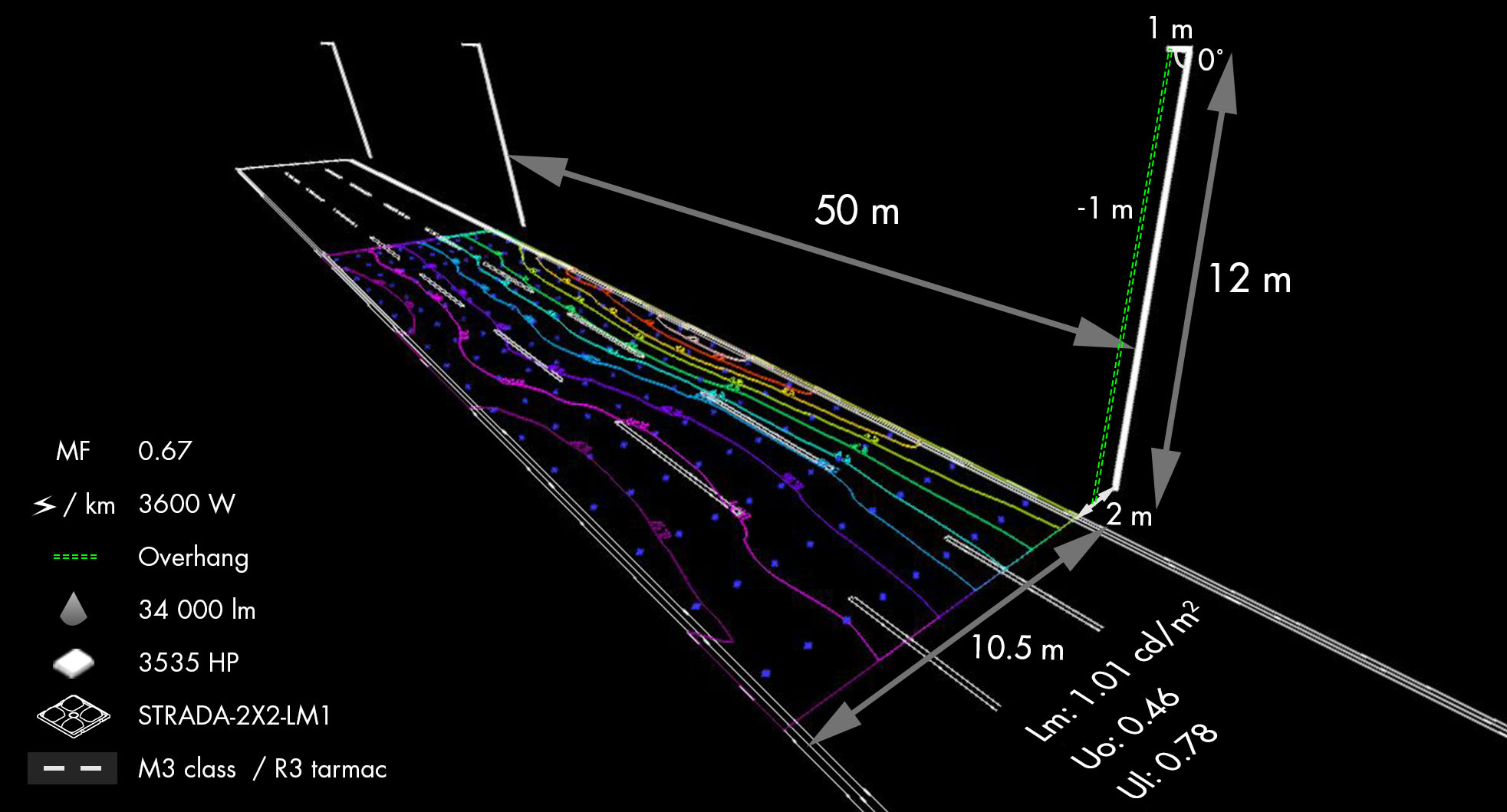

SETUP:

Application:Street lighting
Roadway class:M3
Tarmac:R3
Optics:STRADA-2X2-LM1
LED:3535 High-Power
Road width:10. 5 m
Number of lanes:3
Arrangement:single side, bottom
Pole distance:50 m
Mounting height:12 m
Overhang:-1 m
Boom angle:
Boom lenght:1 m
Pole distance from roadway:2 m
Maintenance factor:0.67
Total lumen output/luminaire:34 000 lm
Power consumption/km:3600 W
Energy consumption/year:720 kWh

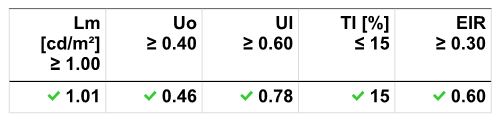

RESULTS (M3 class):

FIND THE PRODUCTS

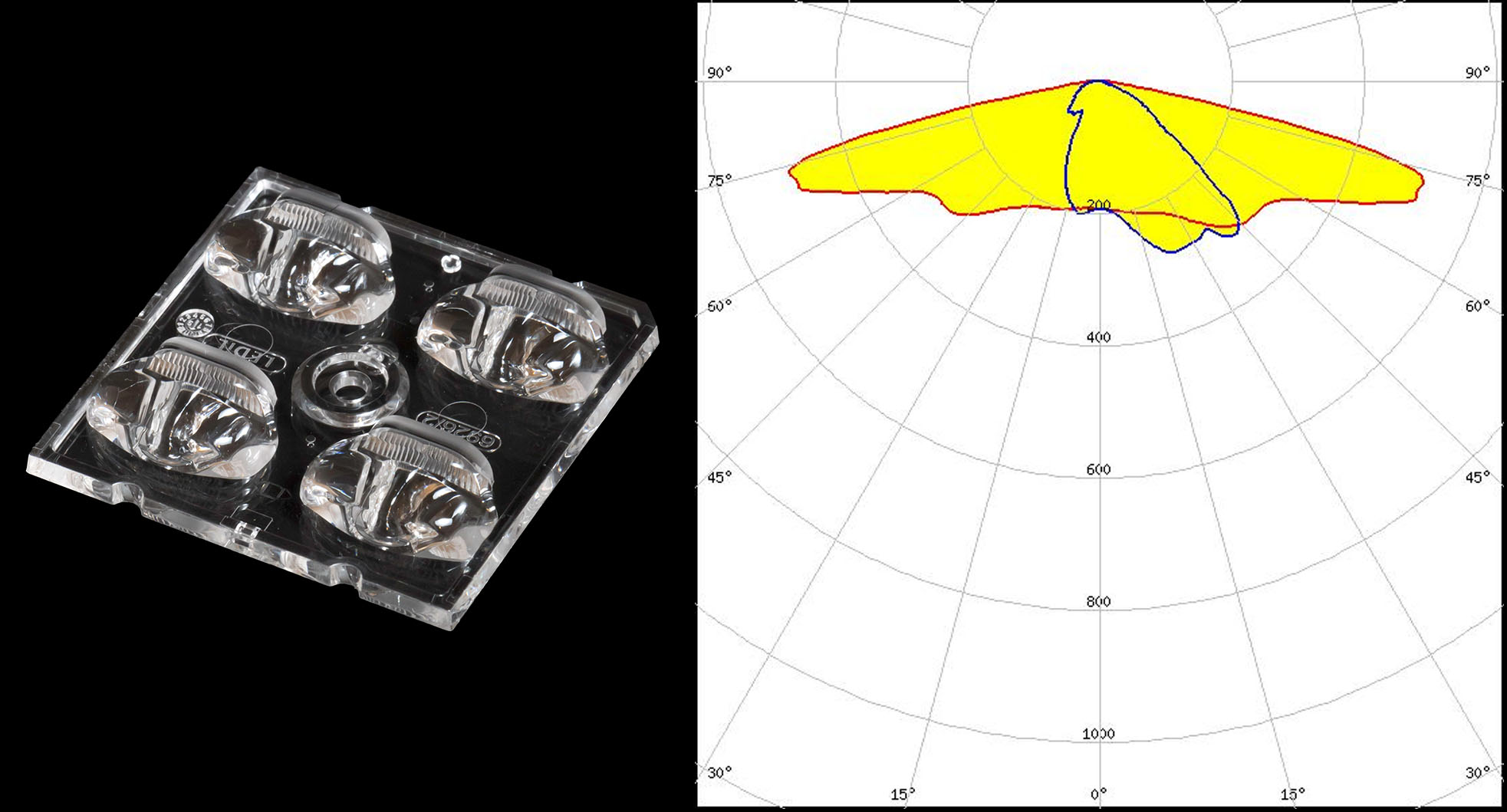

C16926_STRADA-2X2-LM1
