APPLICATION EXAMPLE

M3 and C3 Street lighting with STRADA-2X2-5050-DWC


For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

SETUP:

Application:Street lighting
Roadway class:M3 and C3
Tarmac:R3

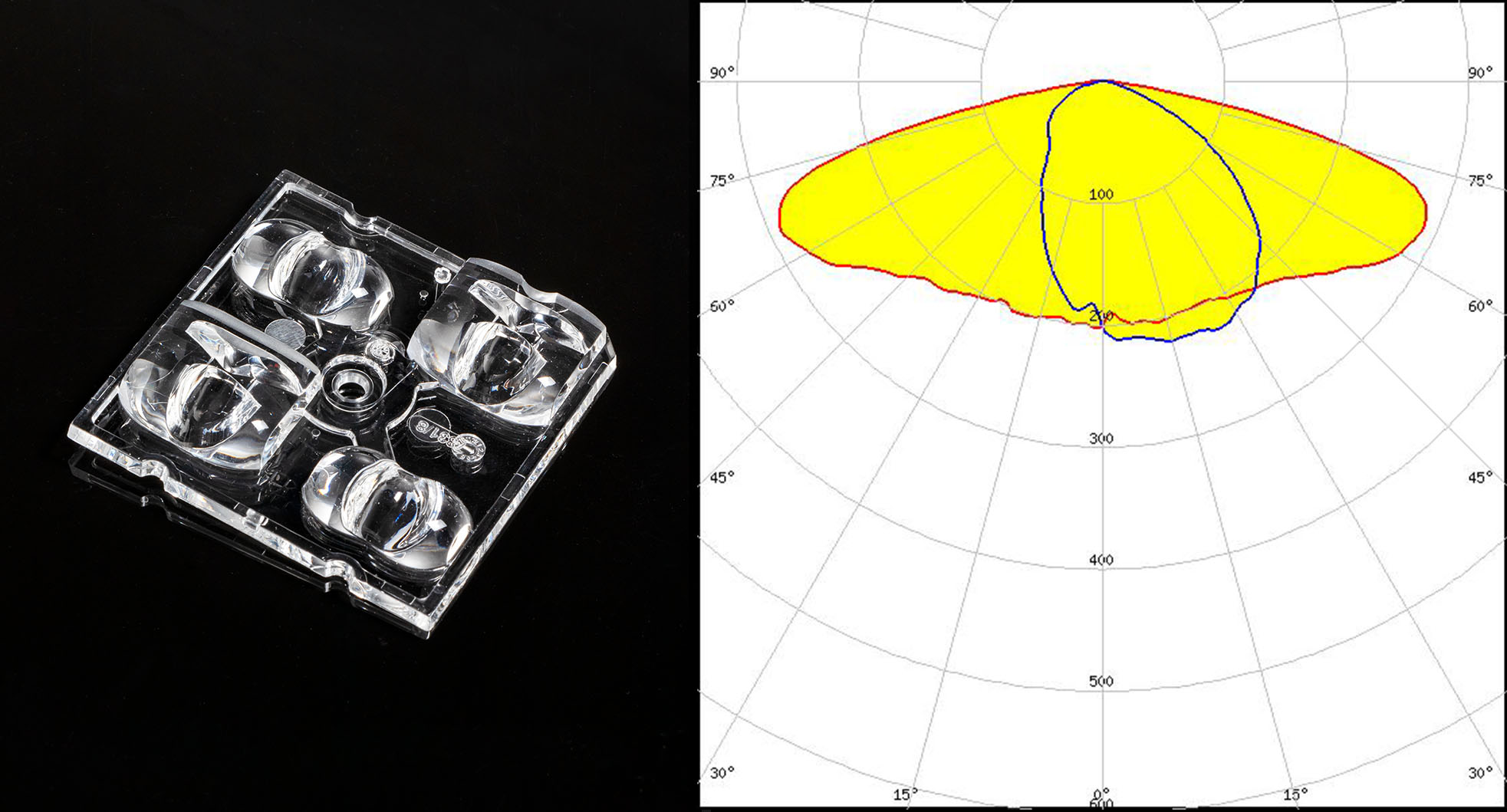

Optics:STRADA-2X2-5050-DWC
LED:Flat 5050
Road width:7 m
Number of lanes:2
Arrangement:single side, bottom
Pole distance:38 m
Mounting height:8 m
Overhang:0 m
Boom angle:
Boom lenght:0 m
Pole distance from roadway:0 m
Maintenance factor:0.8
Total lumen output/luminaire:12 000 lm (M3) / 16 000 lm (C3)
Power consumption/km:2450 W (M3) / 3250 W (C3)
Energy consumption/year:376 kWh (M3) / 500 kWh (C3)

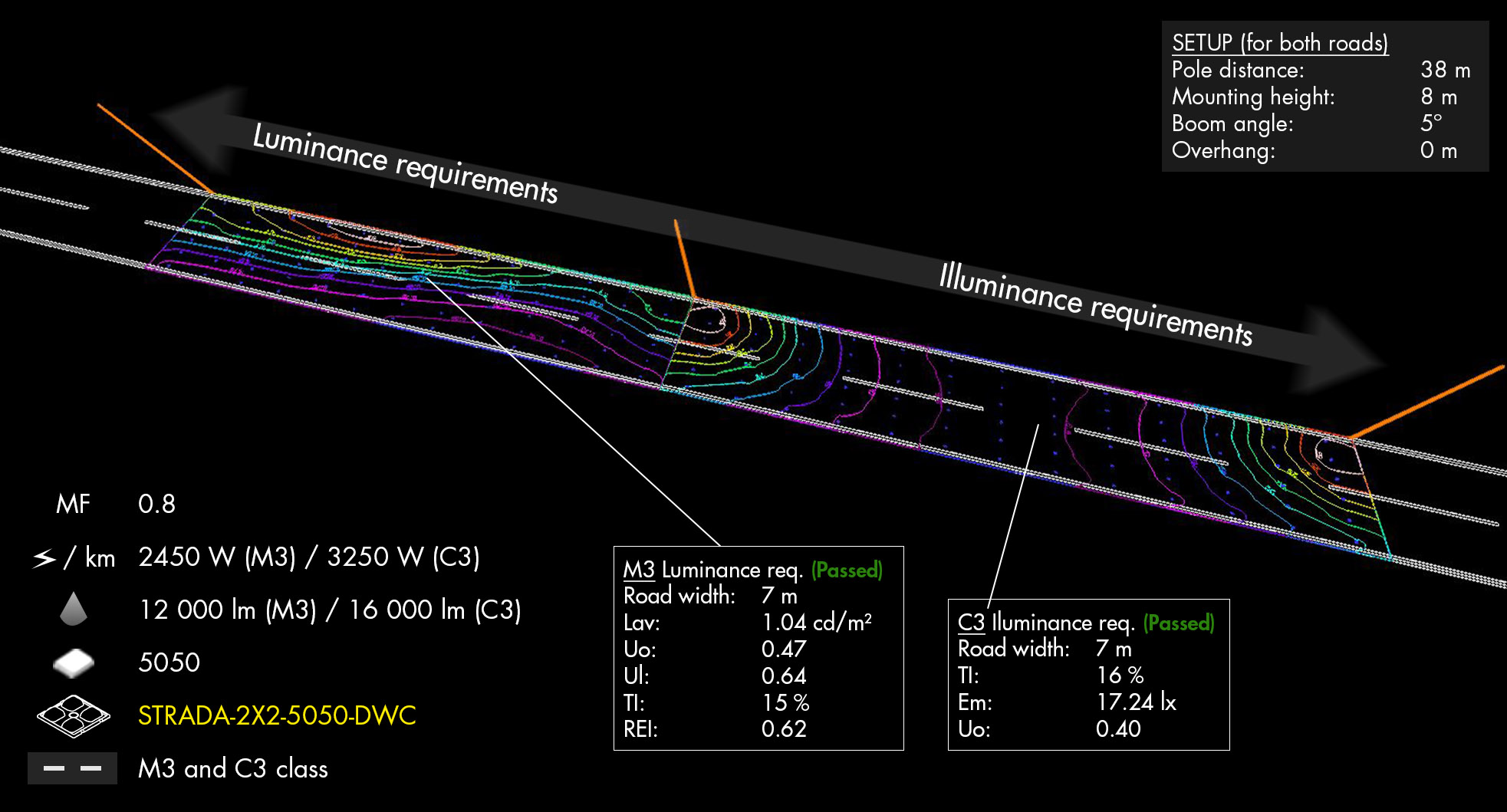

RESULTS:

M3 Luminance requirements(Passed)
Lav:1.04 cd/lm2
Uo:0.47
Ul:0.64
TI:15 %
REI:0.62
C3 Illuminance requirements(Passed)
TI:16 %
Em:17.24 lx
Uo:0.40

M3 and C3 Street lighting with STRADA-2X2-5050-DWC


For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
