LUMINAIRE EXAMPLE

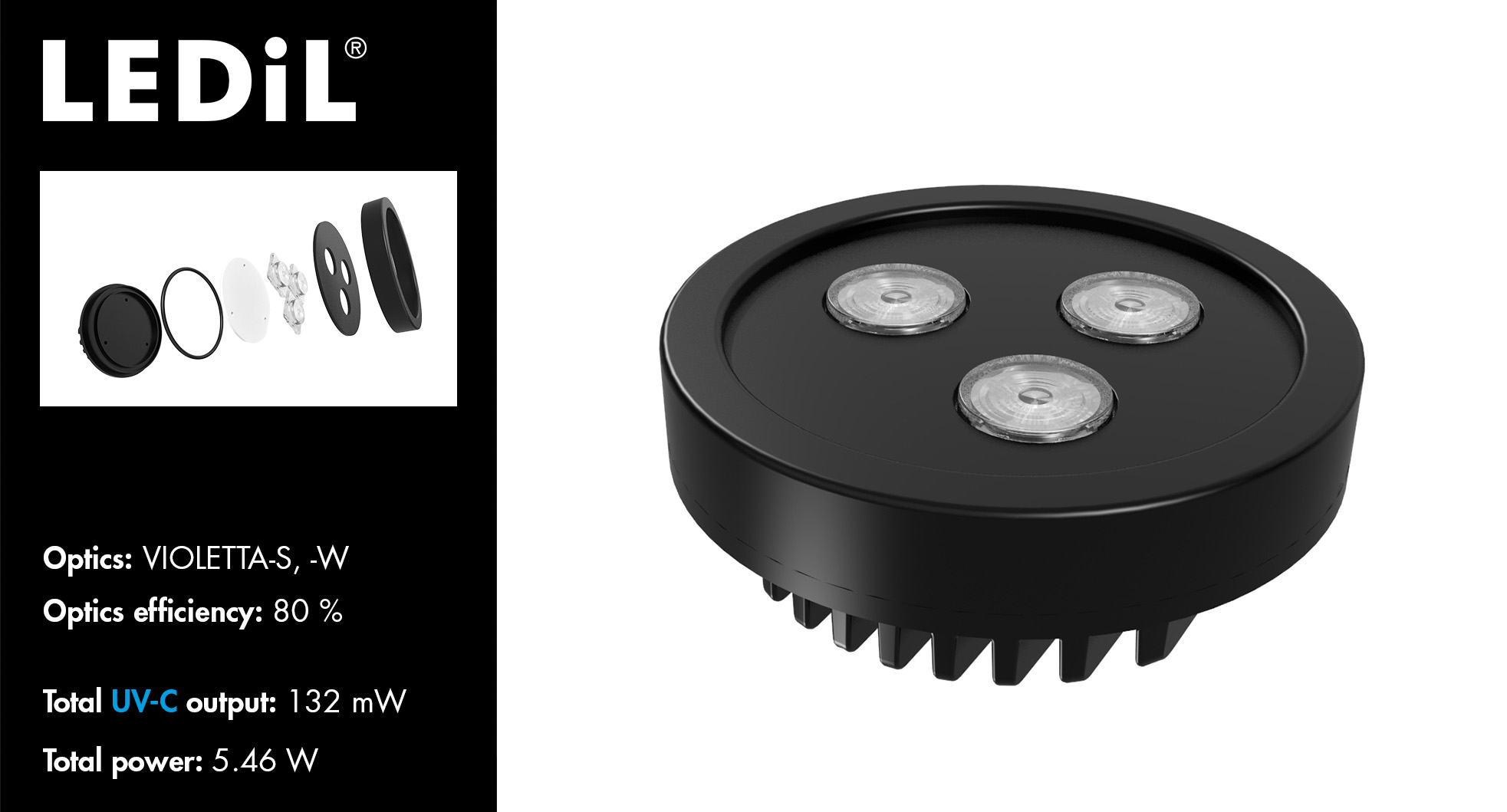

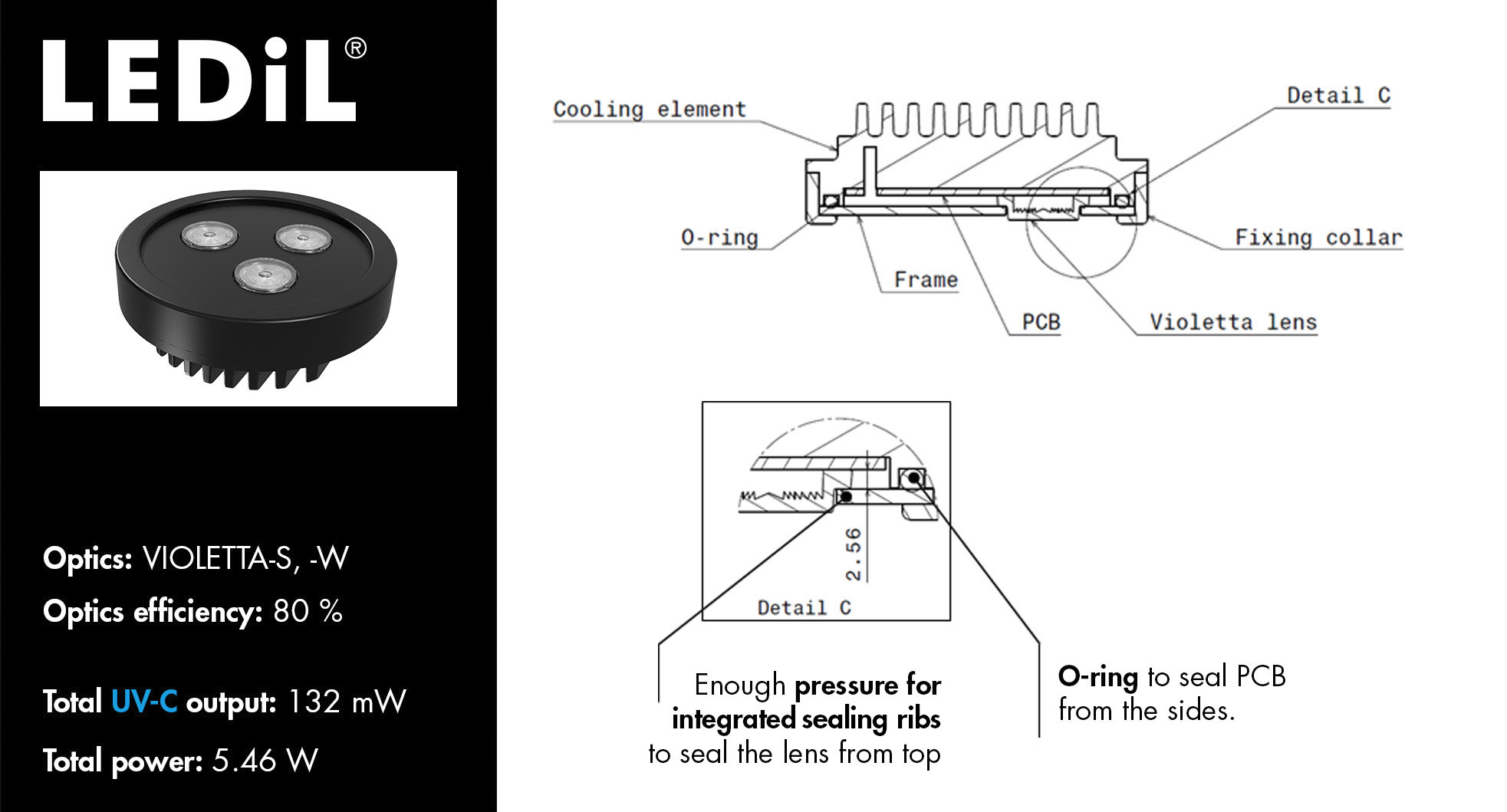

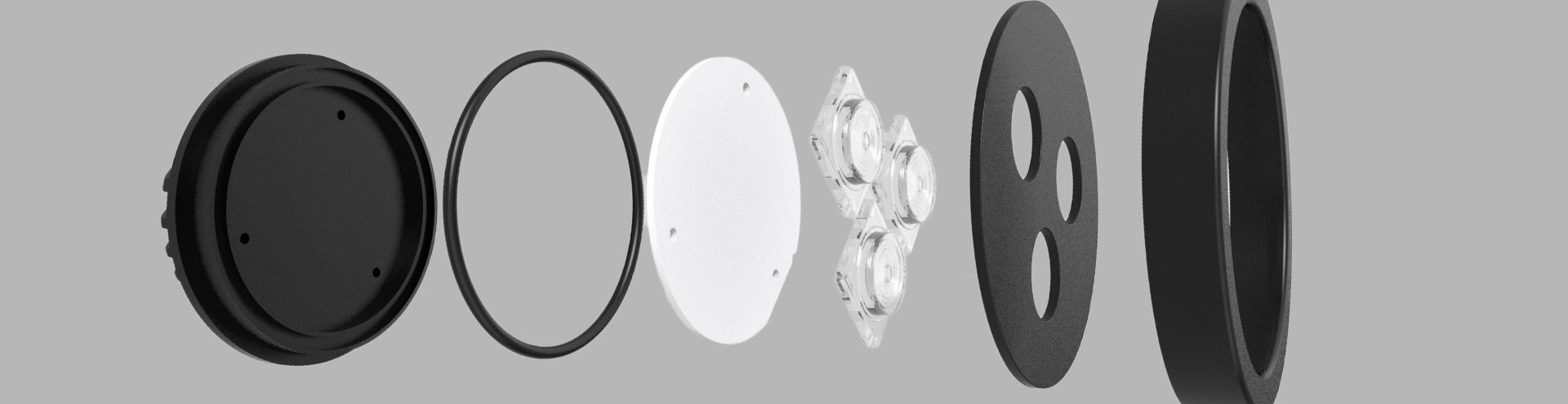

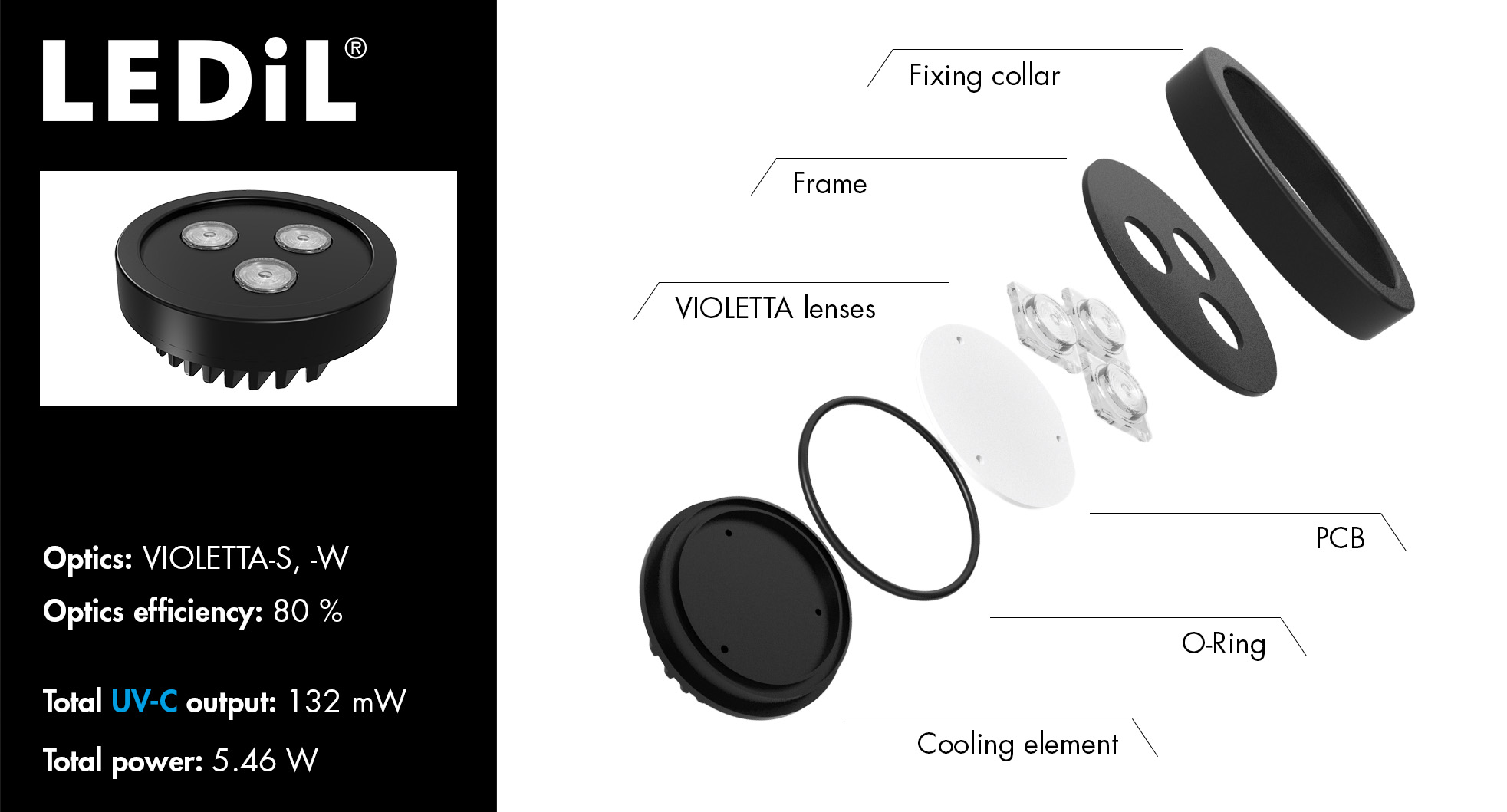

Luminaire example with VIOLETTA


For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

Read more about VIOLETTA optics or contact us for more information.

SPECIFICATION

Optics:VIOLETTA-S, -W
Optics efficiency:80 %
Total UV-C output:132 mW
Total power:5.46 W
FIND THE PRODUCTS
VIOLETTA-S
VIOLETTA-W

Luminaire example with VIOLETTA


For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

The information contained herein is the property of LEDiL Oy, Joensuunkatu 13, FI-24100 SALO, Finland and is subject to change without notice. Please visit lediloptics.cn for additional information, such as the latest photometric files, 3D mechanical models, and application notes relating to handling, gluing and taping.
